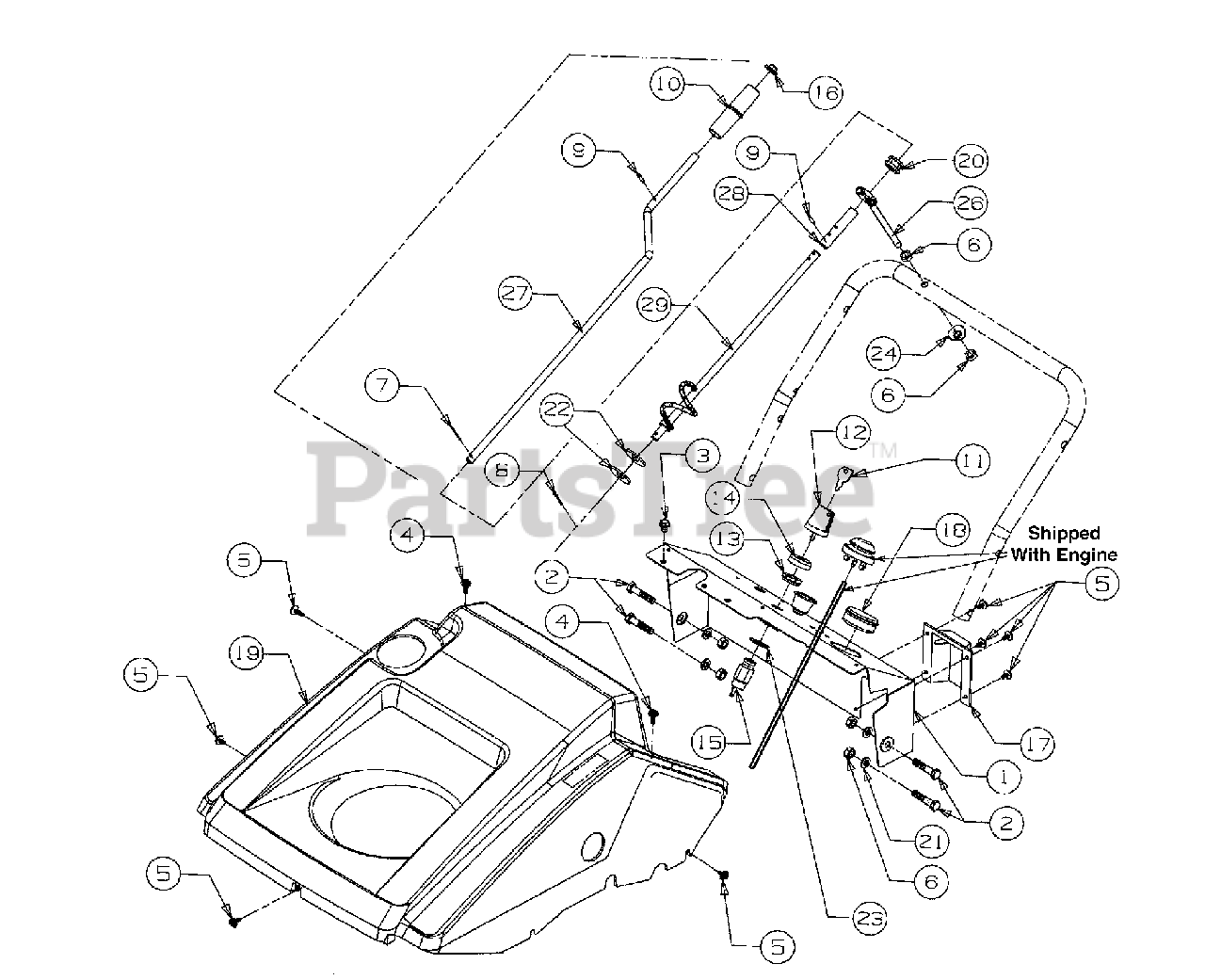

31AE151-120 - Yard Machines Snow Thrower (2000) (K-Mart) Chute Crank & Dash Parts Diagram

Snow Thrower

Chute Crank & Dash Parts Diagram

  • Title

1

MTD 784-5572

Dash

Variations

MTD 784-5572-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5572-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 784-5572-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 784-5572-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5572-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 784-5572-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5572-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 784-5572-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

2

MTD 710-0805

Hex Cap Screw
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

3

MTD 710-1005

Hex Washer Screw
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-1003

Hex Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

5

MTD 710-1268

Hex Screw

$3.99

$

In Stock, only 2 left!

0

6

MTD 712-3010

Hex Nut

$4.49

$

In Stock, Qty 20+

0

7

MTD 714-0104

Hairpin Clip

$3.99

$

In Stock, Qty 20+

0

8

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, only 4 left!

0

9

UNKNOWN

$

$

Not available

10

MTD 720-0201A

Knob

$10.99

$

In Stock, Qty 6

0

11

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 12

0

12

MTD 725-1341B

Ignition Key with Logo

$9.99

$

In Stock, only 2 left!

0

13

MTD 725-1346

Nut, Ignition Switch
(Superseded to 925-1346)

$

$

Not available

14

MTD 725-1347

Cover, Ignition Switch

$4.49

$

In Stock, only 4 left!

0

15

MTD 725-1425

Switch-Key
(Superseded to 925-1425)

$33.99

$

Usually ships in 3-6 days

0

16

MTD 726-0100

Push Cap

$3.99

$

In Stock, Qty 7

0

17

MTD 731-1089A

Choke Cover

$

$

Not available

18

MTD 731-1133B

Plug-Insert
(Superseded to 731-1133C)

$

$

Not available

19

MTD 731-1765

Shroud, Black

$

$

Not available

20

MTD 735-0234

Grommet, Rubber

$4.99

$

In Stock, only 3 left!

0

21

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

22

UNKNOWN

$

$

Not available

23

MTD 736-0225

Internal Lock Washer

$3.99

$

In Stock, Qty 11

0

24

MTD 736-0451

Saddle Washer

$3.99

$

In Stock, only 2 left!

0

26

MTD 747-0697

Eyebolt, Chute Crank

$7.99

$

In Stock, only 1 left!

0

27

MTD 747-0737

Chute Crank, Upper
(Superseded to 747-0737-0637)

Variations

MTD 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

28

MTD 750-0785

Spacer
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0

29

MTD 684-0126

Chute Crank, Lower
(Superseded to 684-0126-0637)

Variations

MTD 684-0126-0637

CRANK-CHUTE LOWER - POWDER BLACK (0637)

$

$

Not available

$

$
