31AE172-022 - Lawn Chief 21" Snow Thrower (2001) (Cotter & Company) Upper Handle Parts Diagram

21" Snow Thrower

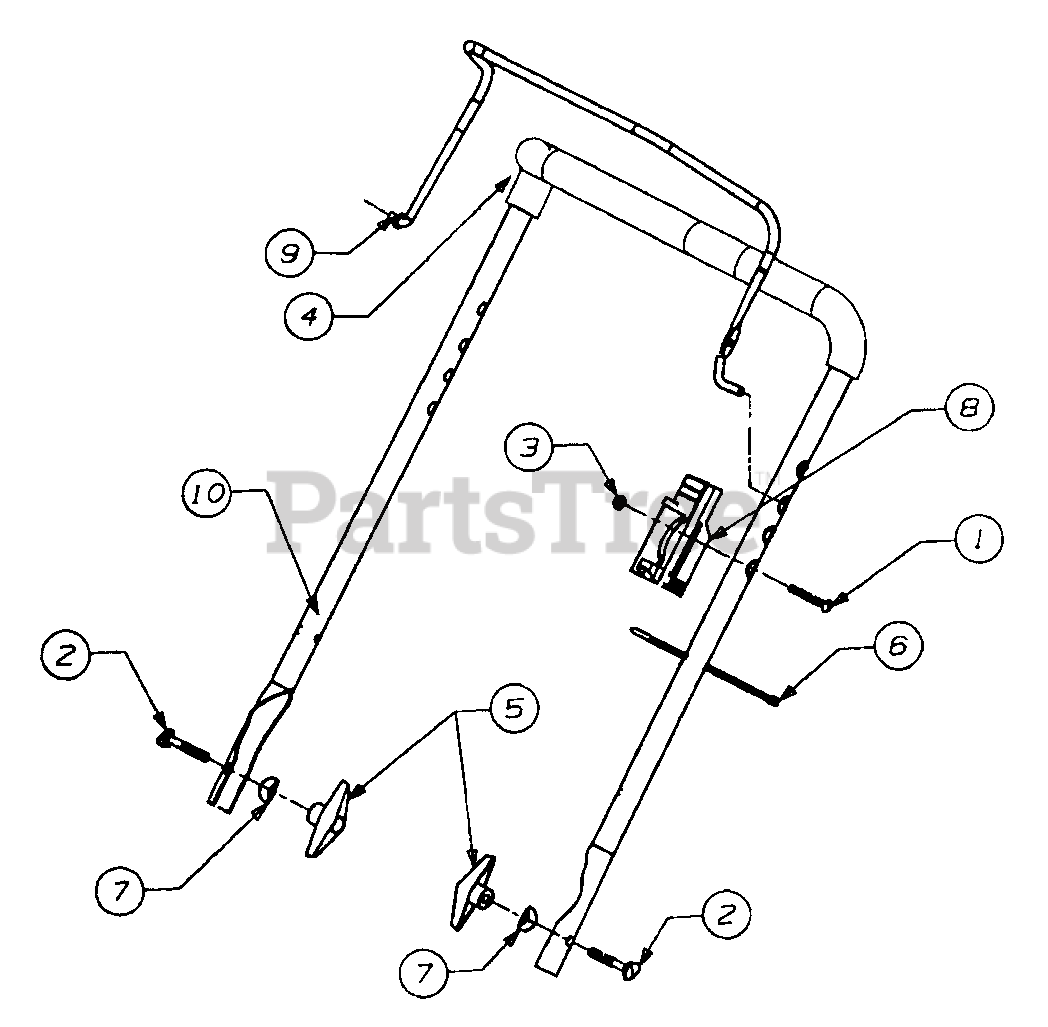

Upper Handle Parts Diagram

  • Title

1

MTD 710-1270

Oval C-Sunk Screw

$

$

Not available

2

MTD 710-0487

Carriage Bolt

$7.49

$

Usually ships in 3-6 days

0

3

MTD 712-0324

Lock Nut

$3.99

$

In Stock, only 3 left!

0

4

MTD 720-0295

Foam Grip

$35.99

$

Usually ships in 3-6 days

0

5

MTD 720-0284

Handle Knob

$7.49

$

In Stock, Qty 14

0

6

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

7

MTD 736-0451

Saddle Washer

$4.99

$

In Stock, Qty 8

0

8

MTD 746-0883

Control Lever

$17.99

$

In Stock, Qty 7

0

9

MTD 747-0956

Control Handle Assembly

Variations

747-0956-0637

MTD 747-0956-0637

Auger Drive Bail, 2 Holes - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

747-0956-0638

MTD 747-0956-0638

Auger Drive Bail, 2 Holes - MTD/TROY-BILT RED (0638)

$58.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

10

MTD 749-0711A

Upper Handle

Variations

749-0711A-0637

MTD 749-0711A-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

749-0711A-0638

MTD 749-0711A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$
