31AE553F401 - Yard-Man Snow Thrower (1999) Handle Assembly Parts Diagram

Snow Thrower

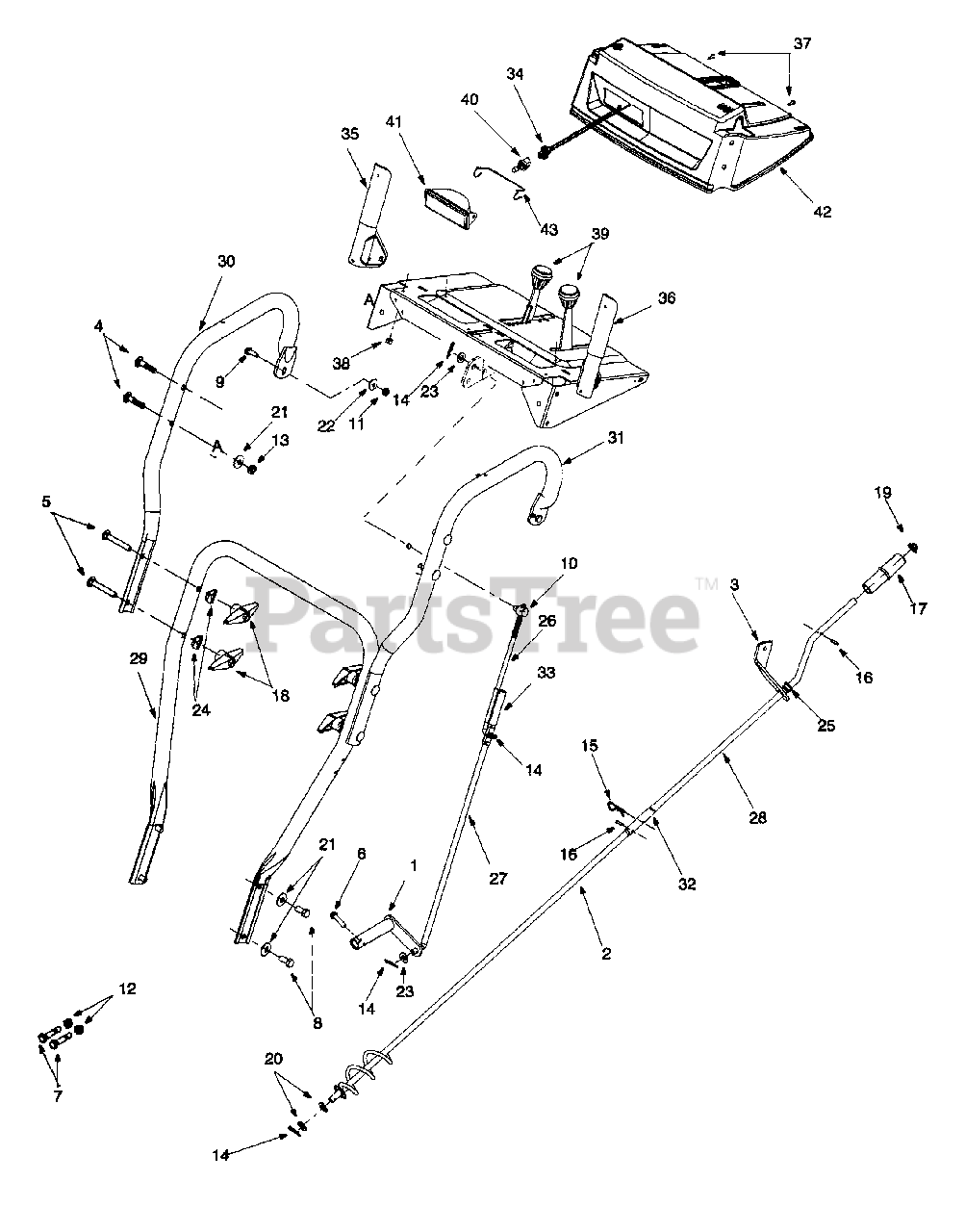

Handle Assembly Parts Diagram

  • Title

1

MTD 684-0008A

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

MTD 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

2

MTD 684-0053

Chute Crank Assembly
(Superseded to 684-0053B-0637)

Variations

MTD 684-0053-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 705-5266

Chute Crank Bracket
(Superseded to 705-5266-0637)

Variations

MTD 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

4

MTD 710-0262

Carr. Bolt 5/16-18 x 1.5

$4.49

$

In Stock, Qty 5

0

5

MTD 710-0449

Carr. Screw 5/16-18 x 2.25 Gr.5
(Superseded to 710-0572)

$4.99

$

In Stock, Qty 8

0

6

MTD 710-0788

Hex Washer Screw 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

7

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0

8

MTD 710-3008

Hex Bolt 5/16-18 x 0.75 Gr.5

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-3015

Hex Bolt 1/4-20 x 0.75 Gr.5

$4.49

$

In Stock, Qty 20+

0

10

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$18.99

$

In Stock, only 3 left!

0

11

MTD 712-0287

Hex Nut: 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

12

MTD 712-0429

Hex Lock Nut

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-3010

Hex Nut: 5/16-18

$4.99

$

In Stock, Qty 20+

0

14

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 17

0

15

MTD 714-0145

Click Pin

$5.49

$

In Stock, Qty 20+

0

16

MTD 715-0138

Roll Pin
(Superseded to 915-0138)

$5.49

$

In Stock, only 2 left!

0

17

MTD 720-0201A

Chute Crank Knob

$11.99

$

In Stock, only 2 left!

0

18

MTD 720-0284

Wing Nut

$7.49

$

In Stock, Qty 20+

0

19

MTD 726-0100

Push Cap

$4.99

$

In Stock, only 1 left!

0

20

MTD 736-0185

Flat Washer

$4.49

$

In Stock, Qty 7

0

21

MTD 736-0242

Belleville Washer

$4.99

$

In Stock, Qty 20+

0

22

MTD 736-0270

Bell Washer

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0275

Flat Washer

$7.49

$

Usually ships in 3-6 days

0

24

MTD 736-0451

Saddle Washer

$4.99

$

In Stock, Qty 10

0

25

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

26

MTD 747-0620A

Shift Rod: Upper

$11.99

$

In Stock, only 3 left!

0

27

MTD 747-0621

Shift Rod: Lower

$

$

Not available

28

MTD 747-0737

Chute Crank: Upper
(Superseded to 747-0737-0637)

Variations

MTD 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

29

MTD 749-0951

Lower Handle
(Superseded to 749-0951A)

Variations

MTD 749-0951-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

MTD 749-0951-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

30

MTD 749-0954

Handle: C Style RH

Variations

MTD 749-0954-0637

Handle: C Style RH - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 749-0955

Handle: C Style LH
(Superseded to 749-0955-0637)

Variations

MTD 749-0955-0637

HANDLE-LH C STYLE - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 750-0785

Spacer
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0

33

MTD 750-0963

Clutch Rod Connector
(Superseded to 950-0963)

$36.99

$

In Stock, only 3 left!

0

34

MTD 629-0059

Harness, Halogen Light
(Superseded to 929-0059)

$106.99

$

Usually ships in 3-6 days

0

35

MTD 684-0036

Handle Engagement Assembly: RH Black
(Superseded to 684-0036A)

$47.99

$

Usually ships in 3-6 days

0

36

MTD 684-0037

Handle Engagement Assembly: LH Black
(Superseded to 684-0037B)

$38.99

$

In Stock, only 1 left!

0

37

MTD 710-1003

Hex washer Hd. Sp. screw
(Superseded to 710-04669)

$3.99

$

In Stock, Qty 20+

0

38

MTD 712-0271

Hex Sems Nut

$4.99

$

In Stock, Qty 17

0

39

MTD 720-0232

Shift Knob
(Superseded to 920-0232)

$11.99

$

In Stock, Qty 7

0

40

MTD 725-1658

Halogen Lamp
(Superseded to 925-1658)

$63.99

$

In Stock, only 4 left!

0

41

MTD 725-1672

Lamp Housing
(Superseded to 925-1672)

$94.99

$

Usually ships in 3-6 days

0

42

MTD 731-1545A

Handle Panel: yellow w/Tilt, Light
(Superseded to 731-1545B)

$

$

Not available

43

MTD 747-1136

Halogen Retainer: Handle

$12.99

$

Usually ships in 3-6 days

0
