31AE573H401 - Yard-Man Snow Thrower (1999) Chute And Control Parts Diagram

Snow Thrower

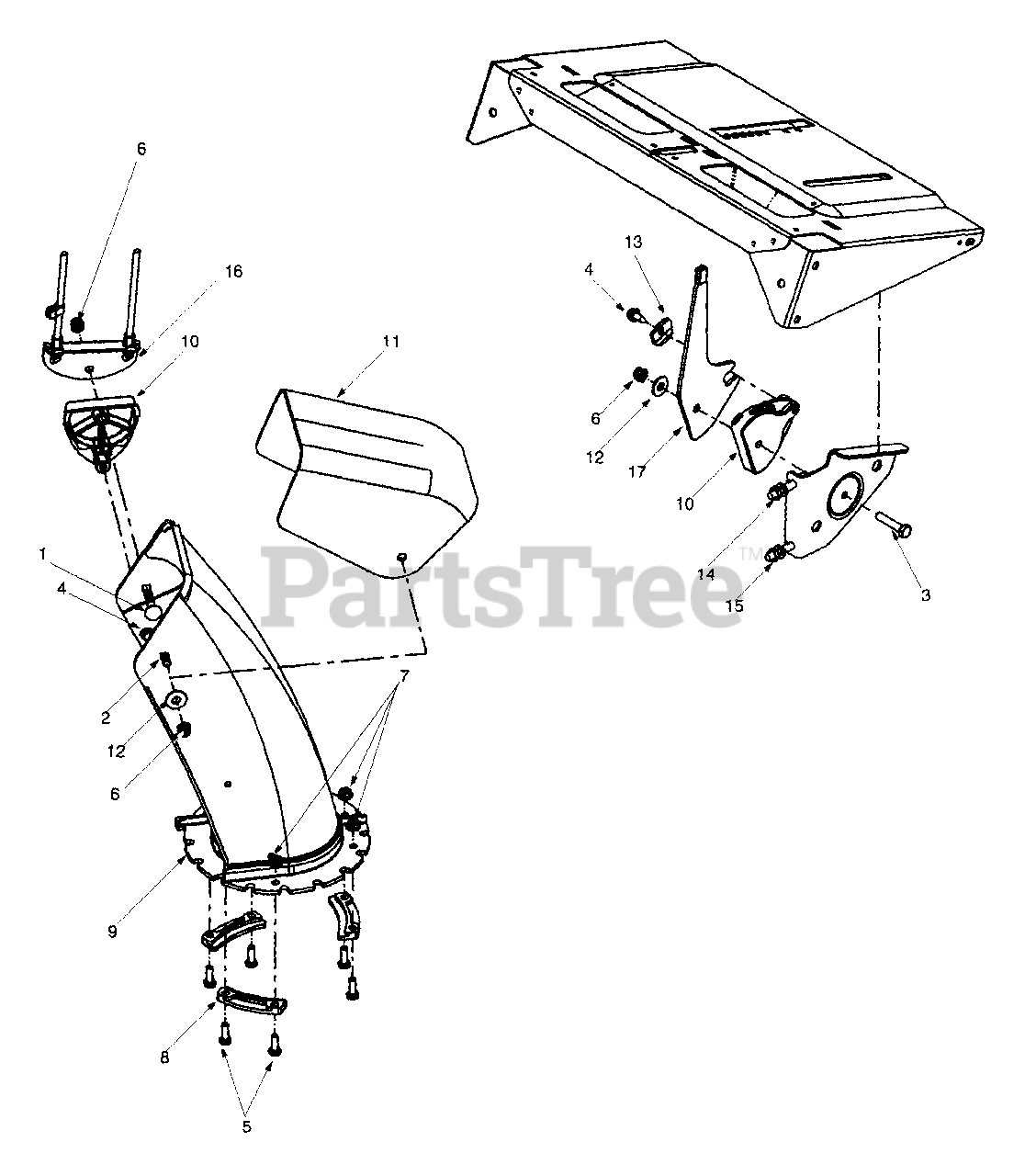

Chute And Control Parts Diagram

  • Title

1

MTD 710-0262

Carriage Bolt: 5/16-18 x 1.5"

$4.49

$

In Stock, only 1 left!

0

2

MTD 710-0451

Carriage Bolt: 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0805

Hex Bolt: 5/16-18 x 1.5 Gr. 5
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 7

0

4

MTD 710-0896

Hex Washer Head AB Screw: 1/4-14 x 0.625"

$4.49

$

In Stock, Qty 18

0

5

MTD 710-3015

Hex Bolt: 1/4-20 x 0.75"

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0429

Hex Lock Nut: 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-3027

Flange Lock Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 19

0

8

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 17

0

9

MTD 731-1300A

Lower Chute
(Superseded to 731-1300E)

$60.99

$

In Stock, Qty 5

0

10

MTD 731-1313B

Chute Tilt Cable Guide
(Superseded to 731-1313C)

$12.99

$

In Stock, Qty 20+

0

11

MTD 731-1320

Upper Chute
(Superseded to 731-04427B)

$17.99

$

In Stock, Qty 5

0

12

MTD 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0506

Special Washer
(Superseded to 736-0506A)

$

$

Not available

14

MTD 746-0896

Control Cable: Chute Deflector
(Superseded to 946-0896)

$60.99

$

Usually ships in 3-6 days

0

15

MTD 746-0901

Chute Deflector Cable w/Clip
(Superseded to 946-0901)

$67.99

$

Usually ships in 3-6 days

0

16

MTD 784-5594

Cable Bracket

Variations

784-5594-0498

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$12.99

$

In Stock, only 2 left!

0

784-5594-0637

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$12.99

$

In Stock, only 2 left!

0

784-5594-0716

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$12.99

$

In Stock, only 2 left!

0

$11.99

$

Usually ships in 3-6 days

0

17

MTD 784-5604

Chute tilt Handle
(Superseded to 784-5604A-0637)

Variations

784-5604-0637

MTD 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0
