31AE5KLF801 - Yard-Man Snow Thrower (2005-2) Chute Control Assembly Parts Diagram

Snow Thrower

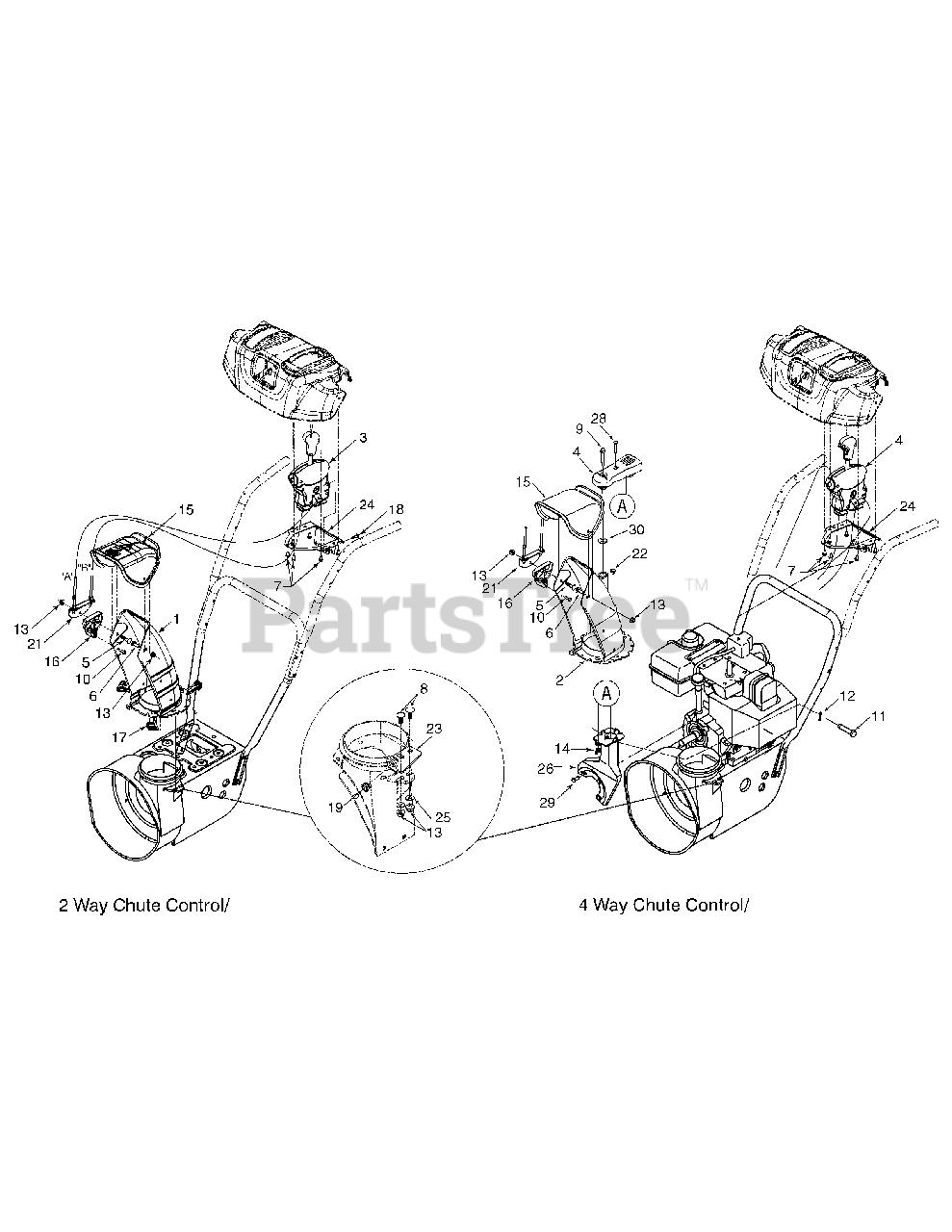

Chute Control Assembly Parts Diagram

  • Title

1

MTD 731-04131A

Lower Chute (2 Way)

$

$

Currently unavailable

2

MTD 731-04861A

Lower Chute (4 Way)
(Superseded to 731-04861B)

$43.99

$

In Stock, only 1 left!

0

3

MTD 984-04117A

2 Way Chute Control Assembly

$138.99

$

Usually ships in 3-6 days

0

4

MTD 753-08388

4 Way Chute Control Assembly Service Kit
(Superseded to 753-08388A)

Note: (Also order 684-04310A-0637 support bracket in this application) (Replaces 684-04116B 4 Way Chute Control)

$304.99

$

Usually ships in 3-6 days

0

5

MTD 710-0262

Carriage Bolt 5/16-18 x 1.50 Gr. 2

$3.99

$

In Stock, Qty 13

0

6

MTD 710-04071

Carriage Screw 5/16-18 x 1.0

$4.49

$

In Stock, Qty 16

0

7

MTD 710-04187

Hi-Lo Screw 1/4-15 x .5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 10

0

8

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg

$4.49

$

In Stock, Qty 20+

0

9

MTD 738-04194

Shoulder Screw .312 x 1.7:1/4-20

$6.49

$

In Stock, only 2 left!

0

10

MTD 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$6.49

$

In Stock, Qty 20+

0

11

MTD 711-04469A

Clevis Pin 3/8 x 1.87

$5.99

$

In Stock, Qty 8

0

12

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

13

MTD 712-04063

Flange Locknut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-03087

Wing Nut 1/4-20

$

$

Currently unavailable

15

MTD 731-04425A

Upper Chute w/Export Label, Remote
(Superseded to 931-04425B)

$22.99

$

Usually ships in 3-6 days

0

16

MTD 731-1313C

Cable Guide

$11.99

$

Usually ships in 3-6 days

0

17

MTD 731-04869

Chute Flange Keeper
(Superseded to 731-04869A)

$4.49

$

In Stock, Qty 20+

0

18

MTD 738-04135

Shoulder Screw .25 x .50:10-24

$

$

Not available

19

MTD 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

20

MTD 749-04155

Chute Support Tube

Variations

MTD 749-04155-0606

No Longer Available - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 749-04155-0638

No Longer Available TUBE-CNTRL - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-04155-0662

No Longer Available TUBE-CNTRL - OYSTER GRAY (0662)

$

$

Not available

MTD 749-04155-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

21

MTD 784-5594

Cable Bracket Chute Tilt

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

Usually ships in 3-6 days

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

22

MTD 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

23

MTD 784-5647

Chute Crank Brkt.
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 8

0

$14.99

$

In Stock, Qty 8

0

24

MTD 790-00131

Bracket: Chute Control
(Superseded to 790-00131A-0637)

Variations

Cub Cadet 790-00131A-0637

BRACKET-LOCK CONTR - POWDER BLACK

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

25

MTD 736-0159

Flat Washer .349 ID x .879 OD x .063

$4.49

$

In Stock, Qty 20+

0

26

MTD 684-04162B-0637

Support Bracket

Note: (use with 684-04116B 4 Way Chute Control Assembly)

$

$

Not available

26

MTD 684-04310A-0637

Support Bracket
(Superseded to 684-04310B-0637)

Note: (use with 753-08388 4 Way Chute Control Assembly Service Kit)

$40.99

$

Usually ships in 3-6 days

0

27

MTD 710-04187

Hi-Lo Screw 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 10

0

28

MTD 710-0606

Hex Hd. Cap Screw 1/4-20 x 1.5 Gr. 5

$5.49

$

In Stock, Qty 13

0

29

MTD 710-0627

Hex Hd. Cap Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0463

Flat Washer .25 ID x .63 OD x .0515

$4.49

$

In Stock, only 2 left!

0
