31AE633E401 - Yard-Man Snow Thrower (1998) Wheels Model No. E633E Parts Diagram

Snow Thrower

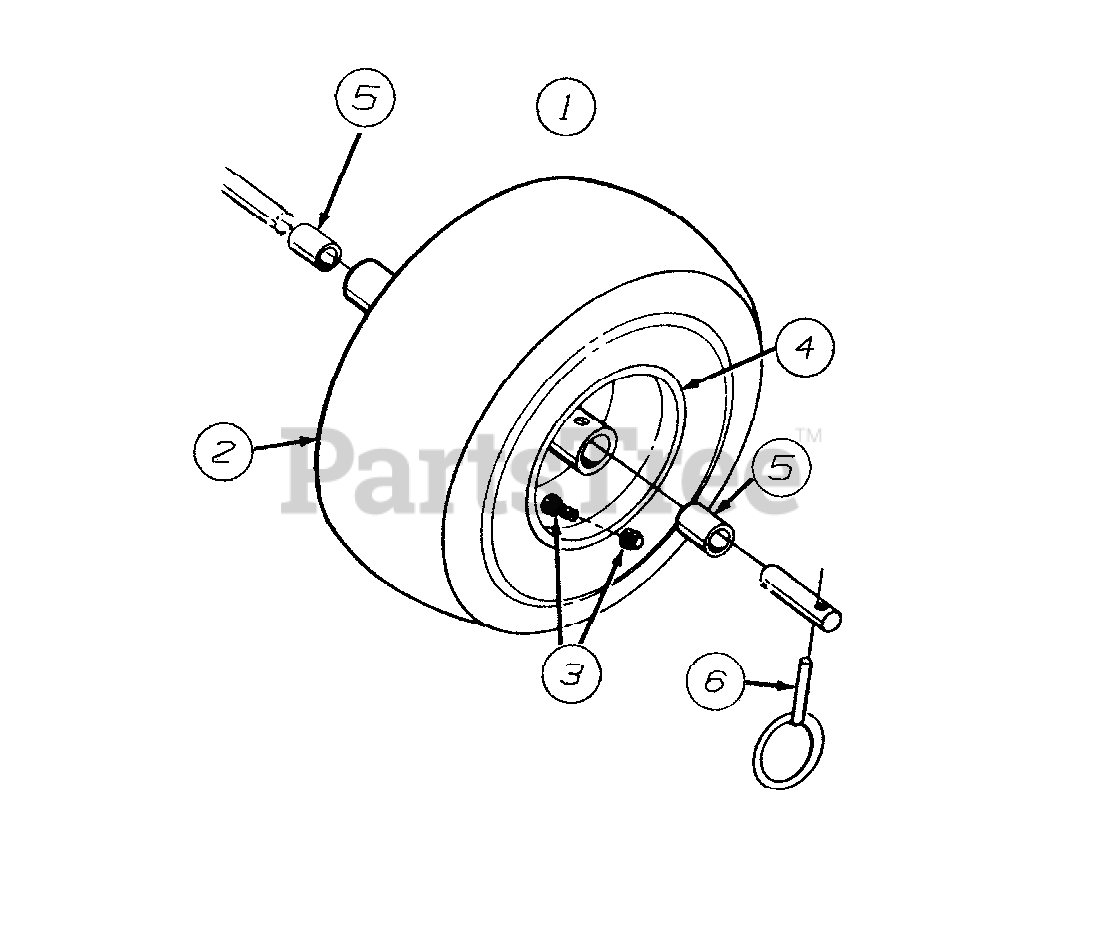

Wheels Model No. E633E Parts Diagram

  • Title

1

MTD 634-0140

Wheel Ass'y Complete 15 x 5

Variations

MTD 634-0140-0911

No Longer Available WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$

$

Not available

MTD 634-0140-0931

No Longer Available WHEEL ASM. - Carlisle Beige (0931)

$

$

Not available

MTD 634-0140-0941

No Longer Available WHEEL ASM. - Carlisle Yellow (0941)

$

$

Not available

$

$

2

MTD 734-1859

Tire Only 15 x 5
(Superseded to 734-1859-0901)

Variations

MTD 734-1859-0901

TIRE 15X5 - Carlisle (0901)

$111.99

$

Usually ships in 3-6 days

0

$111.99

$

Usually ships in 3-6 days

0

3

MTD 734-0255

Air Valve 15 x 5
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

4

MTD 734-1713

Rim Only 15 x 5

Variations

MTD 734-1713-0662

WHEEL RIM 6.0 X 3. - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1713-0499

No Longer Available WHEEL RIM - CUB BEIGE (0499)

$

$

Not available

MTD 734-1713-0674

No Longer Available RIM - YARDMAN YELLOW (0674)

$

$

Not available

MTD 734-1713-0688

No Longer Available WHEEL RIM - SPRING GREEN (0688)

$

$

Not available

$

$

5

MTD 741-0401

Sleeve Bearings (2) 15 x 5
(Superseded to 941-0401)

$7.99

$

In Stock, Qty 6

0

6

MTD 714-0143

Klick Pin 15 x 5
(Superseded to 714-0143A)

$6.99

$

In Stock, only 1 left!

0
