31AE663G131 - Huskee Snow Thrower (2001) (Tractor Supply)

Snow Thrower

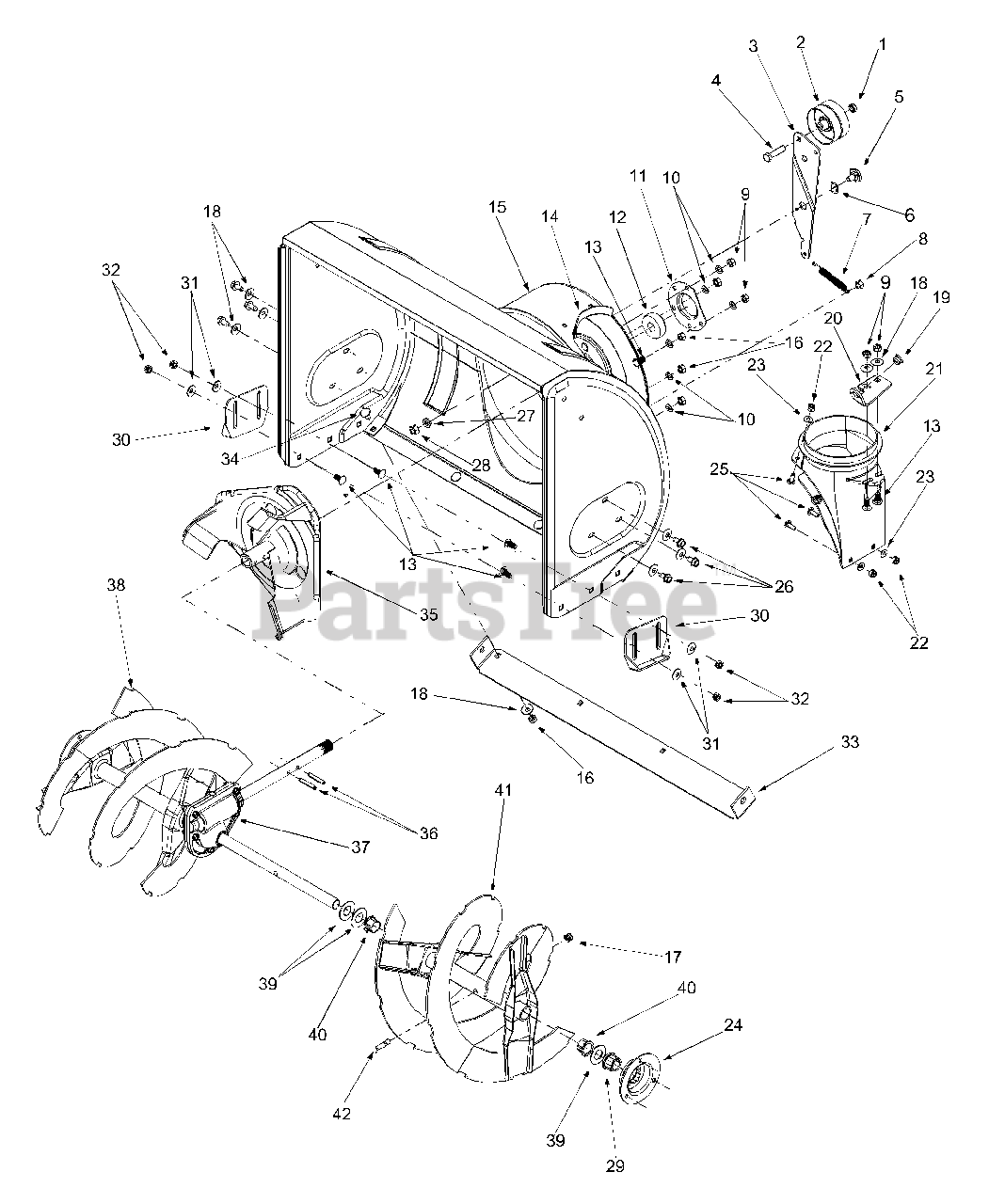

31AE663G131 - Huskee Snow Thrower (2001) (Tractor Supply) > Parts Diagrams (5) > Chute & Auger Assembly

  • Title
712-0116

1

Lock Jam Nut 3/8-24

Part# 712-0116 (Superseded to 912-0116)

OEM Warranty Repair Part for MTD

Not available

756-0178

2

Flat Idler

Part# 756-0178

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $13.08

784-5632A

3

Auger Idler Arm

Part# 784-5632A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

ARM ASSY-IDLER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $21.24

710-0459A

4

Hex Cap Screw 3/8-24 x 1.50

Part# 710-0459A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.76

738-0281

5

Shoulder Screw

Part# 738-0281 (Superseded to 938-0281)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.68

736-0174

6

Wave Washer

Part# 736-0174

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

732-0611

7

Extension Spring

Part# 732-0611 (Superseded to 932-0611)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.09

712-3068

8

Hex Nut 5/16-18

Part# 712-3068 (Superseded to 912-3009)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.44

712-3010

9

Hex Nut 5/16-18

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0119

10

Lock Washer 5/16

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

05931

11

Housing

Part# 05931 (Superseded to 05931A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.14

741-0309

12

Ball Bearing

Part# 741-0309 (Superseded to 941-0309)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $51.09

710-0451

13

Carriage Bolt 5/16-18 x .75

Part# 710-0451

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.76

705-5226

14

Chute Reinforcement

Part# 705-5226

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

REINFORCEMENT-CHUT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.94

MTD/TROY-BILT RED (0638)

REINFORCEMENT-CHUT

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.94

684-0041C

15

28" Housing Assembly

Part# 684-0041C

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

HOUSING ASM-28"

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

SILVER FLAKE (0629)

No Longer Available

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

No Longer Available

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

RED METALLIC (0650)

HOUSING ASM-28"

Part# RED METALLIC (0650)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

HOUSING ASM-28"

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

HOUSING ASM-28"

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

POLO GREEN (0689)

HOUSING ASM-28"

Part# POLO GREEN (0689)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $382.36

BLACK JACK (0691)

HOUSING ASM-28"

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $382.36

CUB YELLOW-99 (0716)

28" HOUSING ASSEMBLY (CUB YELLOW-99)

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $382.36

712-3010

16

Hex Nut 5/16-18

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

712-0429

17

Lock Nut 5/16-18

Part# 712-0429 (Superseded to 912-0429)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.65

736-0242

18

Bell Washer

Part# 736-0242

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

741-0475

19

Bushing

Part# 741-0475 (Superseded to 941-0475)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.82

784-5647

20

Chute Crank Bracket

Part# 784-5647

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-CHUTE CRAN

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $9.27

731-1379A

21

Chute Adapter

Part# 731-1379A (Superseded to 731-1379D)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $42.79

712-0324

22

Hex Lock Nut 1/4-20

Part# 712-0324

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.48

736-0463

23

Flat Washer

Part# 736-0463 (Superseded to 936-0463)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

784-5618

24

Bearing Housing

Part# 784-5618

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

HOUSING-BEARING

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.48

710-0703

25

Carriage Screw 1/4-20 x .75

Part# 710-0703

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.73

710-0604

26

Hex Washer Screw 5/16-18

Part# 710-0604 (Superseded to 710-0604A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

736-0169

27

Lock Washer 3/8

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.47

712-0798

28

Hex Nut 3/8-16

Part# 712-0798

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

741-0245

29

Hex Flange Bearing

Part# 741-0245 (Superseded to 941-0245)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.65

784-5580

30

Skid Shoe

Part# 784-5580

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

SHOE-SLIDE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.98

MTD/TROY-BILT RED (0638)

SHOE-SLIDE

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.98

OYSTER GRAY (0662)

SHOE-SLIDE

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.98

YARDMAN GREEN (0665)

SHOE-SLIDE

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.98

SPRING GREEN (0688)

SHOE-SLIDE

Part# SPRING GREEN (0688)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.98

BLACK JACK (0691)

SHOE-SLIDE

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.98

SEARS RED (0721)

SHOE:SKID

Part# SEARS RED (0721)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.98

STORM GRAY (0729)

SHOE:SKID

Part# STORM GRAY (0729)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.98

CRAFTSMAN METALLIC GRAY (4043)

SHOE:SKID

Part# CRAFTSMAN METALLIC GRAY (4043)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.98

CRAFTSMAN RED (4044)

SHOE:SKID

Part# CRAFTSMAN RED (4044)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.98

736-0242

31

Bell Washer

Part# 736-0242

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

712-3010

32

Hex Nut 5/16-18

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

784-5582A

33

27.66" Shave Plate

Part# 784-5582A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

PLATE-SHAVE 28"

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $26.77

710-0260

34

Carriage Bolt 5/16-18 x .62

Part# 710-0260 (Superseded to 710-0260A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

684-0065

35

Impeller Assembly

Part# 684-0065

OEM Warranty Repair Part for MTD

Variations

OYSTER GRAY (0662)

IMPELLER ASSY-12"

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $58.29

YARDMAN GREEN (0665)

IMPELLER ASSY-12"

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $58.29

715-0114

36

Pin

Part# 715-0114 (Superseded to 915-0114)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.37

618-0122

37

Gear Assembly

Part# 618-0122 (Superseded to 918-0416B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $362.89

605-5196A

38

Spiral RH

Part# 605-5196A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

SPIRAL ASM-RH 28"

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $145.36

736-0188

39

Flat Washer

Part# 736-0188

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

741-0493A

40

Flange Bushing

Part# 741-0493A (Superseded to 741-0493C)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.86

605-5197A

41

Spiral LH

Part# 605-5197A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

SPIRAL ASM-LH 28"

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $145.36

710-0890A

42

Shear Bolt 5/16-18 x 1.5

Part# 710-0890A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $1.16

736-0231

?43

Flat Washer, .344 x 1.12 x .87

Part# 736-0231 (Superseded to 936-0231)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.97
