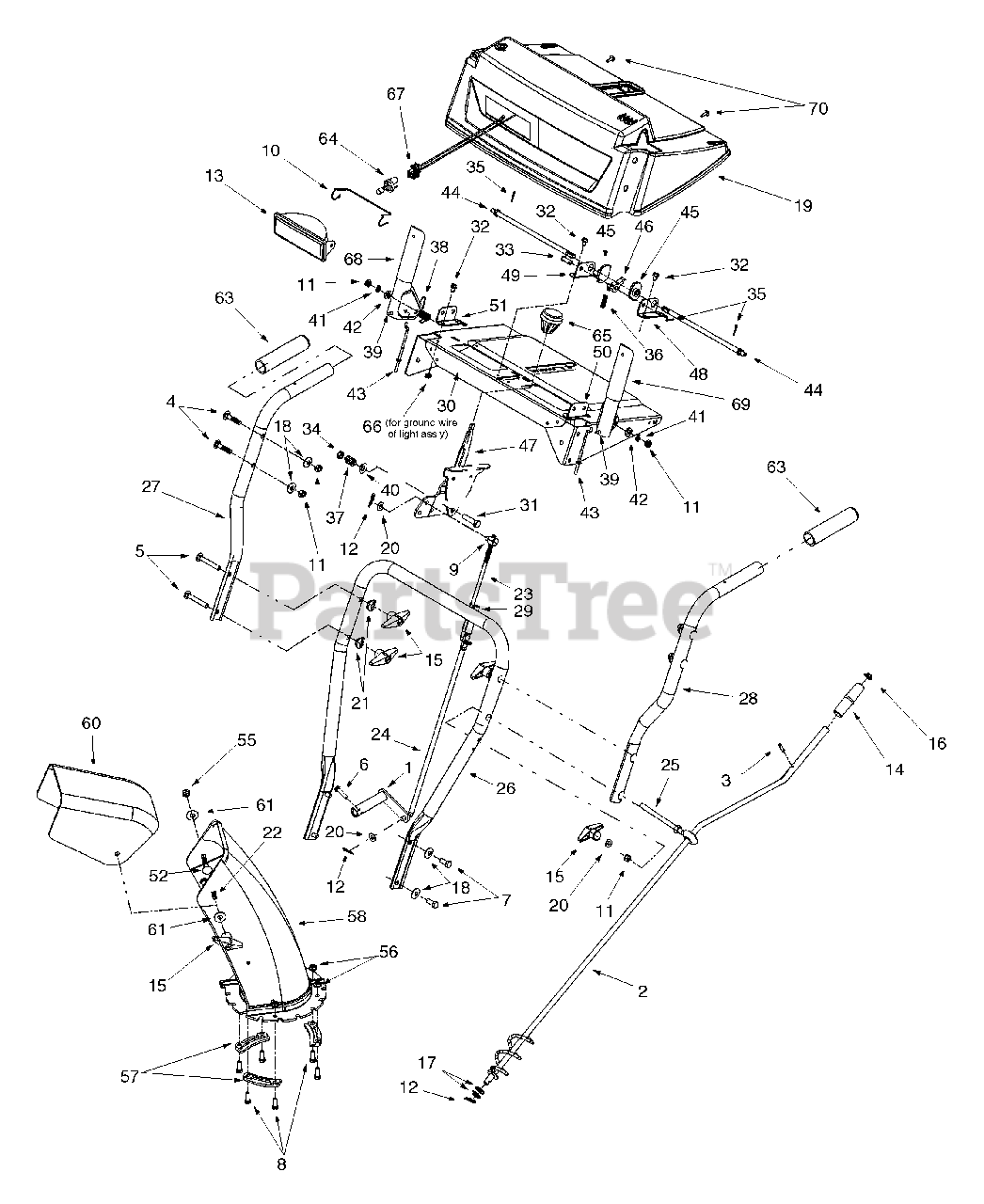

31AE663G131 - Huskee Snow Thrower (2001) (Tractor Supply) > Parts Diagrams (5) > Handle & Controls Assembly

  • Title
684-0008A

1

Shift Arm Assembly

Part# 684-0008A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

ARM ASM. SHIFT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $38.00

684-0022

2

Chute Crank Ass'y

Part# 684-0022 (Superseded to 984-0022)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $66.11

715-0138

3

Rolled Pin

Part# 715-0138 (Superseded to 915-0138)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.08

710-0262

4

Carriage Bolt, 5/16-18 x 1.5

Part# 710-0262

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.69

710-0449

5

Carriage Bolt, 5/16-18 x 2.25

Part# 710-0449 (Superseded to 710-0572)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

710-0788

6

Self Tapping Screw, 1/4-20 x 1

Part# 710-0788

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.60

710-3008

7

Hex Cap Screw, 5/16-18 x .75

Part# 710-3008

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

710-3015

8

Hex Cap Screw, 1/4-20 x .75

Part# 710-3015

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.68

711-0677

9

Ferrule, 5/16-18 x .312

Part# 711-0677 (Superseded to 911-0677)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $11.55

747-1136

10

Headlamp Retainer

Part# 747-1136

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.66

712-3010

11

Hex Nut, 5/16-18

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

714-0104

12

Internal Cotter Pin

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.85

725-1672

13

Lens Assembly / Lamp Housing

Part# 725-1672 (Superseded to 925-1672)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $58.13

720-0201A

14

Chute Crank Knob

Part# 720-0201A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.13

720-0284

15

Wing Knob, 5/16-18

Part# 720-0284 (Superseded to 920-0284)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.03

726-0100

16

Push Cap, 3/8

Part# 726-0100 (Superseded to 926-0100)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

736-0185

17

Flat Washer, .375 x .738 x .063

Part# 736-0185 (Superseded to 936-0185)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.55

736-0242

18

Bell Washer, .34 x .872

Part# 736-0242

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

731-1341A

19

Plastic Handle Panel (Red)

Part# 731-1341A

OEM Warranty Repair Part for MTD

Not available

736-0275

20

Flat Washer, .344 x .688 x .065

Part# 736-0275 (Superseded to 936-0275)

OEM Warranty Repair Part for MTD

Not available

736-0451

21

Saddle Washer, .32 x .93

Part# 736-0451 (Superseded to 936-0451)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

710-0276

22

Carriage Screw, 5/16-18 x 1

Part# 710-0276

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.71

747-0620A

23

Upper Shift Rod

Part# 747-0620A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.53

747-0621

24

Lower Shift Rod

Part# 747-0621

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $28.74

747-0697

25

Eyebolt

Part# 747-0697

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.27

735-0234

Eyebolt Grommet

Part# 735-0234

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.34

749-0951

26

Lower Handle

Part# 749-0951

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

HANDLE-LOWER SNOW

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $53.73

MTD/TROY-BILT RED (0638)

HANDLE-LOWER SNOW

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $53.73

749-0952

27

RH Handle (Upper)

Part# 749-0952

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

HANDLE-UPPER-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

749-0953

28

LH Handle (Upper)

Part# 749-0953 (Superseded to 749-0953A)

OEM Warranty Repair Part for MTD

Not available

750-0963

29

Shift Rod Connector

Part# 750-0963 (Superseded to 950-0963)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $22.60

684-0103

30

Handle Panel Assembly

Part# 684-0103

OEM Warranty Repair Part for MTD

Variations

OLD CUB YELLOW (0498)

No Longer Available

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

SILVER FLAKE (0629)

No Longer Available PANELASM:

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for MTD

Not available

POWDER BLACK (0637)

PANEL ASM:HANDLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

PANEL ASM:HANDLE

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

No Longer Available

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

No Longer Available

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

710-0459A

31

Hex Cap Screw, 3/8-24 x 1.5

Part# 710-0459A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.76

710-0599

32

Self Tapping Screw, 1/4-20 x .5

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

711-0653

33

Clevis Pin

Part# 711-0653

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.50

712-0116

34

Jam Nut, 3/8-24

Part# 712-0116 (Superseded to 912-0116)

OEM Warranty Repair Part for MTD

Not available

714-0507

35

Cotter Pin, 3/32 x .75

Part# 714-0507 (Superseded to 914-0507)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

732-0145

36

Compression Spring, .36 x 1.0

Part# 732-0145

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

732-0193

37

Comp. Spring, .39 x .6 x .88

Part# 732-0193

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.07

732-0746

38

Torsion Spring, .44 x .8

Part# 732-0746

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.97

735-0199A

39

Rubber Bumper

Part# 735-0199A (Superseded to 935-0199A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.11

736-0105

40

Bell Washer, .401 x .87 x .063

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

736-0119

41

Lock Washer, 5/16

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0509

42

Special Washer, .35 x .72 x .13

Part# 736-0509

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.50

746-0778

43

"Z" Fittings For Control Cables

Part# 746-0778 (Superseded to 946-0778)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.77

747-0877

44

Cam Rod

Part# 747-0877

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $14.79

748-0362

45

Cam Handle Lock

Part# 748-0362

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.39

748-0363

46

Handle Lock Pawl

Part# 748-0363 (Superseded to 948-0363)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $11.48

784-5619A

47

Shift Handle

Part# 784-5619A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

KIT-SHIFT HANDLE:S

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $29.87

784-5679

48

LH Handle Support Bracket

Part# 784-5679

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-HANDLE-LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.00

784-5680

49

RH Handle Support Bracket

Part# 784-5680

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-HDL SUP-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.07

784-5681

50

LH Handle Support Bracket

Part# 784-5681

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-HANDLE SUP

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

784-5682

51

RH Handle Support Bracket

Part# 784-5682

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-HANDLE SUP

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $19.77

710-0451

52

Carriage Bolt, 5/16-18 x .75

Part# 710-0451

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.76

710-0805

?53

Hex Cap Screw, 516-18 x 1.5

Part# 710-0805 (Superseded to 710-0805A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

710-0896

?54

Screw, 1/4-14 x .625

Part# 710-0896

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

712-0429

55

Hex Lock Nut, 5/16-18

Part# 712-0429 (Superseded to 912-0429)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.65

712-3027

56

Hex Flange Lock Nut, 1/4-20

Part# 712-3027 (Superseded to 912-3027)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.82

731-0851A

57

Lower Chute Flange Keeper

Part# 731-0851A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.85

731-1300A

58

Lower Chute

Part# 731-1300A (Superseded to 731-1300E)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $37.08

731-1313C

?59

Chute Tilt Cable Guide

Part# 731-1313C

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.76

731-1320

60

Upper Chute

Part# 731-1320 (Superseded to 731-04427A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.40

736-0159

61

Washer, 5/16

Part# 736-0159 (Superseded to 936-0159)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

736-0506

?62

Special Washer, .28 x 1.2 x .06

Part# 736-0506 (Superseded to 736-0506A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

720-0274

63

Handle Grip

Part# 720-0274

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.40

725-1658

64

Halogen Lamp, 12-volt, 27 Watt

Part# 725-1658 (Superseded to 925-1658)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $41.05

720-0232

65

Plastic Knob

Part# 720-0232 (Superseded to 920-0232)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.74

712-0271

66

Hex Sems Nut, 1/4-20

Part# 712-0271

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

629-0059

67

Halogen Light Harness

Part# 629-0059 (Superseded to 929-0059)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $65.61

684-0036

68

RH Engagement Handle Ass'y

Part# 684-0036 (Superseded to 684-0036A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $31.19

684-0059

69

LH Engagement Handle Ass'y

Part# 684-0059

OEM Warranty Repair Part for MTD

Currently unavailable

710-1003

70

Special Screw, #10-16 x .625

Part# 710-1003 (Superseded to 710-04669)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.21
