31AE663H401 - Yard-Man Snow Thrower (2000) Handle Assembly Parts Diagram

Snow Thrower

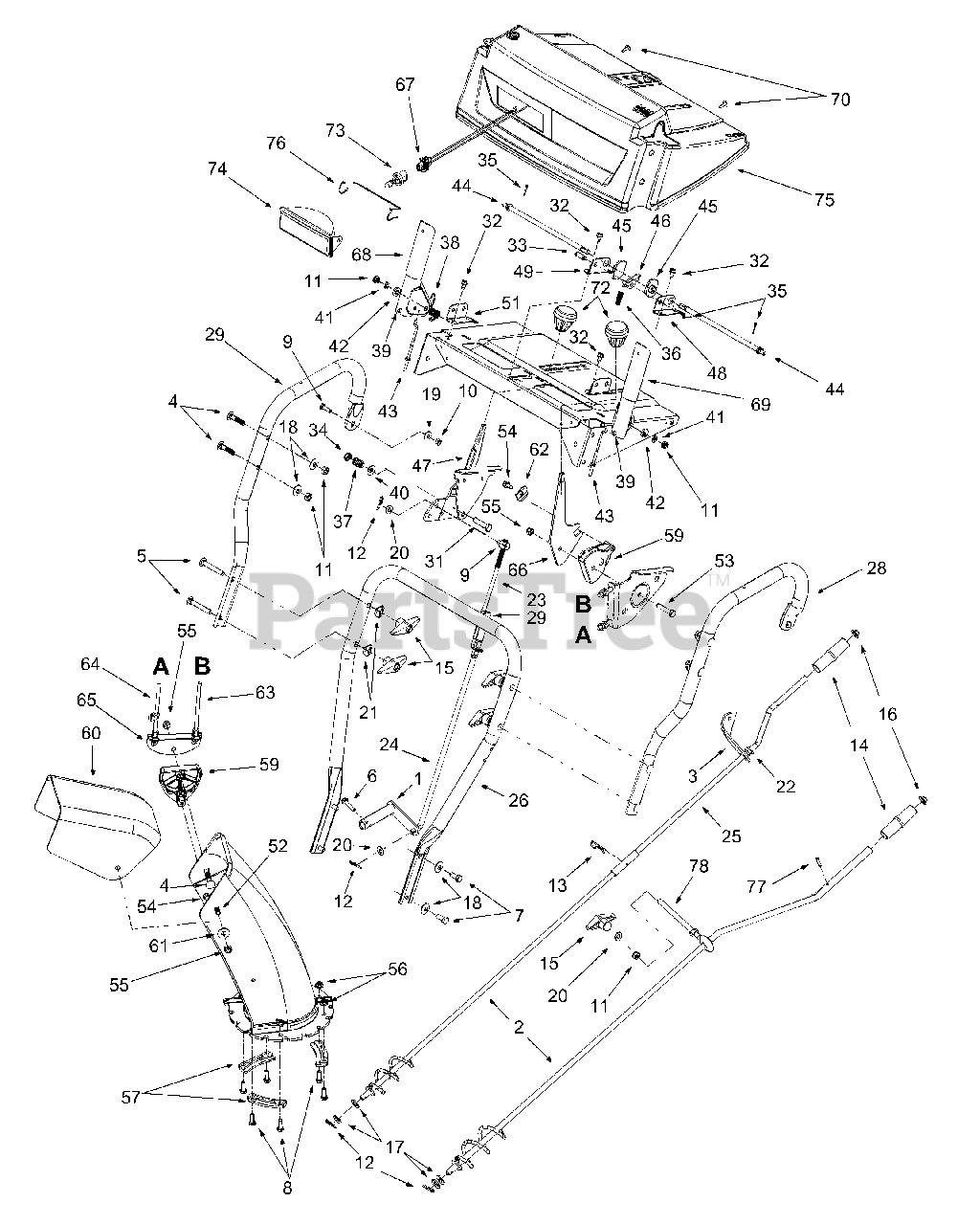

Handle Assembly Parts Diagram

  • Title

1

MTD 684-0008A

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

MTD 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

2

MTD 684-0053A

Lower Chute Crank
(Superseded to 684-0053B-0637)

Note: (Model E663H)

Variations

MTD 684-0053A-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 705-5266

Chute Crank Bracket
(Superseded to 705-5266-0637)

Variations

MTD 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

4

MTD 710-0262

Carriage Bolt, 5/16-18 x 1.5

$3.99

$

In Stock, Qty 14

0

5

MTD 710-0449

Carriage Bolt, 5/16-18 x 2.25
(Superseded to 710-0572)

$3.99

$

In Stock, Qty 5

0

6

MTD 710-0788

Self Tapping Screw, 1/4-20 x 1

$6.99

$

In Stock, only 4 left!

0

7

MTD 710-3008

Hex Cap Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

9

MTD 711-0677

Ferrule, 5/16-18 x .312
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

10

MTD 712-0287

Hex Nut, 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

11

MTD 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

MTD 714-0104

Internal Cotter Pin

$3.99

$

In Stock, Qty 20+

0

13

MTD 714-0145

Click Pin

$4.49

$

In Stock, Qty 20+

0

14

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 6

0

15

MTD 720-0284

Wing Knob, 5/16-18

$6.49

$

In Stock, Qty 20+

0

16

MTD 726-0100

Push Cap, 3/8

$3.99

$

In Stock, Qty 8

0

17

MTD 736-0185

Flat Washer, .375 x .738 x .063

$3.49

$

In Stock, Qty 17

0

18

MTD 736-0242

Bell Washer, .34 x .872

$3.99

$

In Stock, Qty 20+

0

19

MTD 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 15

0

20

MTD 736-0275

Flat Washer, .344 x .688 x .065

$6.49

$

Usually ships in 3-6 days

0

21

MTD 736-0451

Saddle Washer, .32 x .93

$3.99

$

In Stock, only 2 left!

0

22

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

23

MTD 747-0620A

Upper Shift Rod

$11.99

$

In Stock, only 3 left!

0

24

MTD 747-0621

Lower Shift Rod

$

$

Not available

25

MTD 747-0737

Upper Chute Crank
(Superseded to 747-0737-0637)

Note: (Model E663H)

Variations

MTD 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

26

MTD 749-0951

Lower Handle
(Superseded to 749-0951A)

Variations

MTD 749-0951-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$62.99

$

Usually ships in 3-6 days

0

MTD 749-0951-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$62.99

$

Usually ships in 3-6 days

0

?27

MTD 749-0954

RH Handle (Upper)

Variations

MTD 749-0954-0637

Handle: C Style RH - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 749-0955

LH Handle (Upper)
(Superseded to 749-0955-0637)

Variations

MTD 749-0955-0637

HANDLE-LH C STYLE - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 750-0963

Shift Rod Connector
(Superseded to 950-0963)

$32.99

$

In Stock, only 3 left!

0

?30

MTD 684-0102

Handle Panel Ass'y With Tilt
(Superseded to 684-0102A)

Variations

MTD 684-0102-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0650

PANEL ASM:HANDLE - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0662

PANEL ASM:HANDLE - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0665

PANEL ASM:HANDLE - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0689

PANEL ASM:HANDLE - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0716

HANDLE PANEL ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0721

PANEL ASM:HANDLE - SEARS RED (0721)

$124.99

$

Usually ships in 3-6 days

0

$124.99

$

Usually ships in 3-6 days

0

31

MTD 710-0459A

Hex Cap Screw, 3/8-24 x 1.5

$6.99

$

In Stock, Qty 10

0

32

MTD 710-0599

Self Tapping Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

33

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

34

MTD 712-0116

Jam nut, 3/8-24

$4.49

$

In Stock, Qty 7

0

35

MTD 714-0507

Cotter Pin, 3/32 x .75

$4.49

$

Usually ships in 3-6 days

0

36

MTD 732-0145

Compression Spring, .36 x 1.0

$3.99

$

In Stock, only 1 left!

0

37

MTD 732-0193

Comp. Spring, .39 x .6 x .88

$4.49

$

In Stock, Qty 8

0

38

MTD 732-0746

Torsion Spring, .44 x .8

$4.49

$

In Stock, Qty 13

0

39

MTD 735-0199A

Rubber Bumper

$6.99

$

In Stock, Qty 16

0

40

MTD 736-0105

Bell Washer, .401 x .87 x .063

$3.99

$

In Stock, Qty 20+

0

41

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0509

Special Washer, .35 x .72 x .13

$6.49

$

In Stock, only 1 left!

0

43

MTD 746-0778

"Z" Fittings For Control Cables
(Superseded to 946-0778)

$9.99

$

In Stock, Qty 5

0

44

MTD 747-0877

Cam Rod

$21.99

$

Usually ships in 3-6 days

0

45

MTD 748-0362

Cam Handle Lock

$7.49

$

In Stock, only 1 left!

0

46

MTD 748-0363

Handle Lock Pawl
(Superseded to 948-0363)

$15.99

$

In Stock, only 1 left!

0

47

MTD 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

MTD 784-5619A-0637

KIT-SHIFT HANDLE:S - POWDER BLACK (0637)

$

$

Not available

$

$

48

MTD 784-5679

LH Handle Support Bracket
(Superseded to 784-5679-0637)

Variations

MTD 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$7.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

49

MTD 784-5680

RH Handle Support Bracket
(Superseded to 784-5680-0637)

Variations

MTD 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

?50

MTD 784-5681

LH Handle Support Bracket

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

51

MTD 784-5682

RH Handle Support Bracket
(Superseded to 784-5682-0637)

Variations

MTD 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

52

MTD 710-0451

Carriage Bolt, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

53

MTD 710-0805

Hex Cap Screw, 516-18 x 1.5
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

54

MTD 710-0896

Screw, 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

55

MTD 712-0429

Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

56

MTD 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

57

MTD 731-0851A

Lower Chute Flange Keeper

$3.99

$

In Stock, Qty 20+

0

?58

MTD 731-1300A

Lower Chute
(Superseded to 731-1300E)

$54.99

$

In Stock, Qty 9

0

59

MTD 731-1313C

Chute Tilt Cable Guide

$11.99

$

Usually ships in 3-6 days

0

60

MTD 731-1320

Upper Chute
(Superseded to 731-04427B)

$15.99

$

In Stock, only 2 left!

0

61

MTD 736-0159

Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

62

MTD 736-0506

Special Washer, .28 x 1.2 x .06
(Superseded to 736-0506A)

$

$

Not available

63

MTD 746-0896

Chute Deflector Control Cable
(Superseded to 946-0896)

$52.99

$

In Stock, only 1 left!

0

64

MTD 746-0901

Chute Deflector Cable w/ Clip
(Superseded to 946-0901)

$59.99

$

Usually ships in 3-6 days

0

65

MTD 784-5594

Cable Bracket

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

66

MTD 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

MTD 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

67

MTD 629-0059

Halogen Light Harness
(Superseded to 929-0059)

$93.99

$

Usually ships in 3-6 days

0

68

MTD 684-0036

RH Engagement Handle Ass'y
(Superseded to 684-0036A)

$41.99

$

Usually ships in 3-6 days

0

69

MTD 684-0059

LH Engagement Handle Ass'y

$

$

Currently unavailable

70

MTD 710-1003

Special Screw, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

?71

MTD 712-0271

Hex Sems Nut, 1/4-20

Note: (For ground wire of light ass'y)

$4.49

$

In Stock, Qty 20+

0

72

MTD 720-0232

Plastic Knob
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

73

MTD 725-1658

Halogen Lamp, 12-volt, 27 Watt
(Superseded to 925-1658)

$55.99

$

In Stock, Qty 5

0

74

MTD 725-1672

Lens Assembly / Lamp Housing
(Superseded to 925-1672)

$83.99

$

Usually ships in 3-6 days

0

75

MTD 731-1545

Handle Panel, Yellow
(Superseded to 731-1545B)

$

$

Not available

76

MTD 747-1136

Headlamp Retainer

$10.99

$

Usually ships in 3-6 days

0

77

MTD 715-0138

Rolled Pin
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

78

MTD 747-0697

Eyebolt

$7.99

$

In Stock, only 1 left!

0

MTD 735-0234

Eyebolt Grommet

Note: (Not Shown)

$4.99

$

In Stock, only 3 left!

0
