31AE663H401 - Yard-Man Snow Thrower (2001) Frame Assembly Parts Diagram

Snow Thrower

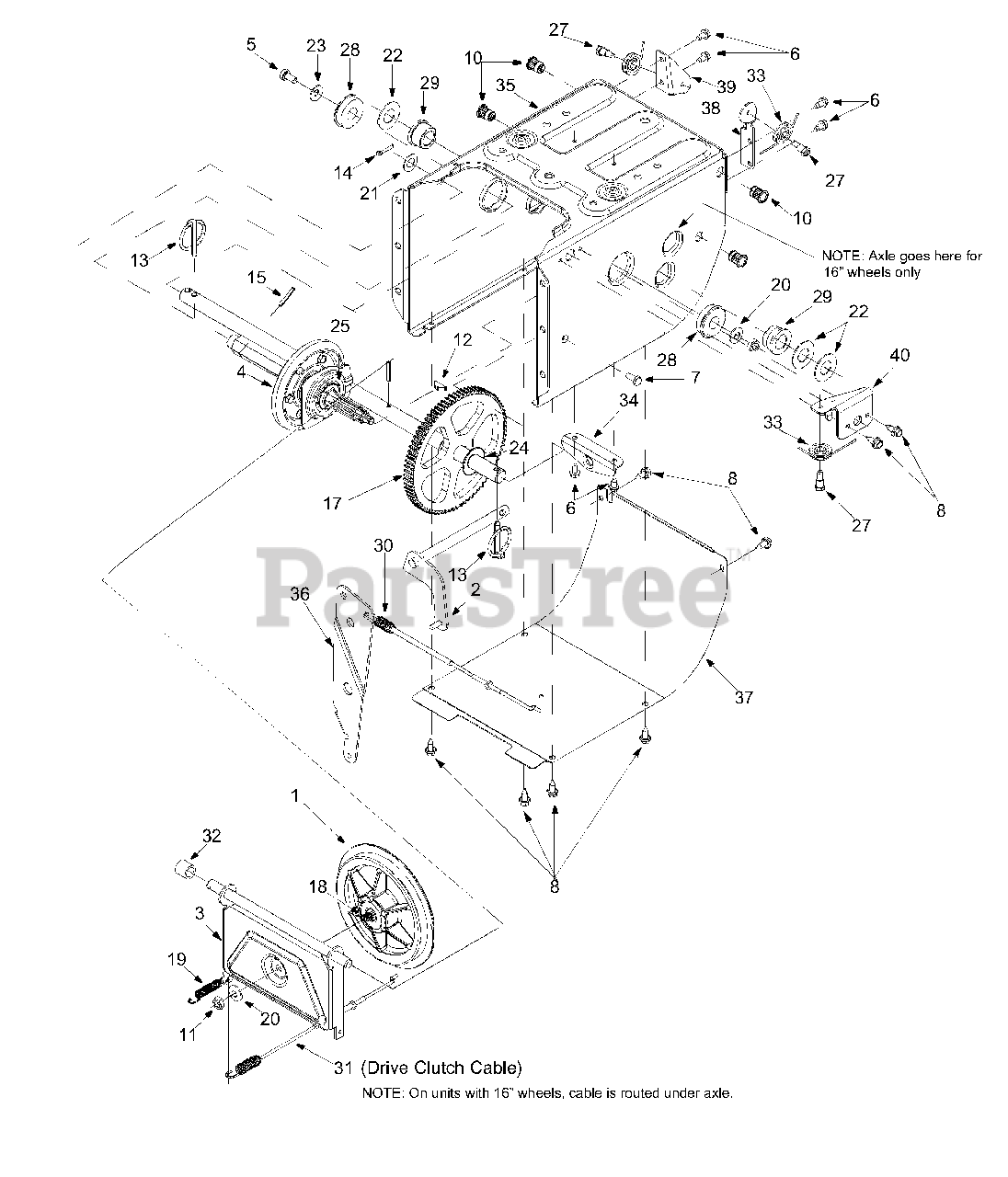

Frame Assembly Parts Diagram

  • Title

1

MTD 656-0021A

Friction Wheel Disc Assembly

$

$

Currently unavailable

2

MTD 684-0013B

Shift Rod Assembly
(Superseded to 684-04243)

$

$

Not available

3

MTD 684-0021

Support Bracket: Friction Wheel
(Superseded to 984-0021-0637)

Variations

MTD 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 684-0042C

Bearing Assembly: Friction Wheel
(Superseded to 984-0042C)

$138.99

$

In Stock, only 4 left!

0

5

MTD 710-0538

Hex Bolt: 5/16-18 x .625"

$4.49

$

In Stock, Qty 9

0

6

MTD 710-0599

Self-Tapping Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0809

Self-Tapping Screw 1/4-20 x 1.25"

$6.99

$

In Stock, Qty 20+

0

8

MTD 710-1652

Self-Tapping Screw 1/4-20 x .625"

$4.49

$

In Stock, Qty 20+

0

?9

MTD 712-0116

Jam Lock Nut 3/8-24

$4.99

$

In Stock, Qty 7

0

10

MTD 712-0703

Nut Insert 5/16-18
(Superseded to 712-0703A)

$7.49

$

Usually ships in 3-6 days

0

11

MTD 712-0711

Jam Nut

$4.49

$

In Stock, Qty 20+

0

12

MTD 714-0126

Key

$4.99

$

In Stock, Qty 20+

0

13

MTD 714-0143

Klik Pin
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 17

0

14

MTD 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 16

0

15

MTD 715-0249

Roll Pin
(Superseded to 915-0249)

$6.99

$

In Stock, only 1 left!

0

?16

MTD 717-1444

Hex Shaft - 7 Tooth
(Superseded to 917-04094)

$96.99

$

In Stock, only 2 left!

0

17

MTD 717-1445

Gear - 80 Tooth

$107.99

$

Usually ships in 3-6 days

0

18

MTD 721-0263

Loctite (TM) Adhesive

$

$

Currently unavailable

19

MTD 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

20

MTD 736-0105

Spring Washer

$4.49

$

In Stock, Qty 20+

0

21

MTD 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

22

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

24

MTD 736-0351

Flat Washer

$4.49

$

In Stock, Qty 20+

0

25

MTD 737-0170

Lubricant

$

$

Currently unavailable

?26

MTD 738-0869

Axle: Wheel

$139.99

$

Usually ships in 3-6 days

0

27

MTD 738-0924

Carriage Screw
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 6

0

28

MTD 741-0563

Ball Bearing
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 19

0

29

MTD 741-0598

Hex Flange Bearing
(Superseded to 941-0598)

$12.99

$

In Stock, Qty 20+

0

30

MTD 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

31

MTD 746-0898

Drive Clutch Cable
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

32

MTD 748-0190

Spacer

$6.49

$

Usually ships in 3-6 days

0

33

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 20+

0

34

MTD 784-5590

Shift Bracket: Frame

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

35

MTD 784-5630A

Frame: Snow Thrower

Variations

MTD 784-5630A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5630A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 784-5630A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5630A-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

MTD 784-5630A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 784-5630A-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

36

MTD 784-5632A

Auger Idler Arm
(Superseded to 984-0064-0637)

Variations

MTD 784-5632A-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 3 left!

0

$32.99

$

In Stock, only 3 left!

0

37

MTD 784-5638

Frame Cover
(Superseded to 784-5638A)

Variations

MTD 784-5638-0483

Frame Cover, Black - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5638-0498

Frame Cover, Black - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5638-0499

Frame Cover, Black - CUB BEIGE (0499)

$

$

Not available

MTD 784-5638-0629

Frame Cover, Black - SILVER FLAKE (0629)

$

$

Not available

MTD 784-5638-0637

Frame Cover, Black - POWDER BLACK (0637)

$

$

Not available

MTD 784-5638-0638

Frame Cover, Black - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5638-0650

Frame Cover, Black - RED METALLIC (0650)

$

$

Not available

MTD 784-5638-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5638-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5638-0683

Frame Cover, Black - LESCO GREEN (0683)

$

$

Not available

MTD 784-5638-0689

Frame Cover, Black - POLO GREEN (0689)

$

$

Not available

MTD 784-5638-0709

Frame Cover, Black - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 784-5638-0716

Frame Cover, Black - CUB YELLOW-99 (0716)

$

$

Not available

$

$

38

MTD 784-5687A

Bracket: Auger Clutch Cable Guide
(Superseded to 784-5687A-0637)

Variations

MTD 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 784-5688

Bracket: Drive Cable Guide
(Superseded to 784-5688-0637)

Variations

MTD 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

$

$

Not available

MTD 784-5688-0662

BRACKET-GUIDE-DRIVE - OYSTER GRAY (0662)

$

$

Not available

$

$

40

MTD 784-5689A

Front Support Bracket: Auger Cable Guide
(Superseded to 784-5689A-0637)

Variations

MTD 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

$

Not available

MTD 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

$

Not available

$

$
