31AE663H401 - Yard-Man Snow Thrower (2002) Drive & Frame Parts Diagram

Snow Thrower

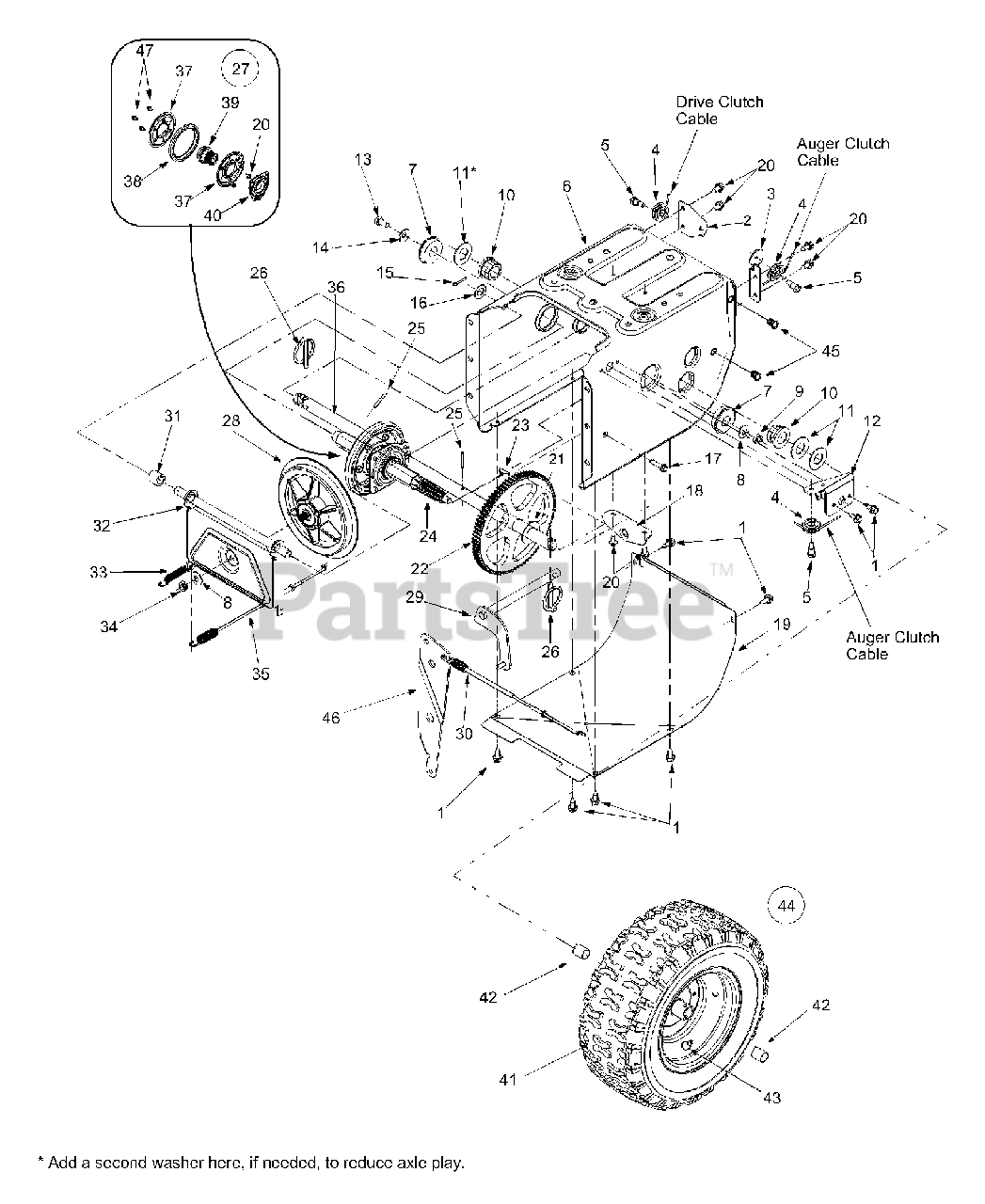

Drive & Frame Parts Diagram

  • Title
1

MTD 710-1652

Hex Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 9

0

2

MTD 784-5688

Drive Cable Guide Bracket
(Superseded to 784-5688-0637)

Variations

MTD 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

$

$

Not available

MTD 784-5688-0662

BRACKET-GUIDE-DRIVE - OYSTER GRAY (0662)

$

$

Not available

$

$

3

MTD 784-5687A

Auger Clutch Cable Bracket
(Superseded to 784-5687A-0637)

Variations

MTD 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 19

0

5

MTD 738-0924

Shoulder Screw 1/4-28 x .375
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

6

MTD 784-5630A

Frame Assembly

Variations

MTD 784-5630A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5630A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 784-5630A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5630A-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

MTD 784-5630A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 784-5630A-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

7

MTD 741-0563

Ball Bearing
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 14

0

8

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0116

Lock Jam Nut, 3/8-24

$4.99

$

In Stock, Qty 6

0

10

MTD 741-0598

Hex Flange Bearing
(Superseded to 941-0598)

$12.99

$

In Stock, Qty 20+

0

11

MTD 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 8

0

12

MTD 784-5689A

Front Support Guide Bracket
(Superseded to 784-5689A-0637)

Variations

MTD 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

$

Not available

MTD 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

$

Not available

$

$

13

MTD 710-0538

Hex Cap Screw, 5/16-18 x 625

$4.49

$

In Stock, Qty 9

0

14

MTD 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

15

MTD 714-0474

Cotter Pin, .125 x .75

$4.99

$

In Stock, Qty 14

0

16

MTD 736-0160

Flat Washer .536 ID x .930 OD

$4.49

$

In Stock, only 2 left!

0

17

MTD 710-0809

Hex Washer Screw 1/4-20

$6.99

$

In Stock, Qty 20+

0

18

MTD 784-5590

Shift Bracket Frame

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

19

MTD 784-5638

Frame Cover
(Superseded to 784-5638A)

Variations

MTD 784-5638-0483

Frame Cover, Black - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5638-0498

Frame Cover, Black - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5638-0499

Frame Cover, Black - CUB BEIGE (0499)

$

$

Not available

MTD 784-5638-0629

Frame Cover, Black - SILVER FLAKE (0629)

$

$

Not available

MTD 784-5638-0637

Frame Cover, Black - POWDER BLACK (0637)

$

$

Not available

MTD 784-5638-0638

Frame Cover, Black - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5638-0650

Frame Cover, Black - RED METALLIC (0650)

$

$

Not available

MTD 784-5638-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5638-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5638-0683

Frame Cover, Black - LESCO GREEN (0683)

$

$

Not available

MTD 784-5638-0689

Frame Cover, Black - POLO GREEN (0689)

$

$

Not available

MTD 784-5638-0709

Frame Cover, Black - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 784-5638-0716

Frame Cover, Black - CUB YELLOW-99 (0716)

$

$

Not available

$

$

20

MTD 710-0599

Hex Washer Screw 1/4-20

$4.49

$

In Stock, Qty 20+

0

21

MTD 736-0351

Flat Washer .760 ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

22

MTD 717-1445

Gear, 80-tooth

$107.99

$

Usually ships in 3-6 days

0

23

MTD 714-0126

Key, 3/16 x 3/4

$4.99

$

In Stock, Qty 20+

0

24

MTD 717-1444

7-Tooth Shaft
(Superseded to 917-04094)

$96.99

$

In Stock, only 2 left!

0

25

MTD 715-0249

Roll Pin
(Superseded to 915-0249)

$6.99

$

In Stock, only 2 left!

0

26

MTD 714-0143

Clik Pin
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 12

0

27

MTD 684-0042C

Friction Wheel Assembly
(Superseded to 984-0042C)

$138.99

$

Usually ships in 3-6 days

0

28

MTD 656-0012A

Friction Wheel Disc
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 9

0

29

MTD 684-0013B

Wheel Shift Rod Assembly
(Superseded to 684-04243)

$

$

Not available

30

MTD 746-0897

Drive Cable, Auger
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

31

MTD 748-0190

Spacer

$6.49

$

In Stock, only 1 left!

0

32

MTD 684-0021

Friction Wheel Bracket Ass'y
(Superseded to 984-0021-0637)

Variations

MTD 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

34

MTD 712-0711

Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

35

MTD 746-0898

Drive Cable, Clutch
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

36

MTD 738-0869

Wheel Axle, .750 x 22.21

$139.99

$

Usually ships in 3-6 days

0

37

MTD 784-5617A

Friction Wheel Side Plate
(Superseded to 984-0042C)

$138.99

$

Usually ships in 3-6 days

0

38

MTD 735-0243B

Friction Wheel Rubber
(Superseded to 935-0243B)

$15.99

$

In Stock, Qty 20+

0

39

N/A

Friction Wheel Hub

Note: use 684-0042C

$

$

Not available

40

MTD 618-0063A

Friction Wheel Bearing

$92.99

$

Usually ships in 3-6 days

0

41

MTD 734-1525

Tire Only, 16 x 6.5 x 8

$162.99

$

In Stock, only 2 left!

0

42

MTD 741-0401

Sleeve Bearing, .75 x .87 x 1
(Superseded to 941-0401)

$7.49

$

In Stock, Qty 14

0

43

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

44

MTD 734-1712

Wheel Assembly (Incl. Ref. 41, 42, & 43)

Variations

MTD 734-1712-0911

WHEEL ASM-COMP - Carlisle Gray (0911)

$

$

Not available

MTD 734-1712-0931

No Longer Available - Carlisle Beige (0931)

$

$

Not available

MTD 734-1712-0941

No Longer Available WHL ASM 1 - Carlisle Yellow (0941)

$

$

Not available

$

$

45

MTD 712-0703A

Insert Nut, 5/16-18

$7.49

$

Usually ships in 3-6 days

0

46

MTD 784-5632A

Auger Idler Arm
(Superseded to 984-0064-0637)

Variations

MTD 784-5632A-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 3 left!

0

$32.99

$

In Stock, only 3 left!

0

47

MTD 710-1652

Hex Washer Screw 1/4-20

$4.49

$

In Stock, Qty 9

0
