31AE6B3H401 - Yard-Man Snow Thrower (1999) Gear Assembly Parts Diagram

Snow Thrower

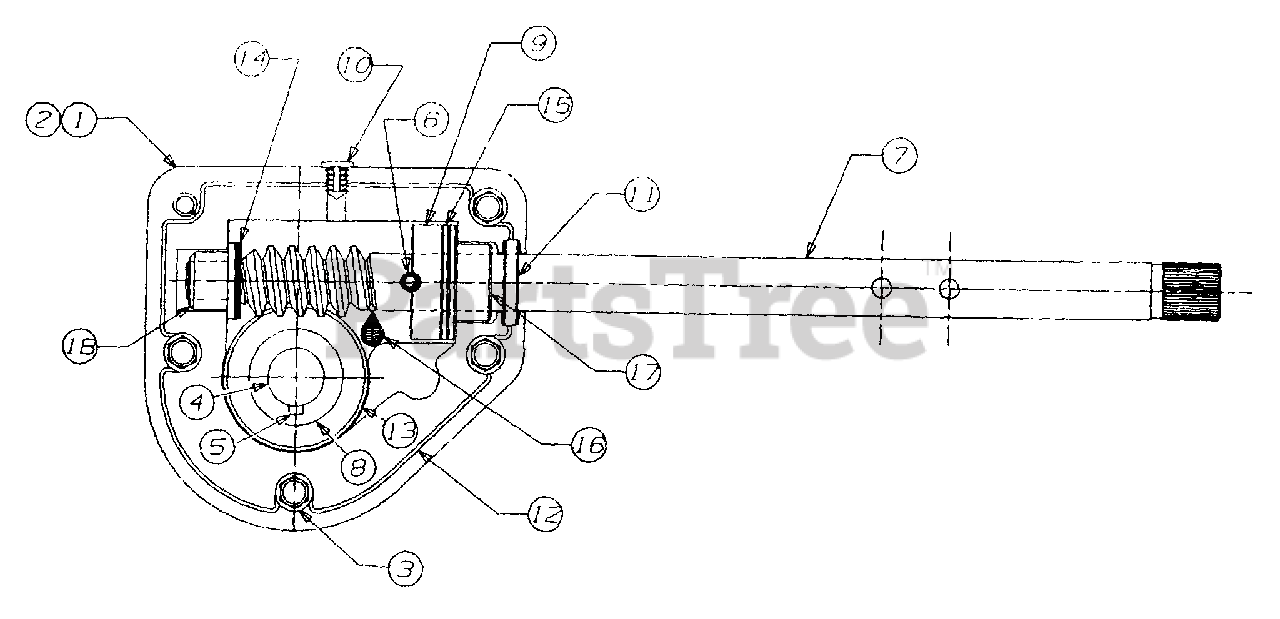

Gear Assembly Parts Diagram

  • Title

1

MTD 618-0123

Housing - R.H.
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 12

0

2

MTD 618-0124

Housing - L.H.
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 14

0

3

MTD 710-0642

Screw

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-1024

Axle, Spiral 30"
(Superseded to 711-1024A)

Note: (For model 6B3)

$136.99

$

Usually ships in 3-6 days

0

MTD 711-0908

Axle, Spiral 24"
(Superseded to 711-0908A)

Note: (For model 633)

$

$

Not available

5

MTD 714-0161

Key, Hi-Pro
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 10

0

6

MTD 715-0143

Pin, Spiral

$4.99

$

In Stock, Qty 14

0

7

MTD 717-0526

Worm, Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, only 1 left!

0

8

MTD 717-0528

Gear, Worm
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

9

MTD 716-0186

Collar, Thrust

$

$

Currently unavailable

10

MTD 721-0325

Plug

$4.49

$

Usually ships in 3-6 days

0

11

MTD 721-0327

Seal, Oil

$6.99

$

In Stock, Qty 20+

0

12

MTD 721-0328

Loctite 5699

$

$

Currently unavailable

13

MTD 736-0351

Washer - Flat

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0369

Washer - Flat

$4.49

$

In Stock, Qty 6

0

15

MTD 736-0445

Washer - Flat

$4.49

$

In Stock, only 3 left!

0

16

MTD 737-0168

Grease
(Superseded to 737-0168A)

$30.99

$

Usually ships in 3-6 days

0

17

MTD 741-0662

Bearing Flange

$10.99

$

In Stock, Qty 20+

0

18

MTD 748-0663

Bearing Flange

$

$

Currently unavailable
