31AE6B3H401 - Yard-Man Snow Thrower (1999) Wheel Assemblies Parts Diagram

Snow Thrower

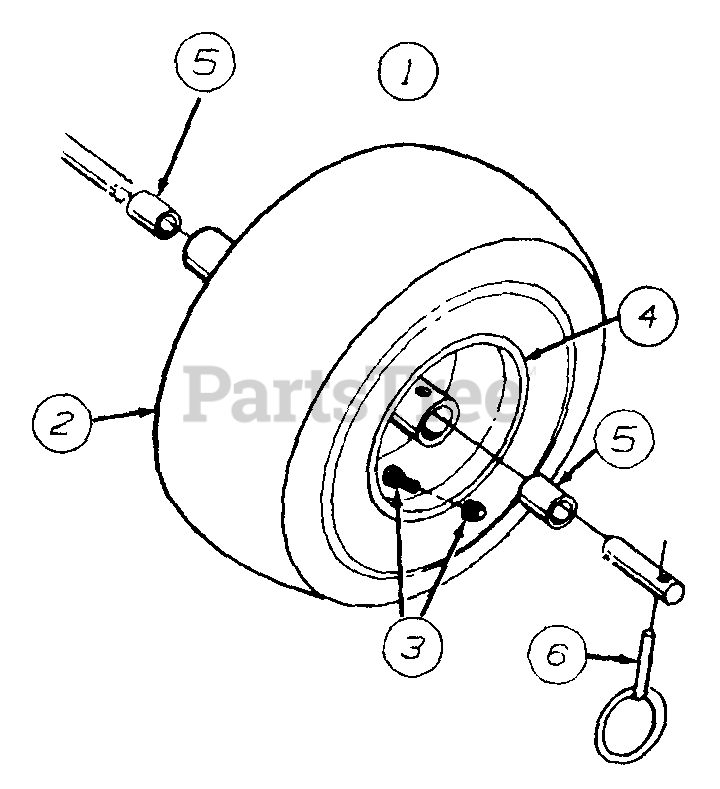

Wheel Assemblies Parts Diagram

  • Title

1

MTD 634-0140

15 x 5 Wheel Assembly

Note: Complete. Model No. E633E

Variations

MTD 634-0140-0911

No Longer Available WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$

$

Not available

MTD 634-0140-0931

No Longer Available WHEEL ASM. - Carlisle Beige (0931)

$

$

Not available

MTD 634-0140-0941

No Longer Available WHEEL ASM. - Carlisle Yellow (0941)

$

$

Not available

$

$

1

MTD 734-1712

16 x 6.5 Wheel Assembly

Note: Complete. Model No. E6B3H

Variations

MTD 734-1712-0911

WHEEL ASM-COMP - Carlisle Gray (0911)

$

$

Not available

MTD 734-1712-0931

No Longer Available - Carlisle Beige (0931)

$

$

Not available

MTD 734-1712-0941

No Longer Available WHL ASM 1 - Carlisle Yellow (0941)

$

$

Not available

$

$

2

MTD 734-1859

Tire Only 15 x 5
(Superseded to 734-1859-0901)

Note: Model No. E633E

Variations

MTD 734-1859-0901

TIRE 15X5 - Carlisle (0901)

$111.99

$

Usually ships in 3-6 days

0

$111.99

$

Usually ships in 3-6 days

0

2

MTD 734-1525

Tire Only 16 x 6.5

Note: Model No. E6B3H

$172.99

$

In Stock, only 2 left!

0

3

MTD 734-0255

Air Valve 15 x 5, 16 x 6.5
(Superseded to 934-0255)

Note: Model No.(s) E633E, E6B3H

$4.49

$

In Stock, Qty 20+

0

4

MTD 734-1713

Rim Only 15 x 5

Note: Model No. E633E

Variations

MTD 734-1713-0662

WHEEL RIM 6.0 X 3. - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1713-0499

No Longer Available WHEEL RIM - CUB BEIGE (0499)

$

$

Not available

MTD 734-1713-0674

No Longer Available RIM - YARDMAN YELLOW (0674)

$

$

Not available

MTD 734-1713-0688

No Longer Available WHEEL RIM - SPRING GREEN (0688)

$

$

Not available

$

$

4

MTD 734-1711

Rim Only 16 x 6.5

Note: Model No. E6B3H

Variations

MTD 734-1711-0499

No Longer Available WHEEL-RIM - CUB BEIGE (0499)

$

$

Not available

MTD 734-1711-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 734-1711-0662

No Longer Available WHEEL RIM - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1711-0674

No Longer Available WHEEL-RIM - YARDMAN YELLOW (0674)

$

$

Not available

MTD 734-1711-0688

No Longer Available WHEEL RIM - SPRING GREEN (0688)

$

$

Not available

$

$

5

MTD 741-0401

Sleeve Bearing (2) 15 x 5, 16 x 6.5
(Superseded to 941-0401)

Note: Model No.(s) E633E, E6B3H

$7.99

$

In Stock, Qty 6

0

6

MTD 714-0143

Klick Pin 15 x 5, 16 x 6.5
(Superseded to 714-0143A)

Note: Model No.(s) E633E, E6B3H

$6.99

$

In Stock, only 1 left!

0
