31AE6C3H131 - Huskee Snow Thrower (2004) (Tractor Supply) Handle & Chute Parts Diagram

Snow Thrower

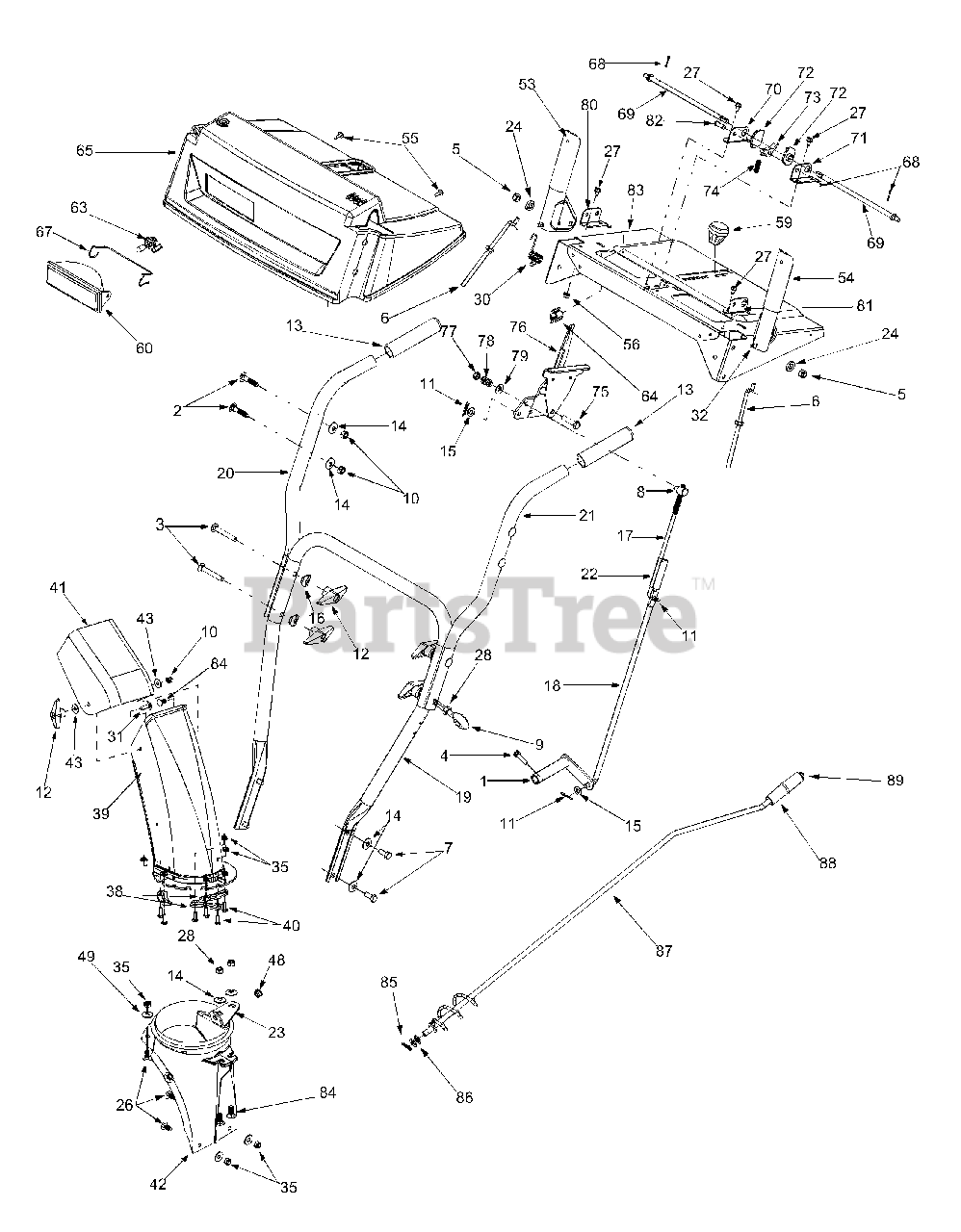

Handle & Chute Parts Diagram

  • Title

1

MTD 684-0008A

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

MTD 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

2

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75"

$4.49

$

In Stock, only 4 left!

0

3

MTD 710-0449

Carriage Bolt 5/16-18 x 2.25"
(Superseded to 710-0572)

$3.99

$

In Stock, Qty 5

0

4

MTD 710-0788

Self-tapping Screw 1/4-20 x 1"

$6.99

$

In Stock, only 4 left!

0

5

MTD 712-0429

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

MTD 746-0778

Z Fitting
(Superseded to 946-0778)

$9.99

$

In Stock, Qty 5

0

7

MTD 710-1880

Hex Screw 5/16-18 x .75"

$4.49

$

In Stock, Qty 11

0

8

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

9

MTD 747-0697

Eyebolt

$7.99

$

In Stock, only 1 left!

0

MTD 735-0234

Grommet Only

$4.99

$

In Stock, only 3 left!

0

10

MTD 712-3068

Hex Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

11

MTD 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

12

MTD 720-0284

Handle Knob

$6.49

$

In Stock, Qty 20+

0

13

MTD 720-0274

Grip

$10.99

$

In Stock, Qty 8

0

14

MTD 736-0242

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

15

MTD 736-0275

Flat Washer

$6.49

$

Usually ships in 3-6 days

0

16

MTD 736-0451

Saddle Washer

$3.99

$

In Stock, only 2 left!

0

17

MTD 747-0620A

Shift Rod, Upper

$11.99

$

In Stock, only 3 left!

0

18

MTD 747-0621

Shift Rod, Lower

$

$

Not available

19

MTD 749-0951

Lower Handle
(Superseded to 749-0951A)

Variations

MTD 749-0951-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$62.99

$

Usually ships in 3-6 days

0

MTD 749-0951-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$62.99

$

Usually ships in 3-6 days

0

20

MTD 749-0952A

Upper Handle, RH

Variations

MTD 749-0952A-0637

HANDLE-UPPER-RH - POWDER BLACK (0637)

$

$

Not available

MTD 749-0952A-0638

HANDLE-UPPER-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-0952A-0665

HANDLE-UPPER-RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

21

MTD 749-0953A

Upper Handle, LH

Variations

MTD 749-0953A-0637

HANDLE-UPPER-LH - POWDER BLACK (0637)

$

$

Not available

MTD 749-0953A-0638

HANDLE-UPPER-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-0953A-0665

HANDLE-UPPER-LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

22

MTD 750-0963

Connector, Shift Rod
(Superseded to 950-0963)

$32.99

$

In Stock, only 3 left!

0

23

MTD 784-5647

Chute Crank Bracket
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$13.99

$

In Stock, Qty 8

0

$13.99

$

In Stock, Qty 8

0

24

MTD 736-0509

Washer .72 OD x .135 ID

$6.49

$

In Stock, only 1 left!

0

25

MTD 710-0262

Carriage Bolt, 5/16-18 x 1.5"

$3.99

$

In Stock, Qty 14

0

26

MTD 710-0703

Carriage Bolt, 1/4-20 x .750"

$3.99

$

In Stock, Qty 20+

0

27

MTD 710-0599

Self-tapping Screw, 1/4-20 x 0.5"

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

30

MTD 732-0746

Torsion Spring

$4.49

$

In Stock, Qty 13

0

31

MTD 710-04071

Carriage Screw 5/16-18 x 1.0

$4.49

$

In Stock, Qty 16

0

32

MTD 735-0199A

Rubber Bumper

$6.99

$

In Stock, Qty 16

0

35

MTD 712-3027

Hex Flange Lock Nut
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

38

MTD 731-0851A

Chute Flange Keeper

$3.99

$

In Stock, Qty 20+

0

39

MTD 731-1300B

Lower Chute
(Superseded to 731-1300E)

$54.99

$

In Stock, Qty 9

0

40

MTD 710-3015

Hex Cap Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

41

MTD 731-04426

Upper Chute
(Superseded to 731-04426C)

$18.99

$

In Stock, Qty 6

0

42

MTD 731-1379C

Chute Adapter, 5"
(Superseded to 731-1379D)

$61.99

$

In Stock, only 1 left!

0

43

MTD 736-0159

5/16 Washer

$3.99

$

In Stock, Qty 20+

0

47

MTD 746-0901

Control Cable
(Superseded to 946-0901)

$59.99

$

Usually ships in 3-6 days

0

48

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

49

MTD 736-0159

5/16 Washer

$3.99

$

In Stock, Qty 20+

0

53

MTD 684-0036A

Handle Assembly RH

$41.99

$

Usually ships in 3-6 days

0

54

MTD 684-0037B

Handle Assembly LH

$38.99

$

In Stock, only 2 left!

0

55

MTD 710-1003

Special Hex Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

56

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

57

MTD 712-0693

Hex Nut

$

$

Not available

59

MTD 720-0232

Shift Knob
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

60

MTD 725-1672

Lamp Housing
(Superseded to 925-1672)

$83.99

$

Usually ships in 3-6 days

0

63

MTD 725-1658

Halogen Lamp, 50W, 12V
(Superseded to 925-1658)

$55.99

$

In Stock, Qty 5

0

64

MTD 726-0152

Mounting Clamp

$

$

Not available

65

MTD 731-04144

Handle Panel

$

$

Not available

67

MTD 747-1136

Headlight Retainer

$10.99

$

Usually ships in 3-6 days

0

68

MTD 714-0507

Cotter Pin, 3/32 x .75

$4.49

$

Usually ships in 3-6 days

0

69

MTD 747-0877

Cam Rod

$21.99

$

Usually ships in 3-6 days

0

70

MTD 784-5680

RH Handle Support Bracket
(Superseded to 784-5680-0637)

Variations

MTD 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

71

MTD 784-5679

LH Handle Support Bracket
(Superseded to 784-5679-0637)

Variations

MTD 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$7.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

72

MTD 748-0362

Cam Handle Lock

$7.49

$

In Stock, only 1 left!

0

73

MTD 748-0363

Handle Lock Pawl
(Superseded to 948-0363)

$15.99

$

In Stock, only 1 left!

0

74

MTD 732-0145

Compression Spring, .36 x 1.0

$3.99

$

In Stock, only 1 left!

0

75

MTD 710-0459A

Hex Cap Screw, 3/8-24 x 1.5

$6.99

$

In Stock, Qty 12

0

76

MTD 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

MTD 784-5619A-0637

KIT-SHIFT HANDLE:S - POWDER BLACK (0637)

$

$

Not available

$

$

77

MTD 712-0116

Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 7

0

78

MTD 732-0193

Comp. Spring, .39 x .6 x .88

$4.49

$

In Stock, Qty 8

0

79

MTD 736-0105

Bell Washer

$3.99

$

In Stock, Qty 20+

0

80

MTD 784-5682

RH Handle Support Bracket
(Superseded to 784-5682-0637)

Variations

MTD 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

81

MTD 784-5681

LH Handle Support Bracket

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

82

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

83

MTD 684-0103

Handle Panel
(Superseded to 684-0103A)

Variations

MTD 684-0103-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0103-0629

No Longer Available PANELASM: - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0103-0637

PANEL ASM:HANDLE - POWDER BLACK (0637)

$

$

Not available

MTD 684-0103-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0103-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0103-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

84

MTD 710-0451

Carriage Bolt, 5/16-18 x .75"

$3.99

$

In Stock, Qty 20+

0

85

MTD 714-0104

Hairpin Clip

$3.99

$

In Stock, Qty 20+

0

86

MTD 736-0185

Flat Washer

$3.49

$

In Stock, Qty 17

0

87

MTD 705-5204A

Chute Crank
(Superseded to 984-0022)

$94.99

$

In Stock, only 3 left!

0

88

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 6

0

89

MTD 726-0100

Push Cap

$3.99

$

In Stock, Qty 8

0
