31AE6FFF752 - Yard Machines Snow Thrower (2007) (Walmart) E&F Style Handle, Frame & Discharge Chute Parts Diagram

Snow Thrower

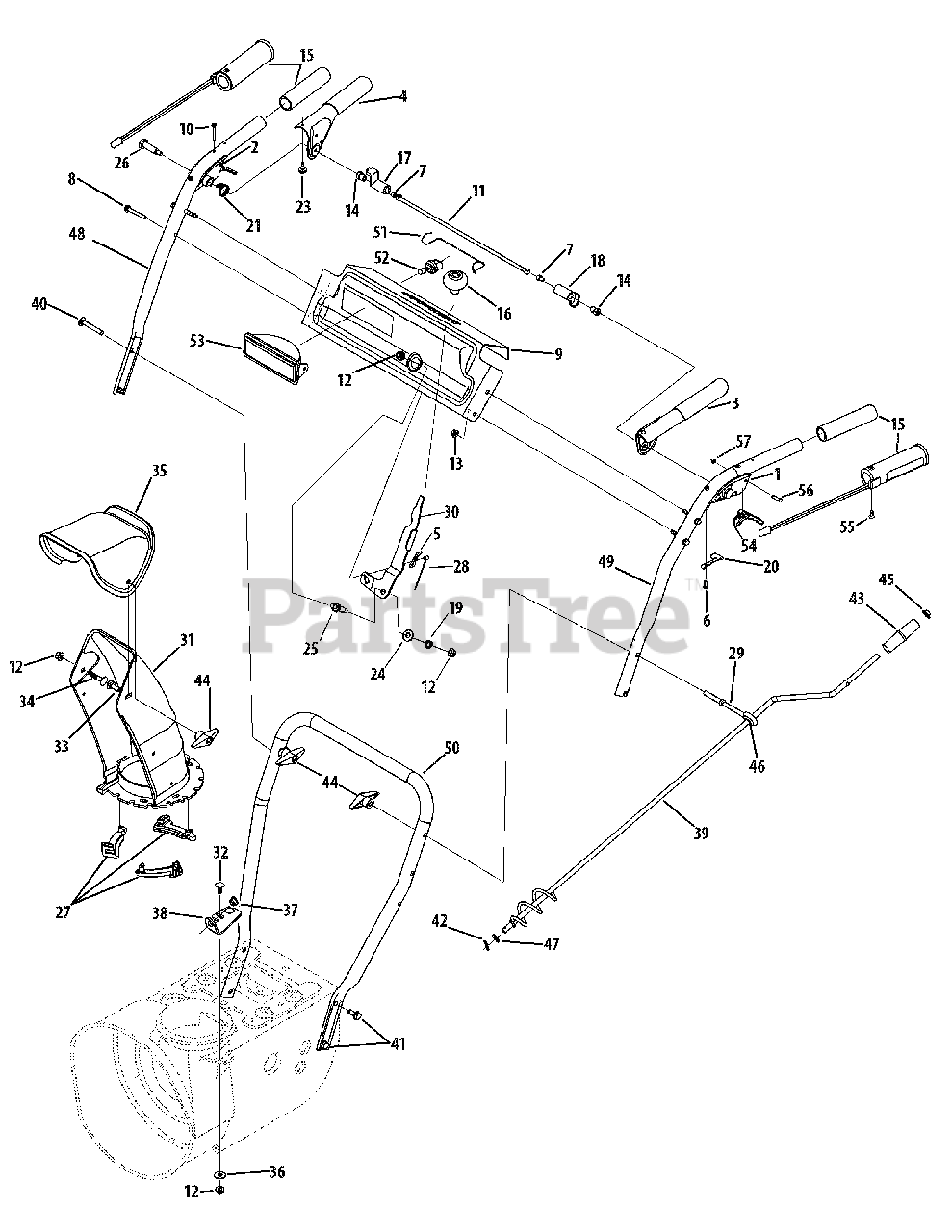

E&F Style Handle, Frame & Discharge Chute Parts Diagram

  • Title

1

MTD 631-04133A

Handle Assembly, Clutch Lock LH

$14.99

$

In Stock, only 1 left!

0

2

MTD 631-04134B

Handle Assembly, Clutch Lock RH

$14.99

$

In Stock, only 3 left!

0

3

MTD 684-04105B

Handle Assembly, Engage LH
(Superseded to 684-04105D)

$21.99

$

In Stock, only 1 left!

0

4

MTD 684-04106B

Handle Assembly, Engage RH
(Superseded to 684-04106D)

$20.99

$

In Stock, only 1 left!

0

5

MTD 714-0145

Click Pin

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-04326

Screw, #8-16 x .50

$3.99

$

In Stock, Qty 11

0

7

MTD 710-04354

Screw, 1/4-20, 1.50

$3.99

$

In Stock, Qty 16

0

8

MTD 710-0606

Hex Screw, 1/4-20, 1.50

$4.99

$

In Stock, Qty 15

0

9

MTD 790-00219

Handle Panel, (no cutout) E-Style
(Superseded to 790-00219A)

Variations

MTD 790-00219-0637

PANEL:HANDLE W/SHF - POWDER BLACK (0637)

$67.99

$

Usually ships in 3-6 days

0

MTD 790-00219-0691

PANEL:HANDLE W/SHF - BLACK JACK (0691)

$58.99

$

Usually ships in 3-6 days

0

MTD 790-00219-0709

PANEL:HANDLE W/SHF - MASTERCRAFT GREEN (0709)

$58.99

$

Usually ships in 3-6 days

0

MTD 790-00219-0721

PANEL:HANDLE W/SHF - SEARS RED (0721)

$67.99

$

Usually ships in 3-6 days

0

MTD 790-00219-4043

PANEL-STEEL HNDL - CRAFTSMAN METALLIC GRAY (4043)

$67.99

$

Usually ships in 3-6 days

0

MTD 790-00219-4044

PANEL:HANDLE W/SHF - CRAFTSMAN RED (4044)

$67.99

$

Usually ships in 3-6 days

0

MTD 790-00219-0638

PANEL:HANDLE W/SHF - MTD/TROY-BILT RED (0638)

$

$

Not available

$58.99

$

Usually ships in 3-6 days

0

9

MTD 790-00209

Handle Panel, (w/ cutout) F-Style
(Superseded to 790-00209A)

Variations

MTD 790-00209-0637

PANEL:HANDLE:STEEL - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

MTD 790-00209-0638

PANEL:HANDLE:STEEL - MTD/TROY-BILT RED (0638)

$51.99

$

Usually ships in 3-6 days

0

MTD 790-00209-0667

PANEL:HANDLE:STEEL - MIDNIGHT BLUE (0667)

$51.99

$

Usually ships in 3-6 days

0

MTD 790-00209-0684

PANEL:HANDLE:STEEL - ZINC YELLOW (0684)

$51.99

$

Usually ships in 3-6 days

0

$51.99

$

Usually ships in 3-6 days

0

10

MTD 710-1233

Machine Screw, #10-24, 1.375

$4.49

$

In Stock, Qty 13

0

11

MTD 684-04250

Pivot Rod

$11.99

$

In Stock, Qty 8

0

12

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04081A

Shoulder Hex Nut, 1/4-20

$6.99

$

In Stock, only 1 left!

0

15

MTD 720-0274

Grip

$10.99

$

In Stock, Qty 6

0

15

N/A

Heated Grip

$

$

Not available

16

MTD 720-04039

Shift Knob

$9.99

$

In Stock, only 4 left!

0

17

MTD 731-04894C

Lock Plate
(Superseded to 731-04894D)

$4.99

$

In Stock, only 4 left!

0

18

MTD 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$3.99

$

In Stock, Qty 12

0

19

MTD 732-0193

Spring, .39 x .60 x .88

$4.49

$

In Stock, Qty 8

0

20

MTD 732-04219A

Clutch Lock Spring
(Superseded to 732-04219C)

$3.99

$

In Stock, Qty 20+

0

21

MTD 732-04238

Torsion Spring, 0.8156 ID x .3038
(Superseded to 732-04238B)

$4.99

$

In Stock, Qty 12

0

23

MTD 735-0199A

Rubber Bumper, .62 OD x .22

$6.99

$

In Stock, Qty 16

0

24

MTD 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

25

MTD 738-04118

Shoulder Bolt, 5/16-18 x 0.905

$5.49

$

Usually ships in 3-6 days

0

26

MTD 738-04122

Shoulder Screw, .43 x 1.3, 1/4-20
(Superseded to 738-04348)

$3.49

$

In Stock, only 1 left!

0

27

MTD 731-04869

Chute Flange Keeper
(Superseded to 731-04869A)

$4.49

$

In Stock, Qty 20+

0

28

MTD 746-04397

Speed Selector Cable
(Superseded to 946-04397A)

$19.99

$

In Stock, Qty 15

0

29

MTD 747-04263

Chute Crank Eye Bolt

$8.99

$

In Stock, only 3 left!

0

30

MTD 790-00313

Shift Lever
(Superseded to 790-00313A-0637)

Variations

MTD 790-00313-0637

LVR-SPEED SHIFT - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

31

MTD 631-04131B

Lower Chute, 5.0 Dia

$36.99

$

In Stock, only 1 left!

0

32

MTD 710-0276

Carriage Bolt, 5/16-18, 1.0

$3.99

$

In Stock, Qty 20+

0

33

MTD 710-04071

Carriage Bolt, 5/16-18, 1.0

$4.49

$

In Stock, Qty 16

0

34

MTD 710-0451

Carriage Bolt, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

35

MTD 731-04426A

Upper Chute w/ Label
(Superseded to 731-04426C)

$18.99

$

In Stock, Qty 6

0

36

MTD 736-0159

Washer, .349 x .879 x .063

$3.99

$

In Stock, Qty 20+

0

37

MTD 741-0475

Plastic Bushing, .380
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

38

MTD 784-5647

Chute Crank Bracket
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$13.99

$

In Stock, Qty 8

0

$13.99

$

In Stock, Qty 8

0

39

MTD 684-04104

Chute Crank Assembly
(Superseded to 684-04104-0637)

Variations

MTD 684-04104-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$58.99

$

In Stock, only 1 left!

0

$58.99

$

In Stock, only 1 left!

0

40

MTD 710-0449

Carriage Screw, 5/16-18, 2.25
(Superseded to 710-0572)

$3.99

$

In Stock, only 4 left!

0

41

MTD 710-04484

Screw, 5/16-18, 0.75, Gr5

$3.49

$

In Stock, Qty 20+

0

42

MTD 714-0104

Cotter Pin, .072 x 1.13

$3.99

$

In Stock, Qty 20+

0

43

MTD 720-0201A

Crank Knob, 1.0 Dia x 3.2

$10.99

$

In Stock, Qty 6

0

44

MTD 720-0284

Wing Knob, 5/16-18

$6.49

$

In Stock, Qty 20+

0

45

MTD 726-0100

Push Cap, 3/8 Rod

$3.99

$

In Stock, Qty 7

0

46

MTD 735-0234

Grommet, .44ID x .94 OD x .50

$4.99

$

In Stock, only 3 left!

0

47

MTD 736-0185

Flat Washer, .375 x .738 x .063

$3.49

$

In Stock, Qty 15

0

48

MTD 749-04141A

Upper Handle, RH
(Superseded to 749-04190A)

Variations

MTD 749-04141A-0637

Right Upper Handle - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

MTD 749-04141A-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

MTD 749-04141A-4033

HANDLE-UPPER RH - FLINT MICA (4033)

$42.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

49

MTD 749-04142A

Upper Handle, LH
(Superseded to 749-04191A)

Variations

MTD 749-04142A-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

MTD 749-04142A-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

MTD 749-04142A-4033

HANDLE-UPPER LH - FLINT MICA (4033)

$42.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

50

MTD 749-04138A

Lower Handle

Variations

MTD 749-04138A-0637

Lower Handle, Snow - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$82.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0650

HANDLE-LOWER SNOW - RED METALLIC (0650)

$82.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0662

HANDLE-LOWER SNOW - OYSTER GRAY (0662)

$82.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0665

HANDLE-LOWER SNOW - YARDMAN GREEN (0665)

$71.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0668

HANDLE-LOWER SNOW - MOSS GREEN (0668)

$71.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0689

HANDLE-LOWER SNOW - POLO GREEN (0689)

$71.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0691

HANDLE-LOWER SNOW - BLACK JACK (0691)

$71.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0709

HANDLE-LOWER SNOW - MASTERCRAFT GREEN (0709)

$82.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0729

HANDLE-LOWER SNOW - STORM GRAY (0729)

$71.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-4033

HANDLE-LOWER SNO - FLINT MICA (4033)

$71.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

51

MTD 747-1136

Lens Retainer

$10.99

$

Usually ships in 3-6 days

0

52

MTD 725-1658

Halogen Lamp,12V, 27W
(Superseded to 925-1658)

$55.99

$

In Stock, Qty 5

0

53

MTD 725-1672

Lamp Lens Assembly
(Superseded to 925-1672)

$83.99

$

Usually ships in 3-6 days

0

54

MTD 731-04954

Steering Triggers

$5.99

$

In Stock, Qty 20+

0

55

MTD 710-0837

AB Screw

$4.49

$

In Stock, Qty 11

0

56

MTD 738-04126

Pin

$3.99

$

In Stock, Qty 20+

0

57

MTD 716-04036

E-Ring

$5.99

$

In Stock, Qty 9

0

MTD 725-04220

Wire Harness

Note: Not Shown

$19.99

$

Usually ships in 3-6 days

0

MTD 725-04216A

Wire Harness w/ Htd. Grp
(Superseded to 725-04216B)

Note: Not Shown

$70.99

$

Usually ships in 3-6 days

0
