31AE6GLF722 - MTD Gold Snow Thrower (2005) Handle Parts Diagram

Gold Snow Thrower

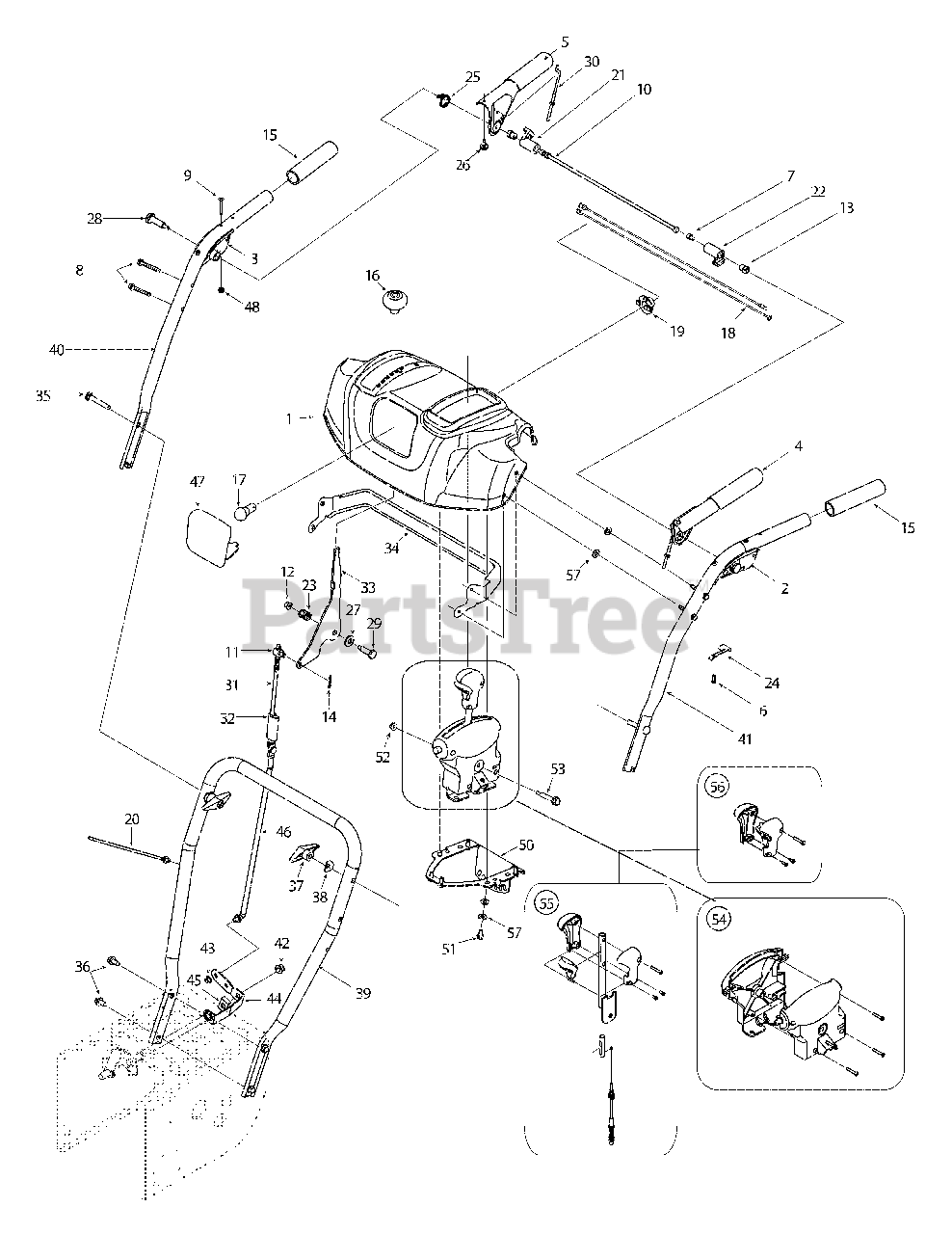

Handle Parts Diagram

  • Title
1

MTD 631-04124

Panel Assembly, L-Style, Yellow
(Superseded to 631-04180)

Note: (Inc. Ref. 47)

$83.99

$

Usually ships in 3-6 days

0

MTD 631-04128

Panel Assembly, L-Style, Black
(Superseded to 931-04183)

Note: (Inc. Ref. 47)

$108.99

$

Usually ships in 3-6 days

0

MTD 631-04146

Panel Assembly, L-Style, Gray
(Superseded to 931-05349)

Note: (Inc. Ref. 47)

$68.99

$

Usually ships in 3-6 days

0

2

MTD 631-04133

Handle Assembly, Clutch Lock, LH
(Superseded to 631-04133A)

Note: (Inc. Ref. 48)

$15.99

$

In Stock, only 1 left!

0

3

MTD 631-04134

Handle Assembly, Clutch Lock, RH
(Superseded to 631-04134B)

Note: (Inc. Ref. 48)

$15.99

$

In Stock, only 3 left!

0

4

MTD 684-04105A

Handle Assembly, Engagement, LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

5

MTD 684-04106A

Handle Assembly, Engagement, RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 1 left!

0

6

MTD 710-04326

Screw, #8-16 x .50

$3.99

$

In Stock, Qty 11

0

7

MTD 710-04354

Screw, 1/4-20 x .375

$3.99

$

In Stock, Qty 15

0

8

MTD 710-1026

Screw, Self-tapping, 1/4-20 x 1.750

$6.99

$

In Stock, Qty 20+

0

9

MTD 710-1233

Screw, Machine, #10-24 x 1.375

$4.99

$

In Stock, Qty 13

0

10

MTD 711-04287

Rod, Pivot
(Superseded to 753-04882C)

$42.99

$

In Stock, only 2 left!

0

11

MTD 711-0677

Ferrule, 5/16-18 x .312
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

12

MTD 712-04064

Nut, Flange Lock, Nylon, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04081A

Nut, Shoulder, Hex, 1/4-20,

$7.49

$

In Stock, only 1 left!

0

14

MTD 714-0104

Pin, Cotter, .072 Dia. x 1.13

$4.49

$

In Stock, Qty 20+

0

15

MTD 720-0274

Grip, 1.0 ID x 5.0

$11.99

$

In Stock, Qty 6

0

16

MTD 720-04039

Knob, Black

$10.99

$

In Stock, only 4 left!

0

17

MTD 725-04213

Lamp
(Superseded to 925-04213)

$4.99

$

In Stock, only 3 left!

0

18

MTD 725-04214

Harness, Headlight

$

$

Not available

19

MTD 725-1649

Socket, Lamp
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

20

MTD 726-0470

Tie, Cable, 19 x 8.39", Tree Mount

$4.99

$

Usually ships in 3-6 days

0

21

MTD 731-04894A

Plate, Lock
(Superseded to 731-04894D)

$5.49

$

In Stock, only 4 left!

0

22

MTD 731-04896

Cam, Clutch Lock
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 12

0

23

MTD 732-0193

Spring, Compression, .3 9 x .60 x .88

$4.99

$

In Stock, Qty 8

0

24

MTD 732-04219

Spring, Clutch, Lock
(Superseded to 732-04219C)

$4.49

$

In Stock, Qty 20+

0

25

MTD 732-04238

Spring, Torsion, 0.8156 ID x .3038
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 12

0

26

MTD 735-0199A

Bumper, Rubber, .62 OD x .22

$7.99

$

In Stock, Qty 16

0

27

MTD 736-0262

Washer, Flat, .3 85 x .870x .092

$3.99

$

In Stock, Qty 20+

0

28

MTD 738-04122

Screw, Shoulder, .4 37 x 1.345, 1/4-20
(Superseded to 738-04348)

$3.99

$

In Stock, only 1 left!

0

29

MTD 738-04125

Screw, Shoulder, .3 74 Dia. x 1.05

$4.99

$

In Stock, Qty 18

0

30

MTD 746-0778

Z-Fitting, Cable
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

31

MTD 747-04348

Rod, Shift, .312 x 8.98 Upper

$13.99

$

In Stock, only 1 left!

0

32

MTD 750-0963

Connector Sleeve, Shift Rod
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

33

MTD 790-00130

Lever, Shift
(Superseded to 790-00130-0637)

Variations

MTD 790-00130-0637

LEVER-SHIFT - POWDER BLACK

$

$

Not available

$

$

34

MTD 790-00140

Bracket, Panel
(Superseded to 790-00140-0637)

Variations

MTD 790-00140-0637

BRACKET-PANEL - POWDER BLACK

$

$

Not available

$

$

35

MTD 710-0449

Screw, Carriage, 5/16-18,2 .25, Gr5
(Superseded to 710-0572)

$4.49

$

In Stock, only 4 left!

0

36

MTD 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

37

MTD 720-0284

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

38

MTD 736-0451

Washer, Saddle , 320 x .93 x .060

$4.49

$

In Stock, only 2 left!

0

39

MTD 749-04138

Handle, Lower, Snow
(Superseded to 749-04138A)

Variations

MTD 749-04138-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$

$

Not available

$88.99

$

Usually ships in 3-6 days

0

40

MTD 749-04141

Handle, Upper, RH

Variations

MTD 749-04141-0637

Right Upper Handle - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04141-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

41

MTD 749-04142

Handle, Upper, LH
(Superseded to 749-04191A)

Variations

MTD 749-04142-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04142-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

42

MTD 712-04063

Nut, Flange Lock, Nylon, 5/16-18

$3.99

$

In Stock, Qty 20+

0

43

MTD 726-0135

Nut, Speed, .3125 Dia.

$6.99

$

Usually ships in 3-6 days

0

44

MTD 732-04205

Spring Lever, Shift

$11.99

$

Usually ships in 3-6 days

0

45

MTD 790-00156

Bracket, Shift Spacer

$7.99

$

Usually ships in 3-6 days

0

46

MTD 747-04257

Shift Rod, Lower

$34.99

$

In Stock, only 1 left!

0

47

MTD 731-04864

Lens
(Superseded to 931-04864)

$15.99

$

Usually ships in 3-6 days

0

48

MTD 712-0161

Nut, Hex Lock, Nylon, #10-24, Gr2

$4.49

$

In Stock, Qty 9

0

50

MTD 790-00131

Bracket, Joystick
(Superseded to 790-00131A-0637)

Variations

Cub Cadet 790-00131A-0637

BRACKET-LOCK CONTR - POWDER BLACK

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

51

MTD 710-04187

Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 10

0

52

MTD 712-04082

Nut, Hex Lock, 1/4-20
(Superseded to 712-04064)

$3.99

$

In Stock, Qty 20+

0

53

MTD 738-04133

Bolt, Shoulder, 5/16 x 1.7, 1/4-20

$

$

Currently unavailable

54

MTD 753-04864

Kit, Chute Control Housing

$62.99

$

Usually ships in 3-6 days

0

MTD 684-04116

Joystick Control Complete, 4-Way
(Superseded to 753-08388A)

$304.99

$

Usually ships in 3-6 days

0

55

MTD 753-04866

Kit, Lever Tube & Cable

$

$

Not available

56

MTD 753-04863

Kit, 4-Way Knob
(Superseded to 753-04866)

$

$

Not available

57

MTD 736-0463

Washer, Flat, .25 x .630 x .051

$4.49

$

In Stock, only 2 left!

0
