31AE6LFH718 - MTD Pro Snow Thrower (2005) Handle & Controls Parts Diagram

Pro Snow Thrower

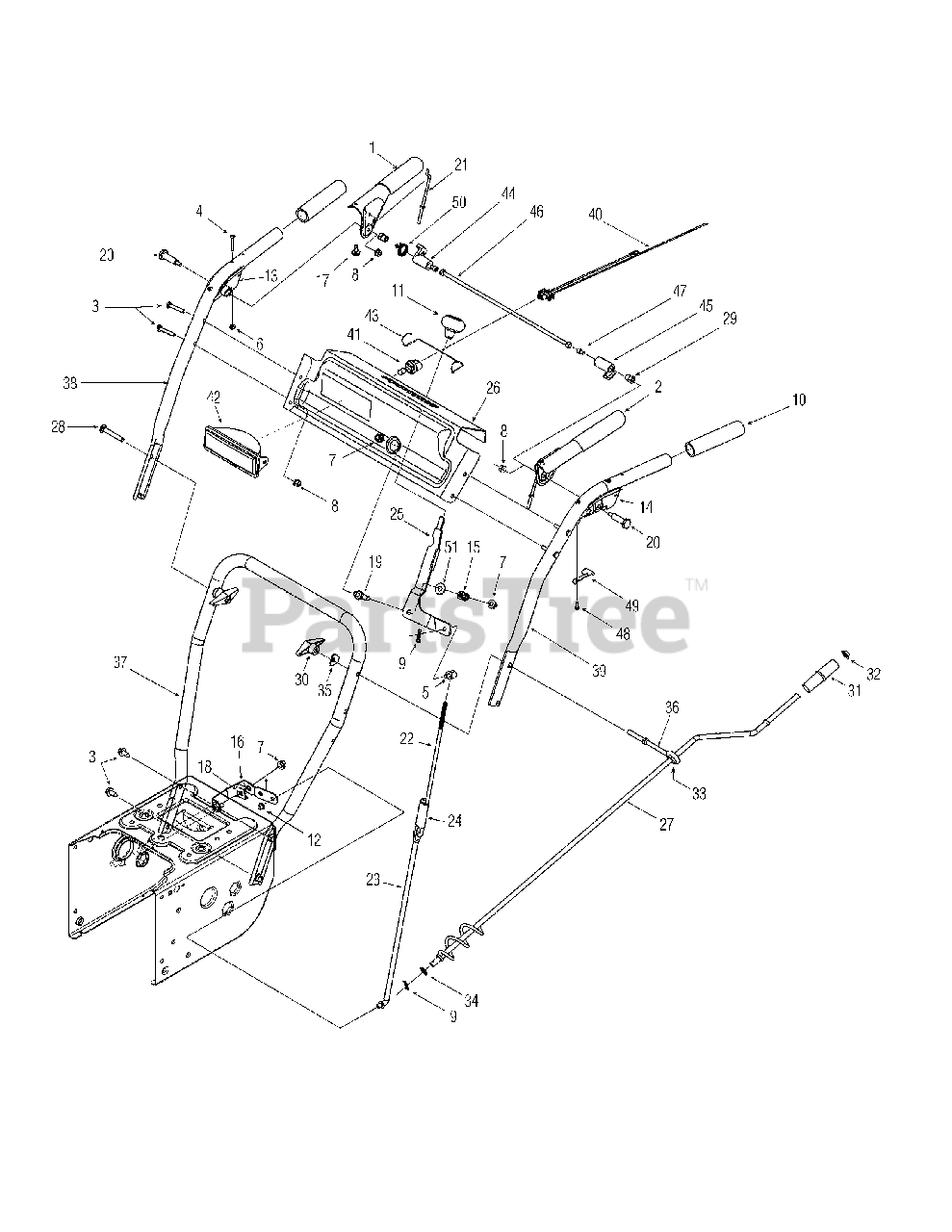

Handle & Controls Parts Diagram

  • Title

1

MTD 684-0036A

Handle Ass’y, Engagement RH Black

$41.99

$

Usually ships in 3-6 days

0

2

MTD 684-0037B

Handle Ass’y, Engagement, LH Black

$38.99

$

In Stock, only 2 left!

0

3

MTD 710-0726

Screw, Self-tapping, 5/16-12, 0.750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-1233

Screw, Machine, #10-24, 1.375

$4.49

$

In Stock, Qty 13

0

5

MTD 911-0677

Ferrule, 5/16-18 x .312 Diameter

$16.99

$

In Stock, only 4 left!

0

6

MTD 712-0161

Nut, Hex Lock, #10-24, Gr2, Nylon

$4.49

$

In Stock, Qty 9

0

7

MTD 712-04063

Nut, Flange Lock, 5/16-18, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04064

Nut, Flange Lock, 1/4-20, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 914-0104

Pin, Cotter, .072 Diameter x 1.13
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

10

MTD 720-0274

Grip, 1.0 ID x 5.0

$10.99

$

In Stock, Qty 6

0

11

MTD 720-04039

Shift Knob, Black

$9.99

$

In Stock, Qty 5

0

12

MTD 726-0135

Nut, Push, 5/16

$6.49

$

In Stock, only 4 left!

0

13

MTD 631-04134B

Handle, Clutch Lock, RH

$14.99

$

In Stock, only 3 left!

0

14

MTD 631-04133A

Handle, Clutch Lock, LH

$14.99

$

In Stock, only 1 left!

0

15

MTD 732-0193

Spring, Compression, .39x.60 x .88

$4.49

$

In Stock, Qty 8

0

16

MTD 732-04205

Spring, Shift, Lever

$10.99

$

Usually ships in 3-6 days

0

17

MTD 935-0199A

Bumper, Rubber, .62 OD x .22
(Superseded to 735-0199A)

$6.99

$

In Stock, Qty 16

0

18

MTD 790-00156

Bracket, Shift Spacer

$7.49

$

Usually ships in 3-6 days

0

19

MTD 738-04118

Bolt, Shoulder, 5/16-18 x 0.830

$5.49

$

Usually ships in 3-6 days

0

20

MTD 738-04348

Screw, Shoulder, .437 x 1.345, 1/4-20

$3.49

$

In Stock, only 1 left!

0

21

MTD 946-0778

Z Fitting, Cable

$9.99

$

In Stock, Qty 5

0

22

MTD 753-04892

Rod, Shift, .312 x 11.5 Upper

$24.99

$

In Stock, only 1 left!

0

23

MTD 747-04280

Rod, Shift, Lower
(Superseded to 747-0621)

$

$

Not available

24

MTD 950-0963

Connector Sleeve, Shift Rod

$32.99

$

In Stock, only 3 left!

0

25

MTD 790-00116-0637

Lever, Shift, Speed

$

$

Not available

26

MTD 790-00209

Panel (w/ Cutout), Handle, F-Style
(Superseded to 790-00209A)

Variations

MTD 790-00209-0637

PANEL:HANDLE:STEEL - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

MTD 790-00209-0638

PANEL:HANDLE:STEEL - MTD/TROY-BILT RED (0638)

$51.99

$

Usually ships in 3-6 days

0

MTD 790-00209-0667

PANEL:HANDLE:STEEL - MIDNIGHT BLUE (0667)

$51.99

$

Usually ships in 3-6 days

0

MTD 790-00209-0684

PANEL:HANDLE:STEEL - ZINC YELLOW (0684)

$51.99

$

Usually ships in 3-6 days

0

$51.99

$

Usually ships in 3-6 days

0

27

MTD 684-04104-0637

Crank Assembly, Chute

$58.99

$

In Stock, only 1 left!

0

28

MTD 710-0572

Screw, Carriage, 5/16-18, 2.25, Gr5

$3.99

$

In Stock, only 4 left!

0

29

MTD 712-04081A

Shoulder Nut, Hex, 1/4-20

$6.99

$

In Stock, only 1 left!

0

30

MTD 920-0284

Knob Assembly, Wing Nut, 5/16-18
(Superseded to 720-0284)

$6.49

$

In Stock, Qty 20+

0

31

MTD 720-0201A

Crank Knob, 1.0 Diameter x 3.2, Black

$10.99

$

In Stock, Qty 6

0

32

MTD 926-0100

Cap, Push, 3/8 Rod
(Superseded to 726-0100)

$

$

Not available

33

MTD 735-0234

Grommet, .44 ID x .94 OD x .50

$4.99

$

In Stock, only 3 left!

0

34

MTD 936-0185

Washer, Flat, .375 x .738 x .063
(Superseded to 736-0185)

$3.49

$

In Stock, Qty 15

0

35

MTD 936-0451

Washer, Saddle, 320 x .93 x .060
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

36

MTD 747-04263

Eye Bolt, Chute Crank

$8.99

$

In Stock, only 3 left!

0

37

MTD 749-04138A

Handle, Lower, Snow

Variations

MTD 749-04138A-0637

Lower Handle, Snow - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$82.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0650

HANDLE-LOWER SNOW - RED METALLIC (0650)

$82.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0662

HANDLE-LOWER SNOW - OYSTER GRAY (0662)

$82.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0665

HANDLE-LOWER SNOW - YARDMAN GREEN (0665)

$71.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0668

HANDLE-LOWER SNOW - MOSS GREEN (0668)

$71.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0689

HANDLE-LOWER SNOW - POLO GREEN (0689)

$71.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0691

HANDLE-LOWER SNOW - BLACK JACK (0691)

$71.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0709

HANDLE-LOWER SNOW - MASTERCRAFT GREEN (0709)

$82.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0729

HANDLE-LOWER SNOW - STORM GRAY (0729)

$71.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-4033

HANDLE-LOWER SNO - FLINT MICA (4033)

$71.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

38

MTD 749-04141

Handle, Upper, RH

Variations

MTD 749-04141-0637

Right Upper Handle - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

MTD 749-04141-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

39

MTD 749-04142

Handle, Upper, LH
(Superseded to 749-04191A)

Variations

MTD 749-04142-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

MTD 749-04142-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

40

MTD 725-04220

Harness, Headlight

$19.99

$

Usually ships in 3-6 days

0

41

MTD 925-1658

Lamp, Halogen, 12V, 27W

$55.99

$

In Stock, Qty 5

0

42

MTD 925-1672

Lens Assembly, Lamp

$83.99

$

Usually ships in 3-6 days

0

43

MTD 747-1136

Retainer, Lens

$10.99

$

Usually ships in 3-6 days

0

44

MTD 731-04894D

Plate, Lock

$4.99

$

In Stock, only 4 left!

0

45

MTD 731-04896B

Cam, Lock
(Superseded to 731-04896C)

$3.99

$

In Stock, Qty 12

0

46

MTD 753-04882C

Rod, Pivot

$39.99

$

In Stock, only 2 left!

0

47

MTD 710-04354

Screw, 1/4-20, .375

$3.99

$

In Stock, Qty 16

0

48

MTD 710-04326

Screw, #8-18 x .50

$3.99

$

In Stock, Qty 11

0

49

MTD 732-04219C

Spring, Control Lever Lock

$3.99

$

In Stock, Qty 20+

0

50

MTD 732-04238

Spring, Torsion, .8156 x .3038
(Superseded to 732-04238B)

$4.99

$

In Stock, Qty 12

0

51

MTD 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0
