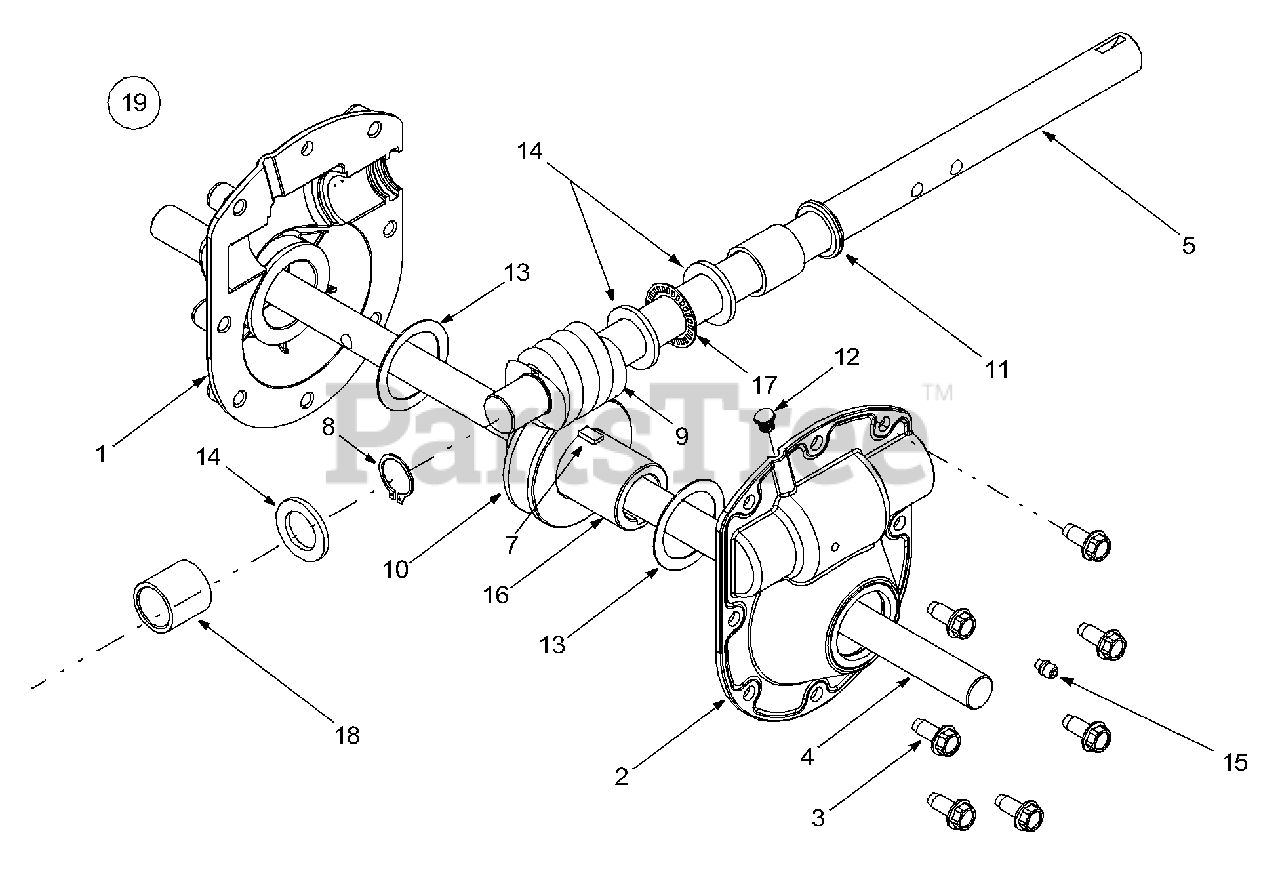

31AE993I401 - Yard-Man Snow Thrower (2003) Auger Gearbox Assembly Parts Diagram

Snow Thrower

Auger Gearbox Assembly Parts Diagram

  • Title

1

MTD 618-0246

Housing Assembly, RH
(Superseded to 918-0246)

$

$

Not available

2

MTD 618-0247

Housing Assembly, LH
(Superseded to 918-0247)

$110.99

$

In Stock, only 1 left!

0

3

MTD 710-1260A

Screw, 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

4

MTD 711-0908A

Axle, Auger

$

$

Not available

5

MTD 711-1133

Shaft, Auger Drive

$304.99

$

Usually ships in 3-6 days

0

?6

MTD 714-0126

Key, Hi Pro, 3/16 x 3/4

$4.99

$

In Stock, Qty 20+

0

7

MTD 714-0135

#91 Woodruff Key 1/4 x 3/4

$4.99

$

In Stock, Qty 10

0

8

MTD 716-0111

Snap Ring .875 Dia.

$6.99

$

In Stock, only 1 left!

0

9

MTD 717-0299

Gear, Worm, Double Thread LH
(Superseded to 917-0299)

$131.99

$

In Stock, only 1 left!

0

10

MTD 717-1425

Gear, Worm, LH
(Superseded to 917-1425)

$188.99

$

Usually ships in 3-6 days

0

11

MTD 721-0145

Seal, Oil .875 ID
(Superseded to 921-0145)

$10.99

$

In Stock, only 2 left!

0

12

MTD 721-0325

Plug, 1/4 x .437

$4.99

$

In Stock, only 3 left!

0

13

MTD 736-0266

Washer, Flat, 1.52 x 2.0
(Superseded to 936-0266)

$

$

Not available

14

MTD 736-0291

Washer, Flat, .88 x 1.38

$12.99

$

Usually ships in 3-6 days

0

15

MTD 737-3000

Lube Fitting, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 16

0

16

MTD 738-0275

Shaft, Worm Gear

$118.99

$

Usually ships in 3-6 days

0

17

MTD 741-0184

Bearing, Thrust .877

$17.99

$

In Stock, only 4 left!

0

18

MTD 741-0217

Sleeve Bearing, .877 x .125 x 1.11
(Superseded to 941-0217)

$18.99

$

Usually ships in 3-6 days

0

19

MTD 618-0257

Auger Gearbox Assembly Complete
(Superseded to 618-0436)

$710.99

$

Usually ships in 3-6 days

0
