31AE9P3I801 - Yard-Man Snow Thrower (2005) General Assembly Parts Diagram

Snow Thrower

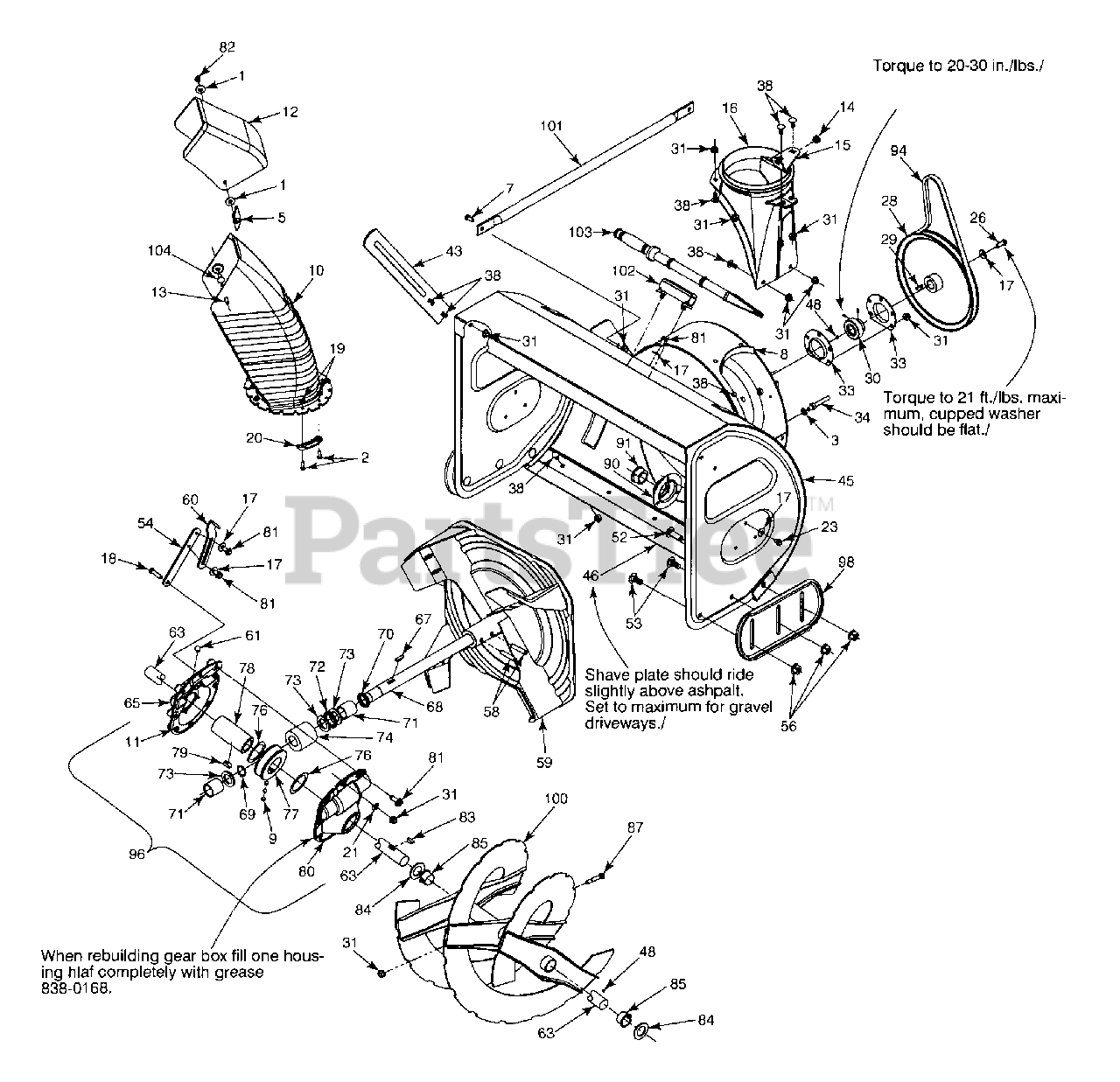

General Assembly Parts Diagram

  • Title

1

MTD 736-0159

Flat Washer .344 ID x .875 OD

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0597

Hex. Scr. 1/4-20 x 1.00 Gr. 5

$4.49

$

In Stock, Qty 11

0

3

MTD 736-0169

Lockwasher 3/8" ID

$3.99

$

In Stock, Qty 20+

0

5

MTD 720-0284

Handle Knob Assembly

$7.49

$

In Stock, Qty 18

0

7

MTD 710-3008

Hex Hd Cap Scr. 5/16-18 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

8

MTD 784-5711

Chute Bracket
(Superseded to 784-5711-0637)

Variations

MTD 784-5711-0498

Chute Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5711-0637

Chute Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 737-0168

Shell Alvania Grease (3 oz.)
(Superseded to 737-0168A)

$32.99

$

In Stock, Qty 9

0

10

MTD 731-0903D

Extended Lower Black Plastic Chute
(Superseded to 731-0903E)

$45.99

$

In Stock, Qty 8

0

11

MTD 721-0328

Ultra Grey Loctite #5699

$

$

Currently unavailable

12

MTD 731-0846C

Upper Black Plastic Chute

$55.99

$

In Stock, only 3 left!

0

13

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg

$4.49

$

In Stock, Qty 20+

0

14

MTD 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

15

MTD 784-5123

Chute Brkt.
(Superseded to 784-5123-0637)

Variations

MTD 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

16

MTD 731-1696A

Chute Adapter
(Superseded to 731-1696B)

$96.99

$

In Stock, Qty 9

0

17

MTD 736-0242

Cupped Washer.345 ID x .88 OD x .06

$4.99

$

In Stock, Qty 20+

0

18

MTD 710-0528

Hex Screw 5/16-18 x 1.25

$4.99

$

In Stock, Qty 20+

0

19

MTD 712-3027

Hex Cent. L-Nut 1/4-20 w/flange Gr. F
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

20

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-3004A

Flange L-Nut 5/16-18 Gr. 5 Nylon

$3.99

$

In Stock, Qty 20+

0

21

MTD 736-0271

Lockwasher 5/16" ID
(Superseded to 936-0271)

$4.99

$

In Stock, Qty 9

0

23

MTD 710-0726

Hex Wash HD Tap Scr 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

26

MTD 710-0371

Hex Screw 5/16-18 x .88
(Superseded to 710-1880)

$4.99

$

Usually ships in 3-6 days

0

28

MTD 756-0243

1/2" V-Pulley.875 ID x 10.12 OD

$100.99

$

Usually ships in 3-6 days

0

29

MTD 714-0126

#9 HI-Pro Key 3/16 x 3/4 Dia HT

$4.99

$

In Stock, Qty 20+

0

30

MTD 741-0185

Self-Aligning Bearing .875 ID
(Superseded to 941-0185)

$70.99

$

In Stock, only 1 left!

0

31

MTD 712-04063

Hex Flg. L-Nut 5/16-18 Gr. F Nylon

$4.49

$

In Stock, Qty 20+

0

33

MTD 05244A

Bearing Housing
(Superseded to 05244B)

$25.99

$

In Stock, only 2 left!

0

34

MTD 711-0640

Belt Keeper Studs 3/8-16 x 2.75

$8.49

$

Usually ships in 3-6 days

0

38

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

43

MTD 05139A

Drift Cutter
(Superseded to 790-00181-0637)

Variations

MTD 05139A-0498

BLADE-GUIDE (DRIFT - OLD CUB YELLOW (0498)

$45.99

$

Usually ships in 3-6 days

0

MTD 05139A-0637

BLADE-GUIDE (DRIFT - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 05139A-0638

BLADE-GUIDE (DRIFT - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 05139A-0662

BLADE-GUIDE (DRIFT - OYSTER GRAY (0662)

$45.99

$

Usually ships in 3-6 days

0

MTD 05139A-0665

BLADE-GUIDE (DRIFT - YARDMAN GREEN (0665)

$45.99

$

Usually ships in 3-6 days

0

MTD 05139A-0674

BLADE-GUIDE (DRIFT - YARDMAN YELLOW (0674)

$45.99

$

Usually ships in 3-6 days

0

MTD 05139A-0716

BLADE-GUIDE (DRIFT - CUB YELLOW-99 (0716)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

45

MTD 684-0091B

Snowthrower Housing Ass'y, Auger; 28" Standard Serrated

$

$

Currently unavailable

45

MTD 684-0164A

Snowthrower Housing Ass'y, Auger; 28" Heavy Duty w/brace

Variations

MTD 684-0164A-0650

HOUSING-28" AUGER - RED METALLIC (0650)

$

$

Not available

MTD 684-0164A-0716

No Longer Available HOUSING-28 - CUB YELLOW-99 (0716)

$

$

Not available

$

$

45

MTD 684-0092B

Snowthrower Housing Ass'y, Auger; 30" Standard Serrated

Variations

MTD 684-0092B-0498

HOUSING-30" AUGER - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0092B-0638

HOUSING-30" AUGER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0092B-0662

HOUSING-30" AUGER - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0092B-0665

HOUSING-30" AUGER - YARDMAN GREEN (0665)

$

$

Not available

$538.99

$

Usually ships in 3-6 days

0

45

MTD 684-0165A

Snowthrower Housing Ass'y, Auger; 30" Heavy Duty w/brace

Variations

MTD 684-0165A-0650

HOUSING-30" AUGER - RED METALLIC (0650)

$

$

Not available

MTD 684-0165A-0716

HOUSING-30" AUGER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

45

MTD 684-0093B

Snowthrower Housing Ass'y, Auger; 33" Standard Serrated

Variations

MTD 684-0093B-0498

33" AUGER HOUSING (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0093B-0638

HOUSING-33" AUGER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0093B-0650

HOUSING-33" AUGER - RED METALLIC (0650)

$

$

Not available

MTD 684-0093B-0665

HOUSING-AUGER 33" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0093B-0716

HOUSING-33" AUGER - CUB YELLOW-99 (0716)

$

$

Not available

$667.99

$

Usually ships in 3-6 days

0

45

MTD 684-0166A

Snowthrower Housing Ass'y, Auger; 33" Heavy Duty w/brace

Variations

MTD 684-0166A-0650

HOUSING-AUGER 33" - RED METALLIC (0650)

$

$

Not available

MTD 684-0166A-0665

HOUSING-AUGER 33" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0166A-0674

HOUSING-AUGER 33" - YARDMAN YELLOW (0674)

$

$

Not available

MTD 684-0166A-0716

HOUSING-AUGER 33" - CUB YELLOW-99 (0716)

$

$

Not available

$667.99

$

Usually ships in 3-6 days

0

45

MTD 684-0155A

Snowthrower Housing Ass'y, Auger; 45" Heavy Duty w/brace

Variations

MTD 684-0155A-0498

45" HOUSING ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0155A-0662

HOUSING ASM-45" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0155A-0665

HOUSING ASM-45" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0155A-0716

HOUSING ASM-45" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

46

MTD 784-5716A

Shave Plate; 28" Standard Serrated, Heavy Duty w/brace
(Superseded to 784-5716B)

Variations

MTD 784-5716A-0637

PLATE-SHAVE 28" - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

46

MTD 784-5715A

Shave Plate; 30" Standard Serrated, Heavy Duty w/brace
(Superseded to 784-5715B-0637)

Variations

MTD 784-5715A-0637

Shave Plate, 30" - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

46

MTD 784-5714A

Shave Plate; 33" Standard Serrated, Heavy Duty w/brace
(Superseded to 784-5714B-0637)

Variations

MTD 784-5714A-0637

Shave Plate, 33" Black - POWDER BLACK (0637)

$58.99

$

In Stock, only 2 left!

0

$58.99

$

In Stock, only 2 left!

0

46

MTD 784-5696B

Shave Plate; 45" Heavy Duty w/brace
(Superseded to 790-00280-0637)

Variations

MTD 784-5696B-0637

Shave Plate, 45" Black - POWDER BLACK (0637)

$64.99

$

In Stock, only 2 left!

0

$64.99

$

In Stock, only 2 left!

0

48

MTD 737-0318

Arctic Grease
(Superseded to 737-0318-CRTG)

$23.99

$

Usually ships in 3-6 days

0

52

MTD 710-3168

Carriage Bolt 3/8-16 x 1.00 Gr. 5

$4.49

$

In Stock, Qty 20+

0

53

MTD 710-0389

Carriage Bolt 3/8-16 x .75" Lg.

$4.99

$

Usually ships in 3-6 days

0

54

MTD 784-5710

Gear Housing Support Plate 1 x 3/16
(Superseded to 784-5710-0637)

Variations

MTD 784-5710-0637

PLATE-SUPPORT - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

56

MTD 712-04065

Hex Flange L-Nut 3/8-16 Gr. F Nylon

$4.49

$

In Stock, Qty 20+

0

58

MTD 715-0118

Spring Spirol Pin Heavy - 5/16 dia x 1.7

$13.99

$

In Stock, Qty 10

0

59

MTD 684-0090A

Blower Fan Ass'y Complete
(Superseded to 684-0090B-0637)

Variations

MTD 684-0090A-0637

IMPELLER ASM:16" - POWDER BLACK (0637)

$

$

Not available

$

$

60

MTD 784-5076

Gear Housing Support Bracket
(Superseded to 784-5076-0637)

Variations

MTD 784-5076-0637

PLATE-SUPPORT-GEAR - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

61

MTD 721-0325

Barbed Plug

$4.99

$

In Stock, only 3 left!

0

63

MTD 738-0493

Spiral Axle - Auger Shaft; 28" Standard Serrated, Heavy Duty w/brace

$

$

Not available

63

MTD 738-0733B

Spiral Axle - Auger Shaft; 30" Standard Serrated, Heavy Duty w/brace

$

$

Not available

63

MTD 738-0491

Spiral Axle - Auger Shaft; 33" Standard Serrated, Heavy Duty w/brace

$

$

Not available

63

MTD 738-0492

Spiral Axle - Auger Shaft; 45" Heavy Duty w/brace

$218.99

$

Usually ships in 3-6 days

0

65

MTD 618-0246

Gear Housing Half - RH
(Superseded to 918-0246)

$

$

Not available

67

MTD 714-0126

#9 HI-Pro Key 3/16 x 3/4 Dia HT

$4.99

$

In Stock, Qty 20+

0

68

MTD 711-1133

Auger Drive Shaft

$304.99

$

Usually ships in 3-6 days

0

69

MTD 716-0111

Snap Ring for.875 dia. shaft

$6.99

$

In Stock, only 2 left!

0

70

MTD 721-0145

Oil seal for .875 ID Garlock (76 x 6133)
(Superseded to 921-0145)

$10.99

$

In Stock, Qty 5

0

71

MTD 741-0217

Sleeve Bearing .875 ID
(Superseded to 941-0217)

$18.99

$

In Stock, only 2 left!

0

72

MTD 741-0184

Thrust Bearing .88 ID x 1.44 OD x .078

$17.99

$

In Stock, only 2 left!

0

73

MTD 736-0291

Flat Washer.88 ID x 1.4 OD x.1 25

$12.99

$

In Stock, only 3 left!

0

74

MTD 717-0299

Worm Gear LH Double Thread
(Superseded to 917-0299)

$131.99

$

In Stock, only 1 left!

0

76

MTD 736-0266

Flat Washer 1.5 ID x 2.0 OD x .03
(Superseded to 936-0266)

$

$

Not available

77

MTD 717-1425

Worm Gear LH Double Thread (Bronze)
(Superseded to 917-1425)

$188.99

$

Usually ships in 3-6 days

0

78

MTD 738-0275

Worm Gear Shaft

$118.99

$

Usually ships in 3-6 days

0

79

MTD 714-0135

#91 Woodruff Key 1 /4 x 3/4 Dia.

$4.99

$

In Stock, Qty 11

0

80

MTD 618-0247

Gear Housing Half LH
(Superseded to 918-0247)

$110.99

$

In Stock, only 1 left!

0

81

MTD 710-1260A

Hex Flange Scr. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

82

MTD 712-0429

Hex Ins. L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

83

MTD 714-0135

#91 Woodruff Key 1/4 x 3/4 Dia.

$4.99

$

In Stock, Qty 11

0

84

MTD 736-0250

Flat Washer

$4.99

$

In Stock, Qty 20+

0

85

MTD 741-0494

Flange Bearing

$4.49

$

In Stock, Qty 16

0

87

MTD 710-0891

Shear Bolt 5/16-18 x 1.75

$7.99

$

In Stock, only 4 left!

0

90

MTD 05845B

Bearing Housing
(Superseded to 05845C-0637)

Variations

MTD 05845B-0637

Bearing Housing - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$25.99

$

In Stock, only 1 left!

0

91

MTD 741-0192

Flange bearing w/flats
(Superseded to 941-0170)

$20.99

$

In Stock, only 4 left!

0

94

MTD 754-0222A

V-Belt 1/2 x 44" Lg.
(Superseded to 954-0222A)

$42.99

$

In Stock, only 3 left!

0

96

MTD 618-0257

Worm Gear Box Ass'y
(Superseded to 618-0436)

$710.99

$

Usually ships in 3-6 days

0

MTD 618-0436

Worm Gear Box Ass'y (w/grease fitting)

$710.99

$

Usually ships in 3-6 days

0

98

MTD 784-5697

Reversible Slide Shoe

Variations

MTD 784-5697-0716

Snow Skid Shoe, Yellow - CUB YELLOW-99 (0716)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-0606

Snow Skid Shoe, Orange - MAJESTIC ORANGE (0606)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-0637

Snow Skid Shoe, Black - POWDER BLACK (0637)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-0717

Snow Skid Shoe, Sliver - SILVER MIST (0717)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-0638

Snow Skid Shoe, Red - MTD/TROY-BILT RED (0638)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-0650

Snow Skid Shoe, Red - RED METALLIC (0650)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-0684

SHOE-SKID - ZINC YELLOW (0684)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-4033

Snow Skid Shoe, Flint - FLINT MICA (4033)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-0691

SHOE-SKID - BLACK JACK (0691)

$46.99

$

In Stock, only 2 left!

0

MTD 784-5697-4021

SHOE-SKID - CUB YELLOW 2 (4021)

$46.99

$

In Stock, only 2 left!

0

$48.99

$

Usually ships in 3-6 days

0

100

MTD 684-0095

Auger, LH; 28" Standard Serrated, Heavy Duty w/brace
(Superseded to 684-0095-0637)

Variations

MTD 684-0095-0637

SPRIAL ASM 28" LH - POWDER BLACK (0637)

$

$

Not available

$

$

100

MTD 684-0096

Auger, RH; 28" Standard Serrated, Heavy Duty w/brace

Variations

MTD 684-0096-0637

No Longer Available SPRIAL ASM - POWDER BLACK (0637)

$

$

Not available

$

$

100

MTD 705-5206A

Auger, LH; 30" Standard Serrated, Heavy Duty w/brace
(Superseded to 684-04192)

Variations

MTD 705-5206A-0498

SPIRAL ASM - OLD CUB YELLOW (0498)

$215.99

$

Usually ships in 3-6 days

0

MTD 705-5206A-0637

SPIRAL ASM-RH 30" - POWDER BLACK (0637)

$215.99

$

Usually ships in 3-6 days

0

MTD 705-5206A-0638

SPIRAL ASM-RH 30" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 705-5206A-0662

SPIRAL ASM-RH 30" - OYSTER GRAY (0662)

$

$

Not available

MTD 705-5206A-0674

SPIRAL ASM-RH 30" - YARDMAN YELLOW (0674)

$

$

Not available

$174.99

$

Usually ships in 3-6 days

0

100

MTD 705-5207A

Auger, RH; 30" Standard Serrated, Heavy Duty w/brace
(Superseded to 684-04193)

Variations

MTD 705-5207A-0498

SPIRAL ASM-LH 30" - OLD CUB YELLOW (0498)

$226.99

$

Usually ships in 3-6 days

0

MTD 705-5207A-0637

SPIRAL ASM-LH 30" - POWDER BLACK (0637)

$226.99

$

Usually ships in 3-6 days

0

MTD 705-5207A-0662

SPIRAL ASM-LH 30" - OYSTER GRAY (0662)

$226.99

$

Usually ships in 3-6 days

0

MTD 705-5207A-0638

SPIRAL ASM-LH 30" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 705-5207A-0674

SPIRAL ASM-LH 30" - YARDMAN YELLOW (0674)

$

$

Not available

$187.99

$

Usually ships in 3-6 days

0

100

MTD 705-5210A

Auger, LH; 33" Standard Serrated, Heavy Duty w/brace
(Superseded to 705-5210A-0637)

Variations

MTD 705-5210A-0637

SPIRAL ASM-RH 33" - POWDER BLACK (0637)

$

$

Not available

$

$

100

MTD 705-5211A

Auger, RH; 33" Standard Serrated, Heavy Duty w/brace
(Superseded to 684-04195-0637)

Variations

MTD 705-5211A-0637

SPIRAL ASM-LH 33" - POWDER BLACK (0637)

$

$

Not available

$

$

100

MTD 684-0073

Auger, LH; 45" Heavy Duty w/brace
(Superseded to 684-04197)

Variations

MTD 684-0073-0637

SPIRAL ASM-LH 45" - POWDER BLACK (0637)

$284.99

$

Usually ships in 3-6 days

0

MTD 684-0073-0650

SPIRAL ASM-LH 45" - RED METALLIC (0650)

$284.99

$

Usually ships in 3-6 days

0

MTD 684-0073-0662

SPIRAL ASM-LH 45" - OYSTER GRAY (0662)

$284.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

100

MTD 684-0072

Auger, RH; 45" Heavy Duty w/brace
(Superseded to 684-04196-0637)

Variations

MTD 684-0072-0637

SPIRAL ASM-RH 45" - POWDER BLACK (0637)

$309.99

$

Usually ships in 3-6 days

0

MTD 684-0072-0650

SPIRAL ASM-RH 45" - RED METALLIC (0650)

$309.99

$

Usually ships in 3-6 days

0

MTD 684-0072-0662

SPIRAL ASM-RH 45" - OYSTER GRAY (0662)

$309.99

$

Usually ships in 3-6 days

0

$309.99

$

Usually ships in 3-6 days

0

101

MTD 749-1117

Support Tubing (33" & 45" Only)

Variations

MTD 749-1117-0637

TUBE-SUPPORT - POWDER BLACK (0637)

$

$

Not available

MTD 749-1117-0716

SUPPORT TUBE (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

102

MTD 731-2635

Cleanout Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 6

0

103

MTD 731-2643

Cleanout Tool
(Superseded to 931-2643)

$20.99

$

In Stock, only 2 left!

0

104

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75

$4.49

$

Usually ships in 3-6 days

0

838-0168

MTD 838-0168

Grease

$

$

Currently unavailable
