31AH553G401 - Yard-Man Snow Thrower (2001) Blower Housing Parts Diagram

Snow Thrower

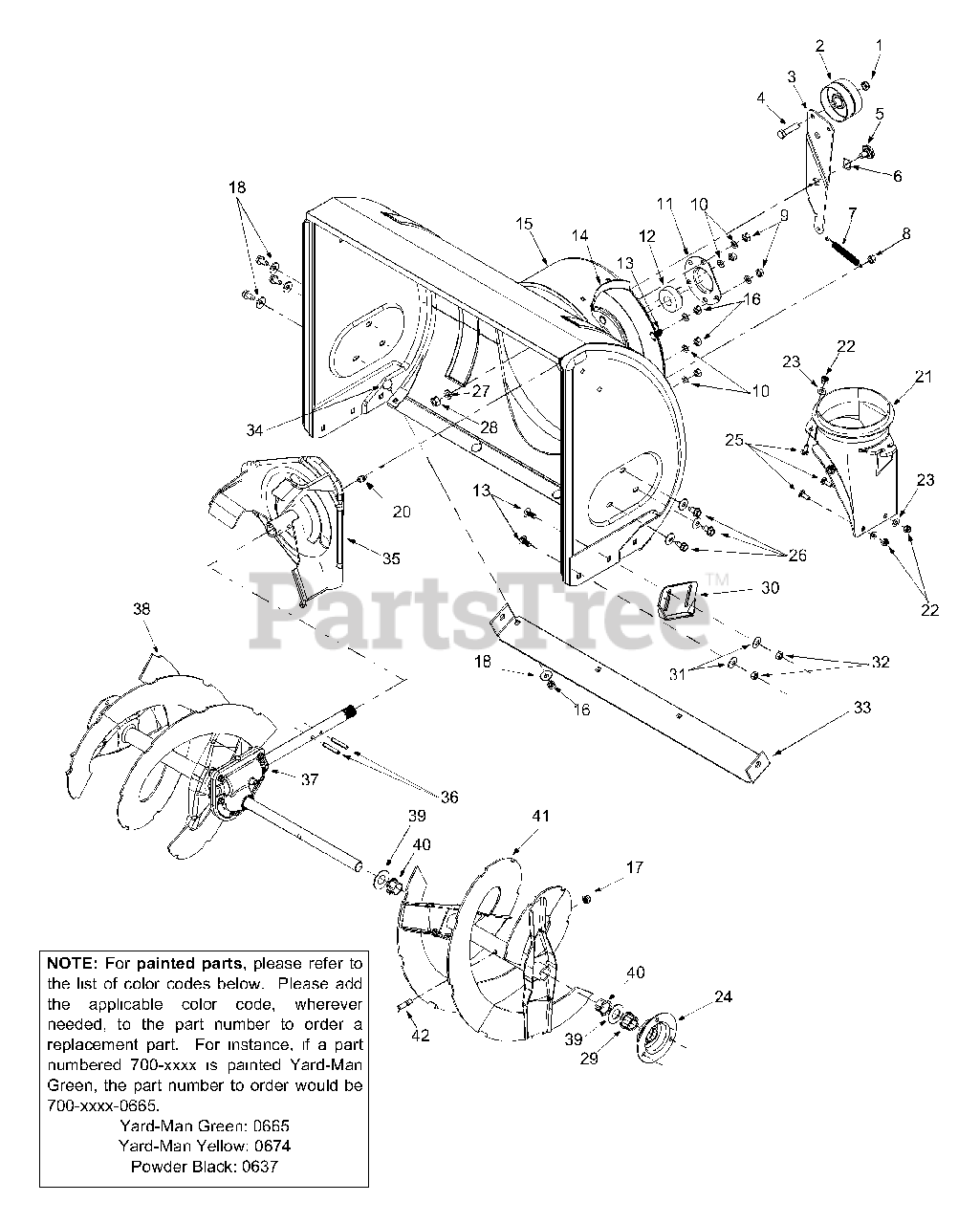

Blower Housing Parts Diagram

  • Title

1

MTD 712-0116

Lock Jam Nut 3/8-24

$4.99

$

In Stock, only 3 left!

0

2

MTD 756-0178

Flat Idler

$21.99

$

In Stock, only 2 left!

0

3

MTD 784-5632A

Auger Idler Arm
(Superseded to 984-0064-0637)

Variations

MTD 784-5632A-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$34.99

$

In Stock, only 2 left!

0

$34.99

$

In Stock, only 2 left!

0

4

MTD 710-0459A

Hex Cap Screw 3/8-24 x 1.50

$7.49

$

In Stock, Qty 11

0

5

MTD 738-0281

Shoulder Screw

$11.99

$

In Stock, only 2 left!

0

6

MTD 736-0167

Flat Washer
(Superseded to 936-0167)

$7.49

$

In Stock, Qty 5

0

7

MTD 732-0611

Extension Spring
(Superseded to 932-0611)

$7.99

$

In Stock, Qty 8

0

8

MTD 712-3068

Hex Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

9

MTD 710-0276

Carriage Bolt, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

MTD 05931A

Housing

$11.99

$

Usually ships in 3-6 days

0

12

MTD 741-0309

Ball Bearing
(Superseded to 941-0309)

$79.99

$

In Stock, Qty 20+

0

13

MTD 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

MTD 705-5226

Chute Reinforcement

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$11.99

$

In Stock, Qty 6

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$11.99

$

In Stock, Qty 6

0

$10.99

$

Usually ships in 3-6 days

0

15

MTD 684-0041C

28" Housing Assy
(Superseded to 684-0041D)

Variations

MTD 684-0041C-0689

HOUSING ASM-28" - POLO GREEN (0689)

$

$

Not available

MTD 684-0041C-0650

HOUSING ASM-28" - RED METALLIC (0650)

$

$

Not available

MTD 684-0041C-0483

HOUSING ASM-28" - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0041C-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0041C-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0041C-0662

HOUSING ASM-28" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0041C-0665

HOUSING ASM-28" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0041C-0691

HOUSING ASM-28" - BLACK JACK (0691)

$

$

Not available

MTD 684-0041C-0716

28" HOUSING ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

16

MTD 712-3010

Hex Nut 5/16-18

$4.99

$

In Stock, Qty 20+

0

17

MTD 712-0429

Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0242

Belleville Washer

$4.99

$

In Stock, Qty 20+

0

20

MTD 737-0318

Grease Fitting
(Superseded to 737-0318-CRTG)

$23.99

$

Usually ships in 3-6 days

0

21

MTD 731-1379B

Chute Adapter
(Superseded to 731-1379D)

$69.99

$

In Stock, Qty 6

0

22

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, only 4 left!

0

23

MTD 736-0463

Flat Washer

$4.99

$

In Stock, Qty 20+

0

24

MTD 784-0399

Bearing Housing w/Fitting
(Superseded to 784-5618A-0637)

$13.99

$

In Stock, only 2 left!

0

25

MTD 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

26

MTD 710-0604

Hex Screw 5/16-18
(Superseded to 710-0604A)

$4.99

$

In Stock, Qty 19

0

27

MTD 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

29

MTD 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$10.99

$

In Stock, Qty 20+

0

30

MTD 784-5580

Skid Shoe

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$24.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$24.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$24.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$24.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$24.99

$

In Stock, Qty 10

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$24.99

$

In Stock, Qty 10

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$24.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$24.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$24.99

$

In Stock, Qty 20+

0

$24.99

$

In Stock, Qty 20+

0

31

MTD 736-0242

Bell Washer

$4.99

$

In Stock, Qty 20+

0

32

MTD 712-3010

Hex Nut 5/16-18

$4.99

$

In Stock, Qty 20+

0

33

MTD 784-5582A

28" Shave Plate
(Superseded to 790-00118-0637)

Variations

MTD 784-5582A-0637

Shave Plate, 28" Powder Black - POWDER BLACK (0637)

$39.99

$

In Stock, Qty 7

0

$39.99

$

In Stock, Qty 7

0

34

MTD 710-0260

Carriage Bolt 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

35

MTD 684-0065

Impeller Assembly
(Superseded to 984-0065-0637)

Variations

MTD 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$95.99

$

In Stock, only 4 left!

0

MTD 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$95.99

$

In Stock, only 4 left!

0

$95.99

$

In Stock, only 4 left!

0

36

MTD 715-0114

Pin

$9.99

$

In Stock, Qty 20+

0

37

MTD 618-0122A

28" Gear Assy
(Superseded to 918-0416B)

$503.99

$

Usually ships in 3-6 days

0

38

MTD 605-5196A

28" Spiral RH
(Superseded to 684-04184-0637)

Variations

MTD 605-5196A-0637

Auger Spiral Assembly, RH 28" - POWDER BLACK (0637)

$231.99

$

Usually ships in 3-6 days

0

$231.99

$

Usually ships in 3-6 days

0

39

MTD 736-0188

Flat Washer

$4.99

$

In Stock, Qty 20+

0

40

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.99

$

In Stock, Qty 20+

0

41

MTD 605-5197A

28" Spiral LH
(Superseded to 684-04185-0637)

Variations

MTD 605-5197A-0637

Auger Spiral Assembly, LH 28" - POWDER BLACK (0637)

$184.99

$

Usually ships in 3-6 days

0

$184.99

$

Usually ships in 3-6 days

0

42

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0
