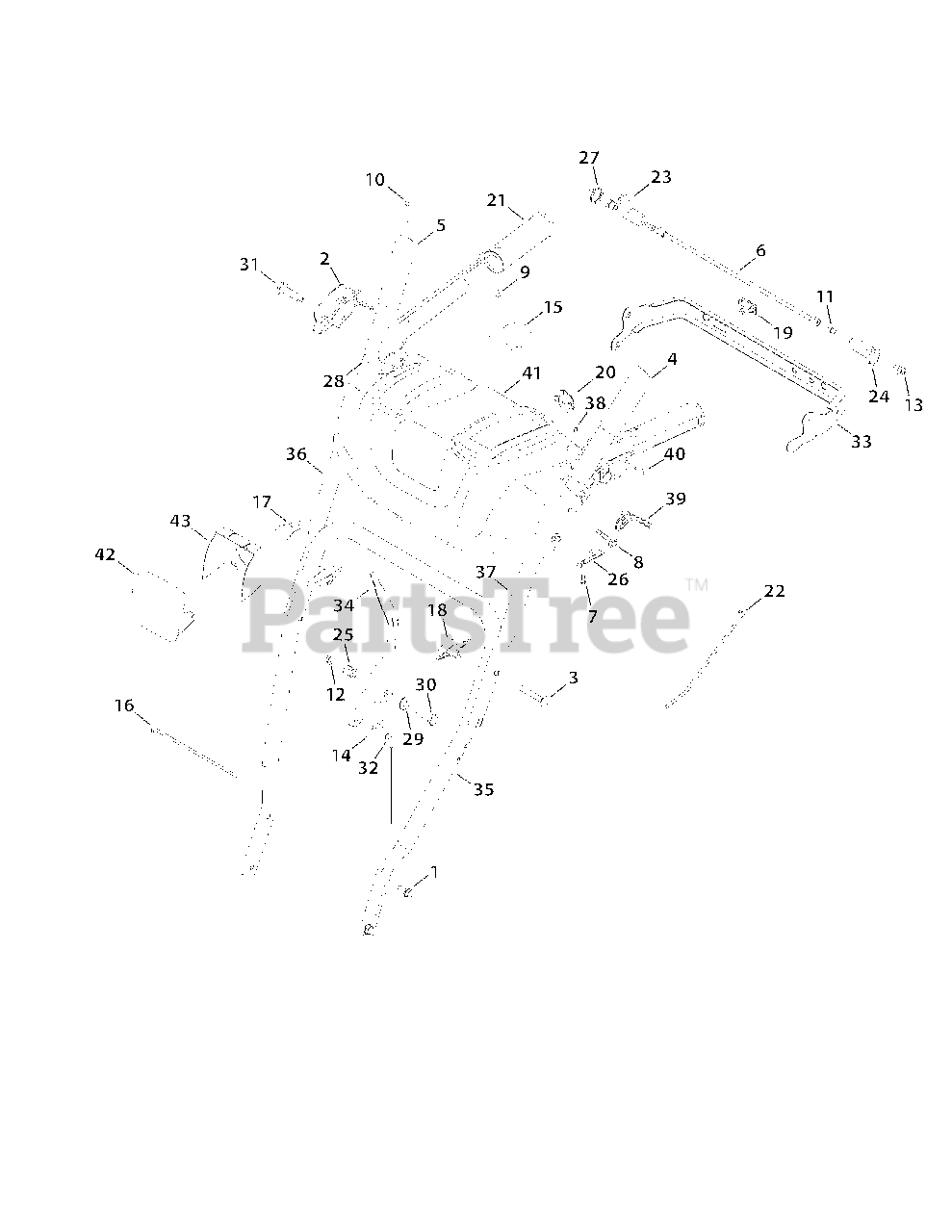

31AH55LH704 - MTD Gold Snow Thrower (2009) Handle & Frame Parts Diagram

Gold Snow Thrower

Handle & Frame Parts Diagram

  • Title

1

MTD 710-04484

Screw, Taptite, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

2

MTD 631-04134B

Clutch Lock, RH

$14.99

$

In Stock, only 3 left!

0

2

MTD 631-04133A

Clutch Lock, LH

$14.99

$

In Stock, only 1 left!

0

3

MTD 710-0572

Screw, Carriage, 5/16-18 x 2.25

$3.99

$

In Stock, only 4 left!

0

4

MTD 684-04105B

Auger Engage, Black
(Superseded to 684-04105D)

$21.99

$

In Stock, only 1 left!

0

5

MTD 684-04106B

Drive Engage, Black
(Superseded to 684-04106D)

$20.99

$

In Stock, only 1 left!

0

6

MTD 684-04250

Pivot Rod

$11.99

$

In Stock, Qty 8

0

7

MTD 710-04326

Screw, Plastite, 8-16 x .50

$3.99

$

In Stock, Qty 11

0

8

MTD 710-04586

Screw, Taptite, 1/4-20 x 1.625

$6.49

$

In Stock, only 2 left!

0

9

MTD 710-0837

Screw, 10-16 x 0.625

$4.49

$

In Stock, Qty 11

0

10

MTD 710-1233

Screw, 10-24 x 1.375

$4.49

$

In Stock, Qty 13

0

11

MTD 710-3069

Screw, 1/4-20 x .50

$4.49

$

In Stock, Qty 13

0

12

MTD 712-04064

Nut, Flangelock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04081A

Nut, Hex, 1/4-20

$6.99

$

In Stock, only 1 left!

0

14

MTD 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

15

MTD 720-04039

Shift Knob

$9.99

$

In Stock, only 4 left!

0

16

MTD 725-0157

Cable Tie, 7"

$3.49

$

In Stock, only 4 left!

0

17

MTD 925-04213

Lamp, 12.5V

$4.99

$

In Stock, only 3 left!

0

18

MTD 720-04072A

Star Knob, 5/16-18

$6.49

$

In Stock, Qty 20+

0

19

MTD 725-04393

Heated Grip Switch

$15.99

$

Usually ships in 3-6 days

0

20

MTD 925-1649

Lamp Socket
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

21

MTD 725-1757

Heated Grip

$103.99

$

Usually ships in 3-6 days

0

22

MTD 926-0154

Cable Tie, Push Mount, 7.5 LG

$5.99

$

Usually ships in 3-6 days

0

23

MTD 731-04894D

Plate, Lock

$4.99

$

In Stock, only 4 left!

0

24

MTD 731-04896B

Cam, Clutch Lock
(Superseded to 731-04896C)

$3.99

$

In Stock, Qty 12

0

25

MTD 732-0193

Compression Spring, .39 x .60 x .88

$4.49

$

In Stock, Qty 8

0

26

MTD 732-04219C

Clutch Lock Spring

$3.99

$

In Stock, Qty 20+

0

27

MTD 732-04238

Torsion Spring, 0.8156 x .3038
(Superseded to 732-04238B)

$4.99

$

In Stock, Qty 12

0

28

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$6.99

$

In Stock, Qty 16

0

29

MTD 936-0267

Washer, Flat, .385 x .87 x .06
(Superseded to 736-0267)

$4.49

$

Usually ships in 3-6 days

0

30

MTD 738-04125

Screw, Shield, .374 x 1.05

$4.49

$

In Stock, Qty 18

0

31

MTD 738-04348

Screw, Shoulder, .437 x 1.345 x 1/4-20

$3.49

$

In Stock, only 1 left!

0

32

MTD 946-04396A

Speed Selector Cable

$19.99

$

In Stock, Qty 20+

0

33

MTD 790-00248B-0637

Panel Bracket
(Superseded to 790-00248E-0637)

$22.99

$

In Stock, only 2 left!

0

34

MTD 790-00311A-0637

Shift Lever
(Superseded to 790-00311C-0637)

$25.99

$

In Stock, only 1 left!

0

35

MTD 749-04138A-0637

Lower Handle - Black
(Superseded to 749-04138C-0637)

$82.99

$

Usually ships in 3-6 days

0

36

MTD 749-04190A-0637

Upper RH Handle - Black

$42.99

$

Usually ships in 3-6 days

0

37

MTD 749-04191A-0637

Upper LH Handle - Black

$42.99

$

Usually ships in 3-6 days

0

38

MTD 716-04036

E-Ring

$5.99

$

In Stock, Qty 9

0

39

MTD 731-04913

Steering Trigger Control

$4.99

$

In Stock, Qty 5

0

40

MTD 738-04126

Steering Trigger Pin, 3/16

$3.99

$

In Stock, Qty 20+

0

41

MTD 931-05348

Handle Panel
(Superseded to 931-05348A)

$63.99

$

Usually ships in 3-6 days

0

42

MTD 731-05320

Lens Panel

$11.99

$

Usually ships in 3-6 days

0

43

MTD 777X41803

Lens Label

$9.99

$

Usually ships in 3-6 days

0

MTD 725-04216B

Heated Grips Harness (Not Shown)

$70.99

$

Usually ships in 3-6 days

0
