31AH55LH704 - MTD Gold Snow Thrower (2013) Auger & Auger Housing Parts Diagram

Gold Snow Thrower

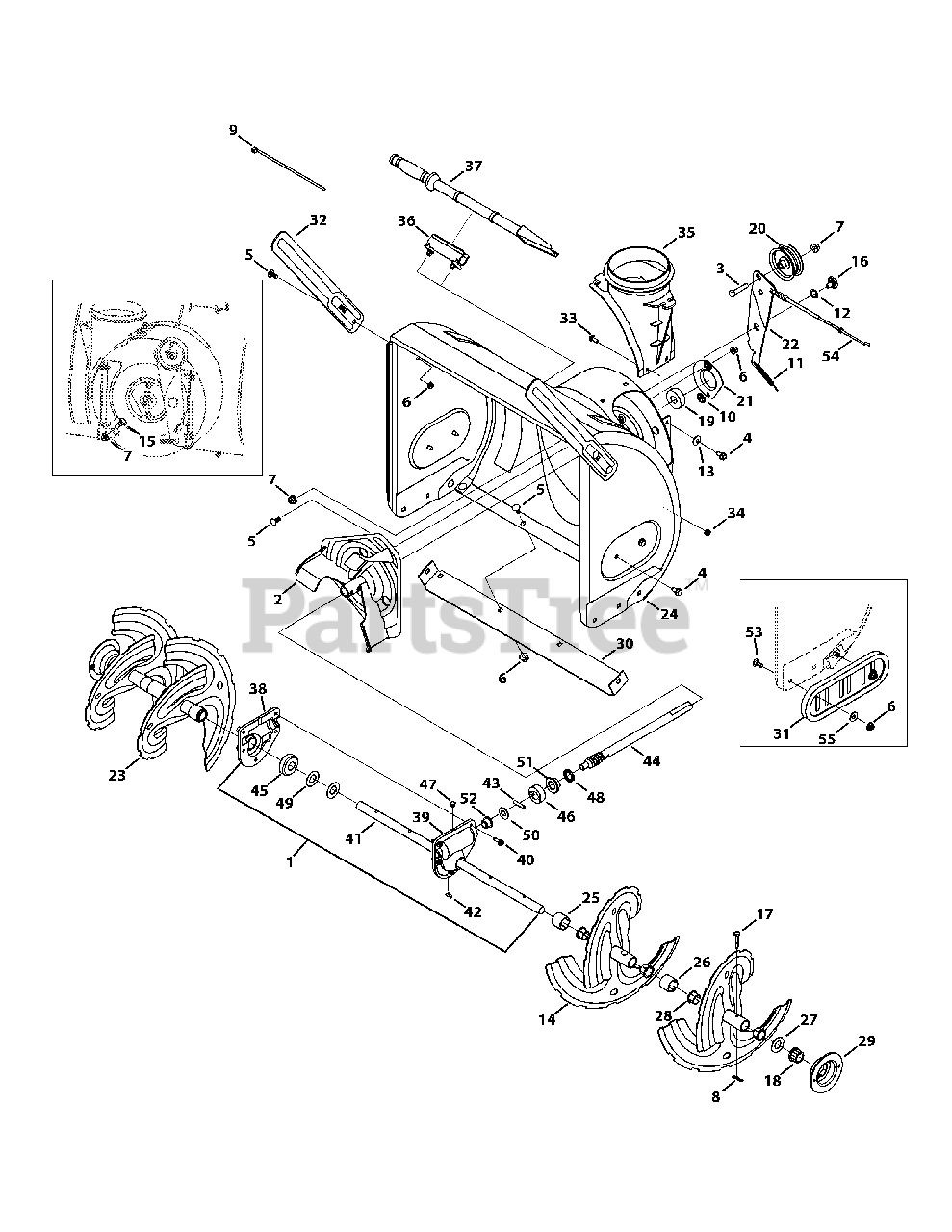

Auger & Auger Housing Parts Diagram

  • Title

1

MTD 918-04165A

Auger Gearbox 30", includes 38-52
(Superseded to 918-04165B)

$416.99

$

In Stock, only 4 left!

0

2

MTD 684-04057A-0637

Impeller Assembly, 12" Dia.
(Superseded to 684-04057C-0637)

$68.99

$

In Stock, Qty 8

0

3

MTD 710-0347

Hex Head Screw, 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-04484

Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

5

MTD 710-0451

Bolt, Carriage, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-04063

Nut, Flange lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04065

Nut, Flange lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

9

MTD 725-0157

Cable Tie, 7"

$3.49

$

In Stock, only 4 left!

0

10

MTD 926-04012

Nut, Push-on, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

11

MTD 732-04460

Extension Spring, .38 x 4.59

$4.99

$

In Stock, Qty 20+

0

12

MTD 736-0174

Washer, Wave, .625 x .885

$6.49

$

Usually ships in 3-6 days

0

13

MTD 736-0242

Washer, Bell, .340 x .872

$3.99

$

In Stock, Qty 20+

0

14

MTD 684-04107-0662

Spiral Assembly, LH
(Superseded to 684-04107A-0662)

$83.99

$

In Stock, Qty 12

0

15

MTD 738-0143

Bolt, Shoulder, .496 x .336 x 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

MTD 938-0281

Screw, Shoulder, .625 x .17 x 3/8-16
(Superseded to 738-0281)

$

$

Not available

17

MTD 738-04124A

Shear Pin, .25 x 1.50

$1.99

$

In Stock, Qty 20+

0

18

MTD 941-0245

Bearing, Hex Flange, .75

$9.49

$

In Stock, Qty 20+

0

19

MTD 941-0309

Bearing, Ball, .75 x 1.85

$69.99

$

In Stock, Qty 7

0

20

MTD 756-04224

Pulley, Idler, Flat, 2.75

$24.99

$

In Stock, Qty 20+

0

21

MTD 790-00075

Bearing, 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, only 1 left!

0

22

MTD 790-00080A-0637

Auger Idler Bracket
(Superseded to 790-00080D)

$26.99

$

In Stock, only 1 left!

0

23

MTD 684-04108-0662

Spiral Assembly, RH
(Superseded to 684-04108A-0662)

$88.99

$

In Stock, Qty 14

0

24

MTD 684-04267-0691

Auger Housing Assembly
(Superseded to 684-04267A-0691)

$348.99

$

Usually ships in 3-6 days

0

25

MTD 731-04870

Spacer, 1.25 x .75 x 1.00

$4.49

$

In Stock, Qty 8

0

26

MTD 731-04871

Spacer, 1.25 x .75 x 2.00

$6.49

$

In Stock, Qty 20+

0

27

MTD 736-0188

Washer, Flat, .76 x 1.49

$3.99

$

In Stock, Qty 20+

0

28

MTD 741-0493A

Bushing, Flange, .800 x .910
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

29

MTD 790-00087A-0637

Bearing, 1" Hex

$21.99

$

In Stock, only 2 left!

0

30

MTD 790-00119-0691

Shave Plate, 2.25 x 29.66
(Superseded to 790-00119-0637)

$37.99

$

In Stock, Qty 5

0

31

MTD 731-05984A

Polymer Slide Shoe

$29.99

$

In Stock, only 2 left!

0

31

MTD 753-06205

Polymer Reversible Shoe Kit

Note: (Will replace 731-05984A, includes hardware & 2 shoes)

$43.99

$

In Stock, only 1 left!

0

32

MTD 790-00181-0691

Blade Guide

$40.99

$

Usually ships in 3-6 days

0

33

MTD 710-0703

Screw, Carriage, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

34

MTD 712-04064

Nut, Flange lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

35

MTD 731-07525

Chute Adapter

$17.99

$

In Stock, Qty 7

0

36

MTD 731-2635

Clean-Out Tool Mount
(Superseded to 731-11421)

$10.99

$

In Stock, only 2 left!

0

37

MTD 931-2643

Clean-Out Tool

$18.99

$

In Stock, Qty 7

0

38

MTD 918-0123A

Reducer, RH

$48.99

$

In Stock, Qty 14

0

39

MTD 918-0124A

Reducer, LH

$48.99

$

In Stock, Qty 16

0

40

MTD 710-0642

Screw, 1/4-20 x 0.750

$4.49

$

In Stock, Qty 20+

0

41

MTD 711-04282

Auger Axle, 30"
(Superseded to 711-04282A)

$104.99

$

Usually ships in 3-6 days

0

42

MTD 914-0161

Key, Hi-Pro, 3/16 x 5/8

$4.49

$

In Stock, Qty 12

0

43

MTD 715-04021

Dowel Pin, .25 x 1.25

$3.99

$

In Stock, Qty 13

0

44

MTD 917-04126

Worm Shaft, .75

$73.99

$

In Stock, Qty 11

0

45

MTD 917-04861

Gear Worm, 20T

$40.99

$

In Stock, Qty 20+

0

46

MTD 718-04071

Collar Thrust, .756 x .600

$7.49

$

In Stock, Qty 16

0

47

MTD 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, only 1 left!

0

48

MTD 721-0327

Oil Seal, .75 x 1.131 x .188

$6.49

$

In Stock, Qty 20+

0

49

MTD 936-0351

Washer, Flat, .760 x 1.50
(Superseded to 736-0351)

$3.99

$

In Stock, Qty 20+

0

50

MTD 736-3084

Washer, Flat, .51 x 1.12

$4.49

$

In Stock, Qty 20+

0

51

MTD 741-0662

Bearing, Flange, .75 x 1.00 x .59

$9.99

$

In Stock, Qty 20+

0

52

MTD 741-0663

Bearing, Flange, .50 x .75 x .59

$8.99

$

In Stock, Qty 20+

0

53

MTD 710-0276

Screw, Carriage, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

54

MTD 946-04230A

Auger Drive Clutch Cable
(Superseded to 946-04230B)

$21.99

$

In Stock, Qty 20+

0

55

MTD 936-0159

Washer, Flat, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available
