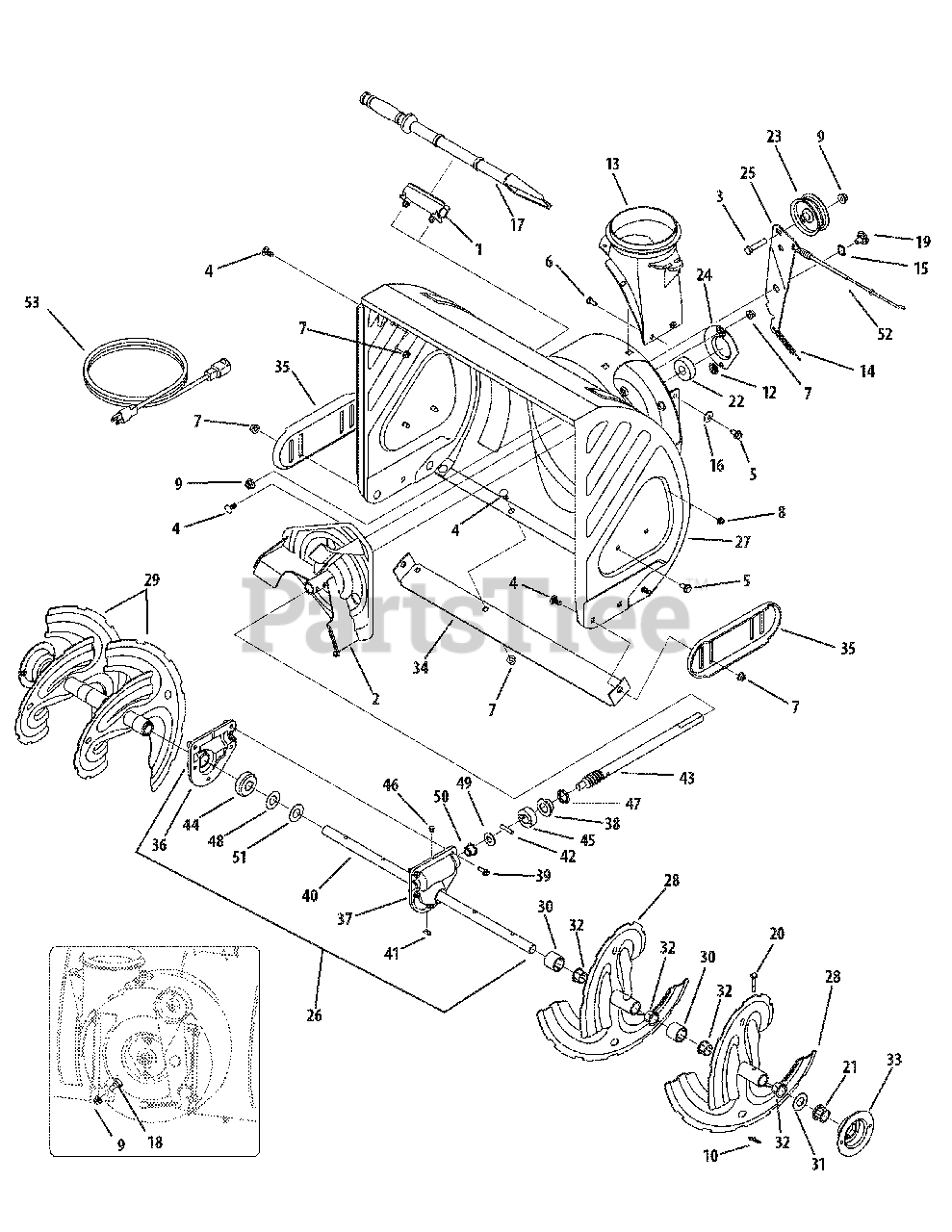

31AH5ZLH704 - MTD Gold Snow Thrower (2008) Auger & Auger Housing Parts Diagram

Gold Snow Thrower

Auger & Auger Housing Parts Diagram

  • Title

1

MTD 731-2635

Clean-out Tool Bracket
(Superseded to 731-11421)

$10.99

$

In Stock, only 2 left!

0

2

MTD 684-04057A-0637

Impeller Assembly, 12" Dia.
(Superseded to 684-04057C-0637)

$68.99

$

In Stock, Qty 8

0

3

MTD 710-0347

Hex Screw, 3/8-16, 1.75, Gr5

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-0451

Carriage Bolt, 5/16-18, .750 Gr1

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-04484

Screw, 5/16-18, 0.625

$3.49

$

In Stock, Qty 20+

0

6

MTD 710-0703

Carriage Screw, 1/4-20, .750, Gr5

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04063

Flange Lock Nut, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04064

Flange Lock Nut, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-04065

Flange Lock Nut, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

10

MTD 714-04040

Bow-tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

11

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.49

$

In Stock, only 4 left!

0

12

MTD 726-04012

Speed Nut

$6.99

$

In Stock, Qty 12

0

13

MTD 731-04705C

Chute Adapter
(Superseded to 731-04705D)

$25.99

$

In Stock, Qty 5

0

14

MTD 732-04460

Extension Spring, .38 OD x 3.6

$4.99

$

In Stock, Qty 20+

0

15

MTD 736-0174

Wave Washer, .625 x .885 x .015

$6.49

$

Usually ships in 3-6 days

0

16

MTD 736-0242

Bell Washer, .340 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

17

MTD 731-2643

Clean-out Tool
(Superseded to 931-2643)

$18.99

$

In Stock, Qty 7

0

18

MTD 738-0143

Shoulder Screw, .498 x .34, 3/8-16

$3.99

$

In Stock, Qty 20+

0

19

MTD 738-0281

Shoulder Screw, .625 x .17, 3/8-16

$9.99

$

In Stock, only 1 left!

0

20

MTD 738-04124A

Shear Pin, .25 x 1.50

$1.99

$

In Stock, Qty 20+

0

21

MTD 741-0245

Hex Flange Bearing x .75 ID
(Superseded to 941-0245)

$9.49

$

In Stock, Qty 20+

0

22

MTD 741-0309

Ball Bearing, .75 ID x 1.85 OD
(Superseded to 941-0309)

$69.99

$

In Stock, Qty 7

0

23

MTD 756-04224

Idler Pulley, 2.75 OD

$24.99

$

In Stock, Qty 20+

0

24

MTD 790-00075

Bearing Housing, 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, only 1 left!

0

25

MTD 790-00080A-0637

Auger Idler Bracket w/ Brake
(Superseded to 790-00080D)

$26.99

$

In Stock, only 1 left!

0

26

MTD 618-04165A

Auger Gearbox Assembly, 30"
(Superseded to 918-04165B)

$416.99

$

In Stock, only 4 left!

0

27

MTD 684-04267-0691

Auger Housing Assembly, 30"
(Superseded to 684-04267A-0691)

$348.99

$

Usually ships in 3-6 days

0

28

MTD 684-04107-0662

Spiral Assembly, LH
(Superseded to 684-04107A-0662)

$83.99

$

In Stock, Qty 12

0

29

MTD 684-04108-0662

Spiral Assembly, RH
(Superseded to 684-04108A-0662)

$88.99

$

In Stock, Qty 14

0

30

MTD 731-04870

Spacer, 1.25 OD x .75 ID x 1.00

$4.49

$

In Stock, Qty 7

0

31

MTD 736-0188

Flat Washer, .76 x 1.49 x .06

$3.99

$

In Stock, Qty 20+

0

32

MTD 741-0493A

Flange Bushing, .80 ID x .91 OD
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

33

MTD 790-00087A-0637

1" Hex Bearing Housing

$21.99

$

In Stock, only 2 left!

0

34

MTD 790-00119-0637

Shave Plate, 30"

$37.99

$

In Stock, Qty 5

0

35

MTD 790-00091-0637

Skid Shoe, Deluxe

$29.99

$

In Stock, Qty 6

0

36

MTD 618-0124A

Auger Housing, RH Reduced
(Superseded to 918-0124A)

$48.99

$

In Stock, Qty 15

0

37

MTD 618-0123A

Auger Housing, LH Reduced
(Superseded to 918-0123A)

$48.99

$

In Stock, Qty 13

0

38

MTD 741-0662

Flange Bearing, .75 x 1.0 x .59

$9.99

$

In Stock, Qty 20+

0

39

MTD 710-0642

Self-tapping Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

40

MTD 711-04282

Auger Axle, 30"
(Superseded to 711-04282A)

$104.99

$

Usually ships in 3-6 days

0

41

MTD 714-0161

Hi-pro Key, 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 11

0

42

MTD 715-04021

Dowel Pin, .25 OD x 1.2

$3.99

$

In Stock, Qty 12

0

43

MTD 717-04126

Worm Shaft, .75 OD
(Superseded to 917-04126)

$73.99

$

In Stock, Qty 10

0

44

MTD 717-0528A

Worm Gear, 20T
(Superseded to 917-04861)

$40.99

$

In Stock, Qty 20+

0

45

MTD 718-04071

Thrust Collar

$7.49

$

In Stock, Qty 15

0

46

MTD 721-0325

Plug, 1/4 x .437

$4.49

$

Usually ships in 3-6 days

0

47

MTD 721-0327

Oil Seal, .75 x 1 x .131

$6.49

$

In Stock, Qty 20+

0

48

MTD 736-0351

Flat Washer, .760 ID x 1.5 OD

$3.99

$

In Stock, Qty 20+

0

49

MTD 736-3084

Flat Washer, .51 x 1.12

$4.49

$

In Stock, Qty 20+

0

50

MTD 741-0663

Flange Bearing, .75 x 1.0 x .925

$8.99

$

In Stock, Qty 20+

0

51

MTD 731-04871

Spacer, 1.25 x .75 x 3/16

$6.49

$

In Stock, Qty 20+

0

52

MTD 746-04230

Auger Clutch Cable, 47.23"
(Superseded to 946-04230B)

$21.99

$

In Stock, Qty 20+

0

53

MTD 629-0071

Extension Cord, 110V, 3-Prong
(Superseded to 929-0071B)

$22.99

$

Usually ships in 3-6 days

0
