31AH763G401 - Yard-Man Snow Thrower (2001) Frame Assembly Parts Diagram

Snow Thrower

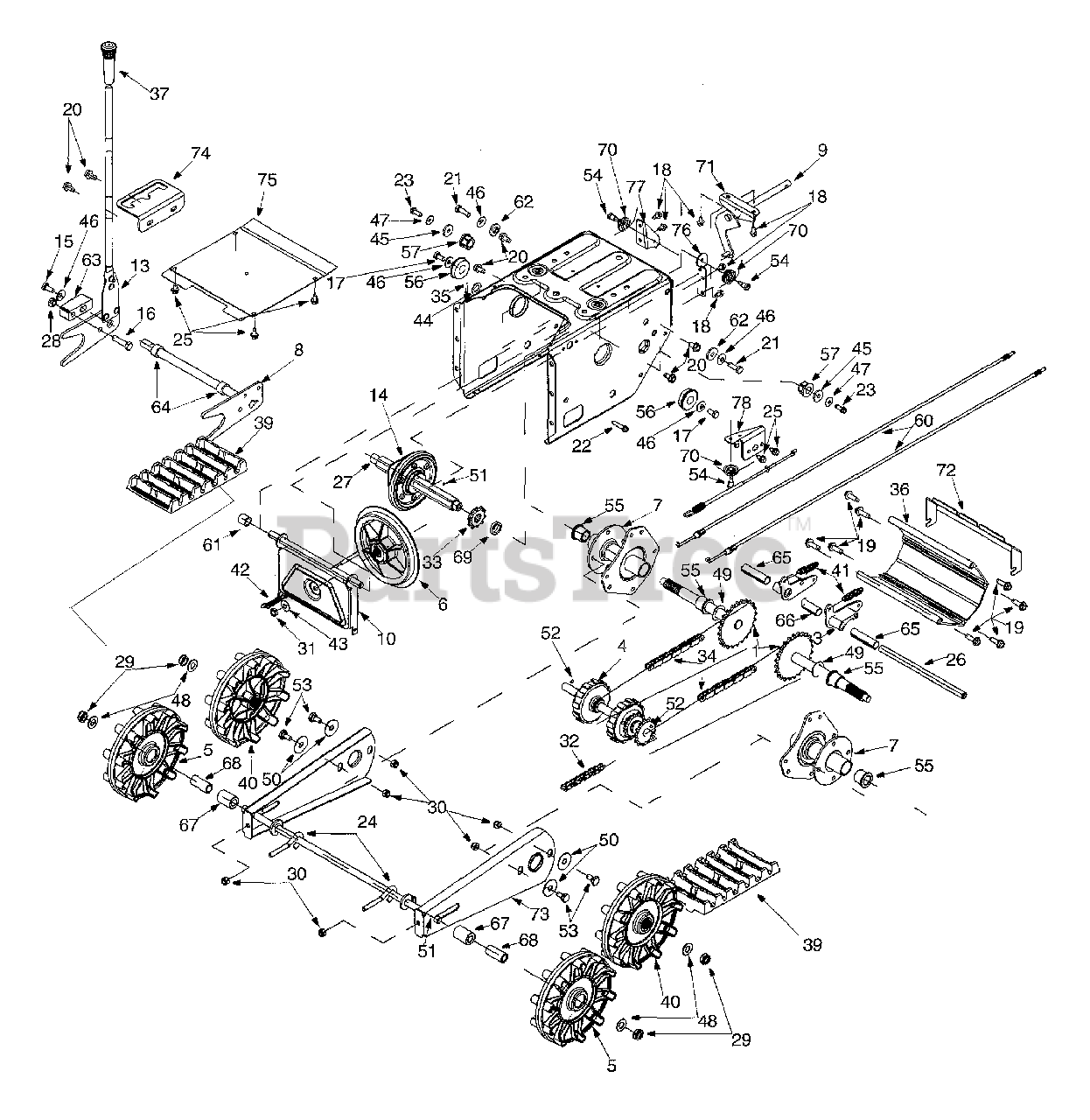

Frame Assembly Parts Diagram

  • Title

?1

MTD 611-0053

Axle Assembly: Track

$97.99

$

In Stock, only 2 left!

0

?2

MTD 618-0043

Dogg Assembly: RH

$23.99

$

In Stock, only 1 left!

0

3

MTD 618-0044

Dogg Assembly: LH

$24.99

$

In Stock, only 1 left!

0

4

MTD 618-0169

Drive Shaft Assembly
(Superseded to 918-0169B)

$345.99

$

Usually ships in 3-6 days

0

5

MTD 631-0032

Idler Wheel Assembly
(Superseded to 631-0032A)

$45.99

$

In Stock, only 2 left!

0

6

MTD 656-0012A

Friction Wheel Disc
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 9

0

7

MTD 683-0024

Hub Assembly
(Superseded to 683-0024-0637)

Variations

MTD 683-0024-0637

Track Hub Assembly - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

8

MTD 684-0009

Track Pivot Rod Assembly
(Superseded to 684-0009A)

Variations

MTD 684-0009-0721

ROD ASSY PIVOT - SEARS RED (0721)

$52.99

$

Usually ships in 3-6 days

0

MTD 684-0009-4021

ROD ASSY PIVOT - CUB YELLOW 2 (4021)

$52.99

$

Usually ships in 3-6 days

0

MTD 684-0009-4033

ROD ASSY PIVOT - FLINT MICA (4033)

$52.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

9

MTD 684-0014B

Shift Rod Assembly
(Superseded to 684-0014B-0637)

Variations

MTD 684-0014B-0637

Shift Rod Assembly - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

10

MTD 684-0021

Support Bracket: Friction Wheel
(Superseded to 984-0021-0637)

Variations

MTD 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

?11

MTD 684-0024

Axle Assembly: Idler
(Superseded to 753-05977)

Variations

MTD 684-0024-0637

Replacement Kit, 6 - POWDER BLACK (0637)

$100.99

$

Usually ships in 3-6 days

0

$100.99

$

Usually ships in 3-6 days

0

?12

MTD 684-0031

Frame Assembly
(Superseded to 984-0031)

Variations

MTD 684-0031-0483

KIT-REPLACEMENT (6 - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0031-0499

KIT-REPLACEMENT (6 - CUB BEIGE (0499)

$

$

Not available

MTD 684-0031-0637

KIT-REPLACEMENT (6 - POWDER BLACK (0637)

$

$

Not available

MTD 684-0031-0650

USE 753-06327 KIT-REPLACEMENT - RED METALLIC (0650)

$

$

Not available

MTD 684-0031-0662

KIT-REPLACEMENT (6 - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0031-0665

KIT-REPLACEMENT (6 - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0031-0721

KIT-REPLACEMENT (6 - SEARS RED (0721)

$

$

Not available

$122.99

$

Usually ships in 3-6 days

0

13

MTD 684-0038

Handle Assembly: Track Lock

Variations

MTD 684-0038-0637

Handle Assembly, Trackloc - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

MTD 684-0038-0638

Handle Assembly, Trackloc - MTD/TROY-BILT RED (0638)

$58.99

$

Usually ships in 3-6 days

0

MTD 684-0038-4021

HANDLE ASM-TRACKLOC - CUB YELLOW 2 (4021)

$58.99

$

Usually ships in 3-6 days

0

MTD 684-0038-0665

HANDLE ASM-TRACKLOC - YARDMAN GREEN (0665)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

14

MTD 684-0042C

Wheel Ass'y.: Fric. Whl. Bearing
(Superseded to 984-0042C)

$138.99

$

In Stock, only 4 left!

0

15

MTD 710-0157

Hex Screw: 5/16-24 x 0.75"

$4.49

$

In Stock, Qty 14

0

16

MTD 710-0459A

Hex Screw: 3/8-24 x 1.5"

$6.99

$

In Stock, Qty 10

0

17

MTD 710-0538

Hex Screw: 5/16-18 x .625"

$4.49

$

In Stock, Qty 9

0

18

MTD 710-0599

TT Screw: 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0602

TT Screw: 5/16-18 x 1.0"

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0604

TT Screw: 5/16-18 x 0.625"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-0643

Hex Bolt: 5/16-18 x 1.0"

$6.99

$

In Stock, Qty 20+

0

22

MTD 710-0809

TT Screw: 1/4-20 x 1.25"

$6.99

$

In Stock, Qty 20+

0

23

MTD 710-0875

TT Screw: 1/4-20 x 0.75"

$3.99

$

In Stock, only 2 left!

0

24

MTD 710-1231

Eye Bolt

$9.49

$

In Stock, only 2 left!

0

25

MTD 710-1652

TT Screw: 1/4-20 x 0.625"

$4.49

$

In Stock, Qty 20+

0

26

MTD 711-0911

Actuator Shaft

$

$

Not available

27

MTD 711-1042

Hex Shaft: Drive

$149.99

$

In Stock, only 2 left!

0

28

MTD 712-0214

Hex Lock Nut

$6.49

$

In Stock, Qty 20+

0

29

MTD 712-0346

Jam Lock Nut

$4.99

$

In Stock, Qty 14

0

30

MTD 712-0429

Hex Lock Nut

$4.49

$

In Stock, Qty 20+

0

31

MTD 712-0711

Jam Nut

$4.49

$

In Stock, Qty 20+

0

32

MTD 713-0233

Chain

$41.99

$

In Stock, only 1 left!

0

33

MTD 713-0413

Sprocket

$12.99

$

Usually ships in 3-6 days

0

34

MTD 713-0437

Chain

$37.99

$

Usually ships in 3-6 days

0

35

MTD 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 16

0

36

MTD 719-0295A

Track Housing

$

$

Not available

37

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 9

0

?38

MTD 721-0263

Adhesive: Loctite TM

$

$

Currently unavailable

39

MTD 731-1292

Track

$291.99

$

Usually ships in 3-6 days

0

40

MTD 731-1538A

Track Wheel

$36.99

$

In Stock, Qty 8

0

41

MTD 732-0209

Extension Spring
(Superseded to 932-0209)

$7.99

$

In Stock, Qty 11

0

42

MTD 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

43

MTD 736-0105

Spring Washer

$4.49

$

In Stock, Qty 20+

0

44

MTD 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

45

MTD 736-0176

Flat Washer

$4.99

$

In Stock, Qty 20+

0

46

MTD 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

47

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 10

0

48

MTD 736-0272

Flat Washer

$4.99

$

Usually ships in 3-6 days

0

49

MTD 736-0287

Flat Washer

$4.49

$

In Stock, Qty 20+

0

50

MTD 736-0406

Flat Washer
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

51

MTD 737-0170

Lubricant

$

$

Currently unavailable

52

MTD 737-0318

Grease
(Superseded to 737-0318-CRTG)

$23.99

$

Usually ships in 3-6 days

0

53

MTD 738-0140

Shoulder Screw

$5.99

$

In Stock, Qty 17

0

54

MTD 738-0924

Carriage Screw
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 6

0

55

MTD 741-0339

Flange Bearing
(Superseded to 941-0339)

$12.99

$

In Stock, Qty 20+

0

56

MTD 741-0563

Ball Bearing
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 20+

0

57

MTD 741-1111

Hex Flange Bearing

$9.99

$

In Stock, only 2 left!

0

?58

MTD 746-0897

Clutch Cable: Auger
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

?59

MTD 746-0898

Clutch Cable: Drive
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

60

MTD 746-0948

Steering Cable
(Superseded to 946-0948A)

$37.99

$

Usually ships in 3-6 days

0

61

MTD 748-0190

Spacer

$6.49

$

In Stock, only 1 left!

0

62

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

63

MTD 748-0353A

Lift Shaft Drive

$21.99

$

Usually ships in 3-6 days

0

64

MTD 750-0547

Spacer

$5.99

$

In Stock, only 3 left!

0

65

MTD 750-0903

Split Spacer
(Superseded to 750-0903B)

$10.99

$

Usually ships in 3-6 days

0

66

MTD 750-0904

Split Spacer

$

$

Not available

67

MTD 750-0909

Spacer

$9.49

$

Usually ships in 3-6 days

0

68

MTD 750-0995

Spacer

$16.99

$

Usually ships in 3-6 days

0

69

MTD 750-0997

Spacer
(Superseded to 950-0997)

$6.99

$

In Stock, only 4 left!

0

70

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 20+

0

71

MTD 784-5590

Shift Bracket: Frame

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

72

MTD 784-5609

Bracket: Steering Cable

Variations

MTD 784-5609-0483

BRACKET-STEERING - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5609-0498

BRACKET-STEERING - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5609-0499

BRACKET-STEERING - CUB BEIGE (0499)

$

$

Not available

MTD 784-5609-0637

BRACKET-STEERING - POWDER BLACK (0637)

$

$

Not available

MTD 784-5609-0638

BRACKET-STEERING - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5609-0662

BRACKET-STEERING - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5609-0691

BRACKET-STEERING - BLACK JACK (0691)

$

$

Not available

MTD 784-5609-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 784-5609-0716

BRACKET-STEERING - CUB YELLOW-99 (0716)

$

$

Not available

MTD 784-5609-0721

BRACKET-STEERING - SEARS RED (0721)

$

$

Not available

MTD 784-5609-4021

BRACKET-STEERING - CUB YELLOW 2 (4021)

$

$

Not available

MTD 784-5609-4033

BRACKET-STEERING - FLINT MICA (4033)

$

$

Not available

MTD 784-5609-4044

BRACKET-STEERING - CRAFTSMAN RED (4044)

$

$

Not available

$

$

73

MTD 784-5639

Plate: Track Side

Variations

MTD 784-5639-0637

PLATE-TRACK SIDE - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

MTD 784-5639-0638

PLATE-TRACK SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

$37.99

$

Usually ships in 3-6 days

0

74

MTD 784-5642

Plate: Track Lock out

Variations

MTD 784-5642-0637

PLATE-TRACK LOCKOU - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

MTD 784-5642-0483

PLATE-TRACK LOCKOU - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5642-0498

PLATE-TRACK LOCKOU - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5642-0650

PLATE-TRACK LOCKOU - RED METALLIC (0650)

$

$

Not available

MTD 784-5642-0665

PLATE-TRACK LOCKOU - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5642-0716

PLATE-TRACK LOCKOU - CUB YELLOW-99 (0716)

$

$

Not available

MTD 784-5642-0721

PLATE-TRACK LOCKOU - SEARS RED (0721)

$

$

Not available

MTD 784-5642-4033

PLATE-TRACK LOCKOU - FLINT MICA (4033)

$

$

Not available

MTD 784-5642-4044

PLATE-TRACK LOCKOU - CRAFTSMAN RED (4044)

$

$

Not available

$17.99

$

Usually ships in 3-6 days

0

75

MTD 784-5648

Frame Cover
(Superseded to 784-5648A-0637)

Variations

MTD 784-5648-0483

Track Frame Cover - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5648-0638

Track Frame Cover - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5648-0662

Track Frame Cover - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5648-0687

COVER-FRAME:TRACK - PINE GREEN (0687)

$

$

Not available

MTD 784-5648-0498

Track Frame Cover - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5648-0637

Track Frame Cover - POWDER BLACK (0637)

$

$

Not available

MTD 784-5648-0650

Track Frame Cover - RED METALLIC (0650)

$

$

Not available

MTD 784-5648-0665

Track Frame Cover - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5648-0689

Track Frame Cover - POLO GREEN (0689)

$

$

Not available

MTD 784-5648-0716

Track Frame Cover - CUB YELLOW-99 (0716)

$

$

Not available

MTD 784-5648-0721

Track Frame Cover - SEARS RED (0721)

$

$

Not available

$

$

76

MTD 784-5687A

Cable Guide Bracket: Auger Clutch
(Superseded to 784-5687A-0637)

Variations

MTD 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

77

MTD 784-5688

Cable Guide Bracket: Drive Clutch
(Superseded to 784-5688-0637)

Variations

MTD 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

$

$

Not available

MTD 784-5688-0662

BRACKET-GUIDE-DRIVE - OYSTER GRAY (0662)

$

$

Not available

$

$

78

MTD 784-5689A

Cable Guide Bracket: Auger Clutch Front Support
(Superseded to 784-5689A-0637)

Variations

MTD 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

$

Not available

MTD 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

$

Not available

$

$
