31AH763G401 - Yard-Man Snow Thrower (2001) Handle & Controls Assembly Parts Diagram

Snow Thrower

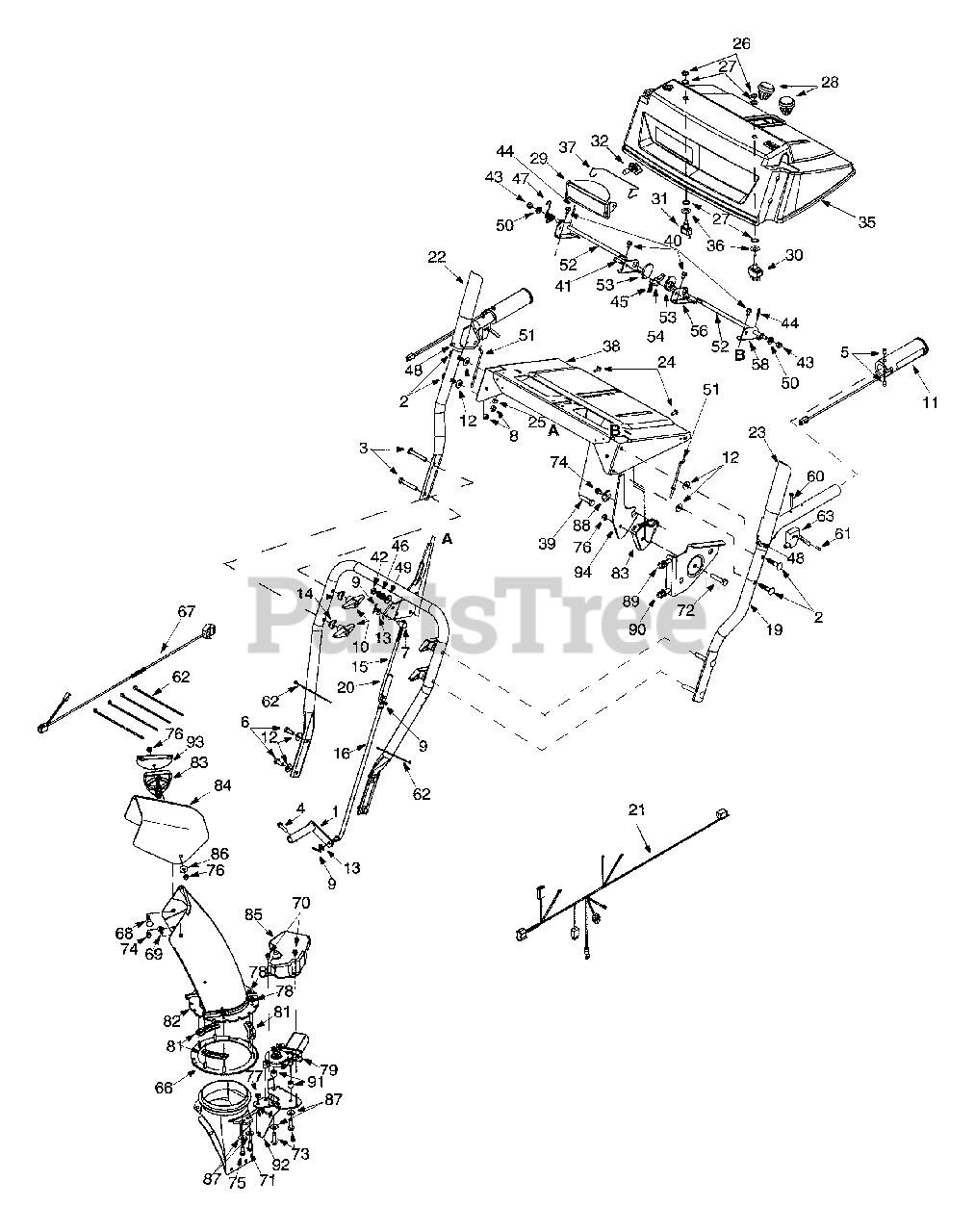

Handle & Controls Assembly Parts Diagram

  • Title

1

MTD 684-0008A

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

MTD 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

2

MTD 710-0262

Carriage Bolt: 5/16-18 x 1.5"

$3.99

$

In Stock, Qty 14

0

3

MTD 710-0449

Carriage Screw 5/16-18 x 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, only 4 left!

0

4

MTD 710-0788

TT Screw 1/4-20 x 1.0"

$7.49

$

In Stock, only 4 left!

0

5

MTD 710-0837

Oval C-Sunk AB Screw

$4.49

$

In Stock, Qty 11

0

6

MTD 710-3008

Hex Screw 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

7

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

8

MTD 712-3010

Hex Nut

$4.49

$

In Stock, Qty 20+

0

9

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

10

MTD 720-0284

Wing Nut

$6.99

$

In Stock, Qty 20+

0

11

MTD 725-1757

Heated Grip

$111.99

$

Usually ships in 3-6 days

0

12

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 736-0275

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

14

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, only 2 left!

0

15

MTD 747-0620A

Upper Shift Rod

$11.99

$

In Stock, only 3 left!

0

16

MTD 747-0621

Lower Shift Rod

$

$

Not available

?17

MTD 749-0951

Lower Handle
(Superseded to 749-0951A)

Variations

MTD 749-0951-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

MTD 749-0951-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

?18

MTD 749-0952A

Upper Handle RH: L Style

Variations

MTD 749-0952A-0637

HANDLE-UPPER-RH - POWDER BLACK (0637)

$

$

Not available

MTD 749-0952A-0638

HANDLE-UPPER-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-0952A-0665

HANDLE-UPPER-RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

19

MTD 749-0953A

Upper Handle LH: L Style

Variations

MTD 749-0953A-0637

HANDLE-UPPER-LH - POWDER BLACK (0637)

$

$

Not available

MTD 749-0953A-0638

HANDLE-UPPER-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-0953A-0665

HANDLE-UPPER-LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

20

MTD 750-0963

Shift Rod Connector
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

21

MTD 629-0936A

Harness Assembly: Chute Crank

$

$

Not available

22

MTD 684-0036

Handle Engagement RH
(Superseded to 684-0036A)

$44.99

$

Usually ships in 3-6 days

0

23

MTD 684-0037A

Handle Engagement LH
(Superseded to 684-0037B)

$38.99

$

In Stock, only 2 left!

0

24

MTD 710-1003

Special Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

25

MTD 712-0271

Sems Nut

$4.49

$

In Stock, Qty 18

0

26

MTD 712-0693

Hex Nut

$

$

Not available

27

MTD 716-0398

Lock Ring: Toggle Switch

$

$

Not available

28

MTD 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 4 left!

0

29

MTD 725-1672

Lamp Housing
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

30

MTD 725-1755

Toggle Switch: 2 Pos., Dbl. Throw
(Superseded to 925-1755)

$117.99

$

Usually ships in 3-6 days

0

31

MTD 725-1756

Toggle Switch: 2 Pos., Sngl. Throw
(Superseded to 925-1756)

$31.99

$

In Stock, only 1 left!

0

32

MTD 725-1759

Halogen Lamp
(Superseded to 925-1759)

$51.99

$

In Stock, only 1 left!

0

?34

MTD 729-0164

Diode
(Superseded to 759-3282)

$

$

Not available

35

MTD 731-2275

Handle Panel

$

$

Not available

36

MTD 736-0226

Flat Washer
(Superseded to 936-0226)

$3.99

$

In Stock, only 3 left!

0

37

MTD 747-1136

Headlight Retainer

$11.99

$

Usually ships in 3-6 days

0

38

MTD 684-0102

Handle Panel Assembly w/Tilt
(Superseded to 684-0102A)

Variations

MTD 684-0102-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0650

PANEL ASM:HANDLE - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0662

PANEL ASM:HANDLE - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0665

PANEL ASM:HANDLE - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0689

PANEL ASM:HANDLE - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0716

HANDLE PANEL ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0721

PANEL ASM:HANDLE - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0

39

MTD 710-0459A

Hex Screw: Special

$6.99

$

In Stock, Qty 10

0

40

MTD 710-0599

TT Screw: 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

41

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

42

MTD 712-0116

Jam Lock Nut

$4.99

$

In Stock, Qty 7

0

43

MTD 712-0429

Hex Lock Nut

$4.49

$

In Stock, Qty 20+

0

44

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

45

MTD 732-0145

Compression Spring

$4.49

$

In Stock, only 1 left!

0

46

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 8

0

47

MTD 732-0746

Torsion Spring

$4.49

$

In Stock, Qty 13

0

48

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, Qty 15

0

49

MTD 736-0105

Spring Washer

$4.49

$

In Stock, Qty 20+

0

50

MTD 736-0509

Special Washer

$6.99

$

In Stock, only 1 left!

0

51

MTD 746-0778

Z Fitting
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

52

MTD 747-0877

Cam Rod

$22.99

$

Usually ships in 3-6 days

0

53

MTD 748-0362

Cam Handle Lock

$7.99

$

In Stock, only 1 left!

0

54

MTD 748-0363

Pawl: Handle Lock
(Superseded to 948-0363)

$16.99

$

In Stock, only 1 left!

0

?55

MTD 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

MTD 784-5619A-0637

KIT-SHIFT HANDLE:S - POWDER BLACK (0637)

$

$

Not available

$

$

56

MTD 784-5679

Handle Support Bracket 5/8: LH
(Superseded to 784-5679-0637)

Variations

MTD 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

?57

MTD 784-5680

Handle Support Bracket: RH
(Superseded to 784-5680-0637)

Variations

MTD 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

58

MTD 784-5681

Handle Support Bracket 3/8: LH

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

?59

MTD 784-5682

Handle Support Bracket 3/8: LH
(Superseded to 784-5682-0637)

Variations

MTD 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

60

MTD 710-1233

Oval C-Sunk Machine Screw

$4.99

$

In Stock, Qty 13

0

61

MTD 712-0127

Flange Weld Nut

$3.49

$

In Stock, Qty 13

0

62

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 4 left!

0

63

MTD 746-0950

Control Trigger
(Superseded to 746-0950A)

$22.99

$

In Stock, only 1 left!

0

?65

MTD 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

66

MTD 618-0419

Gear Assembly: Ring: Chut Rotatn.

$

$

Not available

67

MTD 629-0937

Harness Assembly: Lower

$

$

Not available

68

MTD 710-0262

Carriage Bolt: 5/16-18 x 1.5"

$3.99

$

In Stock, Qty 14

0

69

MTD 710-0451

Carriage Bolt: 5/16-18 x .750"

$4.49

$

In Stock, Qty 20+

0

70

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

71

MTD 710-0602

TT Screw 5/16-18 x 1.0"

$4.49

$

In Stock, Qty 20+

0

72

MTD 710-0805

Hex Screw 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 12

0

73

MTD 710-0817

TT Screw 5/16-18 x 1.0"

$6.99

$

In Stock, Qty 20+

0

74

MTD 710-0896

AB Screw

$4.49

$

In Stock, Qty 20+

0

75

MTD 710-3008

Hex Bolt 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

76

MTD 712-0429

Lock Nut

$4.49

$

In Stock, Qty 20+

0

77

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

78

MTD 712-3027

Flange Lock Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

79

MTD 724-0249

Electric Motor: Chute Crank
(Superseded to 953-0912A)

$

$

Not available

81

MTD 731-0851A

Flange Keeper

$4.49

$

In Stock, Qty 20+

0

82

MTD 731-1300A

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 9

0

83

MTD 731-1313C

Cable Guide: Chute Tilt

$11.99

$

Usually ships in 3-6 days

0

84

MTD 731-1320

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

85

MTD 731-2279

Motor Cover

$

$

Not available

86

MTD 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

87

MTD 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

88

MTD 736-0506

Special Washer
(Superseded to 736-0506A)

$

$

Not available

89

MTD 746-0896

Chute Cable
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

90

MTD 746-0901

Cable: Chute Deflector w/Clip
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

91

MTD 750-1232

Spacer

$

$

Not available

92

MTD 782-0599

Motor Bracket: Chute Rod

Variations

MTD 782-0599-0637

No Longer Available BRACKET-MO - POWDER BLACK (0637)

$

$

Not available

$

$

93

MTD 784-5594

Cable Bracket

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

94

MTD 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

MTD 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0
