31AH7L3G701 - Yard-Man Snow Thrower (2005) Frame Parts Diagram

Snow Thrower

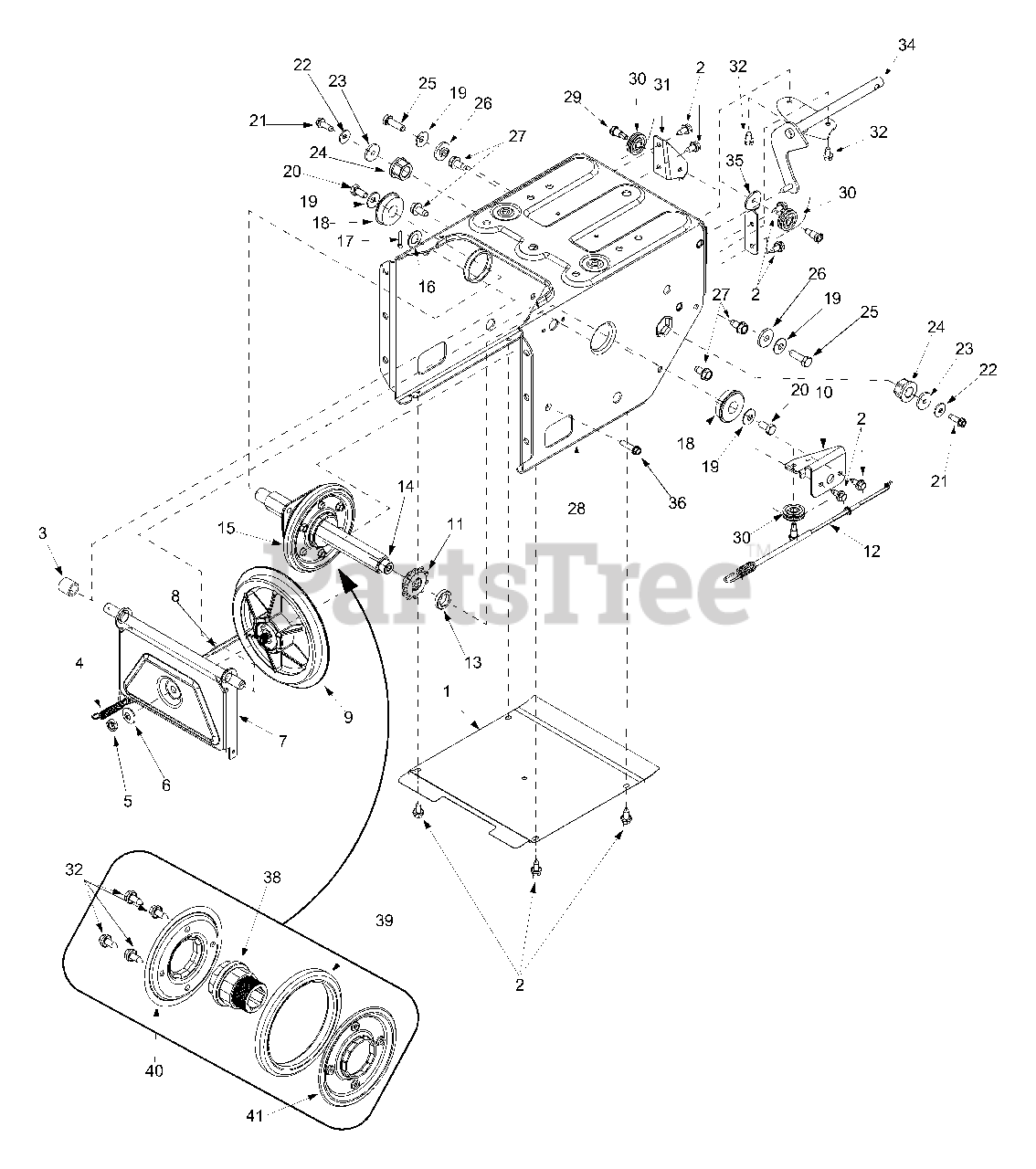

Frame Parts Diagram

  • Title

1

MTD 784-5648

Frame Cover
(Superseded to 784-5648A-0637)

Variations

MTD 784-5648-0483

Track Frame Cover - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5648-0638

Track Frame Cover - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5648-0662

Track Frame Cover - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5648-0687

COVER-FRAME:TRACK - PINE GREEN (0687)

$

$

Not available

MTD 784-5648-0498

Track Frame Cover - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5648-0637

Track Frame Cover - POWDER BLACK (0637)

$

$

Not available

MTD 784-5648-0650

Track Frame Cover - RED METALLIC (0650)

$

$

Not available

MTD 784-5648-0665

Track Frame Cover - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5648-0689

Track Frame Cover - POLO GREEN (0689)

$

$

Not available

MTD 784-5648-0716

Track Frame Cover - CUB YELLOW-99 (0716)

$

$

Not available

MTD 784-5648-0721

Track Frame Cover - SEARS RED (0721)

$

$

Not available

$

$

2

MTD 710-1652

Tap Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

3

MTD 748-0190

Spacer .508 ID x .75 OD

$6.99

$

In Stock, Qty 8

0

4

MTD 732-0264

Extension Spring
(Superseded to 932-0264)

$5.49

$

In Stock, Qty 6

0

5

MTD 712-0711

Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

6

MTD 736-0105

Bell Washer .401 ID x .87 OD

$4.99

$

In Stock, Qty 20+

0

7

MTD 684-0021

Friction Whl Support Bracket
(Superseded to 984-0021-0637)

Variations

MTD 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 746-0898B

Drive Cable 39.88"
(Superseded to 946-0898)

$29.99

$

In Stock, only 2 left!

0

9

MTD 656-0012A

Friction Disc
(Superseded to 956-0012A)

$133.99

$

In Stock, only 2 left!

0

10

MTD 784-5689A

Front Support Guide Bracket
(Superseded to 784-5689A-0637)

Variations

MTD 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

$

Not available

MTD 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

$

Not available

$

$

11

MTD 713-0413

10T Sprocket

$13.99

$

Usually ships in 3-6 days

0

12

MTD 746-0897

Auger Cable 44.75"
(Superseded to 946-0897)

$26.99

$

In Stock, only 2 left!

0

13

MTD 750-0997

Spacer .675 ID x 1" OD
(Superseded to 950-0997)

$7.49

$

In Stock, only 2 left!

0

14

MTD 711-1042

Hex Track Shaft

$158.99

$

In Stock, only 2 left!

0

15

MTD 684-0042C

Friction Wheel Assembly
(Superseded to 984-0042C)

$146.99

$

In Stock, Qty 8

0

16

MTD 736-0160

Flat Washer .536 ID x .93 OD

$4.49

$

Usually ships in 3-6 days

0

17

MTD 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 11

0

18

MTD 741-0563

Ball Bearing
(Superseded to 941-0563)

$38.99

$

In Stock, only 3 left!

0

19

MTD 736-0242

Bell Washer .34 ID x .872 OD

$4.99

$

In Stock, Qty 20+

0

20

MTD 710-0538

Hex Cap Screw 5/16-18 x .625

$4.99

$

In Stock, only 2 left!

0

21

MTD 710-0875

Tap Screw 1/4-20 x .75

$4.49

$

In Stock, only 1 left!

0

22

MTD 736-0270

Bell Washer .265 ID x .75 OD

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0176

Flat Washer 1/4 ID x .93 OD

$4.99

$

In Stock, Qty 20+

0

24

MTD 741-1111

Hex Flange Bearing

$10.99

$

In Stock, Qty 17

0

25

MTD 710-0643

Hex Cap Screw 5/16-18 x 1"

$7.49

$

In Stock, Qty 20+

0

26

MTD 748-0234

Shoulder Spacer

$4.99

$

In Stock, Qty 11

0

27

MTD 710-0604A

Tap Screw 5/16-18 x .625

$4.99

$

In Stock, Qty 14

0

28

MTD 684-0031

Frame Assembly
(Superseded to 984-0031)

Variations

MTD 684-0031-0483

KIT-REPLACEMENT (6 - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0031-0499

KIT-REPLACEMENT (6 - CUB BEIGE (0499)

$

$

Not available

MTD 684-0031-0637

KIT-REPLACEMENT (6 - POWDER BLACK (0637)

$

$

Not available

MTD 684-0031-0650

USE 753-06327 KIT-REPLACEMENT - RED METALLIC (0650)

$

$

Not available

MTD 684-0031-0662

KIT-REPLACEMENT (6 - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0031-0665

KIT-REPLACEMENT (6 - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0031-0721

KIT-REPLACEMENT (6 - SEARS RED (0721)

$

$

Not available

$129.99

$

Usually ships in 3-6 days

0

29

MTD 738-0924

Hex Screw 1/4-28 x .375
(Superseded to 738-0924A)

$7.49

$

In Stock, only 2 left!

0

30

MTD 756-0625

Cable Roller

$9.99

$

In Stock, Qty 7

0

31

MTD 784-5688

Drive Cable Guide Bracket
(Superseded to 784-5688-0637)

Variations

MTD 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

$

$

Not available

MTD 784-5688-0662

BRACKET-GUIDE-DRIVE - OYSTER GRAY (0662)

$

$

Not available

$

$

32

MTD 710-0599

Tap Screw 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

33

MTD 784-5590

Shift Frame Bracket

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

34

MTD 684-0014B

Shift Rod Assembly
(Superseded to 684-0014B-0637)

Variations

MTD 684-0014B-0637

Shift Rod Assembly - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

35

MTD 784-5687A

Auger Cable Guide Bracket
(Superseded to 784-5687A-0637)

Variations

MTD 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 710-0809

Tap Screw 1/4-20 x 1.250

$7.49

$

In Stock, Qty 7

0

37

MTD 618-0063A

Friction Wheel Bearing

$97.99

$

Usually ships in 3-6 days

0

38

MTD 718-0301A

Friction Wheel Hub
(Superseded to 984-0042C)

$146.99

$

In Stock, Qty 8

0

39

MTD 735-0243B

Friction Wheel Rubber
(Superseded to 935-0243B)

$16.99

$

In Stock, Qty 18

0

40

MTD 790-00011

Friction Plate

$14.99

$

Usually ships in 3-6 days

0

41

MTD 790-00010

Friction Plate

$14.99

$

In Stock, only 1 left!

0
