31AH7S3G701 - Yard-Man Snow Thrower (2005-2) General Assembly Parts Diagram

Snow Thrower

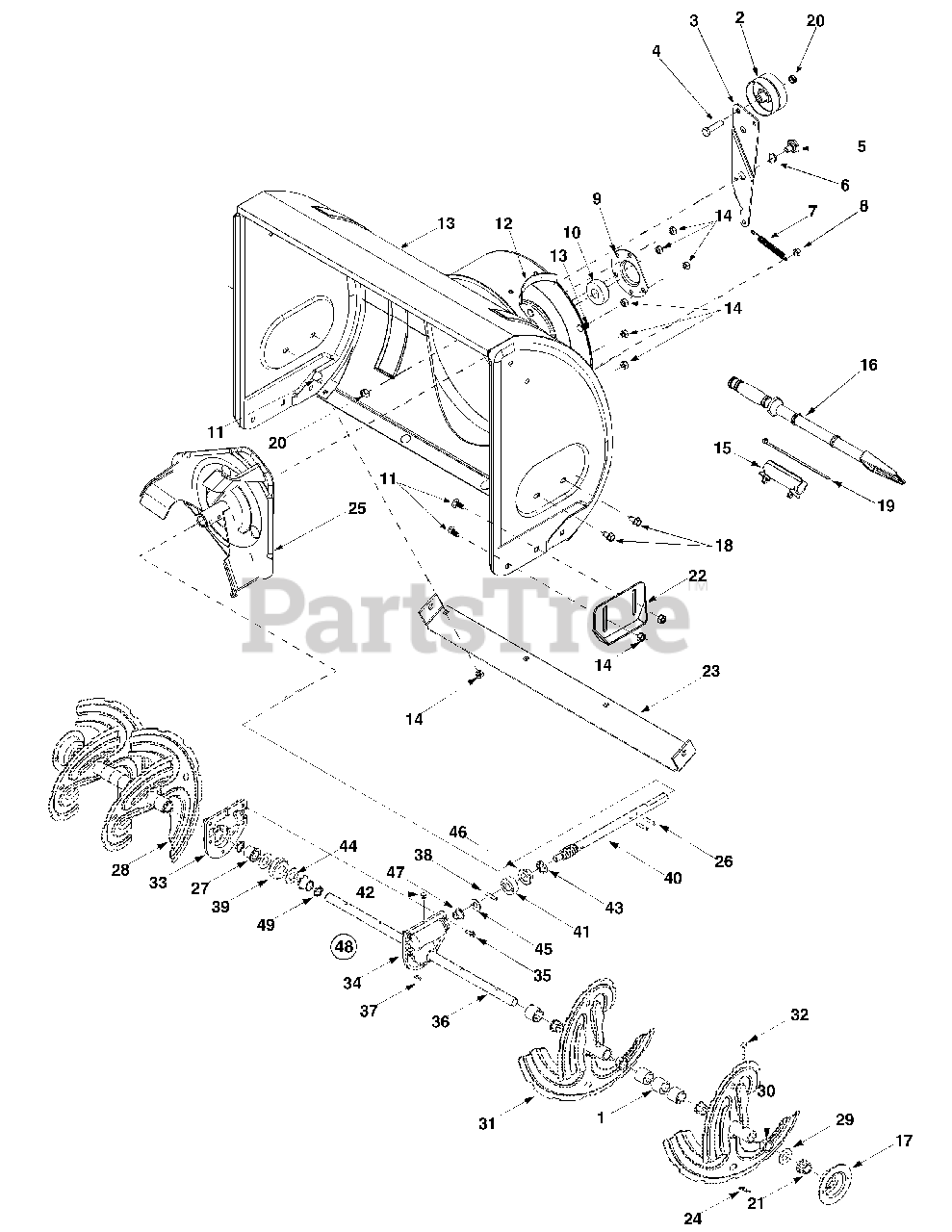

General Assembly Parts Diagram

  • Title

1

MTD 731-04870

Spacer, 1.25OD x.75ID x 1.00 Lg

$4.99

$

In Stock, Qty 7

0

2

MTD 756-0178

Flat Idler

$20.99

$

In Stock, only 4 left!

0

3

MTD 784-5632B

Auger Idler Arm
(Superseded to 984-0064-0637)

Variations

MTD 784-5632B-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 3 left!

0

$32.99

$

In Stock, only 3 left!

0

4

MTD 710-0347

Hex Cap Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

5

MTD 738-0281

Shoulder Screw

$10.99

$

In Stock, only 1 left!

0

6

MTD 736-0174

Wave Washer

$6.99

$

In Stock, only 2 left!

0

7

MTD 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

8

MTD 712-3068

Hex Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

9

MTD 05931A

Housing

$10.99

$

In Stock, only 2 left!

0

10

MTD 741-0309

Ball Bearing
(Superseded to 941-0309)

$74.99

$

In Stock, Qty 6

0

11

MTD 710-0451

Carriage Bolt, 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

12

MTD 705-5226

Chute Reinforcement

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

13

MTD 684-04129A

Auger Housing Assembly 28"

Variations

MTD 684-04129A-0638

HOUSING ASM:AUGER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04129A-0665

HOUSING ASM:AUGER - YARDMAN GREEN (0665)

$

$

Not available

$

$

14

MTD 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 731-2635

Clean-Out Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, only 1 left!

0

16

MTD 731-2643

Clean-Out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 6

0

17

MTD 790-00087A

Bearing Housing

Variations

MTD 790-00087A-0637

Bearing Housing, 1" - POWDER BLACK

$22.99

$

In Stock, only 2 left!

0

MTD 790-00087A-0638

Bearing Housing, 1" - MTD/TROY-BILT RED

$22.99

$

In Stock, only 2 left!

0

$21.99

$

Usually ships in 3-6 days

0

18

MTD 710-0604A

Hex Screw 5/16-18 x.625

$4.49

$

In Stock, Qty 20+

0

19

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 1 left!

0

20

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

MTD 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

22

MTD 784-5580

Skid Shoe

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

23

MTD 790-00118

Shave Plate

Variations

MTD 790-00118-0637

Shave Plate, 28" Powder Black - POWDER BLACK

$37.99

$

In Stock, Qty 8

0

MTD 790-00118-0606

Shave Plate, 28" - MAJESTIC ORANGE

$37.99

$

In Stock, Qty 8

0

MTD 790-00118-0638

Shave Plate, 28" Red - MTD/TROY-BILT RED

$37.99

$

In Stock, Qty 8

0

Cub Cadet 790-00118-4044

Shave Plate, 28" - CRAFTSMAN RED

$37.99

$

In Stock, Qty 8

0

MTD 790-00118-4044

Shave Plate, 28" - CRAFTSMAN RED

$37.99

$

In Stock, Qty 8

0

MTD 790-00118-4021

Shave Plate, 28" Yellow - CUB YELLOW 2

$37.99

$

In Stock, Qty 8

0

MTD 790-00118-0691

Shave Plate, 28" Black - BLACK JACK

$37.99

$

In Stock, Qty 8

0

MTD 790-00118-0650

PLATE-SHAVE 28" - RED METALLIC

$37.99

$

In Stock, Qty 8

0

MTD 790-00118-0665

Shave Plate, 28" - YARDMAN GREEN

$37.99

$

In Stock, Qty 8

0

MTD 790-00118-0709

PLATE-SHAVE 28" - MASTERCRAFT GREEN

$37.99

$

In Stock, Qty 8

0

MTD 790-00118-0662

Shave Plate, 28" - OYSTER GRAY

$37.99

$

In Stock, Qty 8

0

$35.99

$

Usually ships in 3-6 days

0

24

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

25

MTD 684-0065

Impeller Assembly
(Superseded to 984-0065-0637)

Variations

MTD 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$90.99

$

In Stock, only 2 left!

0

MTD 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$90.99

$

In Stock, only 2 left!

0

$90.99

$

In Stock, only 2 left!

0

26

MTD 715-0114

Pin

$9.49

$

In Stock, Qty 7

0

27

MTD 741-0661A

Flange Bearing
(Superseded to 741-0661B)

$10.99

$

Usually ships in 3-6 days

0

28

MTD 684-04108

Spiral Assembly RH
(Superseded to 684-04108A)

Variations

MTD 684-04108-0637

Auger Spiral Assembly, RH - POWDER BLACK (0637)

$94.99

$

In Stock, Qty 14

0

MTD 684-04108-0638

Auger Spiral Assembly, RH - MTD/TROY-BILT RED (0638)

$94.99

$

In Stock, Qty 14

0

MTD 684-04108-0499

Auger Spiral Assembly, RH - CUB BEIGE (0499)

$94.99

$

In Stock, Qty 14

0

MTD 684-04108-4028

Auger Assembly, 21" RH - SEARS YELLOW (4028)

$92.99

$

Usually ships in 3-6 days

0

MTD 684-04108-0606

Auger Spiral Assembly, RH - MAJESTIC ORANGE (0606)

$92.99

$

Usually ships in 3-6 days

0

MTD 684-04108-0629

Auger Spiral Assembly, RH - SILVER FLAKE (0629)

$94.99

$

In Stock, Qty 14

0

MTD 684-04108-4044

Auger Spiral Assembly, RH - CRAFTSMAN RED (4044)

$94.99

$

In Stock, Qty 14

0

MTD 684-04108-0650

Auger Spiral Assembly, RH - RED METALLIC (0650)

$94.99

$

In Stock, Qty 14

0

MTD 684-04108-0662

Auger Spiral Assembly, RH - OYSTER GRAY (0662)

$94.99

$

In Stock, Qty 14

0

MTD 684-04108-0674

Auger Spiral Assembly, RH - YARDMAN YELLOW (0674)

$94.99

$

In Stock, Qty 14

0

MTD 684-04108-0709

SPIRAL ASM-AUGER RH - MASTERCRAFT GREEN (0709)

$94.99

$

In Stock, Qty 14

0

MTD 684-04108-0716

Auger Spiral Assembly, RH - CUB YELLOW-99 (0716)

$94.99

$

In Stock, Qty 14

0

MTD 684-04108-0717

AUGER ASM-RH - SILVER MIST (0717)

$94.99

$

In Stock, Qty 14

0

MTD 684-04108-0731

Auger Spiral Assembly, RH - YELLOW JACKET (0731)

$94.99

$

In Stock, Qty 14

0

MTD 684-04108-4021

Auger Spiral Assembly, RH - CUB YELLOW 2 (4021)

$94.99

$

In Stock, Qty 14

0

MTD 684-04108-4033

SPIRAL ASM-AUGER RH - FLINT MICA (4033)

$94.99

$

In Stock, Qty 14

0

MTD 684-04108-4041

Auger Spiral Assembly, RH - PURE ORANGE (4041)

$94.99

$

In Stock, Qty 14

0

$76.99

$

Usually ships in 3-6 days

0

29

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

30

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

31

MTD 684-04107

Spiral Assembly LH
(Superseded to 684-04107A)

Variations

MTD 684-04107-0637

Auger Spiral Assembly, LH - POWDER BLACK (0637)

$89.99

$

In Stock, Qty 12

0

MTD 684-04107-0638

Auger Spiral Assembly, LH - MTD/TROY-BILT RED (0638)

$89.99

$

In Stock, Qty 12

0

MTD 684-04107-0499

Auger Spiral Assembly, LH - CUB BEIGE (0499)

$87.99

$

In Stock, Qty 6

0

MTD 684-04107-0662

Auger Spiral Assembly, LH - OYSTER GRAY (0662)

$89.99

$

In Stock, Qty 12

0

MTD 684-04107-0731

Auger Spiral Assembly, LH - YELLOW JACKET (0731)

$89.99

$

In Stock, Qty 12

0

MTD 684-04107-4028

Auger Spiral Assembly, LH - SEARS YELLOW (4028)

$89.99

$

In Stock, Qty 12

0

MTD 684-04107-0606

Auger Spiral Assembly, LH - MAJESTIC ORANGE (0606)

$89.99

$

In Stock, Qty 12

0

MTD 684-04107-0629

Auger Spiral Assembly, LH - SILVER FLAKE (0629)

$89.99

$

In Stock, Qty 12

0

MTD 684-04107-0650

Auger Spiral Assembly, LH - RED METALLIC (0650)

$89.99

$

In Stock, Qty 12

0

MTD 684-04107-0674

SPIRAL ASM-AUGER LH - YARDMAN YELLOW (0674)

$89.99

$

In Stock, Qty 12

0

MTD 684-04107-0689

Auger Spiral Assembly, LH - POLO GREEN (0689)

$89.99

$

In Stock, Qty 12

0

MTD 684-04107-0709

AUGER ASM-LH - MASTERCRAFT GREEN (0709)

$89.99

$

In Stock, Qty 12

0

MTD 684-04107-0716

Auger Spiral Assembly, LH - CUB YELLOW-99 (0716)

$89.99

$

In Stock, Qty 12

0

MTD 684-04107-0717

Auger Spiral Assembly, LH - SILVER MIST (0717)

$89.99

$

In Stock, Qty 12

0

MTD 684-04107-4021

Auger Spiral Assembly, LH - CUB YELLOW 2 (4021)

$89.99

$

In Stock, Qty 12

0

MTD 684-04107-4033

SPIRAL ASM-AUGER LH - FLINT MICA (4033)

$87.99

$

Usually ships in 3-6 days

0

MTD 684-04107-4041

Auger Spiral Assembly, LH - PURE ORANGE (4041)

$89.99

$

In Stock, Qty 12

0

MTD 684-04107-4044

Auger Spiral Assembly, LH - CRAFTSMAN RED (4044)

$89.99

$

In Stock, Qty 12

0

$72.99

$

Usually ships in 3-6 days

0

32

MTD 738-04124A

Shear Pin,.25 x 1.50

$1.99

$

In Stock, Qty 20+

0

33

MTD 618-0123

RH Housing (Incl. Ref. # 27 & 49)
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 11

0

34

MTD 618-0124

LH Housing (Incl. Ref. # 27 & 49)
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 13

0

35

MTD 710-0642

Self Tapping Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 10

0

36

MTD 711-04283

Auger Axle, 28"
(Superseded to 711-06145)

$89.99

$

In Stock, only 3 left!

0

37

MTD 714-0161

Hi-Pro Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 10

0

38

MTD 715-04021

Dowel Pin

$4.49

$

In Stock, Qty 11

0

39

MTD 717-0528A

Worm Gear, 20-tooth
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

40

MTD 717-0526

Worm Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, only 1 left!

0

41

MTD 718-04071

Thrust Collar

$7.99

$

In Stock, Qty 14

0

42

MTD 721-0325

Grease Plug

$4.49

$

In Stock, only 1 left!

0

43

MTD 721-0327

Grease Seal

$6.99

$

In Stock, Qty 20+

0

44

MTD 736-0351

Flat Washer

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-3084

Flat Washer

$4.99

$

In Stock, Qty 20+

0

46

MTD 741-0662

Flange Bearing

$10.99

$

In Stock, Qty 20+

0

47

MTD 741-0663

Flange Bearing

$9.99

$

In Stock, Qty 20+

0

48

MTD 618-04206

Gearbox Assembly Complete,
(Superseded to 918-04206)

$

$

Not available

49

MTD 721-0179

Oil Seal

$8.99

$

In Stock, only 2 left!

0
