31AS3AAD700 - Yard Machines Snow Thrower (2018) Auger Housing Parts Diagram

Snow Thrower

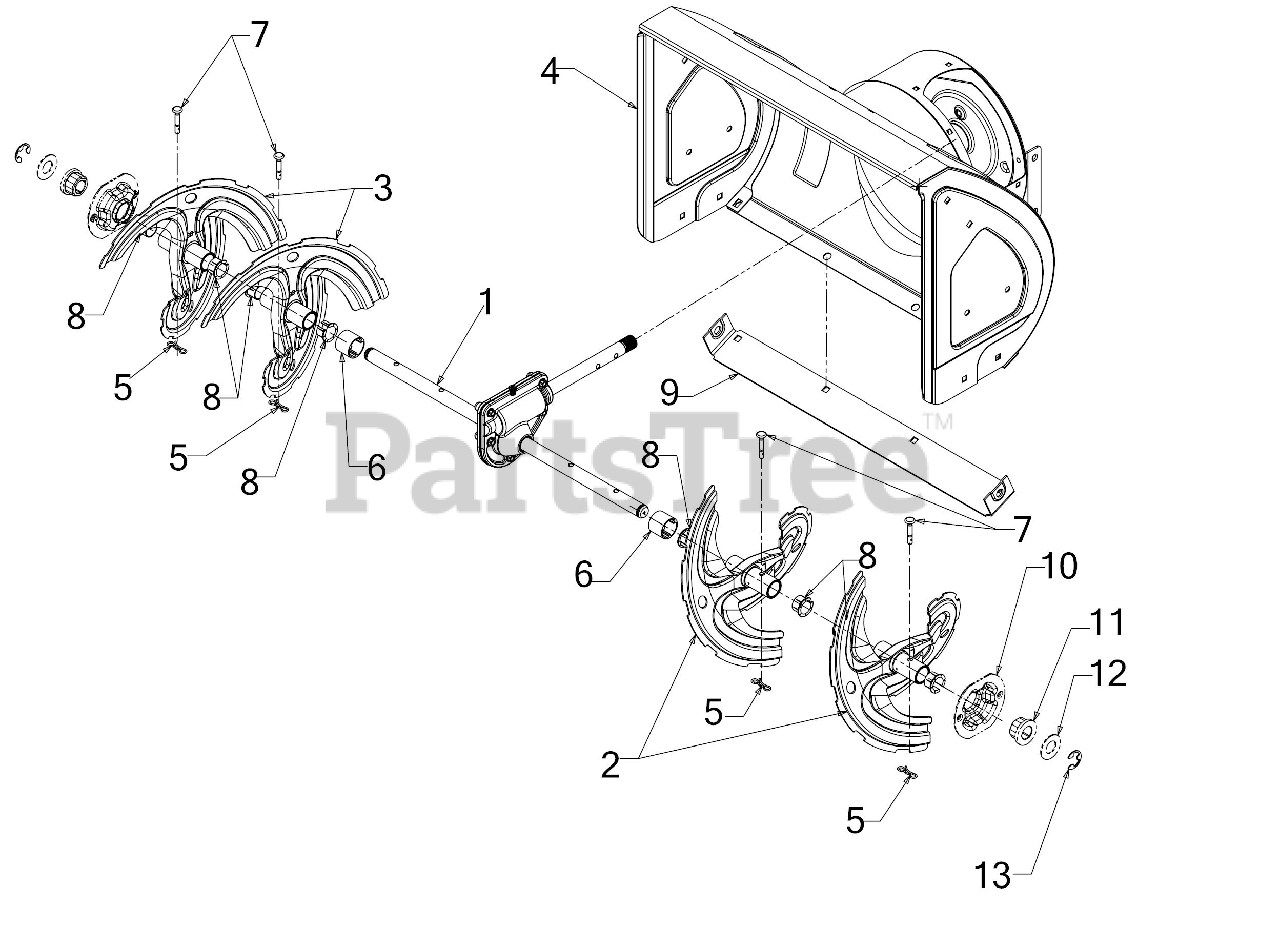

Auger Housing Parts Diagram

  • Title

1

MTD 918-04292C

22" AUGER GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$275.99

$

Usually ships in 3-6 days

0

2

MTD 684-04113A

AUGER ASSEMBLY (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-04113A-0637

AUGER ASM-LH - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

MTD 684-04113A-0638

AUGER ASM-LH - MTD/TROY-BILT RED (0638)

$80.99

$

Usually ships in 3-6 days

0

MTD 684-04113A-0650

AUGER ASM-LH - RED METALLIC (0650)

$80.99

$

Usually ships in 3-6 days

0

MTD 684-04113A-0662

AUGER ASM-LH - OYSTER GRAY (0662)

$70.99

$

Usually ships in 3-6 days

0

MTD 684-04113A-0731

AUGER ASM-LH - YELLOW JACKET (0731)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

3

MTD 684-04114A

AUGER ASSEMBLY (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-04114A-0637

AUGER ASM-RH - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

MTD 684-04114A-0638

AUGER ASM-RH - MTD/TROY-BILT RED (0638)

$80.99

$

Usually ships in 3-6 days

0

MTD 684-04114A-0650

AUGER ASM-RH - RED METALLIC (0650)

$80.99

$

Usually ships in 3-6 days

0

MTD 684-04114A-0662

AUGER ASM-RH - OYSTER GRAY (0662)

$80.99

$

Usually ships in 3-6 days

0

MTD 684-04114A-0731

AUGER ASM-RH - YELLOW JACKET (0731)

$80.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

4

MTD 684-04166A

22" AUGER HOUSING

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-04166A-0638

HOUSING ASM-AUGER - MTD/TROY-BILT RED (0638)

$275.99

$

Usually ships in 3-6 days

0

MTD 684-04166A-0662

HOUSING ASM-AUGER - OYSTER GRAY (0662)

$223.99

$

Usually ships in 3-6 days

0

MTD 684-04166A-0691

HOUSING ASM-AUGER - BLACK JACK (0691)

$256.99

$

Usually ships in 3-6 days

0

MTD 684-04166A-0709

HOUSING ASM-AUGER - MASTERCRAFT GREEN (0709)

$256.99

$

Usually ships in 3-6 days

0

MTD 684-04166A-0721

HOUSING ASM-AUGER - SEARS RED (0721)

$256.99

$

Usually ships in 3-6 days

0

MTD 684-04166A-0729

HOUSING ASM-AUGER - STORM GRAY (0729)

$223.99

$

Usually ships in 3-6 days

0

MTD 684-04166A-4041

HOUSING ASM-AUGER - PURE ORANGE (4041)

$256.99

$

Usually ships in 3-6 days

0

MTD 684-04166A-4043

HOUSING ASM-AUGER - CRAFTSMAN METALLIC GRAY (4043)

$256.99

$

Usually ships in 3-6 days

0

MTD 684-04166A-4044

HOUSING ASM-AUGER - CRAFTSMAN RED (4044)

$256.99

$

Usually ships in 3-6 days

0

$223.99

$

Usually ships in 3-6 days

0

5

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

MTD 731-04870

SPACER 1.25OD x .75ID X1.00 LG

$4.99

$

In Stock, Qty 8

0

7

MTD 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

8

MTD 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

9

MTD 790-00117

22" SHAVE PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00117-0637

Shave Plate, 22" Black - POWDER BLACK

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-0638

Shave Plate, 22" - MTD/TROY-BILT RED

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-4044

Shave Plate, 22" - CRAFTSMAN RED

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-0709

Shave Plate, 22" Green - MASTERCRAFT GREEN

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-0662

Shave Plate, 22" - OYSTER GRAY

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-0691

Shave Plate, 22" - BLACK JACK

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-4041

Shave Plate, 22" - PURE ORANGE

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-4043

Shave Plate, 22" - CRAFTSMAN METALLIC GRAY

$30.99

$

In Stock, Qty 20+

0

$25.99

$

Usually ships in 3-6 days

0

10

MTD 790-00534

HEX BREARING HOUSING

Variations

MTD 790-00534-0637

HOUSING-HEX BRG - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

MTD 790-00534-4021

Hex Bearing Housing - CUB YELLOW 2 (4021)

$13.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

11

MTD 741-05041

FLANGE BEARING

$9.99

$

In Stock, only 2 left!

0

12

MTD 736-0188

FLAT WASHER .760ID X1.49OD x .06

$4.49

$

In Stock, Qty 20+

0

13

MTD 716-0231

E-RING

$3.99

$

In Stock, Qty 20+

0
