31AS6LEG752 - Yard Machines Snow Thrower (2005) (Walmart) Handle 6L Parts Diagram

Snow Thrower

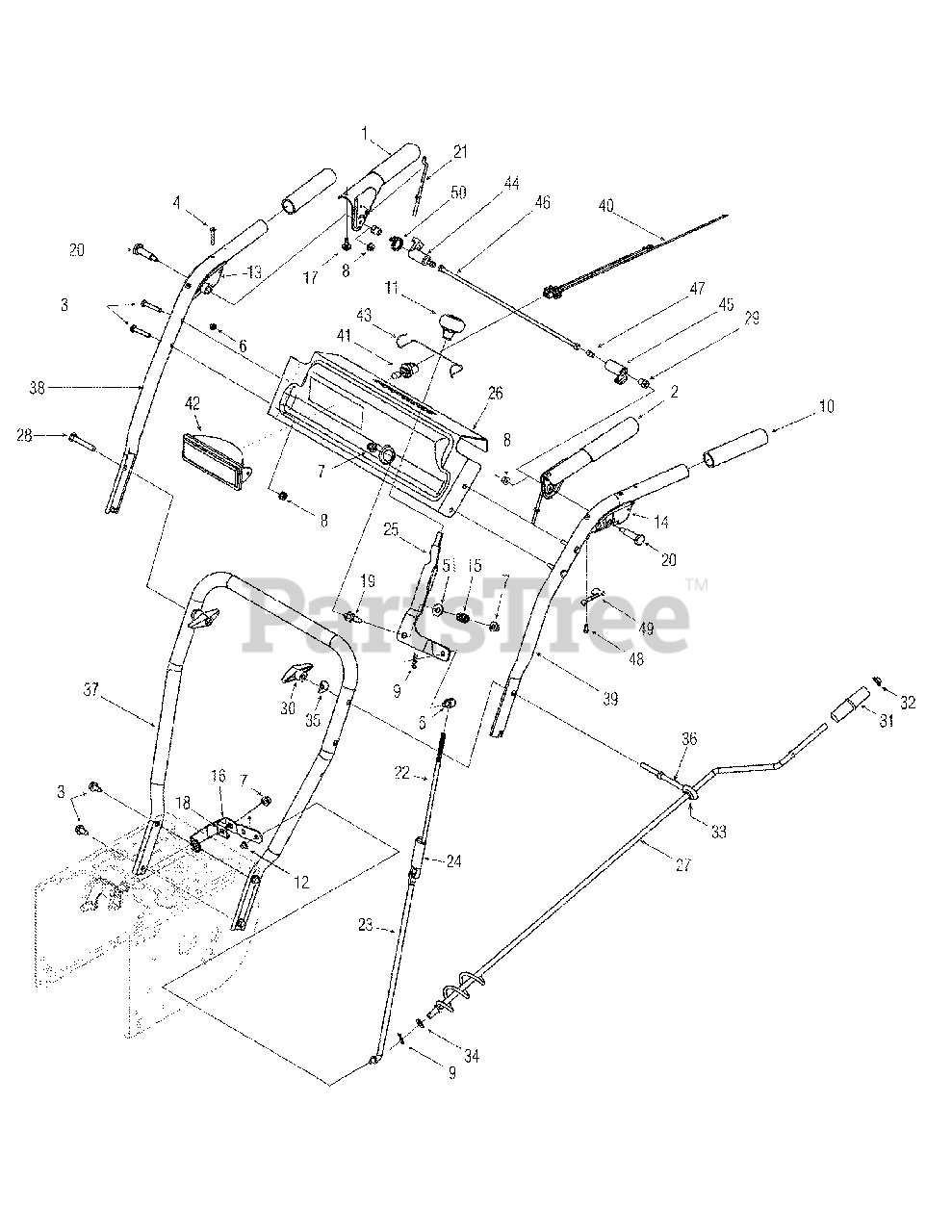

Handle 6L Parts Diagram

  • Title

1

MTD 684-0036A

Handle Ass'y, Engagement RH Black

$47.99

$

Usually ships in 3-6 days

0

2

MTD 684-0037

Handle Ass'y, Engagement, LH Black
(Superseded to 684-0037B)

$38.99

$

In Stock, only 1 left!

0

3

MTD 710-0726

Screw, Self-tapping, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1233

Screw, Machine, #10-24, 1.375

$4.99

$

In Stock, Qty 9

0

5

MTD 711-0677

Ferrule, 5/16-18 x .312 Diameter
(Superseded to 911-0677)

$18.99

$

In Stock, only 3 left!

0

6

MTD 712-0161

Nut, Hex Lock, #10-24, Gr2, Nylon

$4.99

$

In Stock, Qty 16

0

7

MTD 712-04063

Nut, Flange Lock, 5/16-18, Grf, Nylon

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-04064

Nut, Flange Lock, 1/4-20, Grf, Nylon

$4.49

$

In Stock, Qty 20+

0

9

MTD 714-0104

Pin, Cotter, .072 Diameter x 1.13

$4.49

$

In Stock, Qty 17

0

10

MTD 720-0274

Grip, 1.0 ID x 5.0

$12.99

$

In Stock, only 1 left!

0

11

MTD 720-04039

Shift Knob, Black

$10.99

$

In Stock, only 3 left!

0

12

MTD 726-0135

Nut, Push, 5/16

$7.49

$

In Stock, Qty 20+

0

13

MTD 631-04134

Handle, Clutch Lock, RH
(Superseded to 631-04134B)

$16.99

$

In Stock, only 2 left!

0

14

MTD 631-04133

Handle, Clutch Lock, LH
(Superseded to 631-04133A)

$16.99

$

In Stock, only 2 left!

0

15

MTD 732-0193

Spring, Compression, .39x.60 x .88

$4.99

$

In Stock, only 1 left!

0

16

MTD 732-04205

Spring, Shift, Lever

$12.99

$

Usually ships in 3-6 days

0

17

MTD 735-0199A

Bumper, Rubber, .62 OD x .22

$8.49

$

In Stock, Qty 18

0

18

MTD 790-00156

Bracket, Shift Spacer

$8.49

$

Usually ships in 3-6 days

0

19

MTD 738-04118

Bolt, Shoulder, 5/16-18 x 0.830

$5.99

$

Usually ships in 3-6 days

0

20

MTD 738-04122

Screw, Shoulder, .437 x 1.345, 1/4-20
(Superseded to 738-04348)

$3.99

$

In Stock, Qty 20+

0

21

MTD 746-0778

Z Fitting, Cable
(Superseded to 946-0778)

$11.99

$

In Stock, Qty 5

0

22

MTD 753-04892

Shift Rod Kit

Note: (includes Upper Rod,Wing Nut, Sleeve)

$24.99

$

In Stock, only 1 left!

0

22

MTD 712-0421

Wing Nut, Plastic

Note: (Not shown)

$7.49

$

In Stock, Qty 9

0

22

MTD 747-04365

Shift Rod Upper

Note: (use with Plastic Wing Nut)

$15.99

$

Usually ships in 3-6 days

0

23

MTD 747-04280

Rod, Shift, Lower
(Superseded to 747-0621)

$

$

Not available

24

MTD 750-0963

Connector Sleeve, Shift Rod
(Superseded to 950-0963)

$36.99

$

In Stock, only 3 left!

0

24

MTD 750-04314

Connector Sleeve

Note: (use with 753-04892 Kit)

$11.99

$

Usually ships in 3-6 days

0

25

MTD 790-00116

Lever, Shift, Speed
(Superseded to 790-00116-0637)

$

$

Not available

26

MTD 790-00129

Panel, Handle, E-Style
(Superseded to 790-00219A-0691)

Variations

Cub Cadet 790-00219-0691

PANEL:HANDLE W/SHF - BLACK JACK

$67.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00219-0638

PANEL:HANDLE W/SHF - MTD/TROY-BILT RED

$

$

Not available

$67.99

$

Usually ships in 3-6 days

0

26

MTD 790-00108

Panel (w/ Cutout), Handle, F-Style
(Superseded to 790-00209A)

Variations

Cub Cadet 790-00209-0638

PANEL:HANDLE:STEEL - MTD/TROY-BILT RED

$58.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00209-0637

PANEL:HANDLE:STEEL - POWDER BLACK

$67.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

27

MTD 684-04104

Crank Assembly, Chute
(Superseded to 684-04104-0637)

Variations

MTD 684-04104-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$66.99

$

In Stock, only 2 left!

0

$66.99

$

In Stock, only 2 left!

0

28

MTD 710-0449

Screw, Carriage, 5/16-18, 2.25, Gr5
(Superseded to 710-0572)

$4.99

$

In Stock, Qty 8

0

29

MTD 712-04081A

Shoulder Nut, Hex, 1/4-20

$7.99

$

In Stock, Qty 16

0

30

MTD 720-0284

Knob Assembly, Wing Nut, 5/16-18

$7.49

$

In Stock, Qty 20+

0

31

MTD 720-0201A

Crank Knob, 1.0 Diameter x 3.2, Black

$11.99

$

In Stock, only 2 left!

0

32

MTD 726-0100

Cap, Push, 3/8 Rod

$4.99

$

In Stock, only 2 left!

0

33

MTD 735-0234

Grommet, .44 ID x .94 OD x .50

$5.49

$

In Stock, Qty 10

0

34

MTD 736-0185

Washer, Flat, .375 x .738 x .063

$4.49

$

In Stock, Qty 5

0

35

MTD 736-0451

Washer, Saddle, 320 x .93 x .060

$4.99

$

In Stock, Qty 10

0

36

MTD 747-04263

Eye Bolt, Chute Crank

$10.99

$

In Stock, only 2 left!

0

37

MTD 749-04138

Handle, Lower, Snow
(Superseded to 749-04138A)

Variations

MTD 749-04138-0637

Lower Handle, Snow - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

MTD 749-04138-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$94.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

38

MTD 749-04141

Handle, Upper, RH

Variations

MTD 749-04141-0637

Right Upper Handle - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

MTD 749-04141-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

39

MTD 749-04142

Handle, Upper, LH
(Superseded to 749-04191A)

Variations

MTD 749-04142-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

MTD 749-04142-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

40

MTD 725-04220

Harness, Headlight

$22.99

$

Usually ships in 3-6 days

0

41

MTD 725-1658

Lamp, Halogen, 12V, 27W
(Superseded to 925-1658)

$63.99

$

In Stock, only 4 left!

0

42

MTD 725-1672

Lens Assembly, Lamp
(Superseded to 925-1672)

$94.99

$

Usually ships in 3-6 days

0

43

MTD 747-1136

Retainer, Lens

$12.99

$

Usually ships in 3-6 days

0

44

MTD 731-04894

Plate, Lock
(Superseded to 731-04894D)

$5.99

$

In Stock, Qty 5

0

45

MTD 731-04896

Cam, Lock
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 12

0

46

MTD 711-04287

Rod, Pivot
(Superseded to 753-04882C)

$45.99

$

Usually ships in 3-6 days

0

47

MTD 710-04354

Screw, 1/4-20, .375

$4.49

$

In Stock, Qty 9

0

48

MTD 710-04326

Screw, #8-18 x .50

$4.49

$

In Stock, Qty 11

0

49

MTD 732-04219

Spring, Control Lever Lock
(Superseded to 732-04219C)

$4.49

$

In Stock, Qty 20+

0

50

MTD 732-04238

Spring, Torsion, .8156 x .3038
(Superseded to 732-04238B)

$5.99

$

In Stock, Qty 6

0

51

MTD 736-0262

Washer, Flat, .385 x .870 x .092

$4.49

$

In Stock, Qty 20+

0
