31C-040-701 - Yard-Man Snow Thrower (2010) Handle Parts Parts Diagram

Snow Thrower

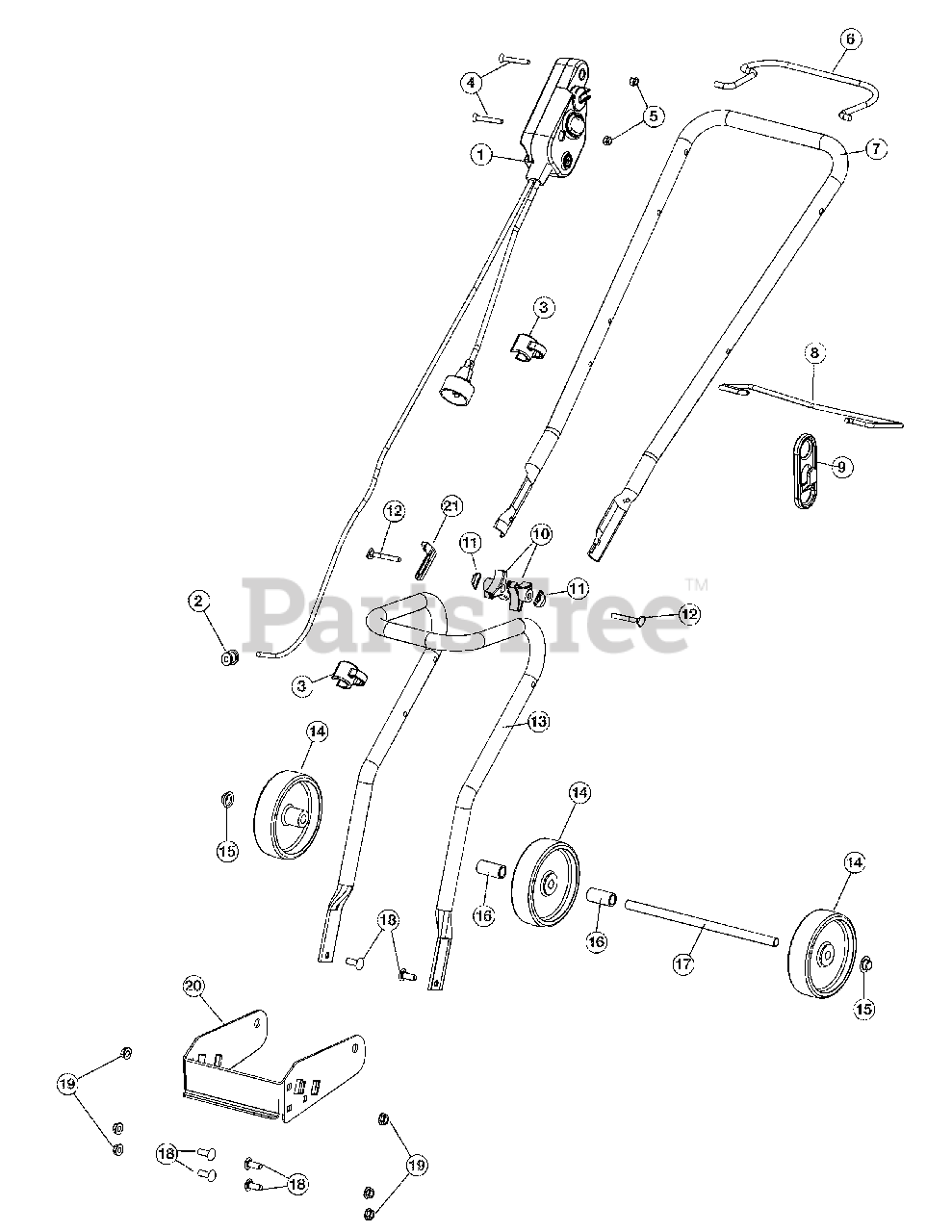

Handle Parts Parts Diagram

  • Title

1

MTD 753-06235

Switch Asm

$

$

Not available

2

MTD 753-04428

Bushing

$16.99

$

Usually ships in 3-6 days

0

3

MTD 753-04429

Cable guide
(Superseded to 731-1820)

$8.49

$

Usually ships in 3-6 days

0

4

MTD 753-04430

Screw

$3.99

$

Usually ships in 3-6 days

0

5

MTD 712-0324

Nut

$3.49

$

In Stock, Qty 20+

0

6

MTD 753-04432

Bail

$

$

Not available

7

MTD 753-04433

Upper Handle

$

$

Not available

8

MTD 753-04434

Guide Bar

$

$

Not available

9

MTD 726-0368-0637

Cord Restraint
(Superseded to 726-0368)

$8.49

$

Usually ships in 3-6 days

0

10

MTD 791-182677

Knob

$13.99

$

Usually ships in 3-6 days

0

11

MTD 936-0451

Washer
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

12

MTD 791-182899

Bolt

$7.49

$

Usually ships in 3-6 days

0

13

MTD 753-04436

Lower Handle

$

$

Not available

14

MTD 753-04437

Wheel (includes 15)

$20.99

$

Usually ships in 3-6 days

0

15

MTD 726-0299

Push Cap

$7.49

$

In Stock, Qty 20+

0

16

MTD 750-04692

Spacer

$

$

Not available

17

MTD 753-04439

Axel

$

$

Not available

18

MTD 710-0703

Bolt

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-04064

Nut

$3.99

$

In Stock, Qty 20+

0

20

MTD 753-04440

Wheel Bracket

$

$

Not available

21

MTD 753-04441

Control Rod Bracket

$

$

Not available

MTD 753-06236

Key

Note: Not Shown

$3.49

$

Usually ships in 3-6 days

0
