31C-116-000 - Yard Machines Snow Buster Snow Thrower (2004) Boom And J-Handle Parts Diagram

Snow Buster Snow Thrower

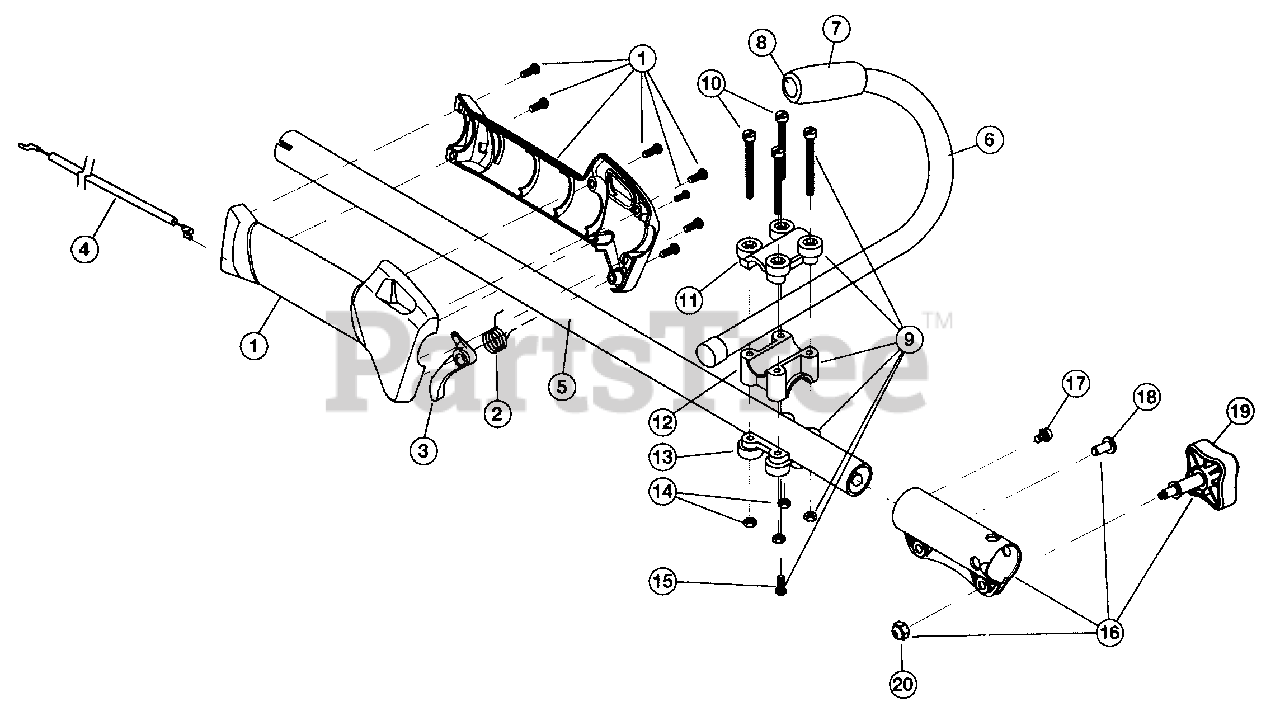

Boom And J-Handle Parts Diagram

  • Title

1

MTD 791-182808

Throttle Housing & Trigger Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$10.99

$

Usually ships in 3-6 days

0

3

MTD 791-182385

Throttle Trigger
(Superseded to 753-04295)

$

$

Not available

4

MTD 791-182068

Throttle Cable Assembly

$21.99

$

Usually ships in 3-6 days

0

5

MTD 753-04344

Upper Drive Shaft Housing Assembly

$90.99

$

In Stock, only 2 left!

0

6

MTD 791-180687

J-Handle Assembly

Note: (includes 7 & 8)

$41.99

$

Usually ships in 3-6 days

0

7

MTD 791-612831

Grip

$12.99

$

Usually ships in 3-6 days

0

8

MTD 791-612021

Tube Closure
(Superseded to 1925)

$2.99

$

Usually ships in 3-6 days

0

9

MTD 791-683295

Handle Bracket Assembly

Note: (includes 10-15)

$48.99

$

Usually ships in 3-6 days

0

10

MTD 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

11

MTD 791-181812

Upper Handle Clamp

$9.49

$

Usually ships in 3-6 days

0

12

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

13

MTD 791-181814

Lower Handle Clamp

$9.49

$

Usually ships in 3-6 days

0

14

MTD 791-181815

Nut

$4.99

$

Usually ships in 3-6 days

0

15

MTD 791-145569

Anti-Rotation Screw

$10.99

$

In Stock, Qty 7

0

16

MTD 791-182928

Coupler

Note: (includes 17-20)

$

$

Not available

17

MTD 791-182057

Screw

$4.99

$

In Stock, Qty 20+

0

18

MTD 791-181617

Bolt

$5.99

$

In Stock, Qty 8

0

19

MTD 791-181951

Adjustment Knob
(Superseded to 791-181981)

$7.49

$

Usually ships in 3-6 days

0

20

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0
