31G777-0559-E1 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

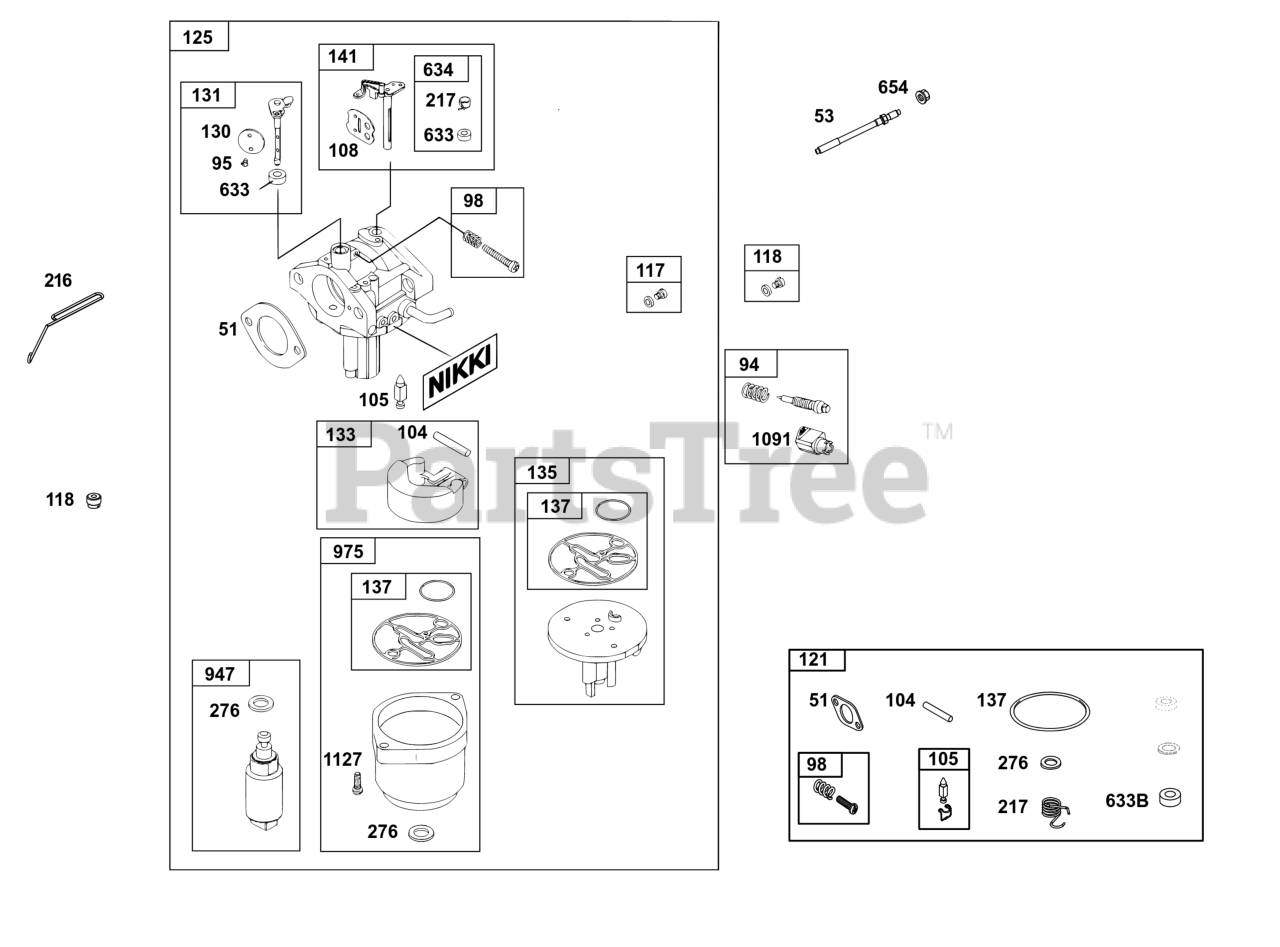

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 591260

STUD

Note: (Carburetor)

$8.99

$

In Stock, only 2 left!

0

94

Briggs & Stratton 695409

SPRING, Choke Return

$9.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 695408

KIT, Idle Speed

$15.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 694918

PIN, Float Hinge

$7.99

$

In Stock, only 2 left!

0

105

Briggs & Stratton 696136

VALVE, Float Needle

$16.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 695419

VALVE, Choke

$10.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 843099

JET, Main

Note: (Standard)

$16.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 799890

JET, Main

Note: (High Altitude)

$

$

Currently unavailable

121

Briggs & Stratton 594886

KIT, Carburetor Overhaul

Note: (Service Kits can include parts not for this engine.)

$44.99

$

In Stock, Qty 12

0

125

Briggs & Stratton 591732

CARBURETOR

$

$

Currently unavailable

130

Briggs & Stratton 699500

VALVE, Throttle

$12.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 699501

KIT, Throttle Shaft

$43.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 694914

FLOAT, Carburetor

$27.99

$

In Stock, only 2 left!

0

135

Briggs & Stratton 698780

TUBE, Fuel Transfer

$85.99

$

In Stock, only 3 left!

0

137

Briggs & Stratton 698781

GASKET, Float Bowl

$10.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 698778

KIT, Choke Shaft

$35.99

$

In Stock, Qty 6

0

216

Briggs & Stratton 691840

LINK, Choke

$9.99

$

In Stock, only 2 left!

0

217

Briggs & Stratton 695409

SPRING, Choke Return

$9.99

$

In Stock, only 2 left!

0

276

Briggs & Stratton 695410

WASHER, Sealing

$7.49

$

In Stock, Qty 8

0

633

Briggs & Stratton 699813

SEAL, Choke/Throttle Shaft

$6.99

$

In Stock, only 2 left!

0

633B

Briggs & Stratton 699813

SEAL, Choke/Throttle Shaft

$6.99

$

In Stock, only 2 left!

0

634

Briggs & Stratton 698779

SPRING/SEAL ASSEMBLY

Note: (Nikki)

$9.49

$

In Stock, only 2 left!

0

654

Briggs & Stratton 690958

NUT

Note: (Carburetor)

$3.49

$

In Stock, Qty 7

0

947

Briggs & Stratton 699915

SOLENOID, Fuel
(Superseded to 596038)

$87.99

$

In Stock, Qty 8

0

975

Briggs & Stratton 699502

BOWL, Float

$49.99

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691333

CAP, Limiter

$10.99

$

In Stock, only 1 left!

0

1127

Briggs & Stratton 695407

SCREW

Note: (Float Bowl To Carburetor Body)

$4.99

$

In Stock, only 2 left!

0
