31M877-0110-E1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply, Kit - Carburetor Overhaul Parts Diagram

Vertical Engine

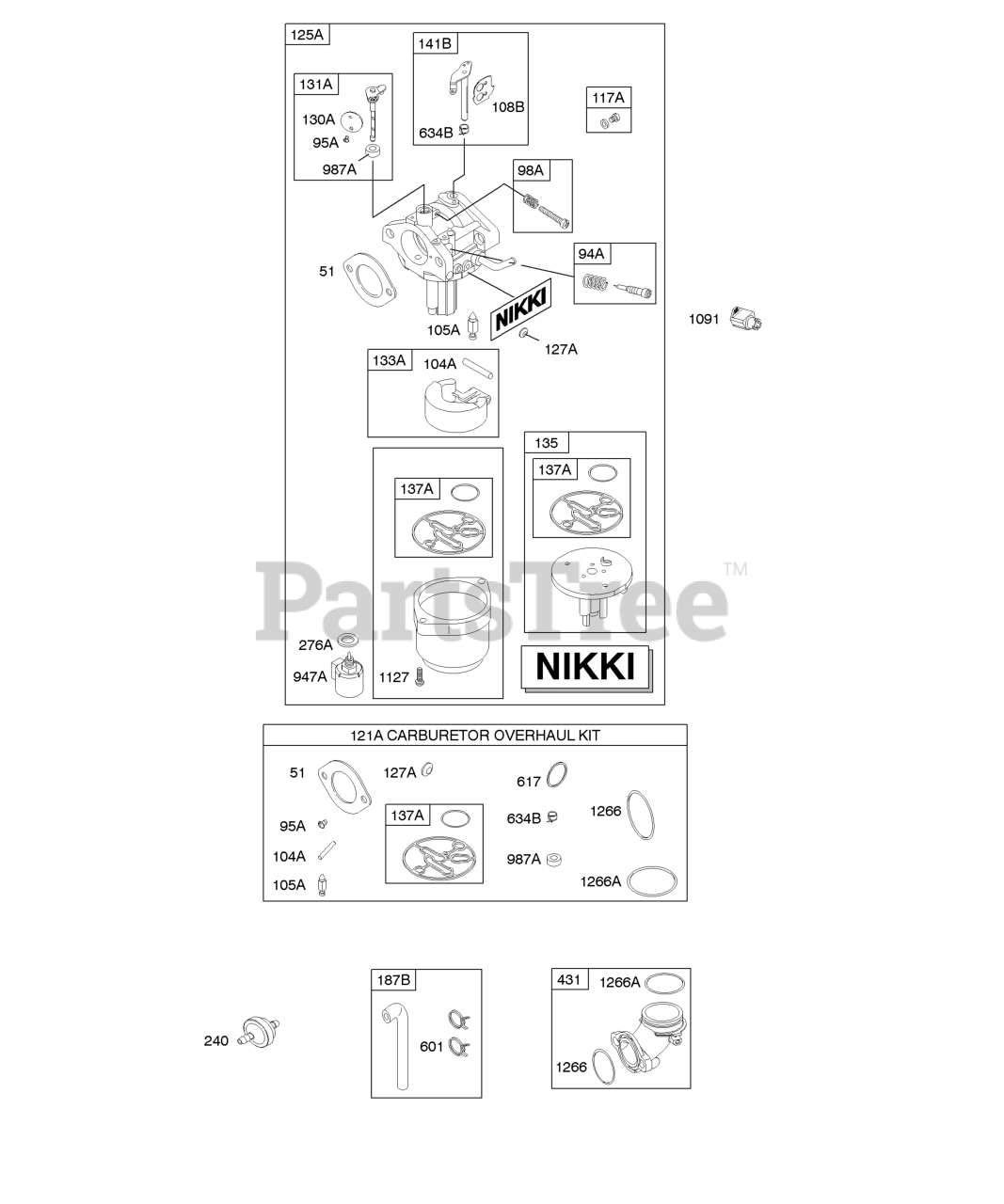

Carburetor, Fuel Supply, Kit - Carburetor Overhaul Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 17

0

94A

Briggs & Stratton 695425

Kit-Idle Mixture
(Superseded to 793610)

$20.99

$

In Stock, only 4 left!

0

95A

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

In Stock, only 1 left!

0

98A

Briggs & Stratton 695408

KIT, Idle Speed

$13.99

$

In Stock, only 2 left!

0

104A

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105A

Briggs & Stratton 696136

VALVE, Float Needle

$15.99

$

In Stock, Qty 14

0

108B

Briggs & Stratton 695419

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 699732

Jet-Main

Note: (Standard) (Standard)

$17.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 792369

Kit-Carburetor Overhaul
(Superseded to 796184)

$63.99

$

Usually ships in 2-12 days

0

125A

Briggs & Stratton 792358

Carburetor
(Superseded to 594593)

$143.99

$

In Stock, Qty 14

0

127A

Briggs & Stratton 690727

PLUG, Welch

$4.49

$

In Stock, only 1 left!

0

130A

Briggs & Stratton 699500

Valve-Throttle

$11.99

$

Usually ships in 2-12 days

0

131A

Briggs & Stratton 699501

Kit-Throttle Shaft

$39.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 694914

FLOAT, Carburetor

$28.99

$

In Stock, only 4 left!

0

135

Briggs & Stratton 698780

Tube-Fuel Transfer

Note: (Nikki)(Gravity Feed)

$95.99

$

In Stock, only 4 left!

0

137A

Briggs & Stratton 698781

GASKET, Float Bowl

$9.99

$

Usually ships in 2-12 days

0

141B

Briggs & Stratton 792777

Kit-Choke Shaft

$32.99

$

In Stock, only 1 left!

0

187B

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(10-1/4 Inches Long)(Cut to Required Length)

$24.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 394358S

FILTER, Fuel

$5.99

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 695410

WASHER, Sealing

$6.99

$

In Stock, only 3 left!

0

431

Briggs & Stratton 697122

Elbow-Intake

$24.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 12

0

634B

Briggs & Stratton 698779

Spring/Seal Assembly

$8.99

$

Usually ships in 2-12 days

0

947A

Briggs & Stratton 699915

Solenoid-Fuel
(Superseded to 596038)

$79.99

$

In Stock, only 1 left!

0

975A

Briggs & Stratton 699502

BOWL, Float

$45.99

$

Usually ships in 2-12 days

0

987A

Briggs & Stratton 698777

Seal-Throttle Shaft
(Superseded to 690998)

$7.99

$

In Stock, only 1 left!

0

1091

Briggs & Stratton 691333

Cap-Limiter

$9.49

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl)

$4.49

$

In Stock, only 2 left!

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 9

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, only 1 left!

0
