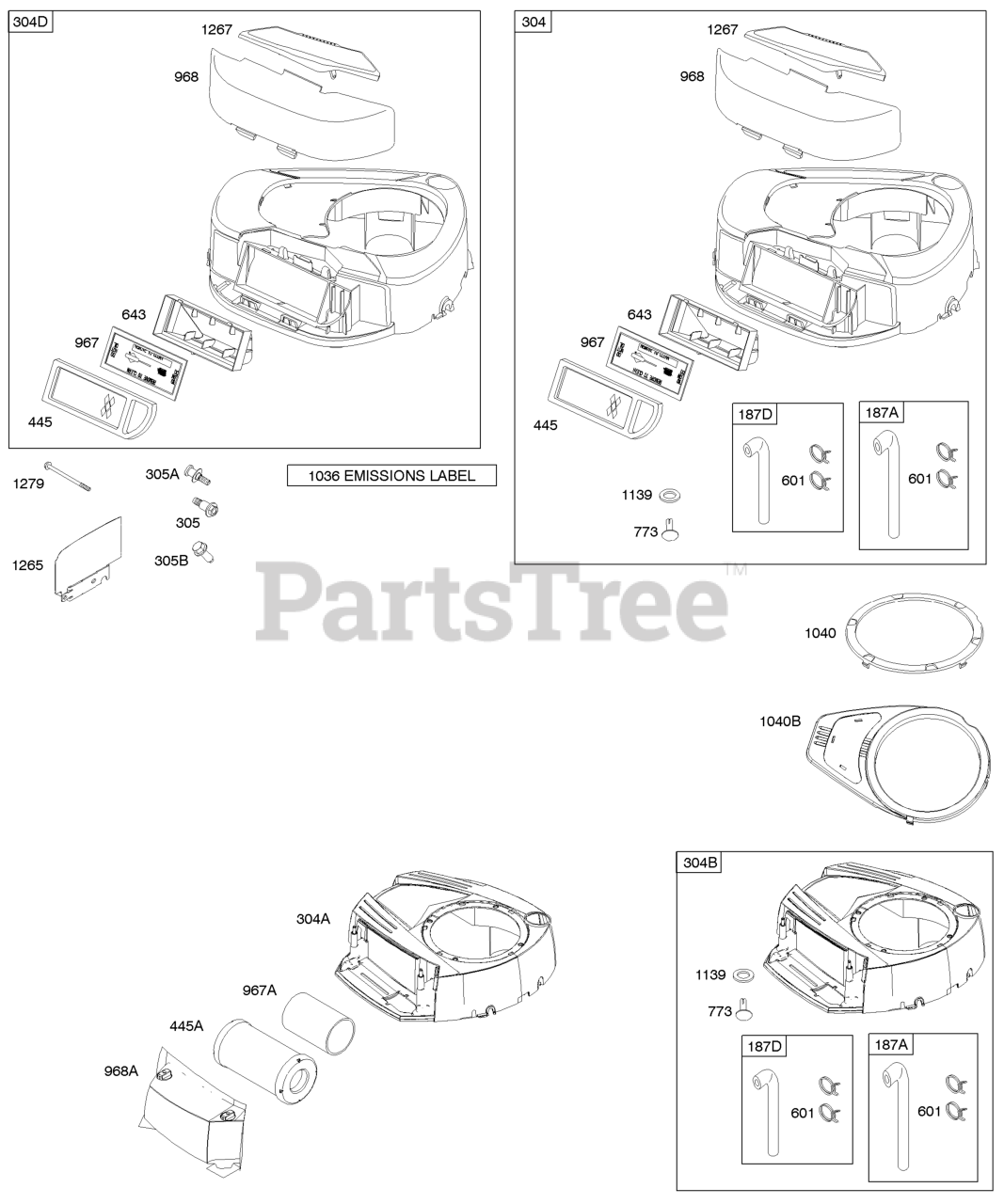

31M977-0111-E1 - Briggs & Stratton Vertical Engine Air Cleaner, Blower Housing Parts Diagram

Vertical Engine

Air Cleaner, Blower Housing Parts Diagram

  • Title

187A

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(10-1/4" Long)(Cut to Required Length)

$24.99

$

Usually ships in 2-12 days

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(14 Inches Long)(Cut To Required Length)

$14.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 796416

Housing-Blower
(Superseded to 591907)

Note: (Black) Used After Code Date 08082400

$184.99

$

In Stock, only 1 left!

0

304D

Briggs & Stratton 794918

Housing-Blower
(Superseded to 592814)

Note: (Black) Used Before Code Date 08082500

$136.99

$

In Stock, only 2 left!

0

305

Briggs & Stratton 697102

Screw
(Superseded to 596718)

Note: (Blower Housing)

$3.99

$

In Stock, Qty 15

0

305A

Briggs & Stratton 793376

Screw
(Superseded to 799370)

Note: (Blower Housing)

$3.99

$

In Stock, Qty 20+

0

305B

Briggs & Stratton 795891

SCREW

Note: (Blower Housing) (Blower Housing to Elbow)

$3.99

$

In Stock, Qty 8

0

445

Briggs & Stratton 698083

Filter-Air Cleaner Cartridge
(Superseded to 794422)

Note: (Non Washable)

$17.99

$

In Stock, Qty 17

0

445A

Briggs & Stratton 793569

Filter-Air Cleaner Cartridge

$19.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

643

Briggs & Stratton 698401

Retainer-Air Filter

$12.99

$

In Stock, only 1 left!

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, only 3 left!

0

967

Briggs & Stratton 697015

Filter-Pre Cleaner

$5.99

$

In Stock, Qty 20+

0

968

Briggs & Stratton 699986

Cover-Air Cleaner

$52.99

$

Usually ships in 2-12 days

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1040B

Briggs & Stratton 699852

PLATE, Trim

$9.99

$

In Stock, only 1 left!

0

1139

Briggs & Stratton 796449

WASHER

Note: (Fuel Pump Bracket)

$4.49

$

In Stock, only 3 left!

0

1265

Briggs & Stratton 697125

Support-Blower Housing

$7.99

$

Usually ships in 2-12 days

0

1267

Briggs & Stratton 697419

Latch-Blower Housing

$17.99

$

In Stock, only 3 left!

0

1279

Briggs & Stratton 691108

SCREW

Note: (Blower Housing Support)

$3.49

$

In Stock, Qty 20+

0
