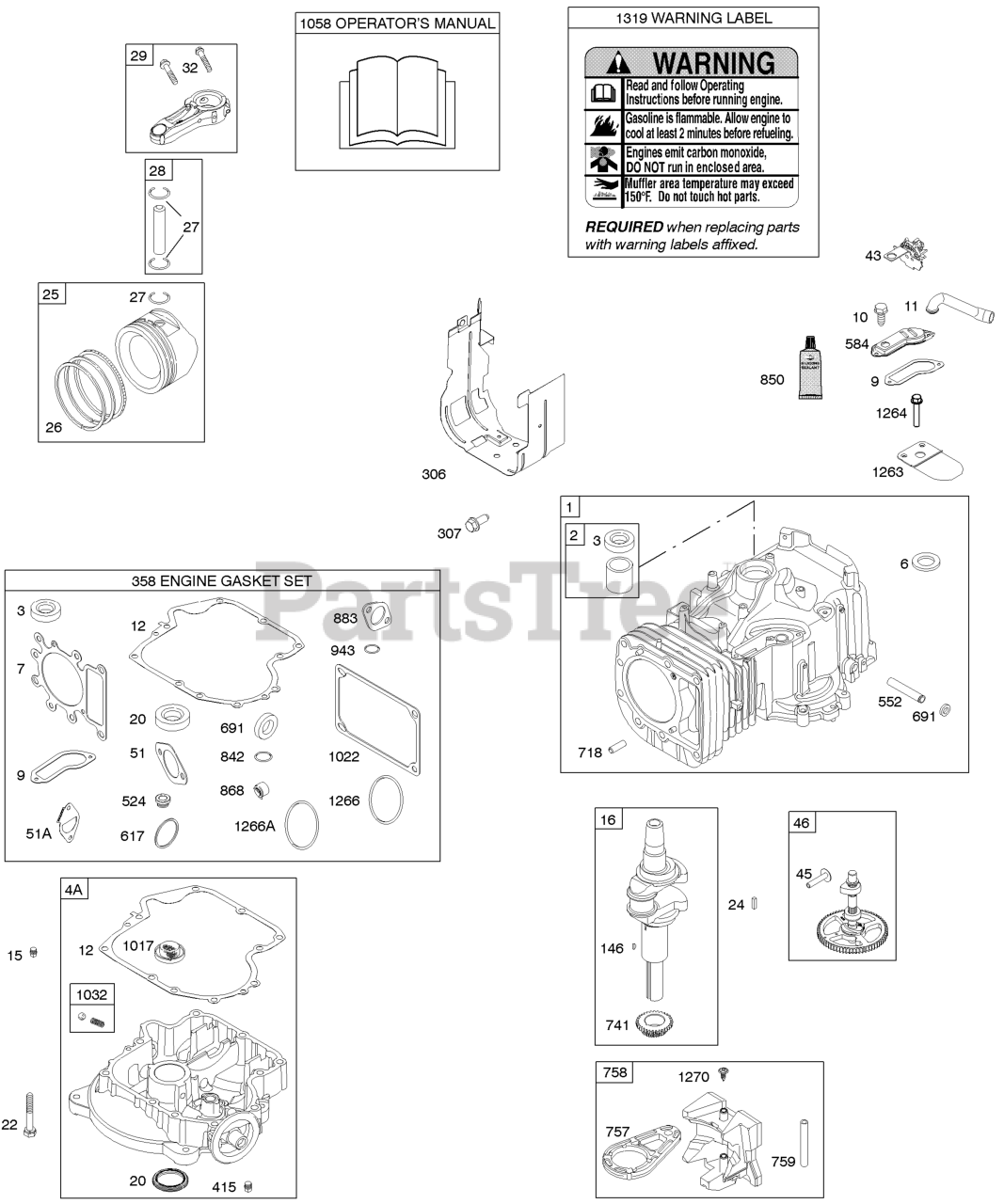

31P877-0122-B1 - Briggs & Stratton Vertical Engine Camshaft, Crankshaft, Cylinder, Engine Sump, Gasket Set - Engine, Operator's Manual, Pistons, Rings, Connecting Rod, Warning Label Parts Diagram

Vertical Engine

Camshaft, Crankshaft, Cylinder, Engine Sump, Gasket Set - Engine, Operator's Manual, Pistons, Rings, Connecting Rod, Warning Label Parts Diagram

  • Title

1

Briggs & Stratton 796010

CYLINDER ASSEMBLY

$524.99

$

In Stock, only 1 left!

0

1

Briggs & Stratton 796010

CYLINDER ASSEMBLY

Note: MUST BE USED WITH THE AFTER 4/27/08 CYLINDER SHIELD, REF 306 Used Before Code Date 08042800

$524.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 399265

Kit-Bushing/Seal
(Superseded to 797673)

Note: (Magneto Side)

$18.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

4A

Briggs & Stratton 697188

Sump-Engine
(Superseded to 592849)

Note: Used After Code Date 05100200

$250.99

$

In Stock, only 1 left!

0

4A

Sump-Engine

Note: (Must Use Kit 795938, Includes Sump And Counterweight) Used Before Code Date 05100300

$

$

Not available

6

Briggs & Stratton 690310

Washer

Note: (Cylinder Head) Used After Code Date 07010900

$4.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 796584

GASKET, Cylinder Head

$19.99

$

In Stock, Qty 16

0

9

Briggs & Stratton 697109

Gasket-Breather

Note: (After Date Code Use Liquid Sealant Reference 850) Used Before Code Date 07071900

$7.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 697157

SCREW

Note: (Breather Assembly)

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 794683

TUBE, Breather

$7.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 697110

GASKET, Crankcase

Note: (.015" Thick)(Standard)

$7.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

Note: (Square Head)

$5.99

$

In Stock, Qty 17

0

16

Briggs & Stratton 793410

Crankshaft
(Superseded to 797585)

$471.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 795387

SEAL, Oil

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

SCREW

Note: (Crankcase Cover/Sump)

$4.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 796172

Piston Assembly
(Superseded to 594539)

Note: (Standard) Used After Code Date 08042700

$90.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 796173

Piston Assembly
(Superseded to 594540)

Note: Used After Code Date 08042700

$139.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 793019

Piston Assembly
(Superseded to 594540)

Note: Used Before Code Date 08042800

$139.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 791937

Piston Assembly
(Superseded to 594539)

Note: (Standard) Used Before Code Date 08042800

$90.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 791936

Ring Set
(Superseded to 594437)

Note: (Standard)

$52.99

$

In Stock, Qty 5

0

26

Briggs & Stratton 792649

Ring Set

Note: (.020 Oversize)

$58.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 698469

LOCK, Piston Pin

$4.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 796007

Pin-Piston

Note: (Standard) Used After Code Date 08042700

$13.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 697099

Pin-Piston

Note: (Standard) Used Before Code Date 08042800

$13.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 794571

ROD, Connecting

$78.99

$

In Stock, only 4 left!

0

32

Briggs & Stratton 791118

SCREW

Note: (Connecting Rod)

$4.99

$

In Stock, Qty 10

0

43

Briggs & Stratton 691968

SLINGER, Governor/Oil

$37.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 690564

TAPPET, Valve

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 793880

CAMSHAFT
(Superseded to 84005207)

$96.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 796081

Gasket-Intake

$3.99

$

In Stock, Qty 20+

0

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, only 3 left!

0

306

Briggs & Stratton 796006

Shield-Cylinder

Note: Used After Code Date 08042700

$52.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 697107

Shield-Cylinder

Note: Used Before Code Date 08042800

$55.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, only 2 left!

0

358

Briggs & Stratton 794150

Gasket Set-Engine
(Superseded to 796187)

$94.99

$

In Stock, Qty 6

0

415

Briggs & Stratton 794903

PLUG

Note: (Sump)

$5.49

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

SEAL, O-Ring

$5.99

$

In Stock, Qty 8

0

552

Briggs & Stratton 697144

BUSHING, Governor Crank

$9.49

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 794682

COVER, Breather Passage

$9.49

$

In Stock, only 1 left!

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 12

0

691

Briggs & Stratton 692407

SEAL, Governor Shaft

$7.99

$

In Stock, Qty 11

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 697128

GEAR, Timing

$20.99

$

In Stock, Qty 6

0

757

Briggs & Stratton 793242

LINK, Counterweight

$20.99

$

In Stock, only 2 left!

0

758

Counterweight

Note: (Must Use Kit 795938, Includes Sump And Counterweight) Used Before Code Date 05100300

$

$

Not available

758

Briggs & Stratton 793763

Counterweight

Note: Used After Code Date 05100200

$128.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 697392

PIN, Counterweight

$5.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 12

0

850

Briggs & Stratton 100100

Sealant-Liquid
(Superseded to 100106)

Note: Used After Code Date 07071800

$14.99

$

In Stock, Qty 7

0

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

SEAL, O-Ring

Note: (Oil Pump Cover)

$8.99

$

In Stock, Qty 5

0

1017

Briggs & Stratton 796981

SCREEN, Oil Pump

$16.99

$

In Stock, only 1 left!

0

1022

Briggs & Stratton 272475S

GASKET, Rocker Cover

Note: (After Date Code Use Liquid Sealant Reference 850) Used Before Code Date 07091000

$6.49

$

In Stock, Qty 20+

0

1032

Briggs & Stratton 491710

Ball-Oil Pump

$4.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 276344

Operator's Manual
(Superseded to 276344TRI)

$5.49

$

Usually ships in 2-12 days

0

1263

Briggs & Stratton 697124

REED, Breather

$7.49

$

In Stock, only 1 left!

0

1264

Briggs & Stratton 697104

SCREW

Note: (Breather Reed)

$3.99

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, only 2 left!

0

1270

Briggs & Stratton 793243

PLUG, AVS Counterweight

Note: Used After Code Date 06081300

$4.99

$

In Stock, Qty 11

0

1270

Briggs & Stratton 697156

Plug-AVS Counterweight
(Superseded to 793243)

Note: Used Before Code Date 06081400

$4.99

$

In Stock, Qty 11

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0
