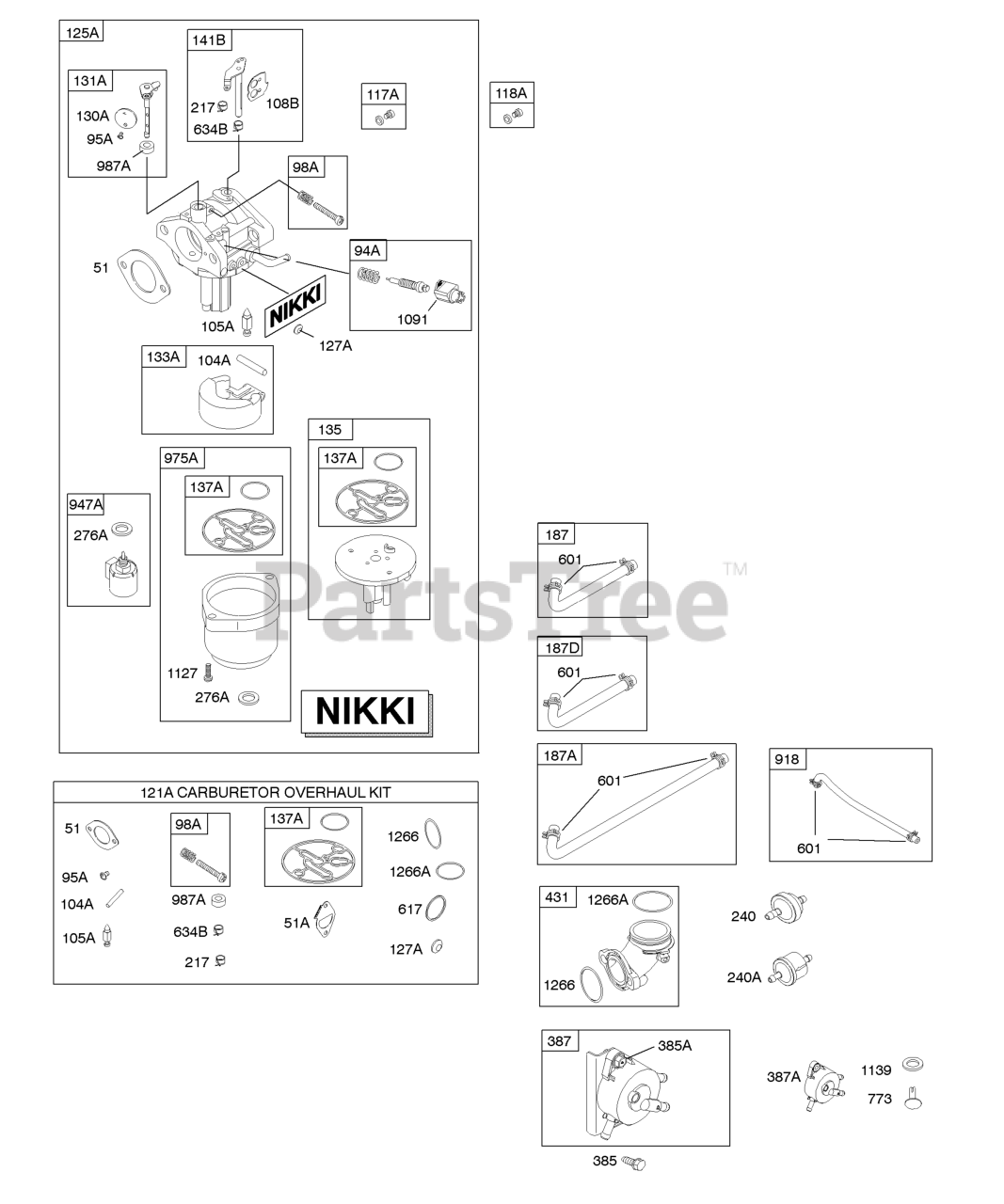

31P977-0670-E1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply, Kit - Carburetor Overhaul Parts Diagram

Vertical Engine

Carburetor, Fuel Supply, Kit - Carburetor Overhaul Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 796081

Gasket-Intake

$5.99

$

In Stock, Qty 7

0

94A

Briggs & Stratton 793610

KIT, Idle Mixture

$22.99

$

In Stock, only 2 left!

0

95A

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

In Stock, only 2 left!

0

98A

Briggs & Stratton 695408

KIT, Idle Speed

$15.99

$

Usually ships in 2-12 days

0

104A

Briggs & Stratton 694918

PIN, Float Hinge

$7.99

$

In Stock, only 3 left!

0

105A

Briggs & Stratton 696136

VALVE, Float Needle

$16.99

$

In Stock, Qty 13

0

108B

Briggs & Stratton 695419

Valve-Choke

$10.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 792296

JET, Main

Note: (Standard) Used Before Code Date 08092900

$19.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 699733

Jet-Main

Note: (Standard) Used After Code Date 08092800

$19.99

$

In Stock, only 2 left!

0

118A

Briggs & Stratton 843099

Jet-Main

Note: (High Altitude) Used After Code Date 08092800

$16.99

$

In Stock, only 2 left!

0

118A

Briggs & Stratton 842628

Jet-Main

Note: (High Altitude) Used Before Code Date 08092900

$19.99

$

In Stock, only 1 left!

0

121A

Briggs & Stratton 796184

KIT, Carburetor Overhaul

Note: (Nikki Carburetor)

$66.99

$

In Stock, only 2 left!

0

125A

Briggs & Stratton 796110

Carburetor
(Superseded to 594605)

Note: (Nikki)(Pump Feed) Used After Code Date 08092800

$150.99

$

In Stock, Qty 14

0

125A

Briggs & Stratton 792768

Carburetor
(Superseded to 594605)

Note: (Nikki)(Gravity Feed) Used Before Code Date 08092900

$150.99

$

In Stock, Qty 14

0

127A

Briggs & Stratton 690727

PLUG, Welch

$4.99

$

In Stock, only 3 left!

0

130A

Briggs & Stratton 792747

Valve-Throttle

$10.99

$

Usually ships in 2-12 days

0

131A

Briggs & Stratton 792765

Kit-Throttle Shaft

$43.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 694914

FLOAT, Carburetor

$27.99

$

In Stock, only 3 left!

0

135

Briggs & Stratton 698780

Tube-Fuel Transfer

Note: (Nikki)(Gravity Feed)

$85.99

$

In Stock, only 3 left!

0

135

Briggs & Stratton 792022

Tube-Fuel Transfer

Note: (Pump Feed)(Does Not Include Jet)

$54.99

$

Usually ships in 2-12 days

0

137A

Briggs & Stratton 698781

GASKET, Float Bowl

$10.99

$

In Stock, Qty 20+

0

141B

Briggs & Stratton 792777

Kit-Choke Shaft

$35.99

$

In Stock, only 1 left!

0

187

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(10-1/4" Long)(Cut to Required Length)

$26.99

$

In Stock, only 2 left!

0

187A

Briggs & Stratton 791806

Line-Fuel

Note: (Formed)(21" Long)(Cut to Required Length)

$59.99

$

In Stock, only 1 left!

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(14 Inches Long)(Cut To Required Length)

$16.99

$

In Stock, only 1 left!

0

217

Briggs & Stratton 695409

SPRING, Choke Return

$9.99

$

In Stock, only 2 left!

0

240

Briggs & Stratton 394358S

FILTER, Fuel

$5.99

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 695410

WASHER, Sealing

$7.49

$

In Stock, Qty 9

0

385

Briggs & Stratton 694476

Screw

Note: (Fuel Pump)

$4.49

$

Usually ships in 2-12 days

0

385A

Briggs & Stratton 690297

Screw

Note: (Fuel Pump)

$3.99

$

In Stock, Qty 20+

0

387

Briggs & Stratton 697090

Pump-Fuel

$

$

Not available

387A

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$30.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 11

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 20+

0

634B

Briggs & Stratton 698779

Spring/Seal Assembly

$9.49

$

In Stock, only 2 left!

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, Qty 12

0

918

Briggs & Stratton 791851

Hose-Vacuum

$15.99

$

In Stock, only 2 left!

0

947A

Briggs & Stratton 699915

Solenoid-Fuel
(Superseded to 596038)

$87.99

$

In Stock, Qty 9

0

975A

Briggs & Stratton 699502

BOWL, Float

$49.99

$

Usually ships in 2-12 days

0

987A

Briggs & Stratton 698777

Seal-Throttle Shaft
(Superseded to 690998)

$8.49

$

In Stock, only 3 left!

0

1091

Briggs & Stratton 691333

Cap-Limiter

$10.99

$

In Stock, only 1 left!

0

1127

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl to Carburetor Body)

$4.99

$

In Stock, Qty 6

0

1139

Briggs & Stratton 796449

WASHER

Note: (Fuel Pump Bracket)

$4.99

$

In Stock, only 3 left!

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, Qty 9

0
