31R877-0040-B5 - Briggs & Stratton Vertical Engine Crankcase Cover/Sump Group Parts Diagram

Vertical Engine

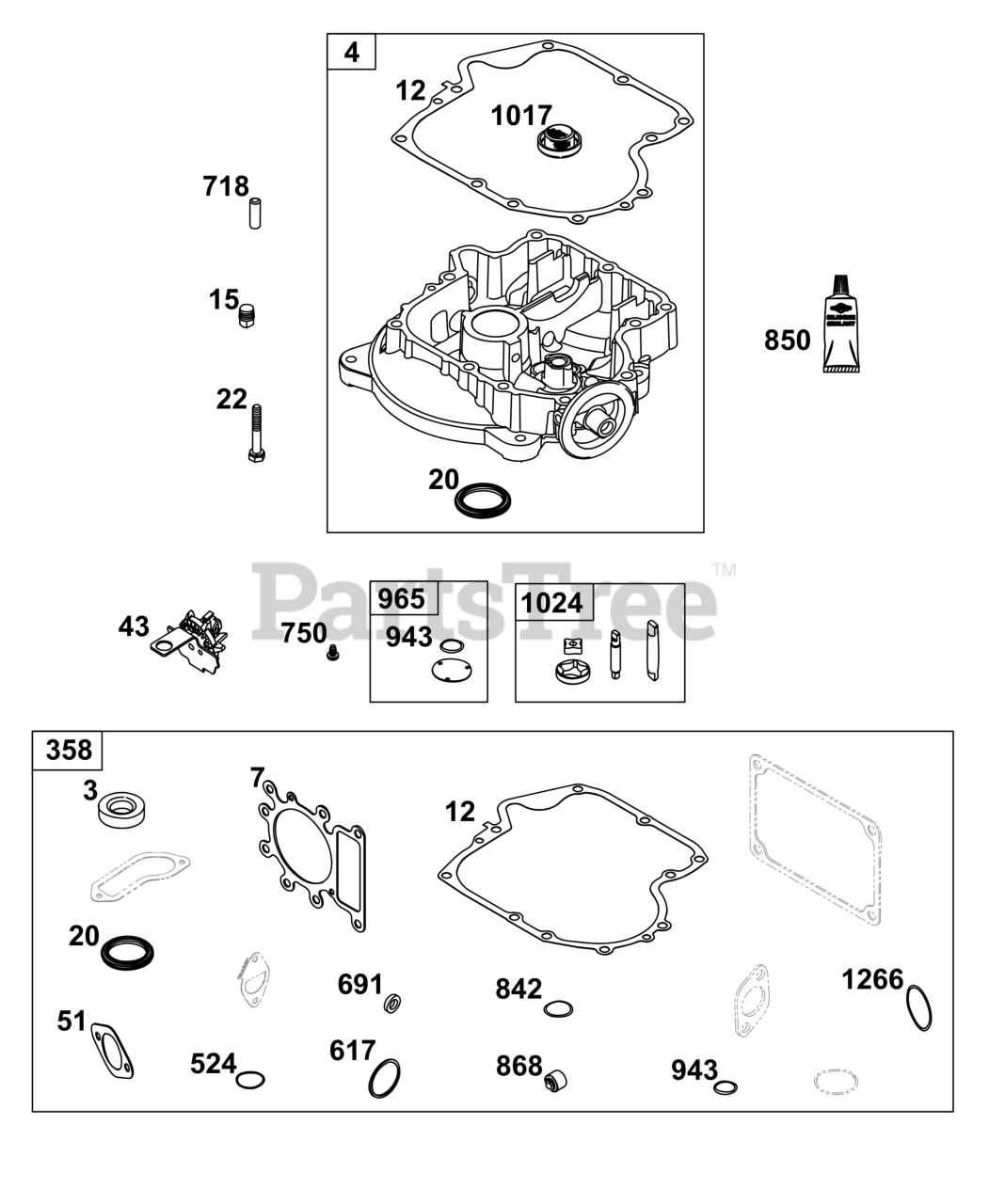

Crankcase Cover/Sump Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

4

Briggs & Stratton 592849

SUMP, Engine

$250.99

$

In Stock, only 3 left!

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

Briggs & Stratton 697110

GASKET, Crankcase

$7.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 9

0

20

Briggs & Stratton 795387

SEAL, Oil

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

SCREW

Note: (Crankcase Cover/Sump)

$4.99

$

In Stock, only 2 left!

0

43

SLINGER, Governor/Oil

Note: (Part information located in Lubrication Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

358

Briggs & Stratton 796181

GASKET SET, Engine

Note: (Service Kits can include parts not for this engine.)

$94.99

$

Usually ships in 2-12 days

0

524

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

617

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

691

SEAL, Governor Shaft

Note: (Part information located in Cylinder Group.)

$

$

Not available

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 2 left!

0

750

Briggs & Stratton 790832

SCREW

Note: (Oil Pump Cover)

$4.49

$

In Stock, only 2 left!

0

842

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 6

0

868

Briggs & Stratton 690968

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$10.99

$

In Stock, only 4 left!

0

943

Briggs & Stratton 690589

SEAL, O-Ring

Note: (Oil Pump Cover)

$8.99

$

In Stock, Qty 20+

0

965

COVER, Oil Pump

Note: (Part information located in Lubrication Group.)

$

$

Not available

1017

SCREEN, Oil Pump

Note: (Part information located in Lubrication Group.)

$

$

Not available

1024

PUMP, Oil

Note: (Part information located in Lubrication Group.)

$

$

Not available

1266

SEAL, O-Ring

Note: (Part information located in Air Cleaner Group.)

$

$

Not available
