31S977-0005-G1 - Briggs & Stratton Vertical Engine CONTROLS, ALTERNATOR, WIRE ASSY, ELECTRIC STARTER, GOVERNOR SPRING, IGNITION, Ready Start System Parts Diagram

Vertical Engine

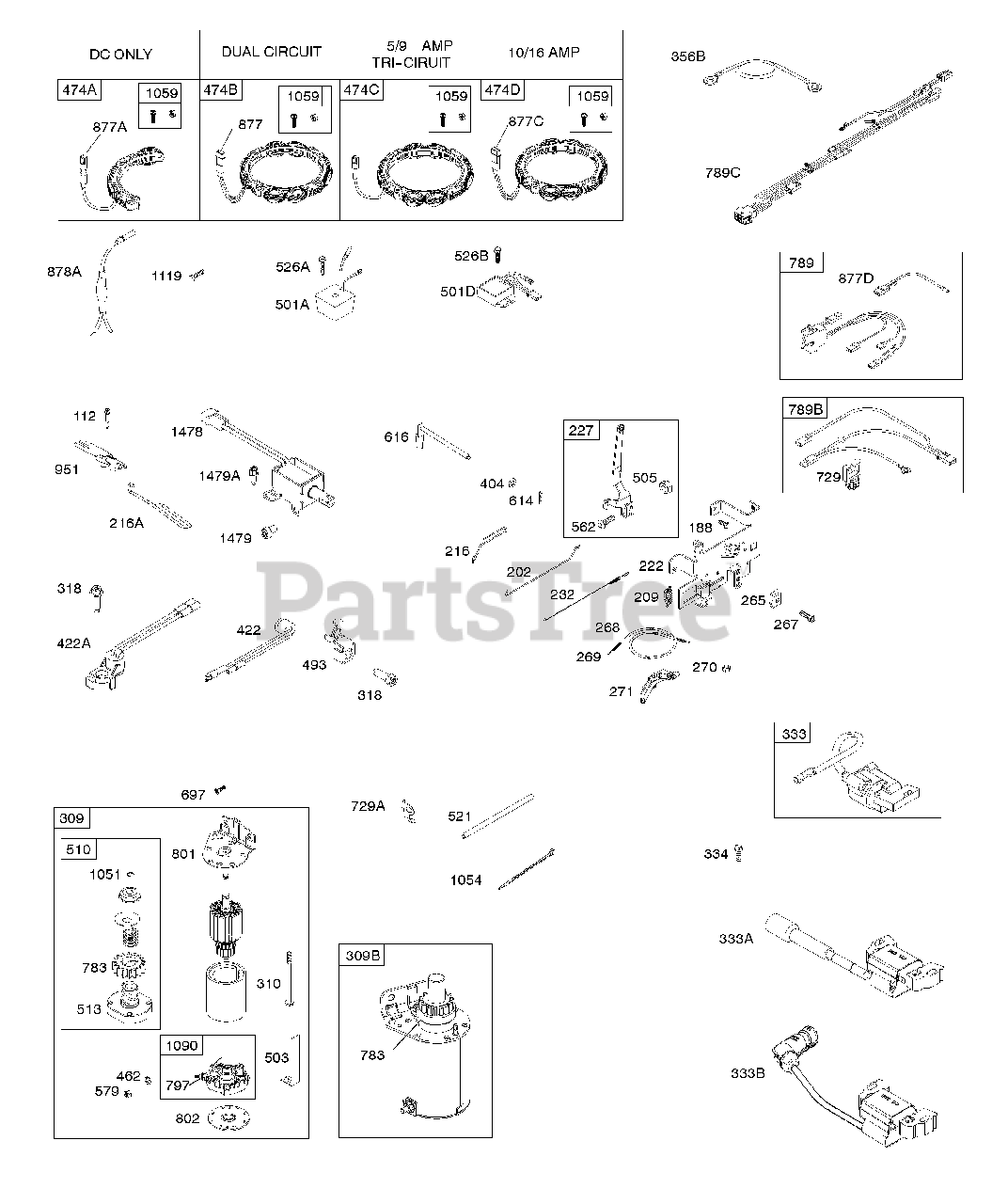

CONTROLS, ALTERNATOR, WIRE ASSY, ELECTRIC STARTER, GOVERNOR SPRING, IGNITION, Ready Start System Parts Diagram

  • Title

112

Briggs & Stratton 593040

SCREW

Note: (Choke Lever) (Ready Start System)

$3.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, only 1 left!

0

202

Briggs & Stratton 691841

LINK, Mechanical Governor

$9.49

$

In Stock, Qty 8

0

209

Briggs & Stratton 792813

SPRING, Governor

$6.99

$

In Stock, Qty 9

0

216

Briggs & Stratton 691840

LINK, Choke

$8.99

$

Usually ships in 2-12 days

0

216A

Briggs & Stratton 593043

LINK, Choke

Note: (Ready Start System)

$9.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, only 4 left!

0

227

Briggs & Stratton 691374

LEVER, Governor Control

$26.99

$

In Stock, Qty 6

0

232

Briggs & Stratton 691842

SPRING, Governor Link

$11.99

$

In Stock, Qty 6

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, only 1 left!

0

267

Briggs & Stratton 794904

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 593934

MOTOR, Starter

$131.99

$

In Stock, Qty 11

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor) (Starter Motor)

$4.49

$

In Stock, Qty 7

0

318

Briggs & Stratton 594384

SCREW

Note: (Mounting Bracket) (Ready Start System)

$5.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 799650

Armature-Magneto
(Superseded to 595304)

Note: Used Before Code Date 16080900

$45.99

$

In Stock, Qty 20+

0

333A

Briggs & Stratton 594626

ARMATURE, Magneto

Note: Used After Code Date 16080800 Used Before Code Date 16100100

$52.99

$

In Stock, Qty 10

0

333B

Briggs & Stratton 595304

ARMATURE, Magneto

Note: Used After Code Date 16093000

$45.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356B

Briggs & Stratton 697089

WIRE, Stop

$11.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

422

Switch-Snap

Note: (No Longer Available, For Replacement Order Reference 422A & 789C)

$

$

Not available

422A

Briggs & Stratton 593056

SWITCH, Snap

Note: (Ready Start System)

$25.99

$

Usually ships in 2-12 days

0

462

Briggs & Stratton 691261

WASHER

Note: (Starter Cable)

$3.99

$

In Stock, only 4 left!

0

474C

Briggs & Stratton 592829

ALTERNATOR

Note: (5 or 9 Amp. Tri Circuit, Regulated)

$102.99

$

In Stock, only 4 left!

0

493

Briggs & Stratton 593057

Bracket-Mounting

Note: (Ready Start System)

$8.49

$

In Stock, only 3 left!

0

501A

Briggs & Stratton 794360

REGULATOR

$64.99

$

In Stock, only 1 left!

0

501D

Briggs & Stratton 845907

REGULATOR

Note: (10-16 AMP.)

$61.99

$

In Stock, only 2 left!

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 11

0

510

Briggs & Stratton 693699

DRIVE, Starter
(Superseded to 593934)

$131.99

$

In Stock, Qty 11

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 1 left!

0

521

Briggs & Stratton 690581

Shield-Cable

$12.99

$

Usually ships in 2-12 days

0

526A

Briggs & Stratton 697088

SCREW

Note: (Regulator)

$4.99

$

Usually ships in 2-12 days

0

526B

Briggs & Stratton 697348

SCREW

Note: (Regulator)

$3.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 19

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$13.99

$

In Stock, only 4 left!

0

697

Briggs & Stratton 791680

SCREW

Note: (Starter Motor) (Drive Cap)

$3.99

$

In Stock, Qty 6

0

729

Briggs & Stratton 691335

Clip-Wire

Note: (Wire Saddle)

$4.99

$

Usually ships in 2-12 days

0

729A

Briggs & Stratton 691224

CLIP, Wire

Note: (Aluminum Coated Steel)

$4.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 593935

GEAR, Pinion

$26.99

$

In Stock, only 2 left!

0

789

Briggs & Stratton 698329

HARNESS, Wiring

$36.99

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 692037

HARNESS, Wiring

$35.99

$

In Stock, only 1 left!

0

789C

Briggs & Stratton 594359

HARNESS, Wiring

$34.99

$

Usually ships in 2-12 days

0

797

Briggs & Stratton 693167

NUT

Note: (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

CAP, Drive

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

Note: (Dual Circuit)

$20.99

$

In Stock, only 1 left!

0

877A

Briggs & Stratton 393814

Wire/connector-Alternator (10 Amp Regulated)

$18.99

$

In Stock, only 2 left!

0

877D

Briggs & Stratton 790544

WIRE/CONNECTOR, Alternator

$43.99

$

Usually ships in 2-12 days

0

877C

Briggs & Stratton 399916

Wire/connector-Alternator (2 Wires, 7-53/64" Long)(2 Bare Wire Ends, And Insulated Snap Connectmale)

Note: (10-16 Amp Regulated)

$12.99

$

Usually ships in 2-12 days

0

878A

Briggs & Stratton 691955

Harness-Alternator (3 Wires, 5", 48", And 48" Long)(snap Connect Pin Socket, 2 Bare Wireends, And 2)

Note: (5 or 9 Amp. Tri Circuit, Regulated)

$69.99

$

In Stock, only 1 left!

0

951

Briggs & Stratton 593039

LEVER, Choke

$6.49

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

In Stock, only 1 left!

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0

1478

Briggs & Stratton 593037

SOLENOID, Choke

$39.99

$

In Stock, only 1 left!

0

1479

Briggs & Stratton 593041

SCREW

Note: (Choke Solenoid)

$4.49

$

Usually ships in 2-12 days

0

1479A

Briggs & Stratton 593042

SCREW

Note: (Choke Solenoid)

$4.49

$

Usually ships in 2-12 days
