31X707-0777-E2 - Briggs & Stratton Vertical Engine Carburetor, Kit - Carburetor Overhaul Parts Diagram

Vertical Engine

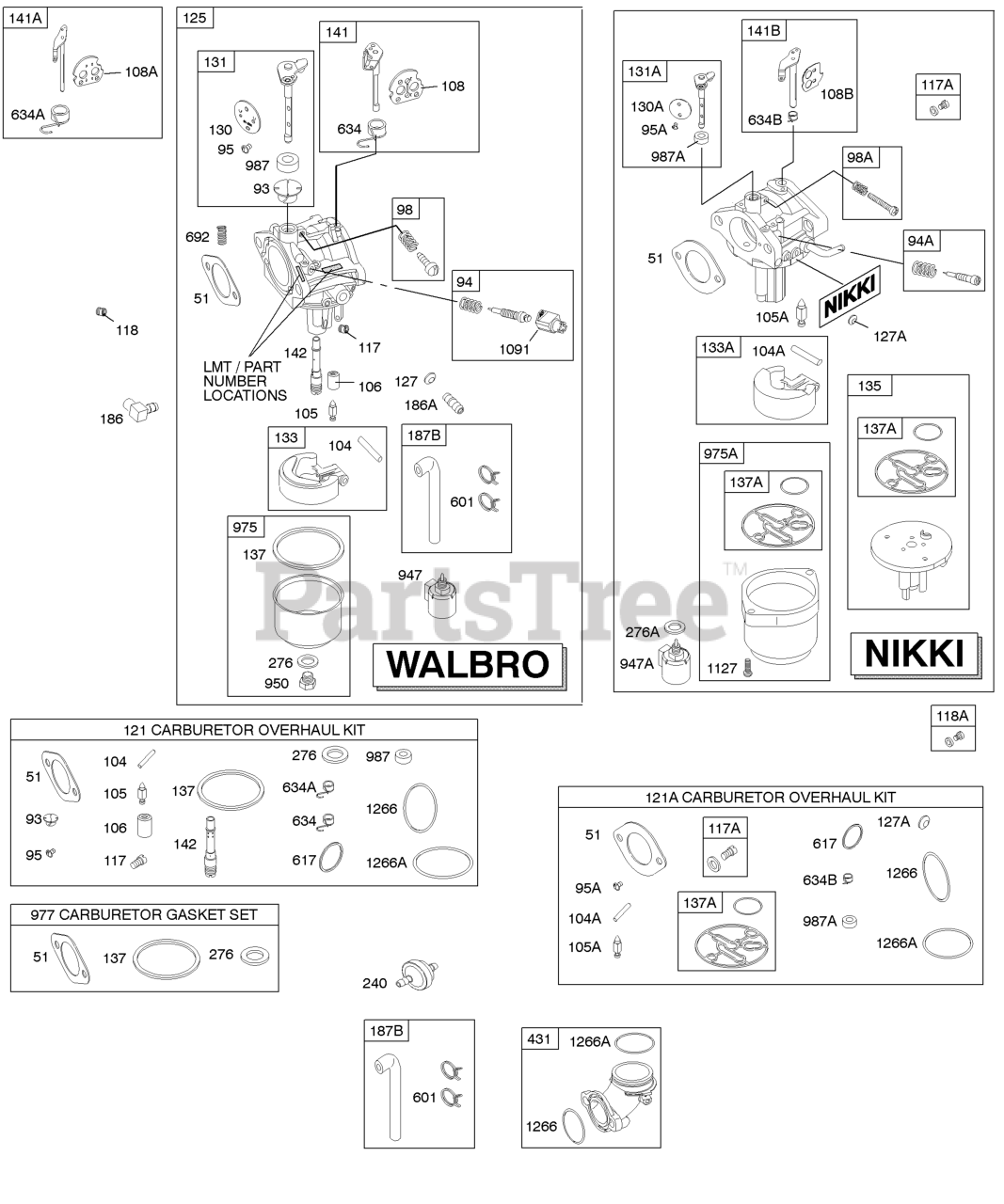

Carburetor, Kit - Carburetor Overhaul Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

93

Briggs & Stratton 690602

Bushing-Throttle Shaft

$9.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 498030

Kit-Idle Mixture
(Superseded to 794176)

$23.99

$

Usually ships in 2-12 days

0

94A

Briggs & Stratton 695425

Kit-Idle Mixture
(Superseded to 793610)

$22.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$4.49

$

In Stock, Qty 12

0

95A

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 495800

Kit-Idle Speed

$11.99

$

In Stock, only 1 left!

0

98A

Briggs & Stratton 695408

KIT, Idle Speed

$15.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690525

Pin-Float Hinge

$5.49

$

In Stock, only 1 left!

0

104A

Briggs & Stratton 694918

PIN, Float Hinge

$7.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855S

Valve-Float Needle

$6.99

$

Usually ships in 2-12 days

0

105A

Briggs & Stratton 696136

VALVE, Float Needle

$16.99

$

In Stock, Qty 14

0

106

Briggs & Stratton 690577

Seat-Inlet

Note: (Gravity Feed Carburetor)

$6.99

$

In Stock, Qty 20+

0

108

Briggs & Stratton 690464

Valve-Choke

Note: (Carburetor Part No. 697204)

$

$

Not available

108A

Briggs & Stratton 692344

Valve-Choke

Note: (Walbro Carburetor Part No. 697203)

$9.49

$

Usually ships in 2-12 days

0

108B

Briggs & Stratton 695419

Valve-Choke

$10.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 694352

Jet-Main

Note: (Standard)

$19.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 699457

Jet-Main

Note: (Standard)

$16.99

$

In Stock, only 3 left!

0

118

Briggs & Stratton 697228

Jet-Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 699458

Jet-Main

Note: (High Altitude)

$16.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 697241

Kit-Carb Overhaul

Note: (Walbro Carburetor)

$45.99

$

In Stock, only 2 left!

0

121A

Briggs & Stratton 699521

Kit-Carb Overhaul
(Superseded to 796184)

Note: (Nikki Carburetor)

$66.99

$

In Stock, only 3 left!

0

125

Briggs & Stratton 793224

Carburetor
(Superseded to 594593)

Note: (Gravity Feed Carburetor)

$150.99

$

In Stock, Qty 20+

0

127

Briggs & Stratton 695005

Plug-Welch

Note: (5/16" Diameter)

$5.49

$

In Stock, only 1 left!

0

127A

Briggs & Stratton 690727

PLUG, Welch

$4.99

$

In Stock, only 3 left!

0

130

Briggs & Stratton 691750

Valve-Throttle

$10.99

$

In Stock, only 1 left!

0

130A

Briggs & Stratton 699500

Valve-Throttle

$12.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 790901

Kit-Throttle Shaft

$42.99

$

In Stock, only 4 left!

0

131A

Briggs & Stratton 699501

Kit-Throttle Shaft

$43.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 494381

Float-Carburetor

$15.99

$

In Stock, Qty 9

0

133A

Briggs & Stratton 694914

FLOAT, Carburetor

$27.99

$

In Stock, only 3 left!

0

135

Briggs & Stratton 698780

Tube-Fuel Transfer

$85.99

$

In Stock, only 3 left!

0

137

Briggs & Stratton 281165S

Gasket-Float Bowl

$4.99

$

In Stock, Qty 20+

0

137A

Briggs & Stratton 698781

GASKET, Float Bowl

$10.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 790905

Kit-Choke Shaft

Note: (Carburetor Part No. 697204)

$50.99

$

Usually ships in 2-12 days

0

141A

Briggs & Stratton 790902

Kit-Choke Shaft

Note: (Walbro Carburetor Part No. 697203)

$36.99

$

In Stock, only 1 left!

0

141B

Briggs & Stratton 792777

Kit-Choke Shaft

$35.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 697140

Nozzle-Carburetor

Note: (Standard)

$

$

Not available

186

Briggs & Stratton 692317

Connector-Hose

Note: (90 Degree)

$7.49

$

In Stock, Qty 20+

0

186A

Briggs & Stratton 698174

Connector-Hose

Note: (Straight)

$

$

Not available

187B

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(10-1/4" Long)(Cut to Required Length)

$26.99

$

In Stock, only 2 left!

0

240

Briggs & Stratton 394358S

FILTER, Fuel

Note: (White, 75 Microns)

$5.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

$5.99

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 695410

WASHER, Sealing

$7.49

$

In Stock, Qty 11

0

431

Briggs & Stratton 697122

Elbow-Intake

$27.99

$

In Stock, only 3 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 12

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 690801

Spring/Seal Assembly

Note: (Carburetor Part No. 697204)

$8.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 690802

Spring/Seal Assembly

Note: (Walbro Carburetor Part No.s 696181, 697203)

$9.49

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 698779

Spring/Seal Assembly

$9.49

$

In Stock, only 2 left!

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

$5.99

$

In Stock, Qty 8

0

947

Briggs & Stratton 694393

Solenoid-Fuel

$86.99

$

Usually ships in 2-12 days

0

947A

Briggs & Stratton 699915

Solenoid-Fuel
(Superseded to 596038)

$87.99

$

In Stock, Qty 9

0

950

Briggs & Stratton 691657

Screw-Float Bowl

$8.49

$

In Stock, only 3 left!

0

975

Briggs & Stratton 495933

Bowl-Float

$

$

Not available

975A

Briggs & Stratton 699502

BOWL, Float

$49.99

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 690192

Gasket Set-Carburetor
(Superseded to 497535)

$58.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691326

Seal-Throttle Shaft

$5.99

$

Usually ships in 2-12 days

0

987A

Briggs & Stratton 698777

Seal-Throttle Shaft
(Superseded to 690998)

$8.49

$

In Stock, only 3 left!

0

1091

Briggs & Stratton 691333

Cap-Limiter

$10.99

$

In Stock, only 1 left!

0

1127

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl to Carburetor Body)

$4.99

$

In Stock, Qty 6

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, Qty 9

0
