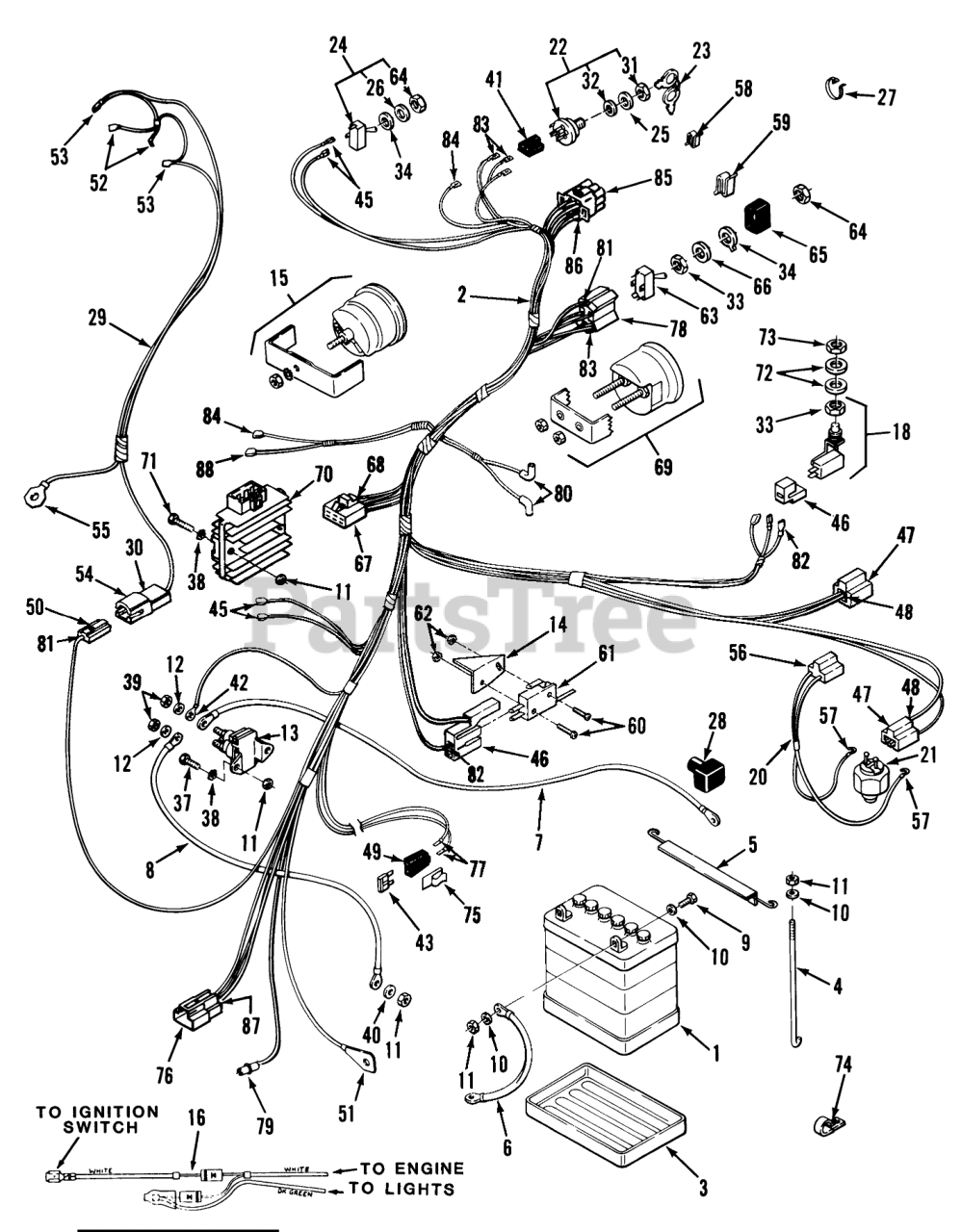

32-08B501 (208-5) - Toro Lawn Tractor (1987) ELECTRICAL SYSTEM Parts Diagram

Lawn Tractor

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 104962

Battery
(Superseded to 105-1692)

$

$

Not available

2

Toro 112897

WIRING-HARNESS & DIA

$

$

Not available

2

Toro 112896

MAIN HARN & WIR DIAG

$

$

Not available

3

Toro 110298

TRAY BATTERY

$33.99

$

In Stock, only 1 left!

0

4

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

5

Toro 113010

HOLDDOWN-BATTERY

$28.99

$

In Stock, only 3 left!

0

6

Toro 111078

WIRE -BLACK

$28.99

$

Usually ships in 3-6 days

0

7

Toro 111076

WIRE - 14" BLACK

$

$

Not available

8

Toro 111682

ASSY WIRE

$

$

Not available

9

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

10

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

11

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 13

0

12

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

13

Toro 110167

Solenoid (Includes two of item 11) 208-5 & 211-s.
(Superseded to 740207)

$36.99

$

In Stock, only 2 left!

0

14

Toro 111470

Brake Switch Bracket

$

$

Not available

15

Toro 110853

Hourmeter 212-6 Only (Includes 108768 clamp, 915538 #10-24 Nut & 920120 Ext. Tooth Lockwasher)
(Superseded to 113469)

$473.99

$

Usually ships in 3-6 days

0

16

Toro 113977

DIODE-KIT SERVICE

$

$

Not available

18

Toro 112418

SWITCH-PUSH

$64.99

$

In Stock, only 2 left!

0

20

Toro 111364

ASSY WIRING HARNESS

$

$

Not available

21

Toro 111365

SWITCH (N.C.-TRANS)

$

$

Not available

22

Toro 111215

Ignition Switch (includes items 31 & 32)
(Superseded to 103991)

$52.99

$

In Stock, only 2 left!

0
