32-10BE03 (210-H) - Toro Lawn Tractor (SN: 020000001 - 029999999) (1992) 12.5hp Engine Oil Base Pump Assembly Parts Diagram

Lawn Tractor

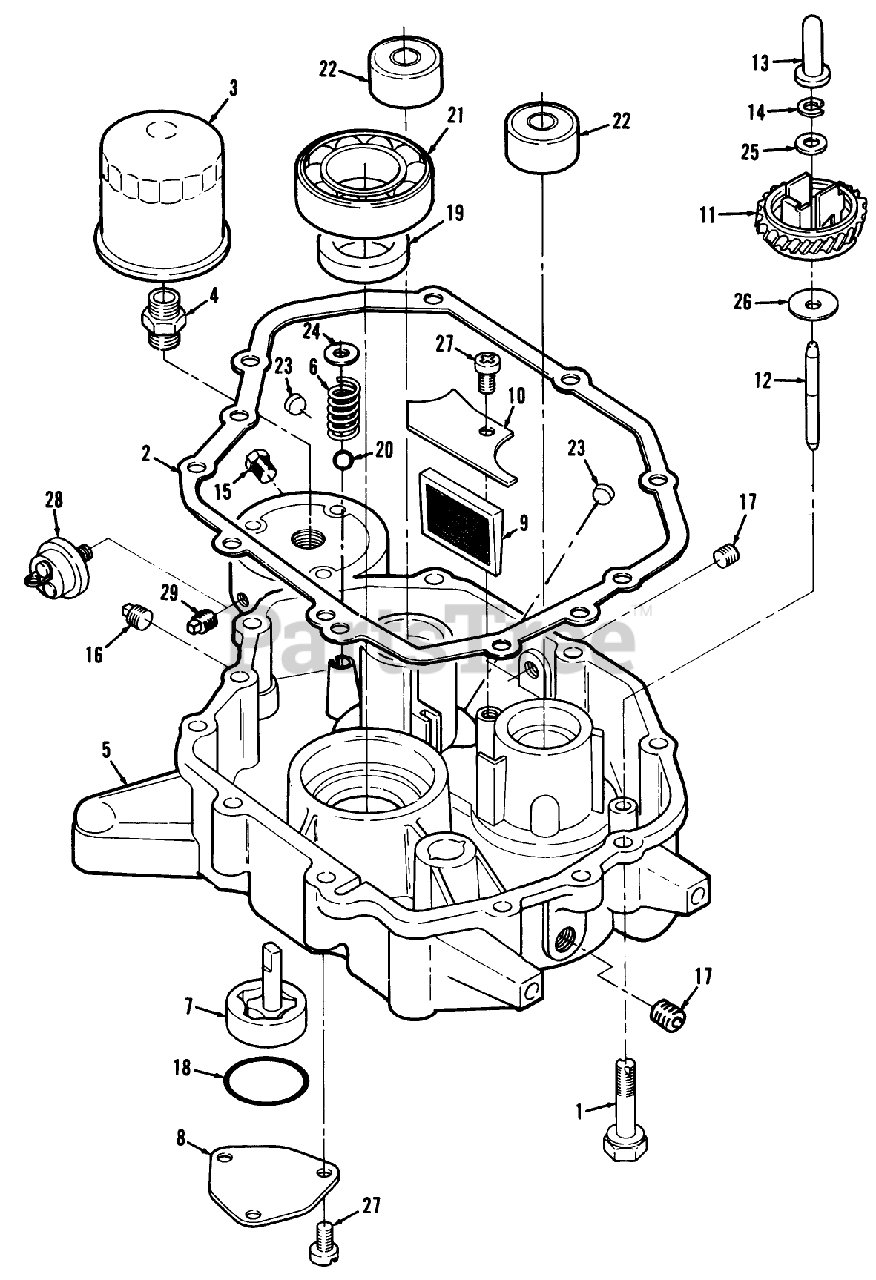

12.5hp Engine Oil Base Pump Assembly Parts Diagram

  • Title

1

Toro NN10680

SELF-TAP BOLT SP M8

$

$

Not available

2

Toro NN10681

See Supercession: 93-9816
(Superseded to 93-9816)

$

$

Not available

3

Toro NN10684

FILTER

$71.99

$

In Stock, only 3 left!

0

4

Toro NN10685

ADAPTER

$37.99

$

Usually ships in 3-6 days

0

5

Toro NN10675

DISCONTINUED

$

$

Not available

6

Toro NN10133

See Supercession: 59-0280
(Superseded to 59-0280)

$

$

Not available

7

Toro NN10572

DISCONTINUED

$

$

Not available

8

Toro NN10573

DISCONTINUED

$

$

Not available

9

Toro NN10577

DISCONTINUED

$

$

Not available

10

Toro NN10578

DISCONTINUED

$

$

Not available

11

Toro NN10636

DISCONTINUED

$

$

Not available

12

Toro NN10637

DISCONTINUED

$

$

Not available

13

Toro NN10638

DISCONTINUED
(Superseded to 92-5914)

$

$

Not available

14

Toro NN10639

DISCONTINUED

$

$

Not available

15

Toro NN10687

DISCONTINUED

$

$

Not available

16

Toro 82-1130

PLUG - SQUARE HEAD

$

$

Not available

17

Toro NN10686

DISCONTINUED

$

$

Not available

18

Toro NN10575

DISCONTINUED

$

$

Not available

19

Toro NN10569

SEAL-OIL CRNKSHFT UP

$43.99

$

Usually ships in 3-6 days

0

20

Toro NN10534

DISCONTINUED

$

$

Not available

21

Toro NN10677

DISCONTINUED

$

$

Not available

22

Toro NN10678

DISCONTINUED

$

$

Not available

23

Toro 59-0760

PLUG-CORE HOLE

$

$

Not available

24

Toro NN10539

DISCONTINUED

$

$

Not available

25

Toro NN10628

DISCONTINUED

$

$

Not available

26

Toro NN10629

DISCONTINUED

$

$

Not available

27

Toro NN10868

DISCONTINUED

$

$

Not available

28

Toro NN10813

SWITCH-OIL PRESSURE

$

$

Not available

29

Toro NN10307

See Supercession: 700412
(Superseded to 700412)

$

$

Not available
