32-10BE03 (210-H) - Toro Lawn Tractor (SN: 020000001 - 029999999) (1992) Electrical System Assembly Parts Diagram

Lawn Tractor

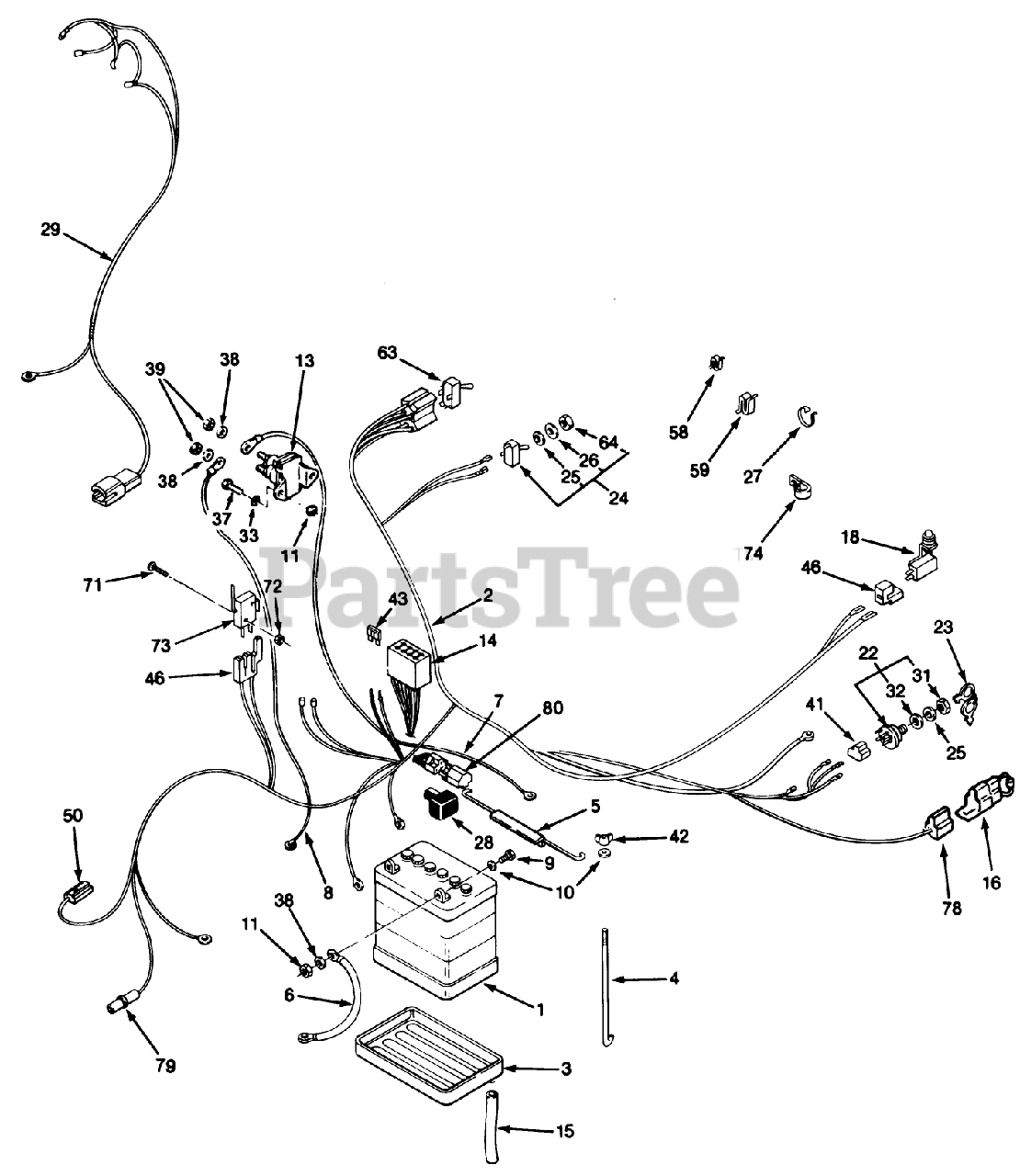

Electrical System Assembly Parts Diagram

  • Title

1

Toro 104962

See Supercession: 105-1692
(Superseded to 105-1692)

$

$

Not available

Toro 105842

See Supercession: 104-8162
(Superseded to 104-8162)

Note: Not illustrated

$

$

Not available

2

Toro 78-1340

DISCONTINUED

$

$

Not available

Toro 79-3920

DISCONTINUED

Note: Not illustrated

$

$

Not available

3

Toro 106948

TRAY-BATTERY

$12.99

$

In Stock, only 2 left!

0

4

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

5

Toro 117316

ROD-BATTERY HOLD DWN

$31.99

$

In Stock, only 1 left!

0

6

Cable-Battery

$

$

Not available

7

Toro 111076

WIRE - 14" BLACK

$

$

Not available

8

Toro 111682

DISCONTINUED

$

$

Not available

Toro 112757

DISCONTINUED

Note: Not illustrated

$

$

Not available

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

11

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 6

0

13

Toro 110167

See Supercession: 740207
(Superseded to 740207)

$36.99

$

In Stock, only 1 left!

0

14

Toro 120930

See Supercession: 67-7160
(Superseded to 67-7160)

$21.99

$

In Stock, only 4 left!

0

15

Toro 114721

TUBE-BATTERY DRAIN

$

$

Not available

16

Toro 78-1630

DISCONTINUED

$

$

Not available

18

Toro 38-1420

SWITCH-SEAT

$

$

Not available

22

Toro 111216

See Supercession: 103990
(Superseded to 103990)

$29.99

$

In Stock, only 2 left!

0

Toro 116338

KEY SWITCH ASM

Note: Not illustrated

$84.99

$

In Stock, only 2 left!

0

23

Toro 116738

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

24

Toro 102138

SWITCH-LIGHTS

$42.99

$

In Stock, only 1 left!

0

25

Toro 920262

See Supercession: 9202624
(Superseded to 9202624)

$9.49

$

Usually ships in 3-6 days

0

26

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

27

Toro 100571

DISCONTINUED

$

$

Not available

28

Toro 109553

See Supercession: 28-8080
(Superseded to 28-8080)

$26.99

$

Usually ships in 3-6 days

0

29

Toro 115204

DISCONTINUED

$

$

Not available

31

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

32

Toro 920160

See Supercession: 9201604
(Superseded to 9201604)

$0.99

$

In Stock, only 2 left!

0

33

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

In Stock, only 3 left!

0

37

Toro 960151

See Supercession: 3234-13
(Superseded to 3234-13)

$1.49

$

In Stock, only 1 left!

0

38

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

39

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

41

Toro 105302

See Supercession: 32160-014
(Superseded to 32160-014)

$6.49

$

In Stock, Qty 17

0

42

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 10

0

43

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

In Stock, only 2 left!

0

Toro 109102

FUSE-BLADE, 25 AMP

Note: Not illustrated

$6.49

$

In Stock, only 2 left!

0

Toro NN10277

FUSE-30 AMP

Note: Not illustrated

$

$

Not available

46

Toro 111498

CONNECTOR BODY

$5.99

$

In Stock, only 2 left!

0

50

Toro 104926

CONNECTOR BODY ELECT

$4.99

$

In Stock, only 1 left!

0

58

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

59

Toro 3023

DISCONTINUED

$

$

Not available

63

Toro 78-3030

PTO-SWITCH W/COVER

$135.99

$

In Stock, only 3 left!

0

71

Toro 910948

See Supercession: 9109484
(Superseded to 9109484)

$0.99

$

In Stock, Qty 10

0

72

Toro 915732

See Supercession: 9157324
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

73

Toro 115230

SWITCH - CLUTCH

$37.99

$

In Stock, only 2 left!

0

74

Toro 105490

CLAMP

$

$

Not available

78

Toro 110459

CONNECTOR BODY *B

$1.99

$

In Stock, only 2 left!

0

79

Toro 107831

DISCONTINUED

$

$

Not available

80

Toro 116397

RELAY

$42.99

$

In Stock, only 2 left!

0

Wiring Harness (See pg. 67)

Note: Not illustrated

$

$

Not available
