32-10BE03 (210-H) - Toro Lawn Tractor (SN: 020000001 - 029999999) (1992) ENGINE BRIGGS & STRATTON MODEL 257707-0123-01 Parts Diagram

Lawn Tractor

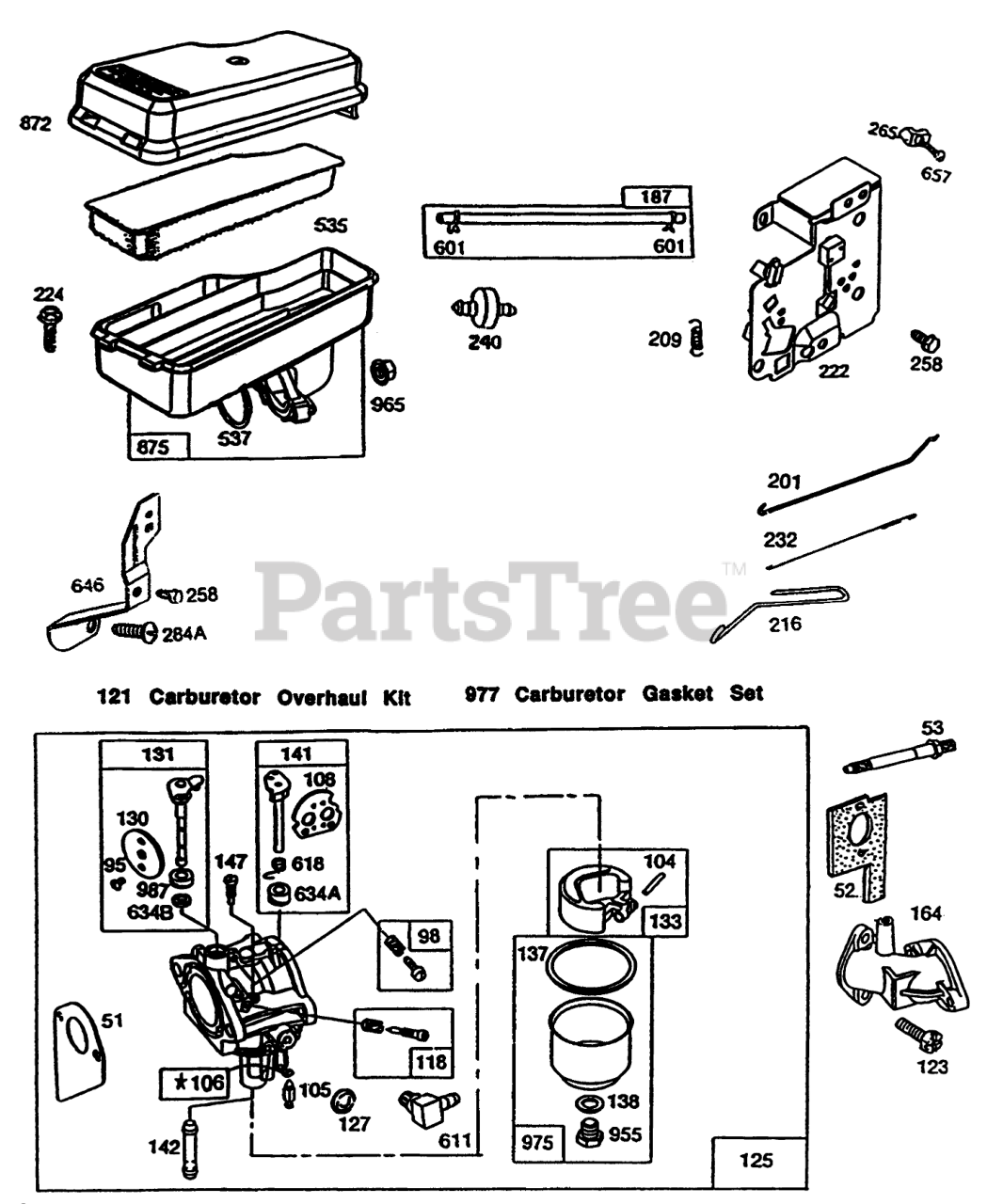

ENGINE BRIGGS & STRATTON MODEL 257707-0123-01 Parts Diagram

  • Title

51

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$4.99

$

In Stock, Qty 6

0

52

Briggs & Stratton 270872

Gasket-Intake
(Superseded to 498869)

Note: Included in Gasket Set-Part No. 393411.

$5.99

$

In Stock, only 3 left!

0

53

Briggs & Stratton 94637

Stud-Mounting, Carbureator
(Superseded to 690227)

$8.49

$

In Stock, only 2 left!

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$4.49

$

In Stock, Qty 12

0

98

Briggs & Stratton 494382

Screw-Idle Speed
(Superseded to 398185)

$8.49

$

In Stock, only 1 left!

0

104

Briggs & Stratton 231789

Pin-Hinge, Float
(Superseded to 690525)

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$5.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 231790

Valve Assy-Inlet Needle
(Superseded to 494788)

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$10.99

$

In Stock, only 3 left!

0

106

Briggs & Stratton 281169

Inlet Valve Seat
(Superseded to 691901)

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$9.99

$

In Stock, only 1 left!

0

108

Briggs & Stratton 224666

Valve-Choke
(Superseded to 690467)

$

$

Not available

118

Briggs & Stratton 494383

Valve-Needle

$15.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 494882

Carburetor Overhaul Kit
(Superseded to 495837)

$103.99

$

Usually ships in 2-12 days

0

123

Briggs & Stratton 94616

Screw-Elbow Mtg
(Superseded to 690953)

$

$

Not available

125

Briggs & Stratton 494881

Carburetor Assembly
(Superseded to 495784)

$130.99

$

Usually ships in 2-12 days

0

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$

$

Not available

130

Briggs & Stratton 224539

Valve-ThroWe
(Superseded to 691750)

$10.99

$

In Stock, only 1 left!

0

131

Briggs & Stratton 494379

Throttle Shaft Kit
(Superseded to 790901)

$42.99

$

In Stock, only 4 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

$15.99

$

In Stock, Qty 10

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$4.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$4.99

$

In Stock, Qty 20+

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$5.99

$

In Stock, Qty 20+

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$5.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 494879

Shaft and Lever-Choke

$

$

Not available

142

Briggs & Stratton 494878

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$

$

Not available

147

Briggs & Stratton 231794

Pilot-Jet
(Superseded to 497472)

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$24.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 213819

Manifold-Intake
(Superseded to 691711)

$

$

Not available

187

Briggs & Stratton 393815

Line-Vacuum
(Superseded to 791880)

$

$

Not available

201

Briggs & Stratton 262767

Choke Link
(Superseded to 691841)

$10.99

$

In Stock, only 4 left!

0

209

Briggs & Stratton 261306

Spring-Gov.
(Superseded to 792813)

$7.49

$

In Stock, only 3 left!

0

216

Briggs & Stratton 262778

Link-Choke
(Superseded to 690574)

$12.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 494041

Plate-Governor
(Superseded to 692002)

$

$

Not available

224

Briggs & Stratton 94513

Screw-Sem
(Superseded to 692198)

$6.49

$

In Stock, Qty 20+

0

232

Briggs & Stratton 262785

Spring-Link
(Superseded to 691842)

$12.99

$

In Stock, Qty 15

0

240

Briggs & Stratton 298090

Filter
(Superseded to 298090S)

$5.49

$

In Stock, Qty 20+

0

258

Briggs & Stratton 94620

Screw
(Superseded to 691693)

$3.99

$

In Stock, only 2 left!

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, Qty 10

0

284A

Briggs & Stratton 94326

Screw-Pan Head
(Superseded to 691677)

$3.99

$

In Stock, only 4 left!

0

358

Briggs & Stratton 393411

Gasket Set

$63.99

$

Usually ships in 2-12 days

0

535

Briggs & Stratton 272405

Element-Air Cleaner
(Superseded to 272922)

$11.99

$

In Stock, Qty 7

0

537

Briggs & Stratton 281106

O-Ring
(Superseded to 691917)

$4.49

$

In Stock, Qty 20+

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 12

0

611

Briggs & Stratton 494451

Fuel Inlet Tube
(Superseded to 692317)

$7.49

$

In Stock, Qty 20+

0

618

Briggs & Stratton 262803

Spring-Choke

$

$

Not available

634A

Briggs & Stratton 281168

Seal-Choke Shaft
(Superseded to 690597)

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$6.99

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 281167

Seal-Throttle Shaft
(Superseded to 692279)

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$4.49

$

In Stock, only 2 left!

0

646

Briggs & Stratton 224546

Brace-Air Cleaner

$

$

Not available

657

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

872

Briggs & Stratton 281108

Cover-Air Cleaner

$

$

Not available

875

Briggs & Stratton 494745

Body-Air Cleaner

$

$

Not available

955

Briggs & Stratton 94642

Plug
(Superseded to 691657)

$8.49

$

In Stock, only 3 left!

0

965

Briggs & Stratton 94108

Locknut
(Superseded to 690958)

$3.49

$

In Stock, Qty 8

0

975

Briggs & Stratton 494378

Bowl-Float
(Superseded to 495933)

$

$

Not available

977

Briggs & Stratton 494385

Carburetor Gasket Kit
(Superseded to 697241)

$45.99

$

In Stock, only 2 left!

0

987

Briggs & Stratton 281166

Seal-Shaft
(Superseded to 691326)

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$5.99

$

Usually ships in 2-12 days

0
