32-10BE03 (210-H) - Toro Lawn Tractor (SN: 020000001 - 029999999) (1992) Engine Briggs Stratton Model 257707-0123-01 2 Parts Diagram

Lawn Tractor

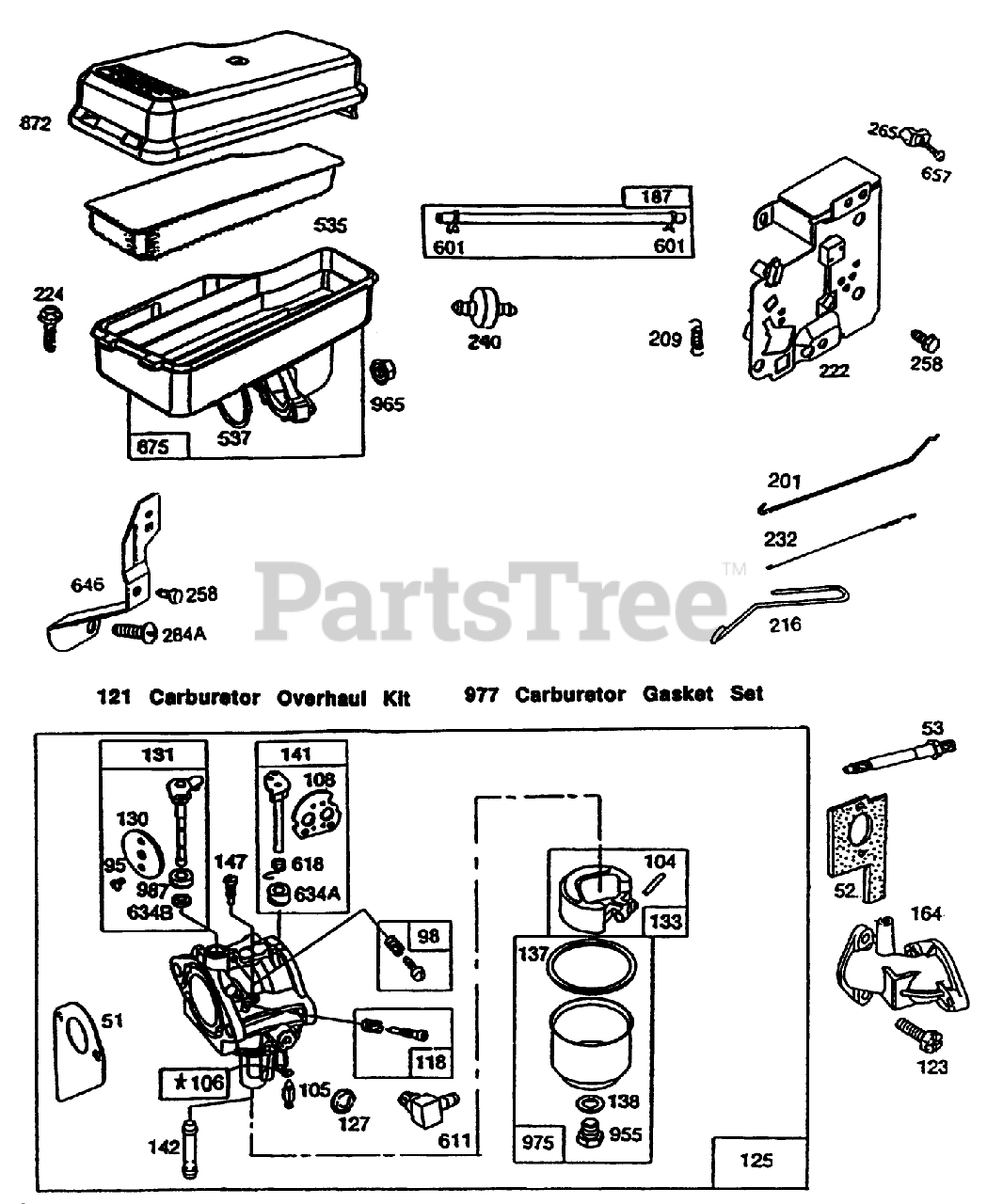

Engine Briggs Stratton Model 257707-0123-01 2 Parts Diagram

  • Title

51

Toro 272465

Gasket-Intake

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

52

Toro 270872

Gasket-Intake

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

53

Toro 94637

Stud-Mounting, Carbureator

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$

$

Currently unavailable

98

Toro 494382

Screw-Idle Speed

$

$

Currently unavailable

104

Toro 231789

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$

$

Currently unavailable

105

Toro 231790

Valve Assy-Inlet Needle

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$

$

Currently unavailable

106

Toro 281169

Inlet Valve Seat

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$

$

Currently unavailable

108

Toro 224666

Valve-Choke

$

$

Currently unavailable

118

Toro 494383

Valve-Needle

$

$

Currently unavailable

121

Toro 494882

Carburetor Overhaul Kit

$

$

Currently unavailable

123

Toro 94616

Screw-Elbow Mtg

$

$

Currently unavailable

125

Toro 494881

Carburetor Assembly

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$

$

Not available

130

Toro 224539

Valve-ThroWe

$

$

Currently unavailable

131

Toro 494379

Throttle Shaft Kit

$

$

Currently unavailable

133

Toro 494381

Float-Carburetor

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$

$

Currently unavailable

141

Toro 494879

Shaft and Lever-Choke

$

$

Currently unavailable

142

Toro 494878

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$

$

Currently unavailable

147

Toro 231794

Pilot-Jet

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$

$

Currently unavailable

164

Toro 213819

Manifold-Intake

$

$

Currently unavailable

187

Toro 393815

Line-Vacuum

$

$

Currently unavailable

201

Toro 262767

Choke Link

$

$

Currently unavailable

209

Toro 261306

Spring-Gov.

$

$

Currently unavailable

216

Toro 262778

Link-Choke

$

$

Currently unavailable

222

Toro 494041

Plate-Governor

$

$

Currently unavailable

224

Toro 94513

Screw-Sem

$

$

Currently unavailable

232

Toro 262785

Spring-Link

$

$

Currently unavailable

240

Toro 298090

Filter

$

$

Currently unavailable

258

Toro 94620

Screw

$

$

Currently unavailable

265

Toro 221535

Clamp-Casing

$

$

Currently unavailable

284A

Toro 94326

Screw-Pan Head

$

$

Currently unavailable

535

Toro 272405

Element-Air Cleaner

$

$

Currently unavailable

537

Toro 281106

O-Ring

$

$

Currently unavailable

601

Toro 93053

Clamp-Hose

$

$

Currently unavailable

611

Toro 494451

Fuel Inlet Tube

$

$

Currently unavailable

618

Toro 262803

Spring-Choke

$

$

Currently unavailable

634A

Toro 281168

Seal-Choke Shaft

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$

$

Currently unavailable

634B

Toro 281167

Seal-Throttle Shaft

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$

$

Currently unavailable

646

Toro 224546

Brace-Air Cleaner

$

$

Currently unavailable

657

Toro 93496

Screw

$

$

Currently unavailable

872

Toro 281108

Cover-Air Cleaner

$

$

Currently unavailable

875

Toro 494745

Body-Air Cleaner

$

$

Currently unavailable

955

Toro 94642

Plug

$

$

Currently unavailable

965

Toro 94108

Locknut

$

$

Currently unavailable

975

Toro 494378

Bowl-Float

$

$

Currently unavailable

977

Toro 494385

Carburetor Gasket Kit

$

$

Currently unavailable

987

Toro 281166

Seal-Shaft

Note: Included in Carburetor Overhaul Kit-Part No. 494882

$

$

Currently unavailable
