32-10BE03 (210-H) - Toro Lawn Tractor (SN: 020000001 - 029999999) (1992) PEERLEES TRANSMISSION PEERLESS MODEL NO. 930-020 (210-5 & 212-5) Parts Diagram

Lawn Tractor

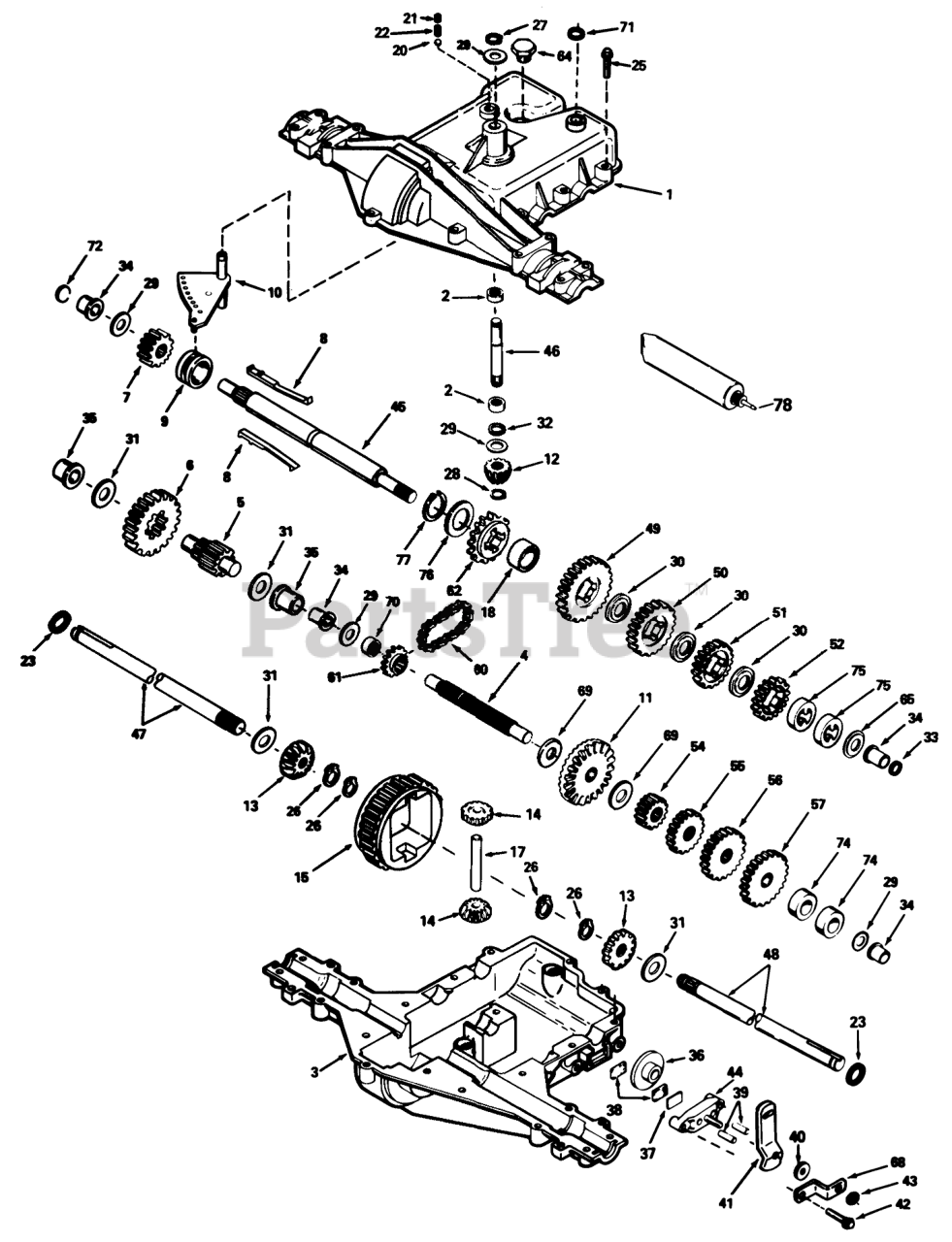

PEERLEES TRANSMISSION PEERLESS MODEL NO. 930-020 (210-5 & 212-5) Parts Diagram

  • Title
1

Toro 772108

Cover-Transaxle

$

$

Currently unavailable

2

Toro 780086

Bearing-Needle

$

$

Currently unavailable

3

Toro 770102

Case-Transaxle

$

$

Currently unavailable

4

Toro 776260

Shaft-Counter

$

$

Currently unavailable

5

Toro 776219

Output Shaft & Pinion Assy.

$

$

Currently unavailable

6

Toro 778139

Gear-Output

$

$

Currently unavailable

7

Toro 778136

Gear-Spur 15 Teeth

$

$

Currently unavailable

8

Toro 792136

Key-Shifter

$

$

Currently unavailable

9

Toro 784352

Shift Collar

$

$

Currently unavailable

10

Toro 784354

Shift Rod & Fork Assy.

$

$

Currently unavailable

11

Toro 778229

Gear-Bevel (42 teeth)

$

$

Currently unavailable

12

Toro 778113A

Bevel Pinion-Input

$

$

Currently unavailable

13

Toro 778221

Gear Bevel

$

$

Currently unavailable

14

Toro 778068

Gear Pinion

$

$

Currently unavailable

15

Toro 778260

Gear-Ring

$

$

Currently unavailable

16

Toro 786139

Drive Pin

$

$

Currently unavailable

18

Toro 786102

Spacer

$

$

Currently unavailable

20

Toro 792077

Ball-Steel

$

$

Currently unavailable

21

Toro 792078

Screw-Set

$

$

Currently unavailable

22

Toro 792079

Spring

$

$

Currently unavailable

23

Toro 788061

Ring-Seal

$

$

Currently unavailable

25

Toro 792073

Ring Set (.020 O S)

$

$

Currently unavailable

26

Toro 792125

Retaining Ring (pkg of 2)

$

$

Currently unavailable

27

Toro 792035

Ring-Snap

$

$

Currently unavailable

28

Toro 788040

Ring-Retainer

$

$

Currently unavailable

29

Toro 780072

Washer

$

$

Currently unavailable

30

Toro 780108

Washer

$

$

Currently unavailable

31

Toro 780001

Washer

$

$

Currently unavailable

32

Toro 792001

O Ring

$

$

Currently unavailable

33

Toro 788051

Ring-Square Cut

$

$

Currently unavailable

34

Toro 780105A

Bushing-Flange

$

$

Currently unavailable

35

Toro 780118A

Bushing-Flanged

$

$

Currently unavailable

36

$

$

Currently unavailable

37

Toro 790007

Brake Pad Plate

$

$

Currently unavailable

38

Toro 790006

Brake Pad

$

$

Currently unavailable

39

Toro 786026

Dowel Pin

$

$

Currently unavailable

40

Toro 792076

Washer

$

$

Currently unavailable

41

Toro 790039

Lever-Brake

$

$

Currently unavailable

42

Toro 792073

Ring Set (.020 O S)

$

$

Currently unavailable

43

Toro 792075

Locknut

$

$

Currently unavailable

44

Toro 790025

Nozzle-Carburetor

$

$

Currently unavailable

45

Toro 776315A

Shaft-Brake (4-keyed)

$

$

Currently unavailable

46

Toro 776135

Shaft-Input

$

$

Currently unavailable

47

Toro 774688

Axle (11-5/8" long)

$

$

Currently unavailable

48

Toro 774747

Axle (16-1/4" long)

$

$

Currently unavailable

49

Toro 778191

Gear-Spur (37 teeth)

$

$

Currently unavailable

50

Toro 778125

Gear-Spur, 35 Teeth

$

$

Currently unavailable

51

Toro 778124A

Gear-Spur, 30 Teeth

$

$

Currently unavailable

52

Toro 778123A

Gear-Spur, 25 Teeth

$

$

Currently unavailable

53

Toro 778121A

Gear-Spur 20 teeth

$

$

Currently unavailable

54

Toro 778230

Gear-Spur (12 teeth)

$

$

Currently unavailable

55

Toro 778151

Gear-Spur, 15 Teeth

$

$

Currently unavailable

56

Toro 778126A

Gear-Spur, 20 Teeth

$

$

Currently unavailable

57

Toro 778127A

Gear-Spur, 25 Teeth

$

$

Currently unavailable

58

Toro 778129A

Gear-Spur (30 teeth)

$

$

Currently unavailable

60

Toro 786062A

Chain-Roller

$

$

Currently unavailable

61

Toro 786061

Sprocket 10t

$

$

Currently unavailable

62

Toro 786124

Sprocket (14 teeth)

$

$

Currently unavailable

64

$

$

Currently unavailable

65

Toro 780109

Washer

$

$

Currently unavailable

68

Toro 786086

Bracket

$

$

Currently unavailable

69

Toro 780051

Washer

$

$

Currently unavailable

70

Toro 786118

Spacer

$

$

Currently unavailable

71

Toro 788069

Cut Seal-Square

$

$

Currently unavailable

72

$

$

Currently unavailable

74

Toro 786071

Spacer

$

$

Currently unavailable

75

Toro 786072

Spacer

$

$

Currently unavailable

76

Toro 780090

Washer

$

$

Currently unavailable

77

Toro 788075

Ring-Retaining

$

$

Currently unavailable

78

Toro 788067b

Grease 32 Oz

$

$

Currently unavailable
