32-10BE03 (210-H) - Toro Lawn Tractor (SN: 020000001 - 029999999) (1992) Seat Assembly (212-5 212-H) Parts Diagram

Lawn Tractor

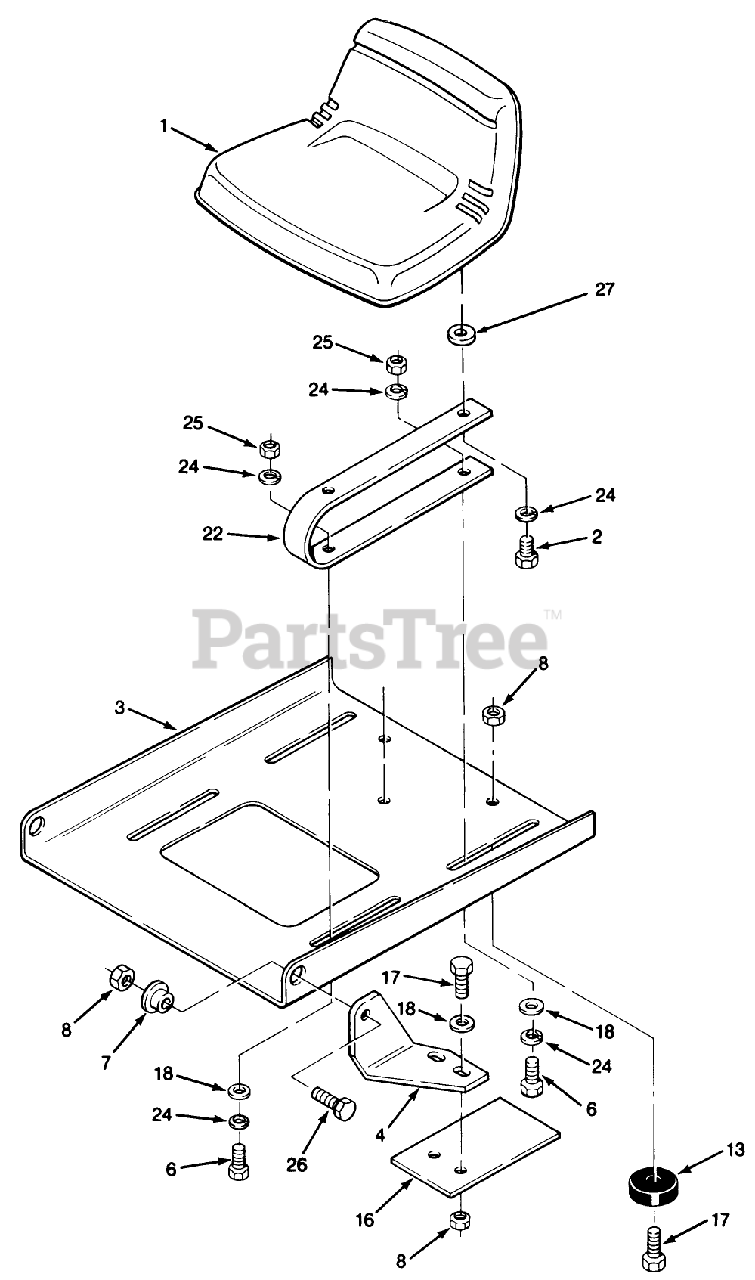

Seat Assembly (212-5 212-H) Parts Diagram

  • Title

1

Toro 78-9160

DISCONTINUED

$

$

Not available

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 113852

DISCONTINUED

$

$

Not available

4

Toro 112745

BRACKET-PIVOT L.H *B

$

$

Not available

Toro 112744

BRACKET-PIVOT R.H *B (NS)

Note: Not illustrated

$

$

Not available

6

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 108889

BUMPER

$27.99

$

Usually ships in 3-6 days

0

16

Toro 112961

DISCONTINUED

$

$

Not available

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

22

Toro 112837

DISCONTINUED

$

$

Not available

24

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

25

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

26

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 17

0

27

Toro 109989

SPACER-NYLON

$5.99

$

In Stock, only 2 left!

0
