32-11B301 (211-3) - Toro Lawn Tractor (1987) SEAT AND SUSPENSION Parts Diagram

Lawn Tractor

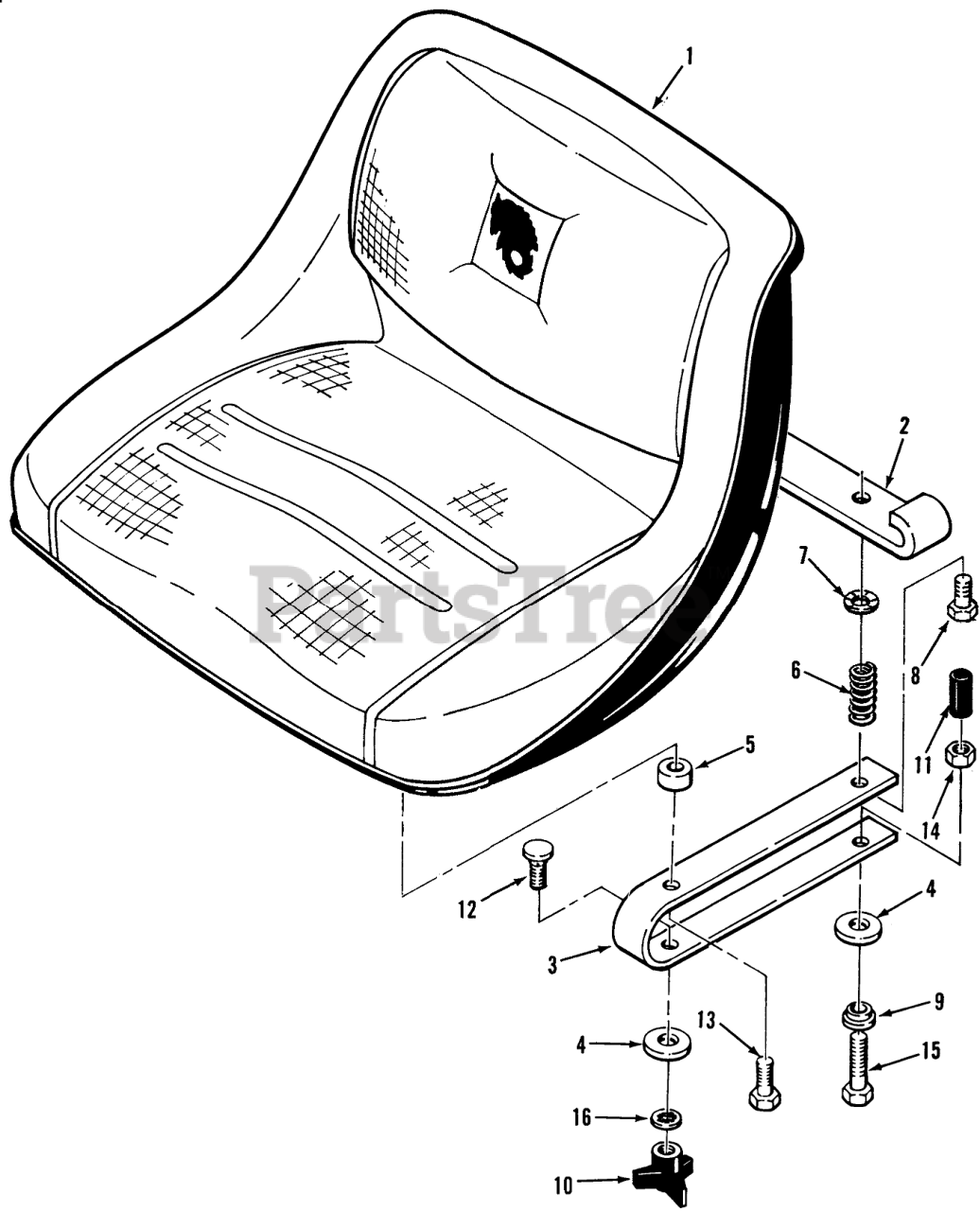

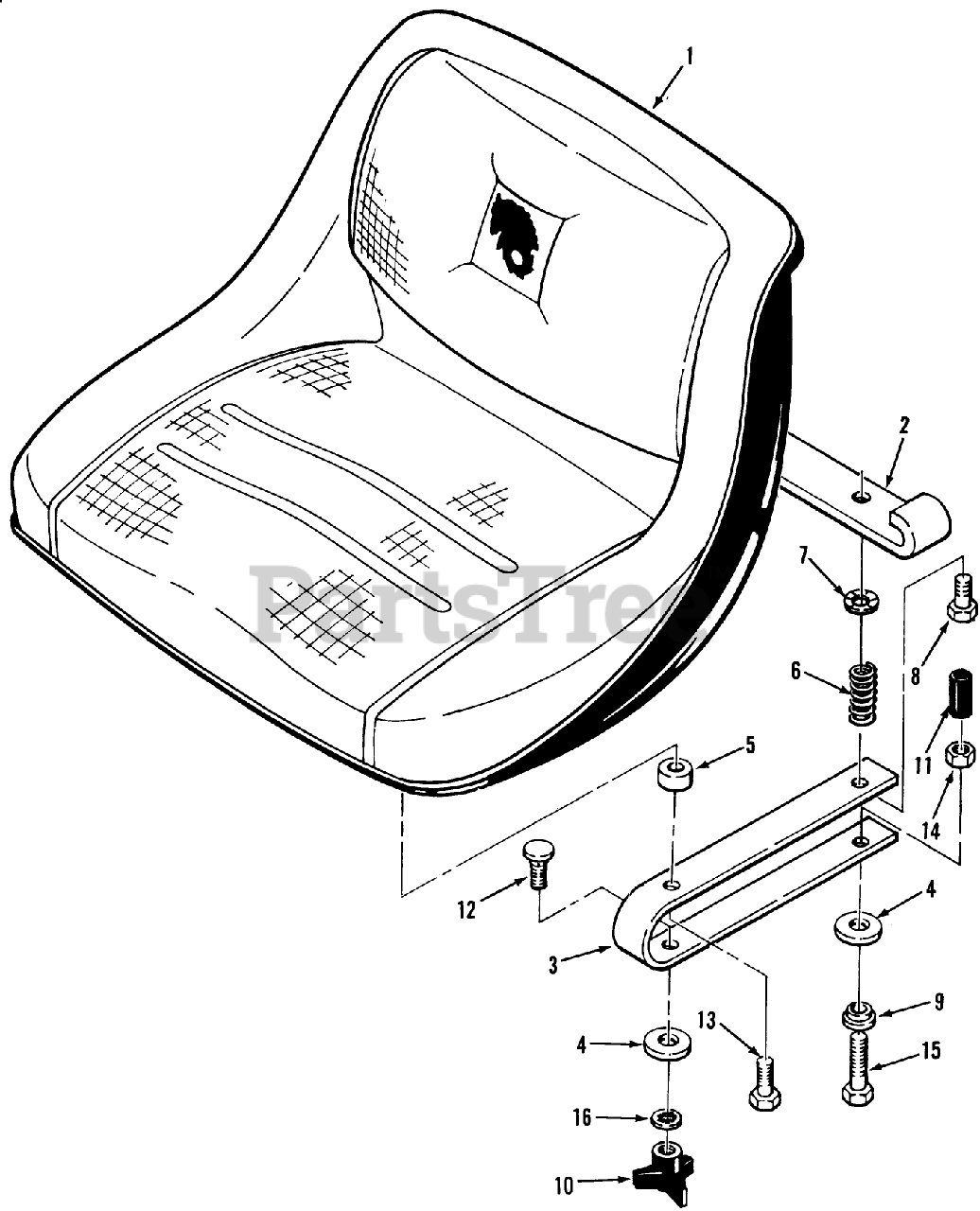

SEAT AND SUSPENSION Parts Diagram

  • Title

1

Toro 108912

Seat
(Superseded to 78-7600)

$461.99

$

Usually ships in 3-6 days

0

Toro 105999

Seat 310-8
(Superseded to 78-7600)

$461.99

$

Usually ships in 3-6 days

0

2

Toro 111444

PLATE SEAT SWITCH B

$

$

Not available

3

Toro 111460

Seat Spring

$

$

Not available

4

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

5

Toro 108787

GROMMET-RUBBER

$

$

Not available

6

Toro 111678

SPRING COMPRESSION

$

$

Not available

7

Toro 108457

NUT-PUSH

$

$

Not available

8

Toro 111677

Special Bolt

$

$

Not available

9

Toro 105503

BUSHING

$0.99

$

In Stock, Qty 9

0

10

Toro 8610

Knob

$

$

Not available

11

Toro 111439

GRIP

$

$

Not available

12

Toro 900039

Bolt-Carriage
(Superseded to 3230-3)

$1.49

$

In Stock, Qty 20+

0

13

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

14

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

15

Toro 911444

Full Thread Bolt 5/16 x 1-1/2
(Superseded to 322-41)

$3.99

$

In Stock, Qty 19

0

16

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available
