32-12K601 (212-6) - Toro Lawn Tractor (1987) 4, 5 & 6-SPEED TRANSMISSION Parts Diagram

Lawn Tractor

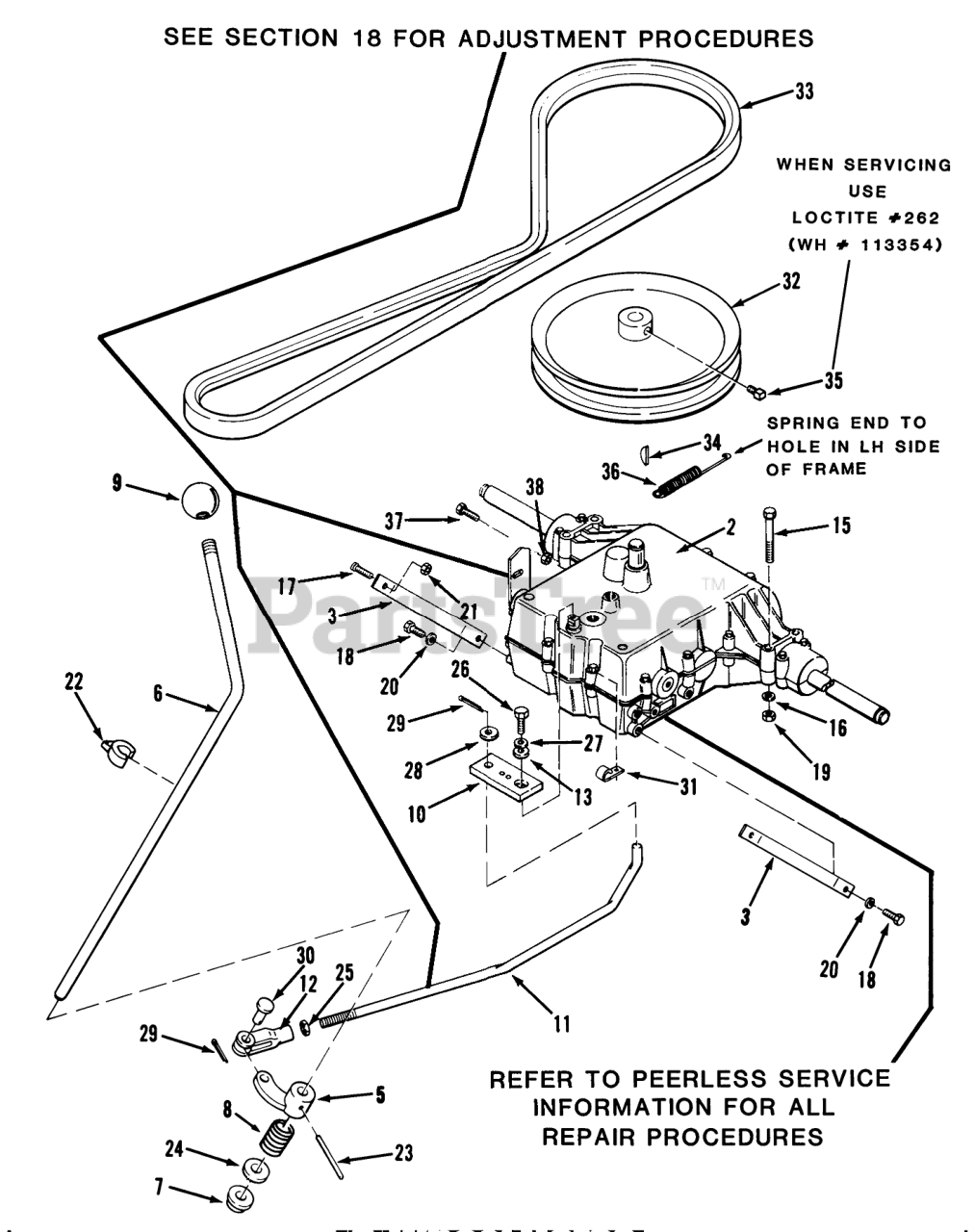

4, 5 & 6-SPEED TRANSMISSION Parts Diagram

  • Title

2

Toro 112133

Trans.-4-Spd.(Peerless Model 900-029)

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown.

$

$

Currently unavailable

2

Toro 112299

Trans.-5-Spd.(Peerless Model 920-009)

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown.

$

$

Not available

2

Toro 112145

Trans.-6-Spd.(Peerless Model 920-010)

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown.

$

$

Currently unavailable

3

Toro 112982

TORQUE-STRAP R

$

$

Not available

3

Toro 111429

TORQUE STRAP R

$

$

Not available

5

Toro 111430

ARM SHIFTER B

$

$

Not available

6

Toro 111431

ROD SHIFT LEVER

$

$

Not available

7

Toro 5666

BUSHING-NYLINER

$3.49

$

In Stock, Qty 7

0

8

Toro 111432

SPRING COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

9

Toro 112983

KNOB

$24.99

$

Usually ships in 3-6 days

0

10

Toro 111433

ARM-TRANSMISSION R

$

$

Not available

11

Toro 111672

ROD LINKAGE 3SPD

$

$

Not available

12

Toro 8812

CLEVIS

$43.99

$

Usually ships in 3-6 days

0

13

Toro 104869

WASHER

$

$

Not available

15

Toro 908025

HHCS
(Superseded to 322-12)

$1.99

$

In Stock, Qty 14

0

16

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

17

Toro 900036

CARRIAGE BOLT -4

$1.99

$

Usually ships in 3-6 days

0

18

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

In Stock, only 2 left!

0

19

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

20

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, Qty 6

0

21

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

22

Toro 113025

POINTER

$3.99

$

Usually ships in 3-6 days

0

23

Toro 933273

SPIROL PIN 7/32X21/2

$2.49

$

Usually ships in 3-6 days

0

24

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, Qty 6

0

24

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

25

Toro 915084

Nut
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 20+

0

26

Toro 908153

Bolt 1/4-28 X 7/8
(Superseded to 329-5)

$

$

Not available

27

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0

28

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

29

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

30

Toro 932121

PIN

$

$

Not available

31

Toro 111357

J-CLIP

$

$

Not available

32

Toro 111532

Transmission Pulley

$

$

Not available

33

Toro 111435

BELT-V

$

$

Not available

34

Toro 937225

KEY-HI-PRO

$4.99

$

In Stock, only 1 left!

0

35

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, Qty 6

0

36

Toro 110769

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

37

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

38

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0
