32-16BE01 (216-H) - Toro Lawn Tractor (1990) CARBURETOR AND AIR CLEANER Parts Diagram

Lawn Tractor

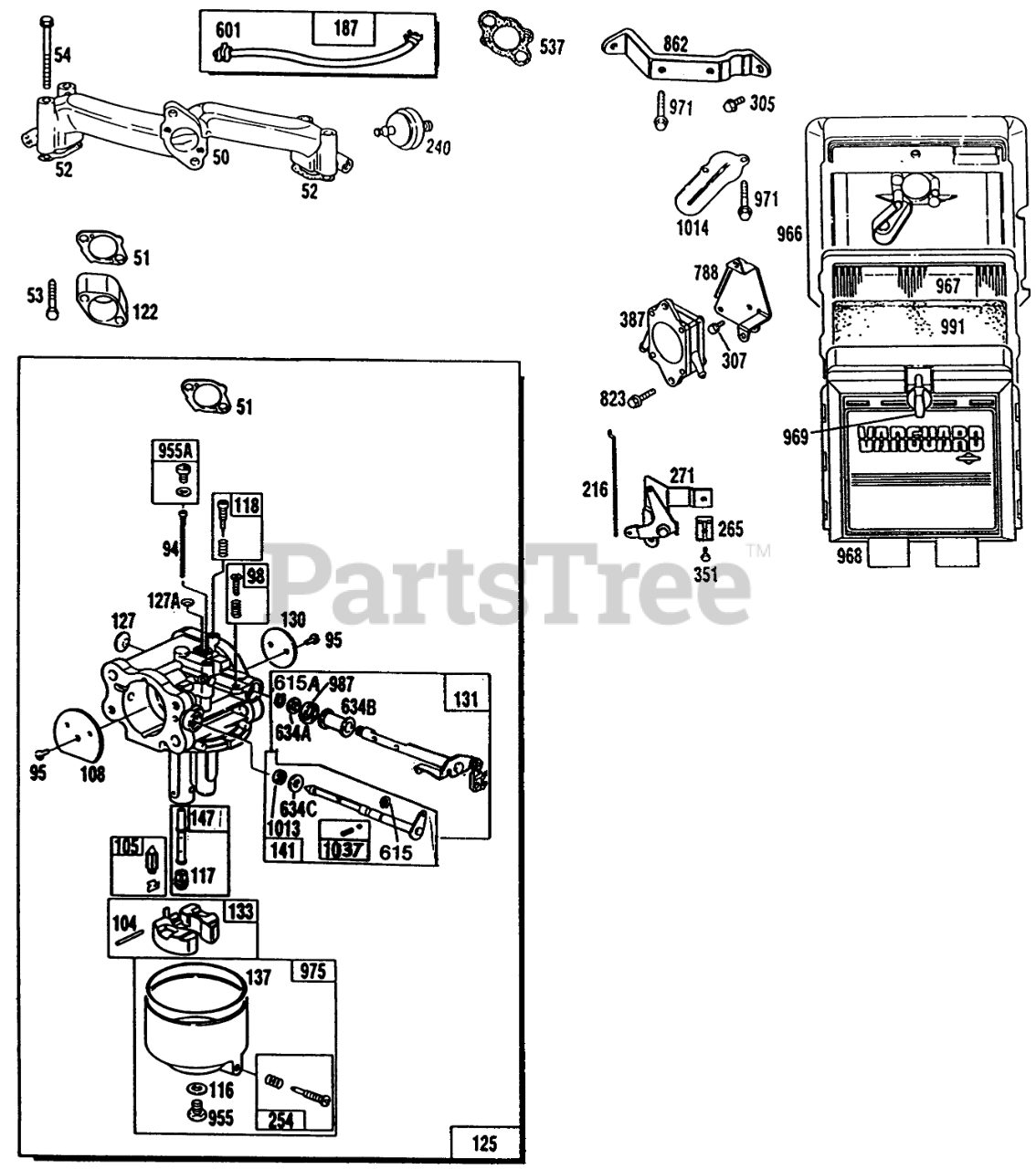

CARBURETOR AND AIR CLEANER Parts Diagram

  • Title

50

Toro 78-3750

Manifold-Intake

$

$

Not available

51

Toro 78-3770

Gasket

$

$

Not available

52

Toro 78-3780

Gasket-Intake Manifold

$

$

Not available

53

Toro 78-3790

Screw

$

$

Not available

54

Toro 78-3800

Screw

$

$

Not available

94

Toro 78-3850

Nozzle

$

$

Not available

95

Toro 78-3860

Screw

$

$

Not available

98

Toro 78-3870

Screw-Throttle Adj.

$

$

Not available

104

Toro 78-3880

Pin

$

$

Not available

105

Toro 78-3890

Inlet Valve

$

$

Not available

108

Toro 78-3900

Choke Valve

$

$

Not available

116

Toro 78-3910

"O"Ring

$

$

Not available

117

Toro 78-3920

"O"Ring

$

$

Not available

118

Toro 78-3950

Valve Assembly

$

$

Not available

122

Toro 78-3970

Spacer

$

$

Not available

125

Toro 78-3980

Carburetor Assembly

$

$

Not available

127

Toro 78-3990

Plug

$

$

Not available

127A

Toro 78-4000

Plug

$

$

Not available

130

Toro 78-4010

Valve

$

$

Not available

131

Toro 78-4020

Shaft

$

$

Not available

133

Toro 78-4030

Float Asembly

$

$

Not available

137

Gasket (Sold in Kit Only)

$

$

Not available

141

Toro 78-4040

Choke Shaft

$

$

Not available

187

Toro 78-4100

Hose

$

$

Not available

216

Toro 78-4170

Choke Link

$

$

Not available

240

Toro 78-4220

Filter

$

$

Not available

254

Toro 78-4250

Drain

$

$

Not available

265

Toro 78-4240

Clamp

$

$

Not available

271

Toro 78-4260

Bracket

$

$

Not available

305

Toro 78-4300

Screw

$

$

Not available

307

Toro 78-4310

Screw

$

$

Not available

351

Toro 78-4420

Screw

$

$

Not available

387

Toro 78-4490

PUMP-FUEL

$

$

Not available

537

Toro 78-4610

Gasket

$

$

Not available

601

Toro 78-4690

Clamp

$

$

Not available

615

Toro 78-4720

Retainer-Choke Shaft

$

$

Not available

615A

Toro 78-4730

Retainer-Throttle Shaft

$

$

Not available

634A

Toro 78-4760

Collar-Throttle

$

$

Not available

634B

Toro 78-4770

Collar-Throttle

$

$

Not available

634C

Toro 78-4780

Choke Collar

$

$

Not available

788

Toro 78-4870

Bracket

$

$

Not available

823

Toro 78-4920

Screw

$

$

Not available

862

Toro 78-4950

Bracket

$

$

Not available

955

Toro 78-5070

Screw

$

$

Not available

955A

Toro 78-5080

Plug and Seal

$

$

Not available

966

Toro 78-5090

Base

$

$

Not available

967

Toro 78-5100

FILTER-AIR CLEANER

$

$

Not available

968

Toro 78-5110

Cover

$

$

Not available

969

Toro 78-5120

Screw

$

$

Not available

971

Toro 78-5130

Screw

$

$

Not available

975

Toro 78-5140

Bowl Assembly

$

$

Not available

987

Toro 78-5180

Seal

$

$

Not available

991

Toro 78-5190

Pre-Filter

$

$

Not available

1013

Toro 78-5220

Seal

$

$

Not available

1037

Toro 78-5150

Ball

$

$

Not available

Toro 78-3760

Gasket Kit (Includes Items 7,9,51,52,537,883,978 1022)

Note: Not illustrated

$

$

Not available

Toro 78-3960

Valve Overhaul Kit (Includes Items 6, 7, 167 & 171)

Note: Not illustrated

$

$

Not available

Toro 78-3940

Carburetor Gasket Kit (Includes Items 116B, 137, 987 & 1013)

Note: Not illustrated

$

$

Not available

Toro 78-3930

Carburetor Overhaul Kit (Includes Items 116B, 117, 127, 127A, 137, 147, 634A, 634B, 634C, 987 & 1013)

Note: Not illustrated

$

$

Not available
