32-16BE01 (216-H) - Toro Lawn Tractor (1990) Cylinder, Oil Pump And Crankshaft Parts Diagram

Lawn Tractor

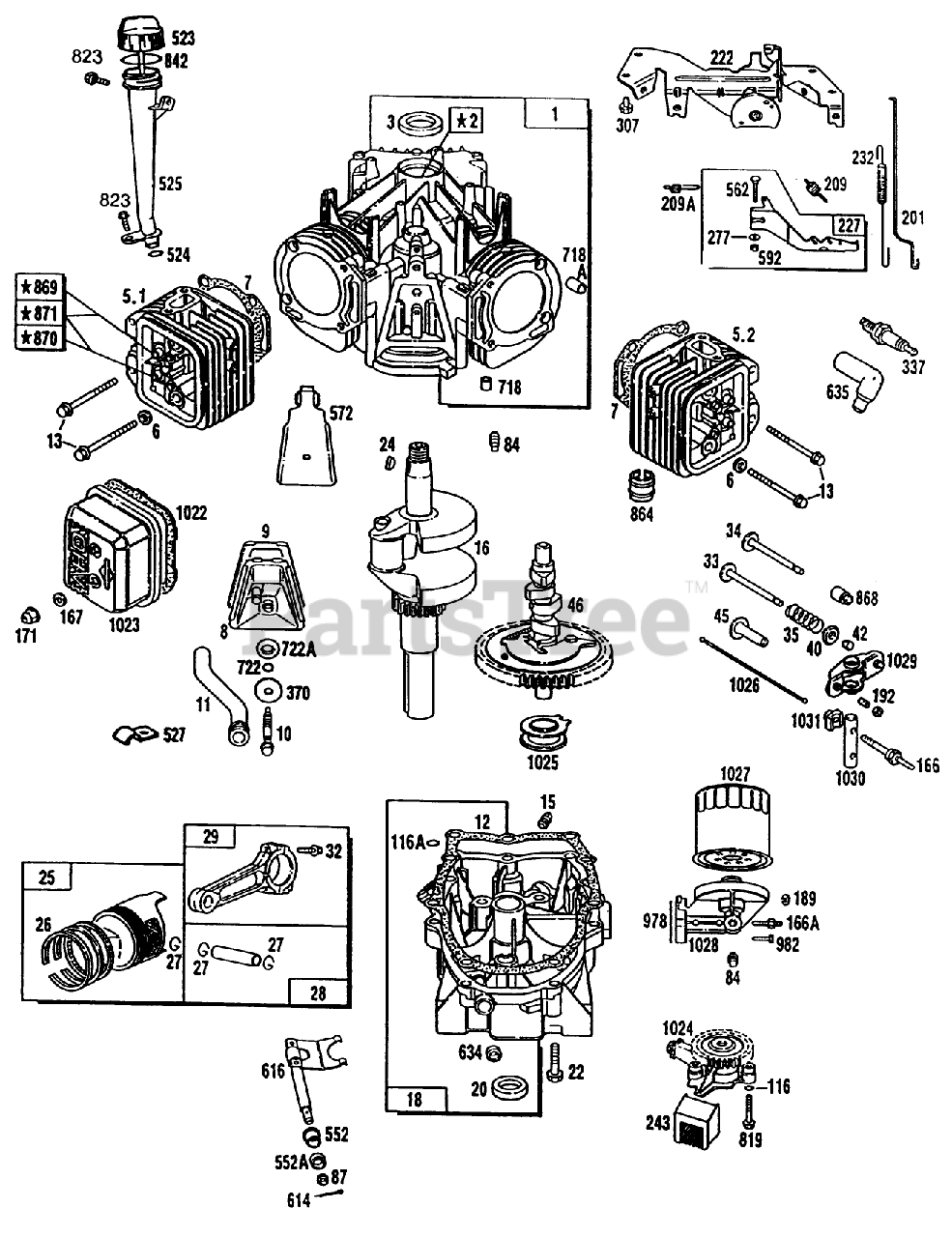

Cylinder, Oil Pump And Crankshaft Parts Diagram

  • Title

1

Toro 78-3410

BRIGGS-807511

$

$

Not available

2

Toro 78-3420

BRIGGS-807687

$

$

Not available

3

Toro 78-3430

BRIGGS-805101

$

$

Not available

5.1

Toro 78-3440

BRIGGS-807508

$

$

Not available

5.2

Toro 78-3450

BRIGGS-807510

$

$

Not available

6

Toro 78-3460

BRIGGS-805193

$

$

Not available

7

Toro 78-3470

BRIGGS-805111

$

$

Not available

8

Toro 78-3480

DISCONTINUED

$

$

Not available

9

Toro 78-3490

BRIGGS-805379

$

$

Not available

10

Toro 78-3500

BRIGGS-805194

$

$

Not available

11

Toro 78-3510

BRIGGS-805362

$

$

Not available

12

Toro 78-3520

BRIGGS-805112

$

$

Not available

13

Toro 78-3530

BRIGGS-805097

$

$

Not available

15

Toro 78-3540

DISCONTINUED

$

$

Not available

16

Toro 78-3550

DISCONTINUED

$

$

Not available

18

Toro 78-3570

BRIGGS-807638

$

$

Not available

20

Toro 78-3580

BRIGGS 805049

$

$

Not available

22

Toro 78-3590

BRIGGS-805017

$

$

Not available

24

Toro 78-3610

BRIGGS-805016

$

$

Not available

25

Toro 78-3620

DISCONTINUED

$

$

Not available

26

Toro 78-3630

BRIGGS-870620

$

$

Not available

27

Toro 78-3640

BRIGGS 805099

$

$

Not available

28

Toro 78-3650

BRIGGS-807621

$

$

Not available

29

Toro 78-3660

BRIGGS-807622

$

$

Not available

32

Toro 78-3670

BRIGGS-805395

$

$

Not available

33

Toro 78-3680

BRIGGS-807681

$

$

Not available

34

Toro 78-3690

BRIGGS-807680

$

$

Not available

35

Toro 78-3700

BRIGGS 805078

$

$

Not available

40

Toro 78-3710

BRIGGS-805092

$

$

Not available

42

Toro 78-3720

BRIGGS-807683

$

$

Not available

45

Toro 78-3730

BRIGGS 805354

$

$

Not available

46

Toro 78-3740

BRIGGS-807542

$

$

Not available

84

Toro 78-3830

BRIGGS-805059

$

$

Not available

87

Toro 78-3840

BRIGGS-805054

$

$

Not available

116

Toro 78-3910

BRIGGS-805058

$

$

Not available

116A

Toro 78-3920

BRIGGS-805198

$

$

Not available

166

Toro 78-4060

DISCONTINUED

$

$

Not available

166A

Toro 78-4070

BRIGGS 805073

$

$

Not available

167

Toro 78-4080

BRIGGS-805420

$

$

Not available

171

Toro 78-4090

BRIGGS 805019

$

$

Not available

189

Toro 78-4120

BRIGGS-805449

$

$

Not available

192

Toro 78-4130

BRIGGS-807623

$

$

Not available

201

Toro 78-4140

BRIGGS 805480

$

$

Not available

209

Toro 78-4150

BRIGGS-805462

$

$

Not available

209A

Toro 78-4160

BRIGGS-805453

$

$

Not available

222

Toro 78-4180

BRIGGS-807610

$

$

Not available

227

Toro 78-4200

BRIGGS-807528

$

$

Not available

232

Toro 78-4210

DISCONTINUED,BRIGGS#692073

$

$

Not available

243

Toro 78-4230

BRIGGS-805312

$

$

Not available

277

Toro 78-4280

BRIGGS-805018

$

$

Not available

307

Toro 784310

Screw

$

$

Currently unavailable

337

Toro 784410

Spark Plug

$

$

Currently unavailable

370

Toro 784480

Washer

$

$

Currently unavailable

523

Toro 78-4560

BRIGGS-807516

$

$

Not available

524

Toro 78-4570

BRIGGS 805011

$

$

Not available

525

Toro 784580

Tube

$

$

Currently unavailable

527

Toro 78-4600

BRIGGS 223167

$

$

Not available

552

Toro 78-4630

BRIGGS-805412

$

$

Not available

552A

Toro 784640

Bushing

$

$

Currently unavailable

562

Toro 784650

Bolt

$

$

Currently unavailable

572

Toro 784660

Baffle

$

$

Currently unavailable

592

Toro 78-4680

BRIGGS 805383

$

$

Not available

614

Toro 78-4710

BRIGGS 805417

$

$

Not available

615

Toro 784720

Choke Shaft Retainer

$

$

Currently unavailable

634

Toro 784750

Washer

$

$

Currently unavailable

635

Toro 784790

Elbow

$

$

Currently unavailable

718

Toro 784810

Dowel Pin

$

$

Currently unavailable

718A

Toro 78-4820

BRIGGS 805102

$

$

Not available

722

Toro 784830

Seal

$

$

Currently unavailable

722A

Toro 784840

Seal

$

$

Currently unavailable

819

Toro 784910

Screw

$

$

Currently unavailable

823

Toro 784920

Screw

$

$

Currently unavailable

842

Toro 78-4930

BRIGGS-805012

$

$

Not available

864

Toro 78-4960

BRIGGS 805083

$

$

Not available

868

Toro 78-4980

BRIGGS-805094

$

$

Not available

869

Toro 78-4990

BRIGGS-805085

$

$

Not available

870

Toro 78-5000

BRIGGS-805086

$

$

Not available

871

Toro 78-5010

BRIGGS-805084

$

$

Not available

978

Toro 78-5160

BRIGGS 805250

$

$

Not available

982

Toro 78-5170

BRIGGS-805030

$

$

Not available

1022

Toro 78-5240

BRIGGS-805028

$

$

Not available

1023

Toro 78-5250

BRIGGS-805100

$

$

Not available

Toro 78-5260

BRIGGS-807655

$

$

Not available

1024

Toro 78-5270

BRIGGS-807546

$

$

Not available

1025

Toro 78-5280

BRIGGS-805313

$

$

Not available

1026

Toro 78-5290

OBTAIN LOCALLY

$

$

Not available

1027

Toro 78-5300

See Supercession: 107-7817
(Superseded to 107-7817)

$19.99

$

In Stock, only 4 left!

0

1028

Toro 78-5310

BRIGGS 805292

$

$

Not available

1029

Toro 78-5320

BRIGGS-807557

$

$

Not available

1030

Toro 78-4460

BRIGGS-805342

$

$

Not available

1031

Toro 78-4190

DISCONTINUED

$

$

Not available

Toro 78-3760

BRIGGS-807640

Note: Not illustrated

$

$

Not available

Toro 78-3960

BRIGGS-807668

Note: Not illustrated

$

$

Not available

Toro 78-3940

BRIGGS 807716

Note: Not illustrated

$

$

Not available

Toro 78-3930

BRIGGS 807708

Note: Not illustrated

$

$

Not available
